el12 Lighting Light fixtures Indoor luminaires Recessed office and decorative

ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white 4058075285002

local index:
OWG171LEDV
Catalog number:
4058075285002
EAN code:
4058075285002
ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white
ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white
ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white
ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white
ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white
ECO CLASS PANEL 600 LED luminaire 40W 3200lm IP20 3000K WW 595mm square white

Click on the photo to enlarge

Manufacturer: LEDVANCE
Light color [K]: 2000-3500 (warm)
Length [mm]: 595
beam angle [°]: 115
See full description
Price:
200,87 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

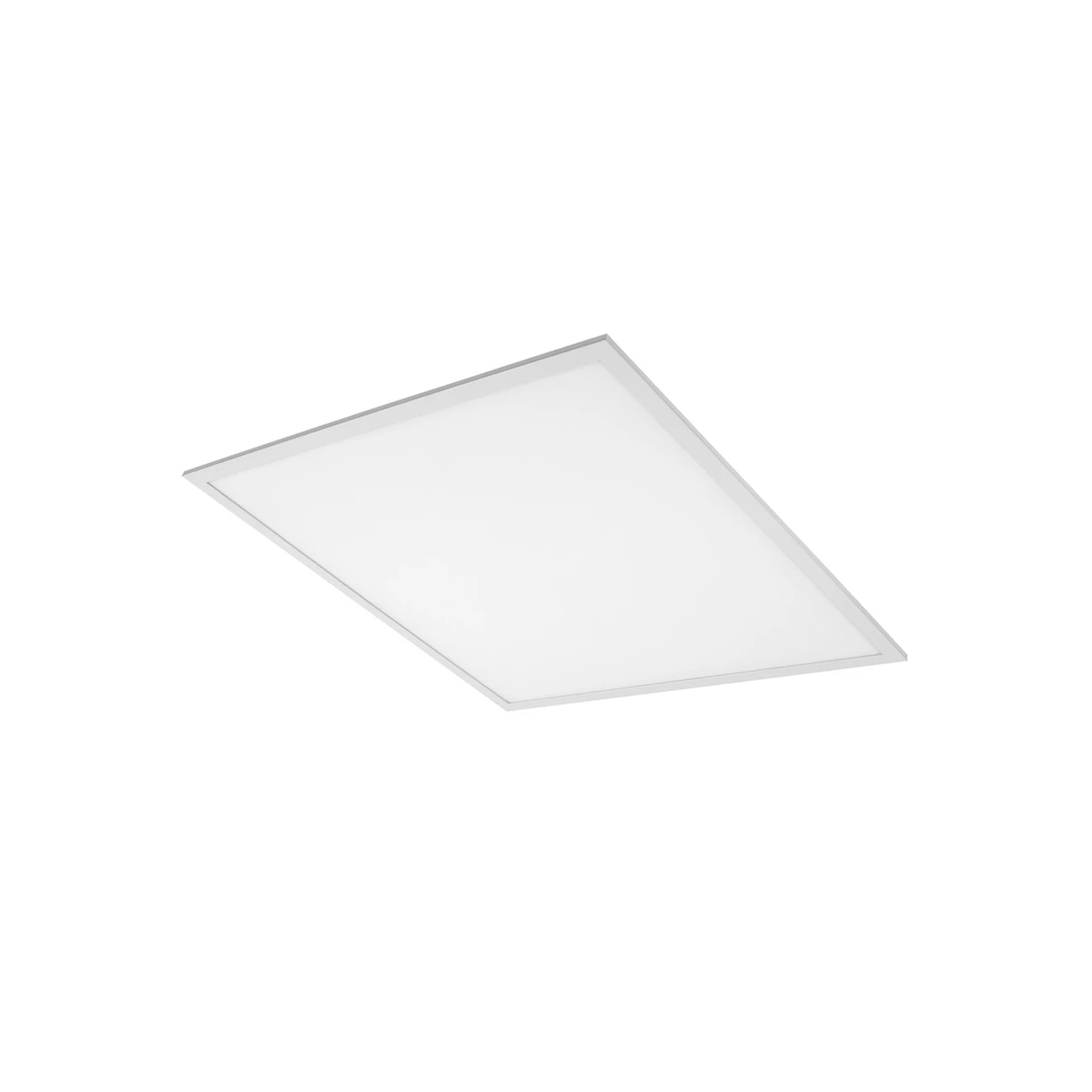

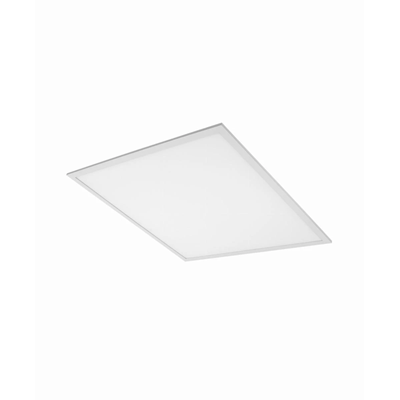

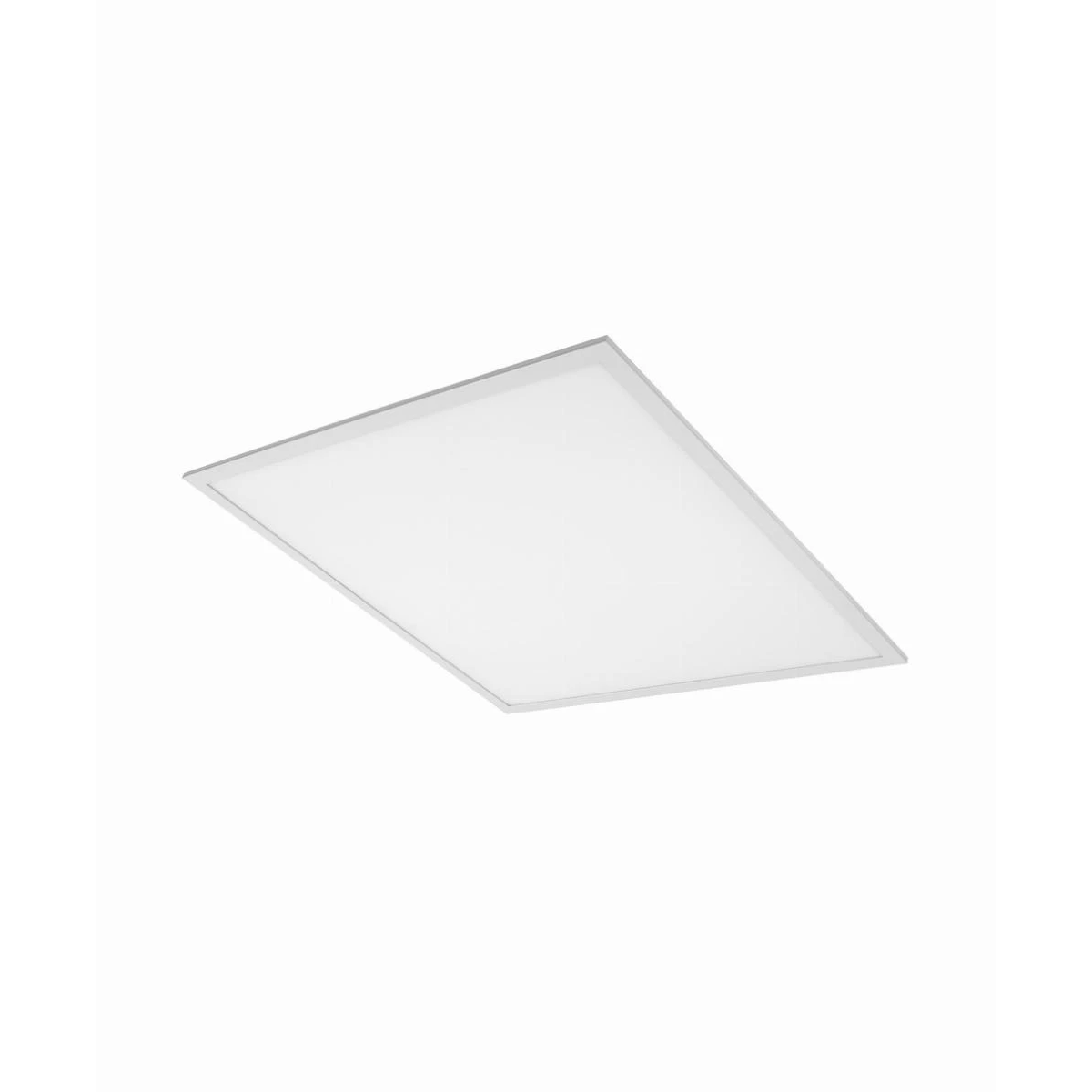

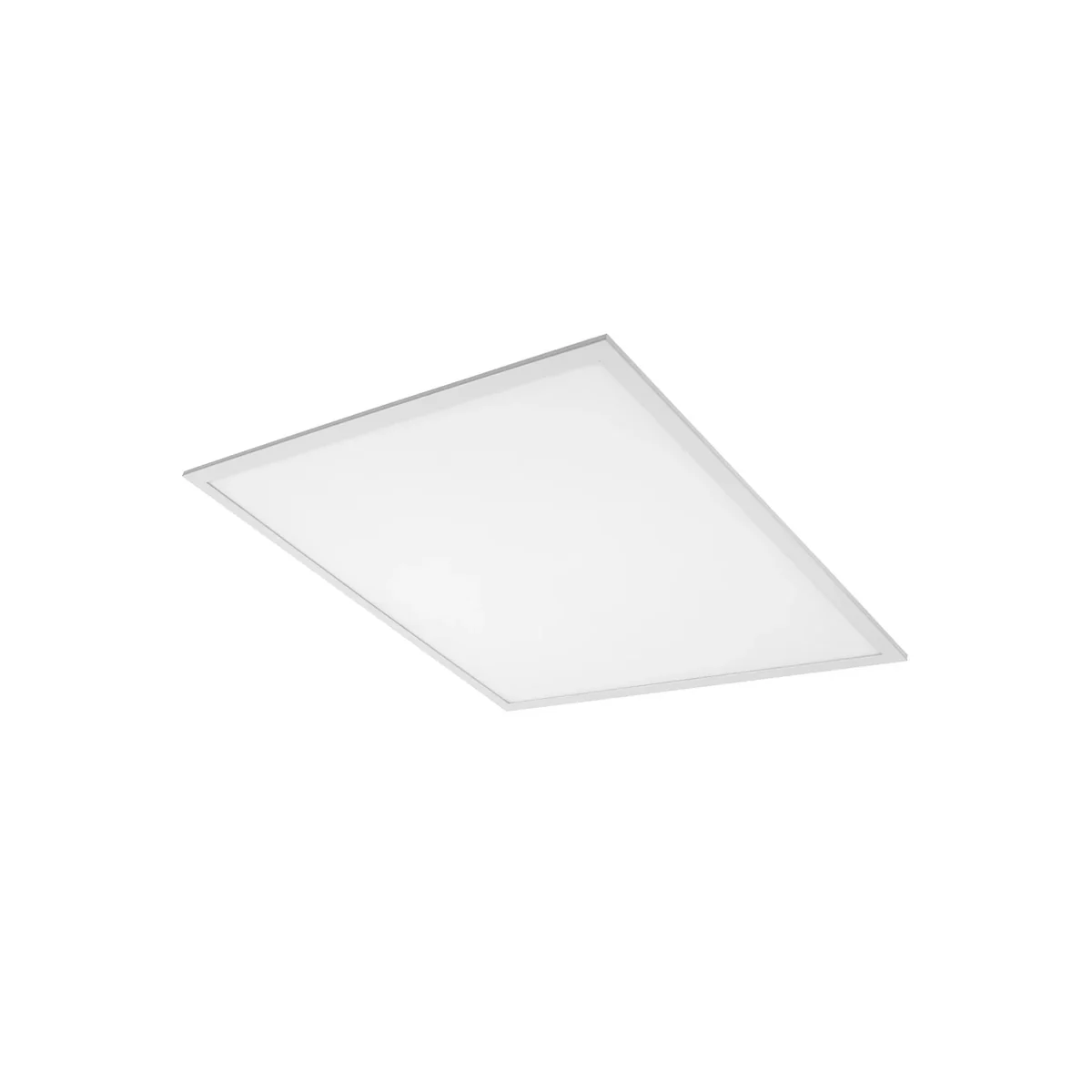

Square panel luminaire, ECO CLASS PANEL 600 series.

Product benefits

  • Low light flicker thanks to a special electronic ballast
  • Energy savings thanks to the high luminous efficiency of the system: up to 90 lm/W
  • Quick integration with the ceiling thanks to the easy installation system< /li>

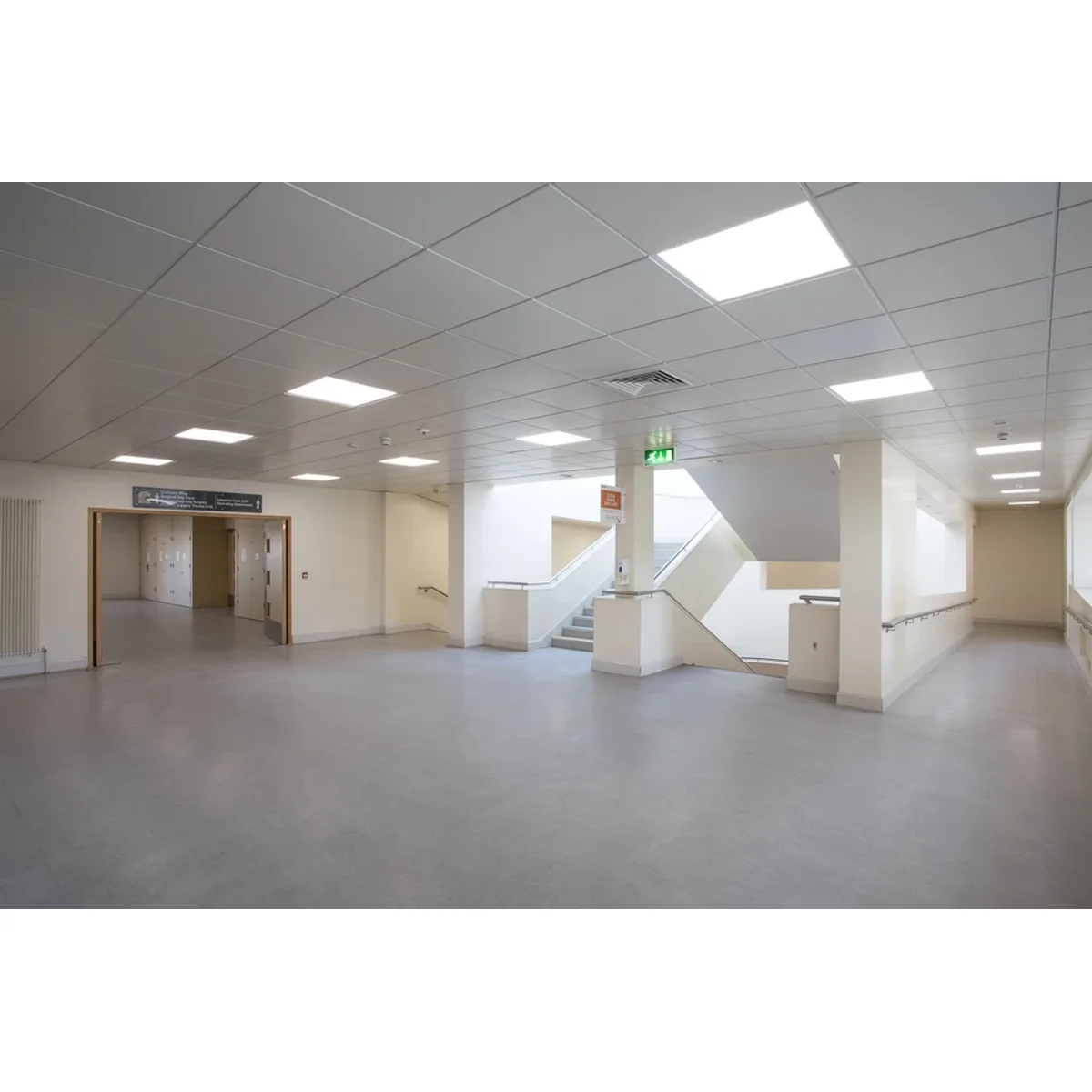

Area of application

  • Direct replacement for fluorescent luminaires
  • Corridors
  • Offices
  • Conference rooms
  • Lobby
  • Reception desks
  • Elevators
  • Suitable ceiling recessed luminaires, module 600 x 600 mm

Equipment / Accessories

  • Accessories are available for several types of mounting

Technical data

  • Light color [K]
    2000-3500 (warm)
  • beam angle [°]
    115
  • Color
    White
  • Power [W]
    40
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    80
  • luminous flux [lm]
    3200
  • Durability [h]
    50000
  • Degree of mechanical protection
    IK02
  • Color Temperature [K]
    3000
  • Light-emitting surface material
    PMMA

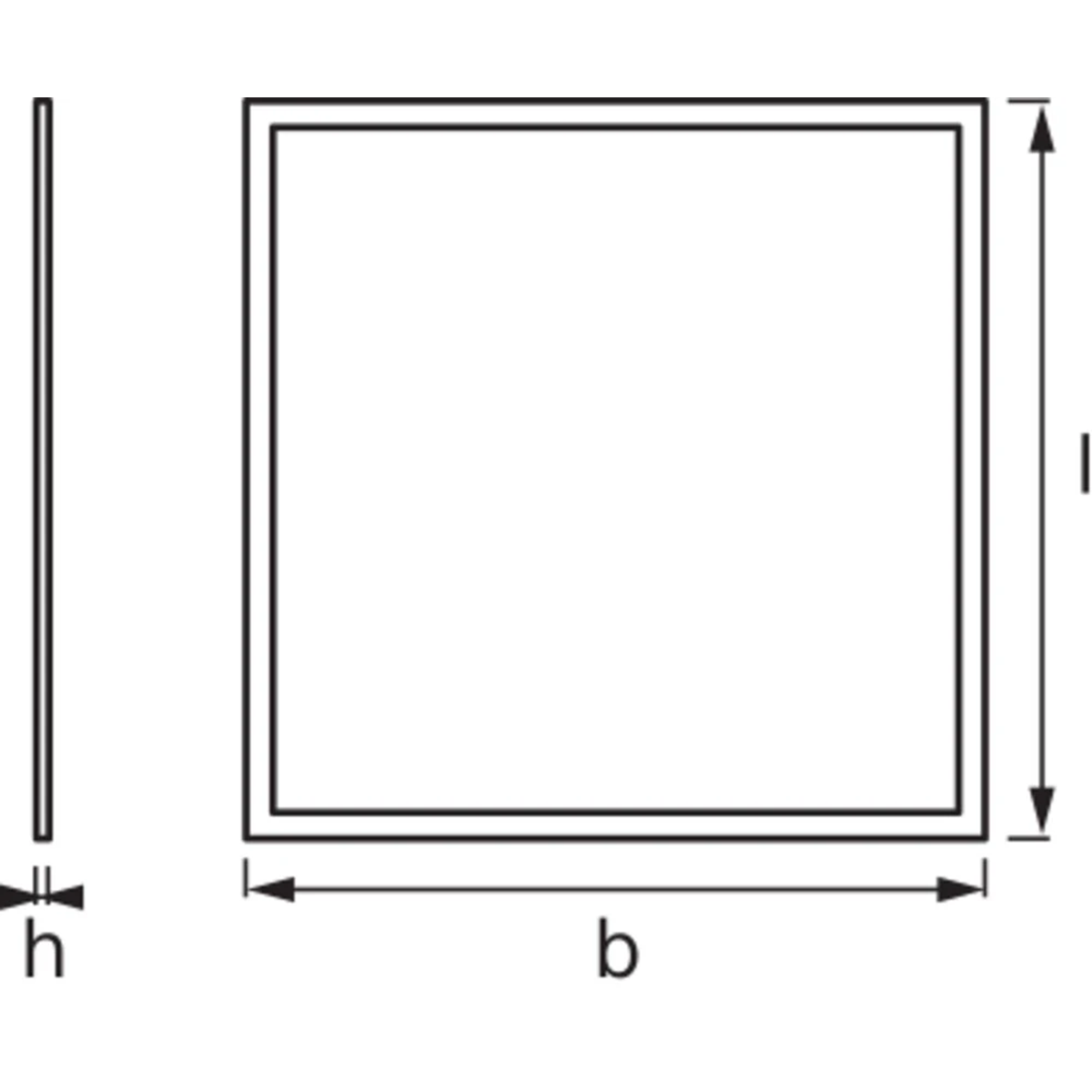

  • Length [mm]
    595
  • Protection class
    II
  • Housing material
    Aluminum
  • Installation
    Flush-mounted
  • Family
    ECO CLASS PANEL 600
  • Level of security
    IP20
  • Width [mm]
    595
  • Height [mm]
    9
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80
  • PKWIU
    27.40.25

Other technical data

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for clamp-mounting
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection housing
    Powder coating
  • Type of grid
    Other
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimmable
    No
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Degree of protection (IP), rear side
    IP20
  • Impact strength
    IK02
  • Rated ambient temperature according to IEC 62722-2-1
    -10 ... +45 °C
  • With switch
    No
  • With light sensor
    No
  • With air slots
    No
  • Skuteczność świetlna oprawy
    80 ... 80 lm/W
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    3200 ... 3200 lm
  • Colour temperature
    3000 ... 3000 K
  • Power factor
    0.9
  • Height/depth
    8.2 mm
  • Built-in length
    580 mm
  • Built-in height/depth
    10 mm
  • Number of poles
    2
  • Unified Glare Ratio (UGR)
    22
  • Luminous flux adjustable
    No
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing material
    Aluminium
  • Housing colour
    White
  • Voltage type
    AC
  • Nominal current
    1200.000 ... 1200.000 mA
  • With control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Degree of protection (IP), front side
    IP20
  • Protection class
    II
  • Suitable for emergency lighting
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    40 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Width
    595 mm
  • Length
    595 mm
  • Built-in width
    580 mm
  • Type of wiring
    Ending
  • Photobiological safety according to EN 62471
    RG0
  • Colour of light adjustable
    No
  • Operation by Bluetooth
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 2,695 14,695
Volume (m3) 0,015 0,088
Width (m) 0,680 0,690
Length (m) 0,650 0,670
Depth (m) 0,030 0,190
