el12 Lighting Light fixtures Indoor luminaires Surface-mounted industrial and specialized

ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray 4058075463929

local index:
OWF080LEDV
Catalog No:
4058075463929
EAN code:
4058075463929

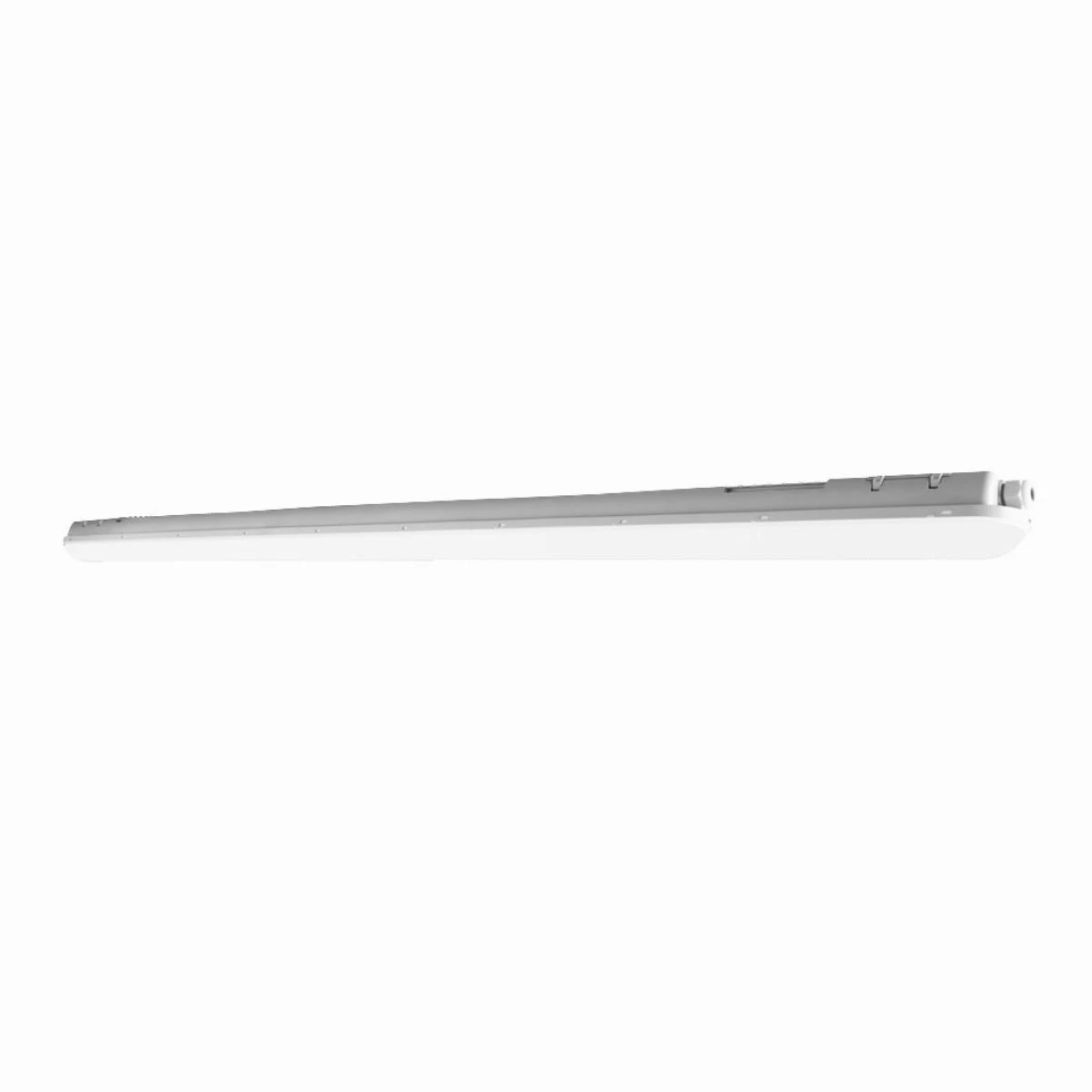

ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray
ECO CLASS DAMP PROOF GEN 2 Hermetic LED luminaire 52W 6240lm IP65 6500K CW 1510mm gray

Click on the photo to enlarge

Manufacturer: LEDVANCE
Light color [K]: 4800-6500 (cool)
Length [mm]: 1510
beam angle [°]: 120
See full description
Large-size product
Price:
38,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Product description Technical data Manufacturer details Files to download

Product description

Moisture-resistant luminairewith a classic shape, from the ECO CLASS DAMP PROOF GEN 2 series.

Product benefits

  • Róuniform light diffusion
  • Up to 50% energy savings (compared to luminaires) fluorescent lamps)
  • Easy installation, no tools required for connection

Area of application

  • Perfect for industrial and storage rooms
  • Car parks and underground passages
  • Garages
  • Workshops, assembly lines

Equipment / Accessories

  • Includes mounting kit for wall and ceiling installation

Technical data

  • Light color [K]
    4800-6500 (cool)
  • beam angle [°]
    120
  • Color
    Gray
  • Power [W]
    52
  • Rated voltage [V]
    230
  • Family
    ECO CLASS DAMP PROOF GEN 2
  • Level of security
    IP65

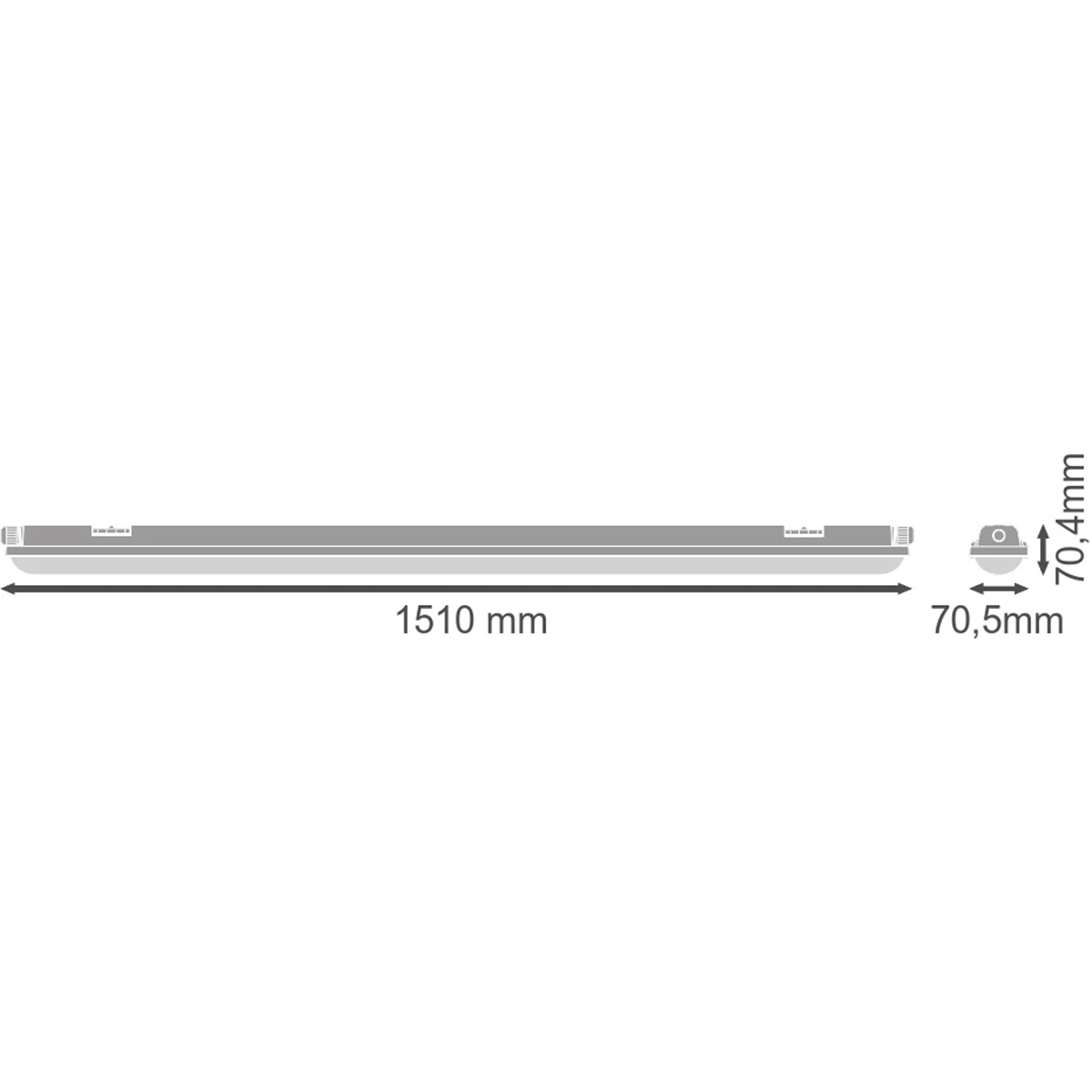

  • Width [mm]
    70.5
  • Height [mm]
    70.4
  • Degree of mechanical protection
    IK08
  • Color Temperature [K]
    6500
  • Light-emitting surface material
    Polycarbonate
  • Length [mm]
    1510
  • Protection class
    II
  • Housing material
    Polycarbonate
  • Installation
    Surface-mounted
  • Initial starting current [A]
    20
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    6240
  • Durability [h]
    30000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing colour
    Grey
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    30000 h
  • Impact strength
    IK08
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Rated luminous flux according to IEC 62722-2-1
    6240 lm
  • Colour temperature
    6500 ... 6500 K
  • Luminaire efficacy
    120 lm/W
  • Height/depth
    70.4 mm
  • Type of wiring
    Suitable for through wiring
  • Connection type
    Other
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Max. system power
    52.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Width
    70.5 mm
  • Length
    1510 mm
  • Number of poles
    3

Manufacturer details

  • Manufacturer
    LEDVANCE Sp z o.o
  • Address
    02-797 Warszawa Klimczaka 1 klatka E
  • Tax identification number
    1130104862
