DOWNLIGHT SLIM LED wall and ceiling luminaire 230V 17W 1400lm IP20 p/t NW 180 mm white 4058075063945

local index:
OWG057LEDV
Catalog No:
4058075063945
EAN code:
4058075063945
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
beam angle [°]: 120
Protection class: II
Price:
22,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

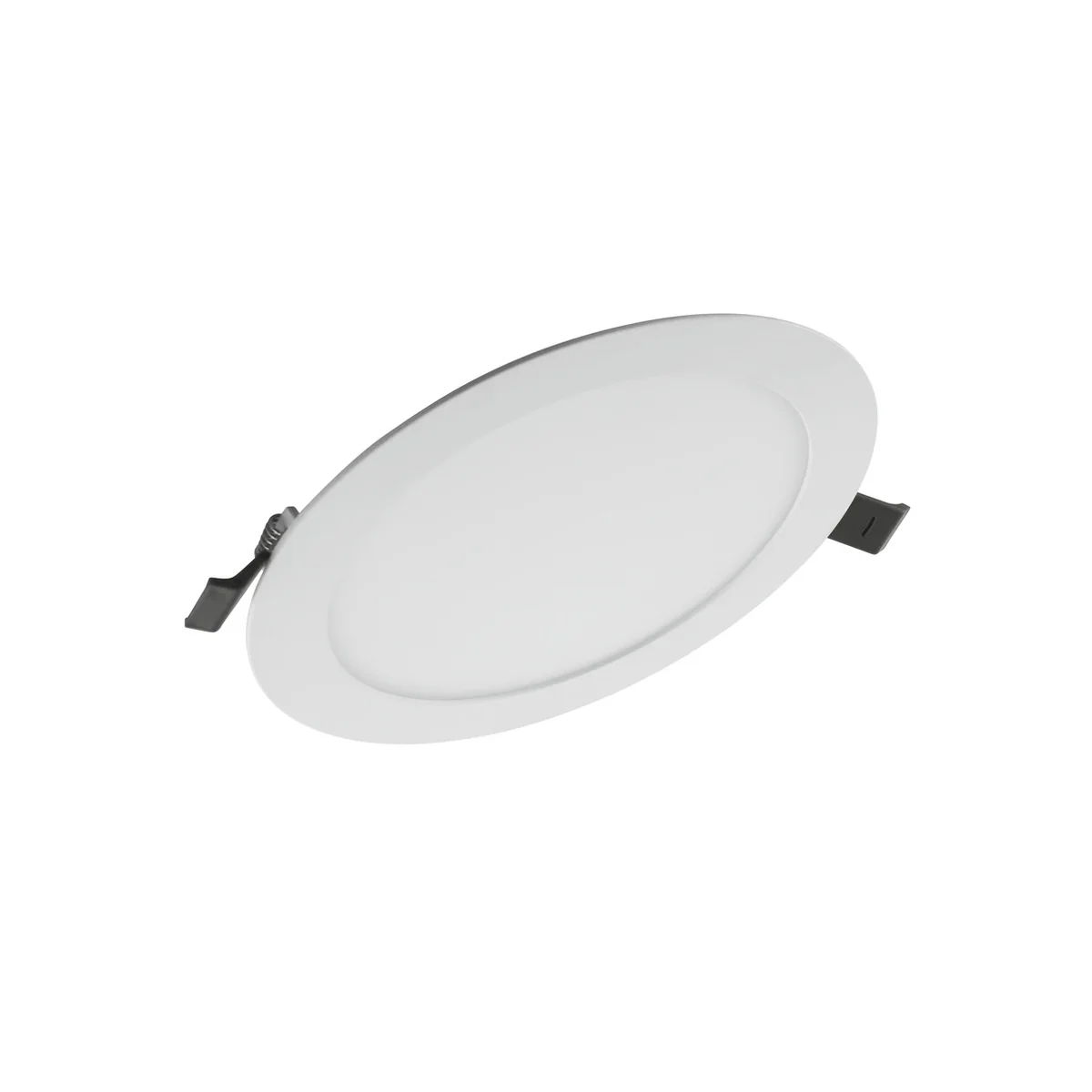

Flat luminairewith an external power supply unit and aluminum housing, DOWNLIGHT SLIM series.

Area of application:< /p>

  • Direct replacement of luminaires for compact fluorescent lamps,
  • General lighting,
  • Public areas,
  • Stairs,
  • Corridors,
  • Halls,
  • Shops.

Product benefits:

  • Very narrow housing,
  • Small installation depth,
  • High luminous efficiency,
  • Energy saving up to 60% (compared to luminaires equipped with lamps),
  • Very homogeneous light,
  • Functional design,
  • External power supply for easy replacement.

< strong>Product features:

  • Operating mode: ECG,
  • Narrow visible frame,
  • Reflector made of long-lasting, non-yellowing PMMA .

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Protection class
    II
  • Material
    Aluminum
  • Installation
    Flush-mounted
  • Output current [mA]
    330
  • Luminous efficiency [lm/W]
    80
  • luminous flux [lm]
    1400
  • Mounting hole diameter [mm]
    180
  • Color Temperature [K]
    4000
  • Lifetime (number of on/off)
    50000
  • beam angle [°]
    120
  • Color
    White
  • Power [W]
    17
  • Rated voltage [V]
    230
  • Family
    DOWNLIGHT SLIM
  • Level of security
    IP20
  • Diameter [mm]
    200
  • Height [mm]
    23
  • cri (ra)
    >80
  • PKWIU
    27.40.25

Other technical data

  • Suitable for surface mounting
    No
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No
  • Adjustability
    Not adjustable
  • With light sensor
    No
  • With light source
    Yes
  • Housing colour
    White
  • Surface brushed
    No
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    155 ... 155 mA
  • With control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Open beam/diffuse
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Rated life time L80/B10 at 25 °C
    30000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    15000 h
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Rated luminous flux according to IEC 62722-2-1
    1400 lm
  • Power factor
    0.5
  • Height/depth
    23.0 mm
  • Outer diameter
    180.0 mm
  • Built-in diameter
    180.0 mm
  • Number of poles
    2
  • Luminaire efficacy
    80 lm/W
  • Covering of the luminaire with thermally insulating material possible
    No
  • Photobiological safety according to EN 62471
    RG0
  • Suitable for built-in mounting
    Yes
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • Lamp type
    LED not exchangeable
  • Surface protection
    Powder coating
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Type of control gear
    LED operating device current-controlled
  • Ściemniacz zależny od statecznika
    No
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Reflector
    None
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Total harmonic distortion
    19
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    30000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    15000 h
  • Impact strength
    IK03
  • Max. system power
    17.00 W
  • Colour temperature
    4000 ... 4000 K
  • Luminous flux
    1400 ... 1400 lm
  • Lamp efficacy
    80 lm/W
  • Width
    180.0 mm
  • Length
    180.0 mm
  • Built-in height/depth
    40 mm
  • Type of wiring
    Ending
  • Connection type
    Other
  • Suitable for workplace according to EN 12464-1
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Colour consistency (McAdam ellipse)
    SDCM6

Manufacturer details

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,280 0,345 3,787
Volume (m3) - 0,002 0,022
Width (m) - 0,200 0,210
Length (m) - 0,050 0,500
Depth (m) - 0,200 0,210
