DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire 4058075079076

local index:
OWG008LEDV
Catalog number:
4058075079076
EAN code:
4058075079076
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire
DOWNLIGHT SLIM DN155 12W 6500K WT IP20 luminaire

Click on the photo to enlarge

Manufacturer: LEDVANCE
Price:
79,52 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

  • PKWIU
    27.40.25

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No
  • Adjustability
    Not adjustable
  • With light sensor
    No
  • With light source
    Yes
  • Housing material
    Plastic
  • Housing colour
    White
  • Surface brushed
    No
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • Dimmable
    No
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Reflector
    None

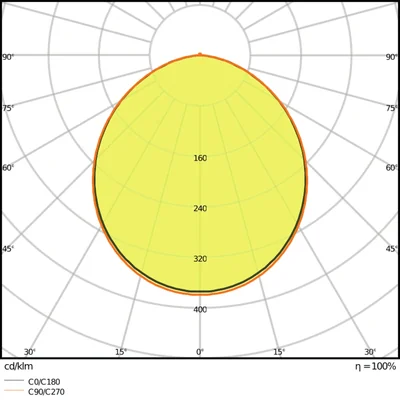

  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    30000 h
  • Degree of protection (IP), rear side
    IP20
  • Protection class
    II
  • Max. system power
    12 W
  • Colour of light adjustable
    No
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    1020 ... 1020 lm
  • Skuteczność świetlna oprawy
    85 ... 85 lm/W
  • Beam angle adjustable
    No

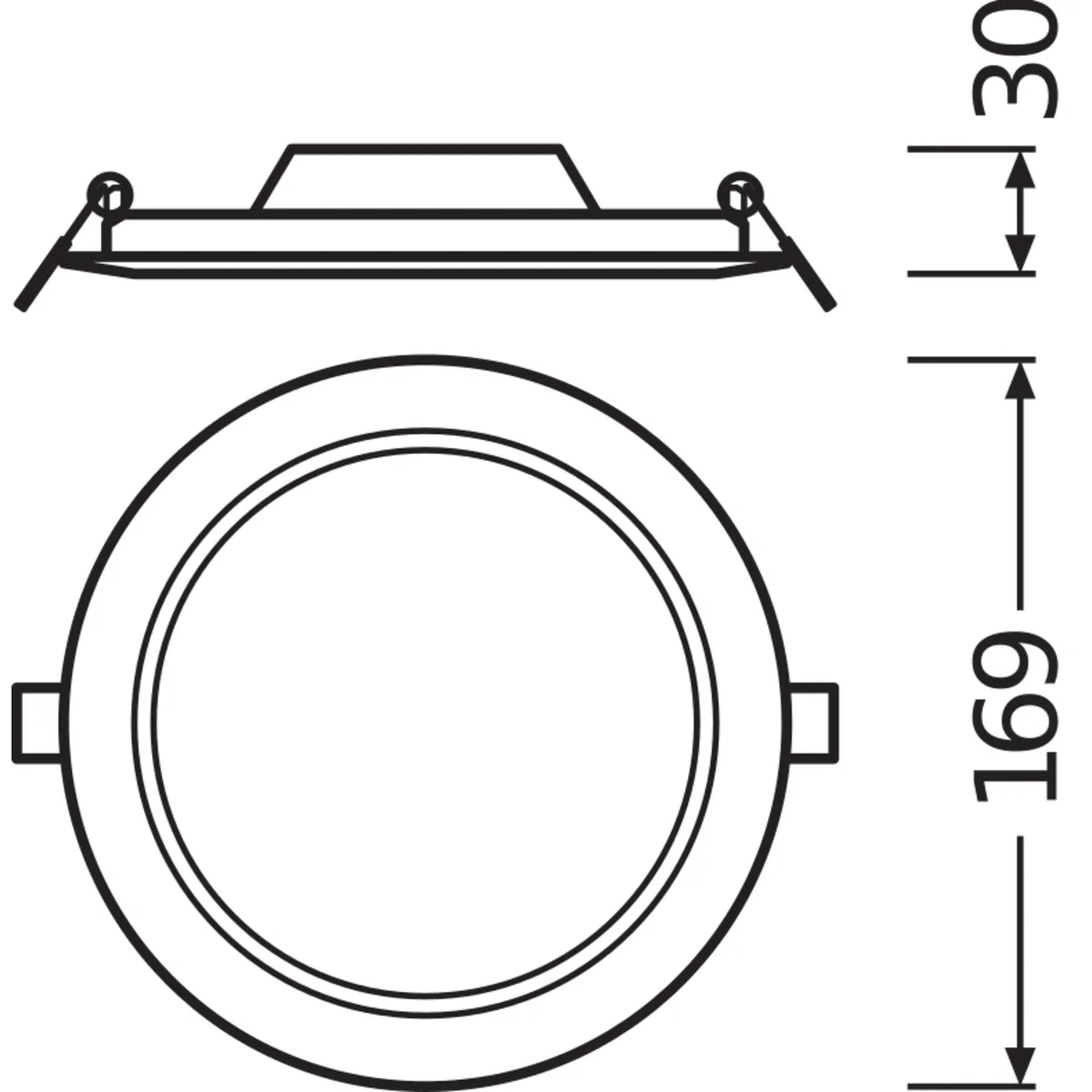

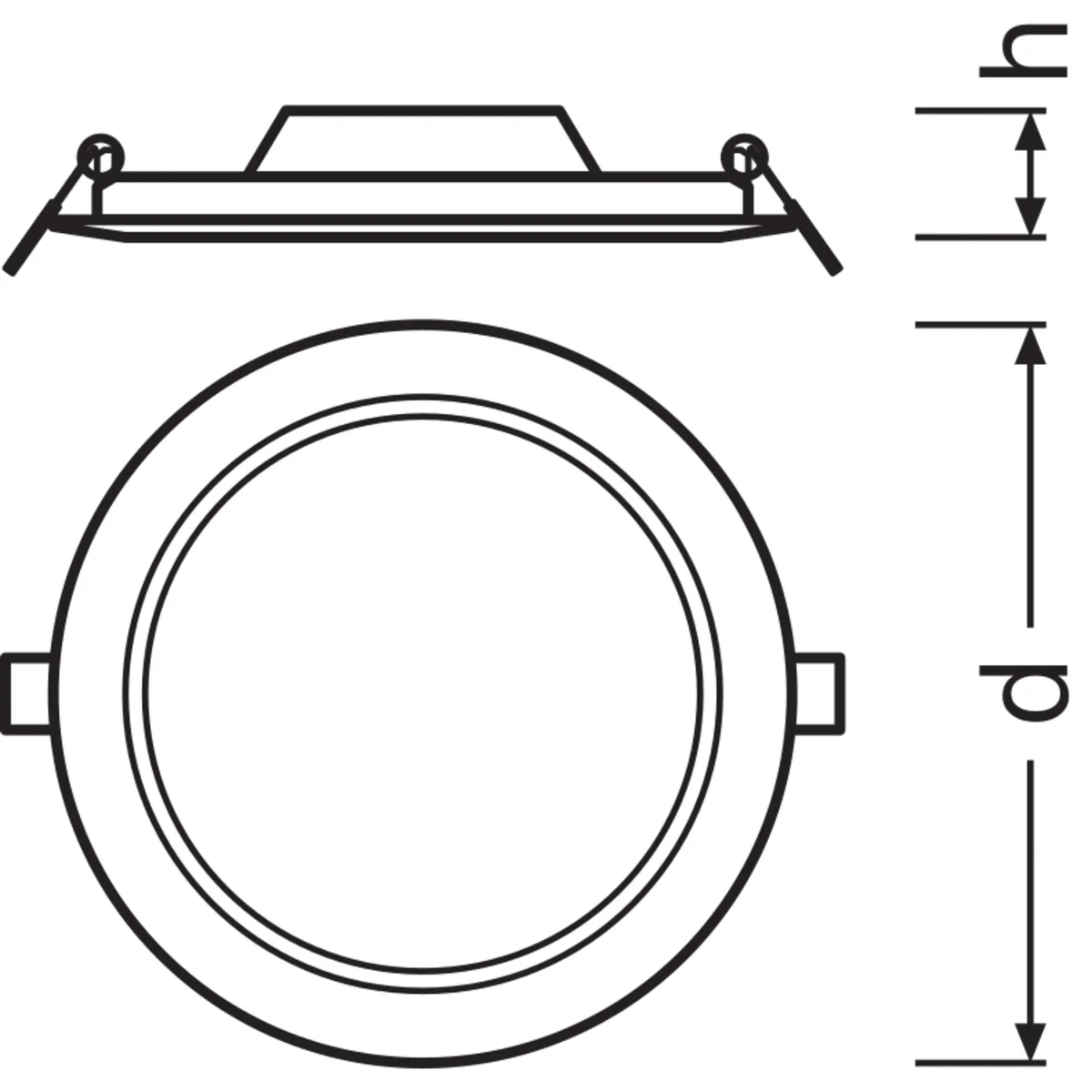

  • Width
    169 mm
  • Outer diameter
    169 mm

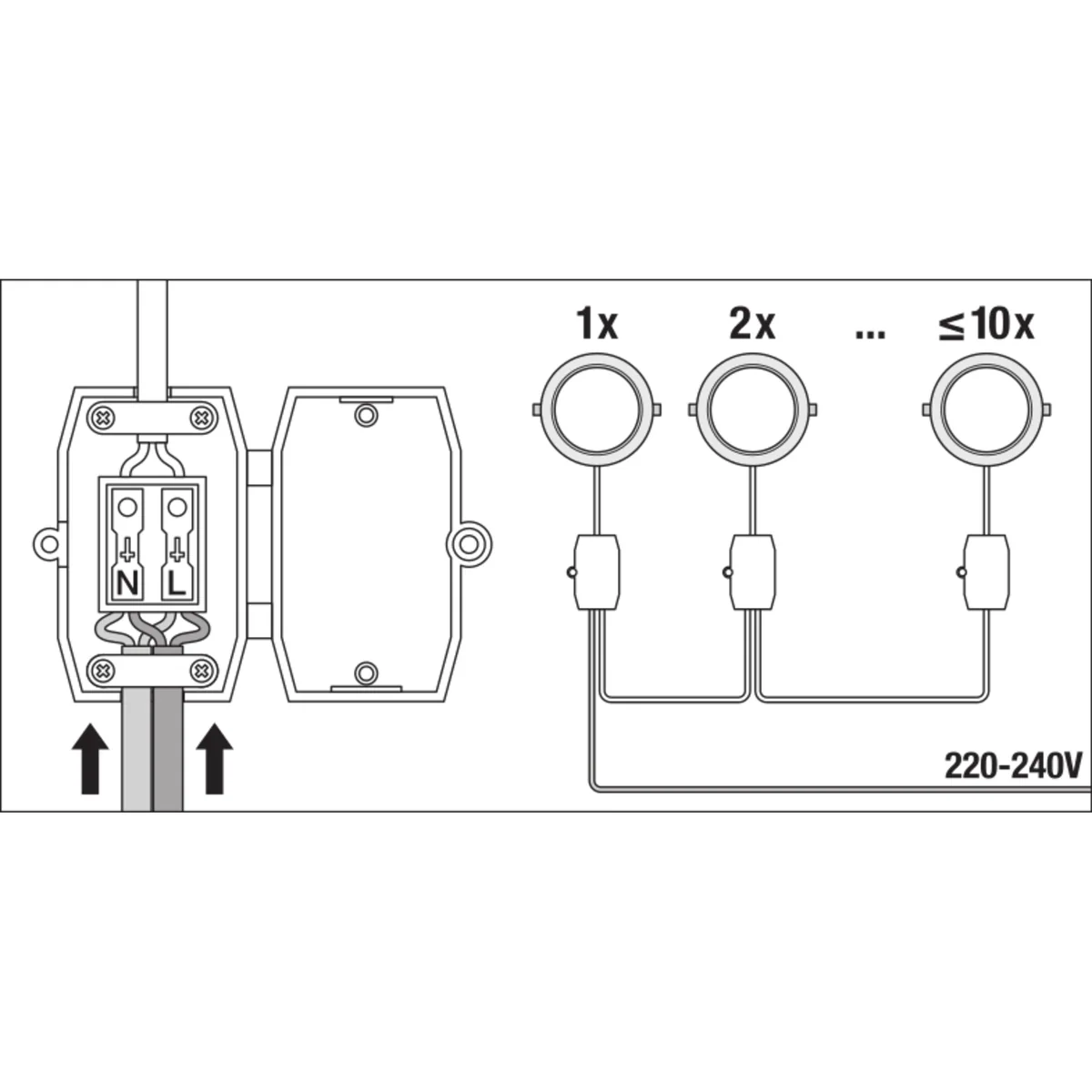

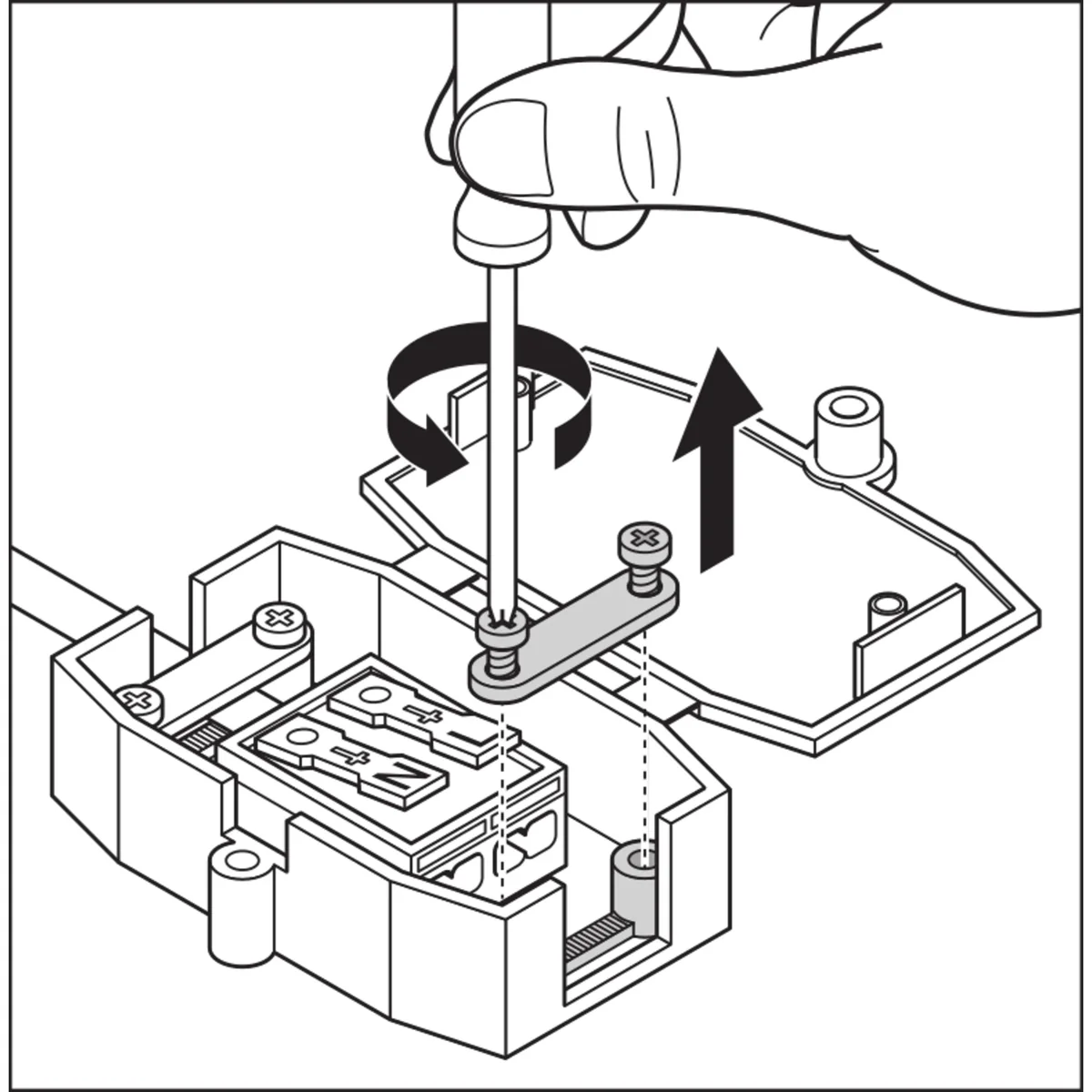

  • Type of wiring
    Ending
  • Connection type
    Push-in clamp
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    48
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Suitable for workplace according to EN 12464-1
    No
  • IFTTT support available
    No
  • Operation by Bluetooth
    No
  • Compatible with Amazon Alexa
    No
  • Suitable for built-in mounting
    Yes
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection
    Untreated
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Nominal current
    71 ... 7 mA
  • With control gear
    Yes
  • Exchangeable control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Diffuser lens/optic/panel

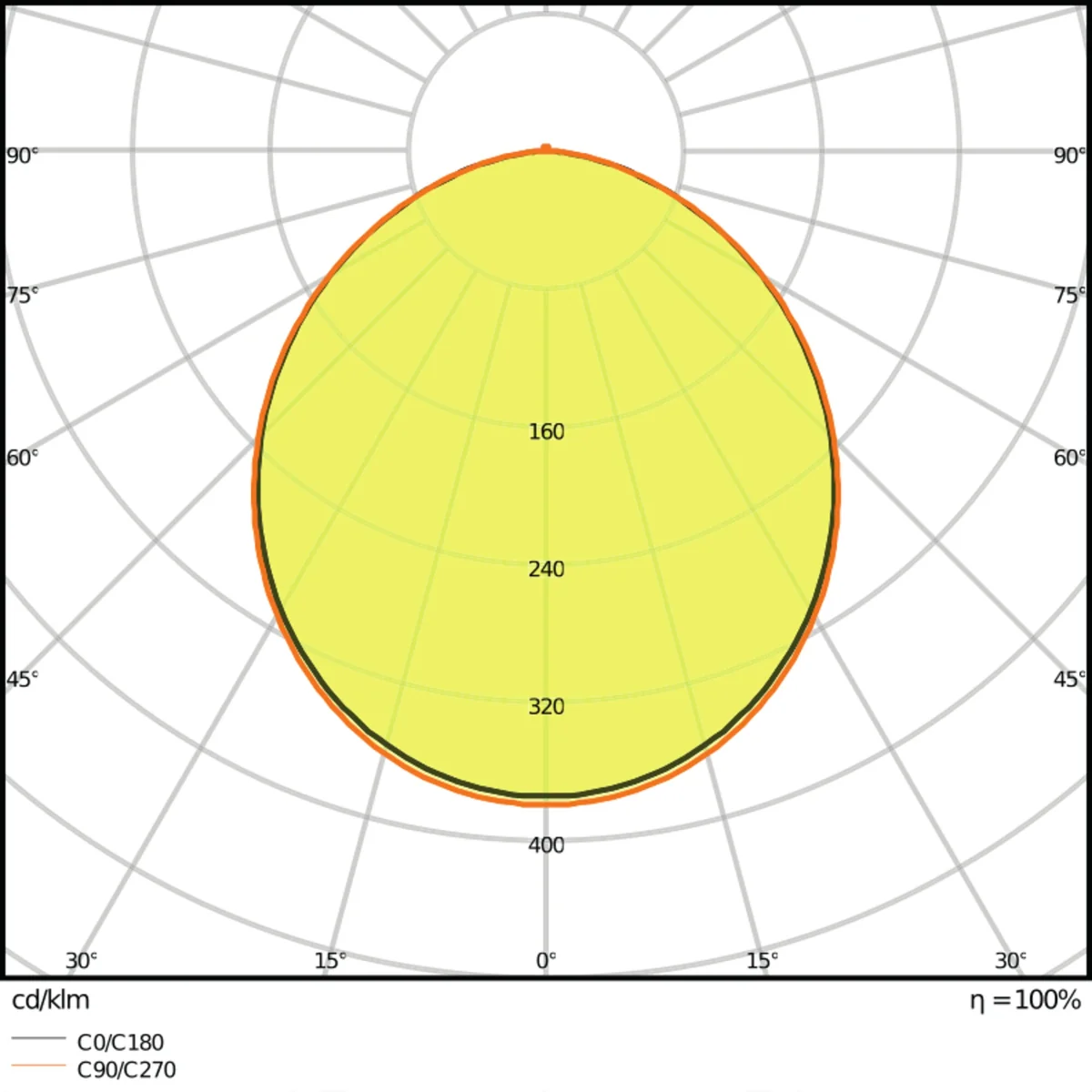

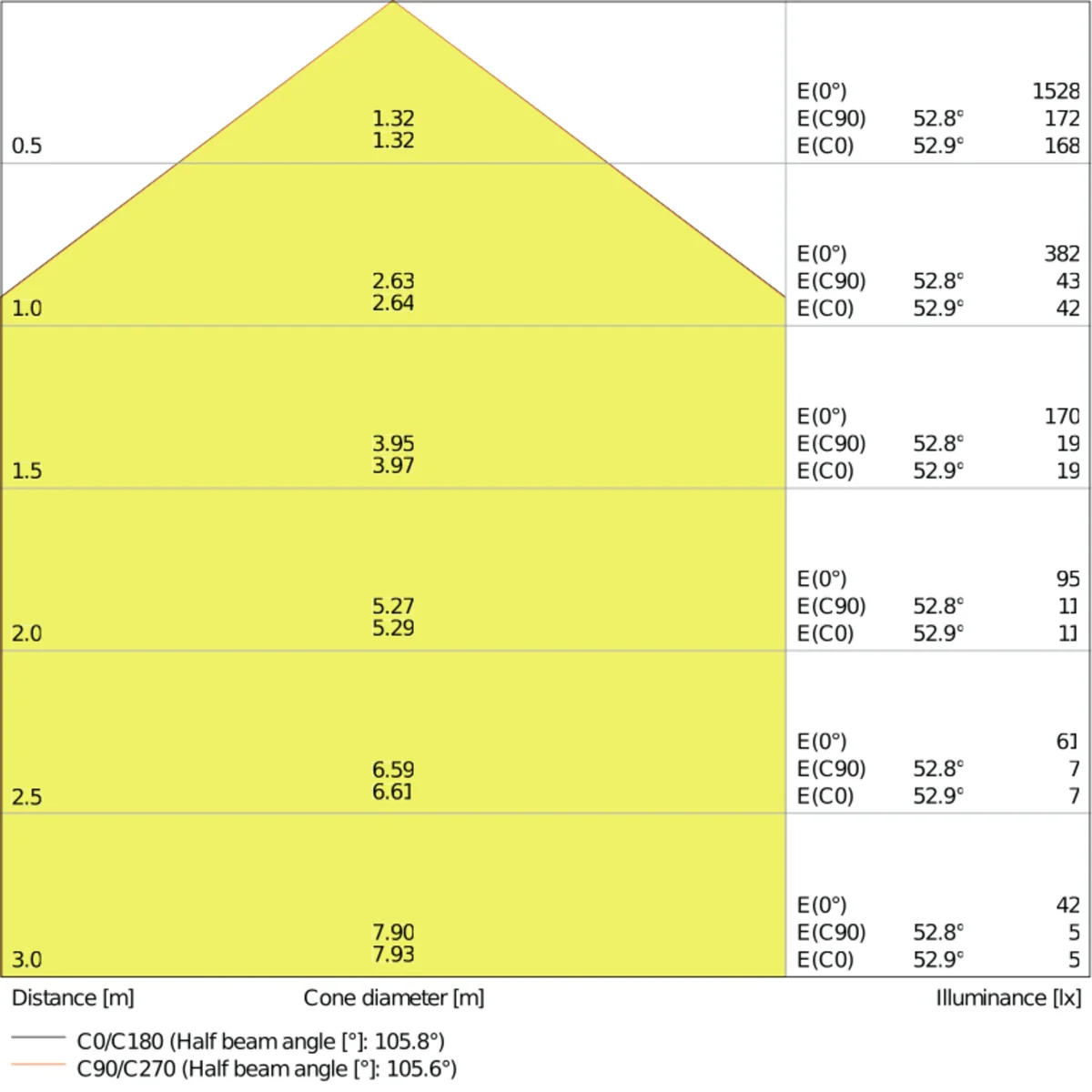

  • Beam angle
    Extreme wide beam >80°
  • Współczynnik harmonicznych (THD)
    20 %
  • Constant light output (CLO)
    No
  • Impact strength
    IK03
  • Rated ambient temperature according to IEC 62722-2-1
    -20 ... 50 °C
  • Colour temperature
    6500 ... 6500 K
  • Colour rendering index CRI
    80-89
  • Luminous flux adjustable
    No
  • Power factor
    0.5
  • Length
    169 mm
  • Height/depth
    30 mm

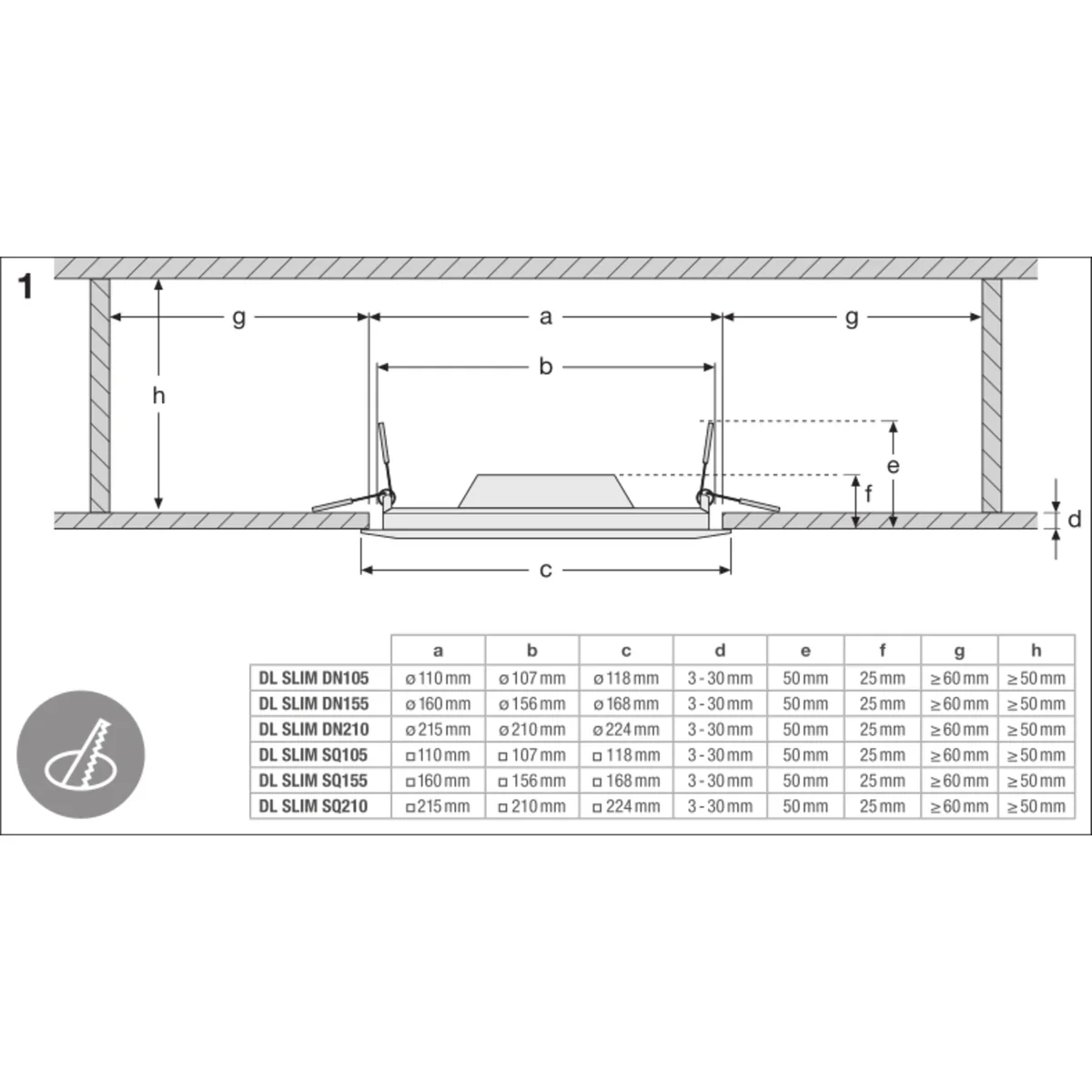

  • Built-in diameter
    155.0 ... 155.0 mm
  • Number of poles
    2
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    61
  • Photobiological safety according to EN 62471
    RG0
  • Covering of the luminaire with thermally insulating material possible
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 6 pcs.
Weight (kg) 0,323 2,158
Volume (m3) 0,002 0,012
Width (m) 0,200 0,210
Length (m) 0,050 0,290
Depth (m) 0,180 0,200
