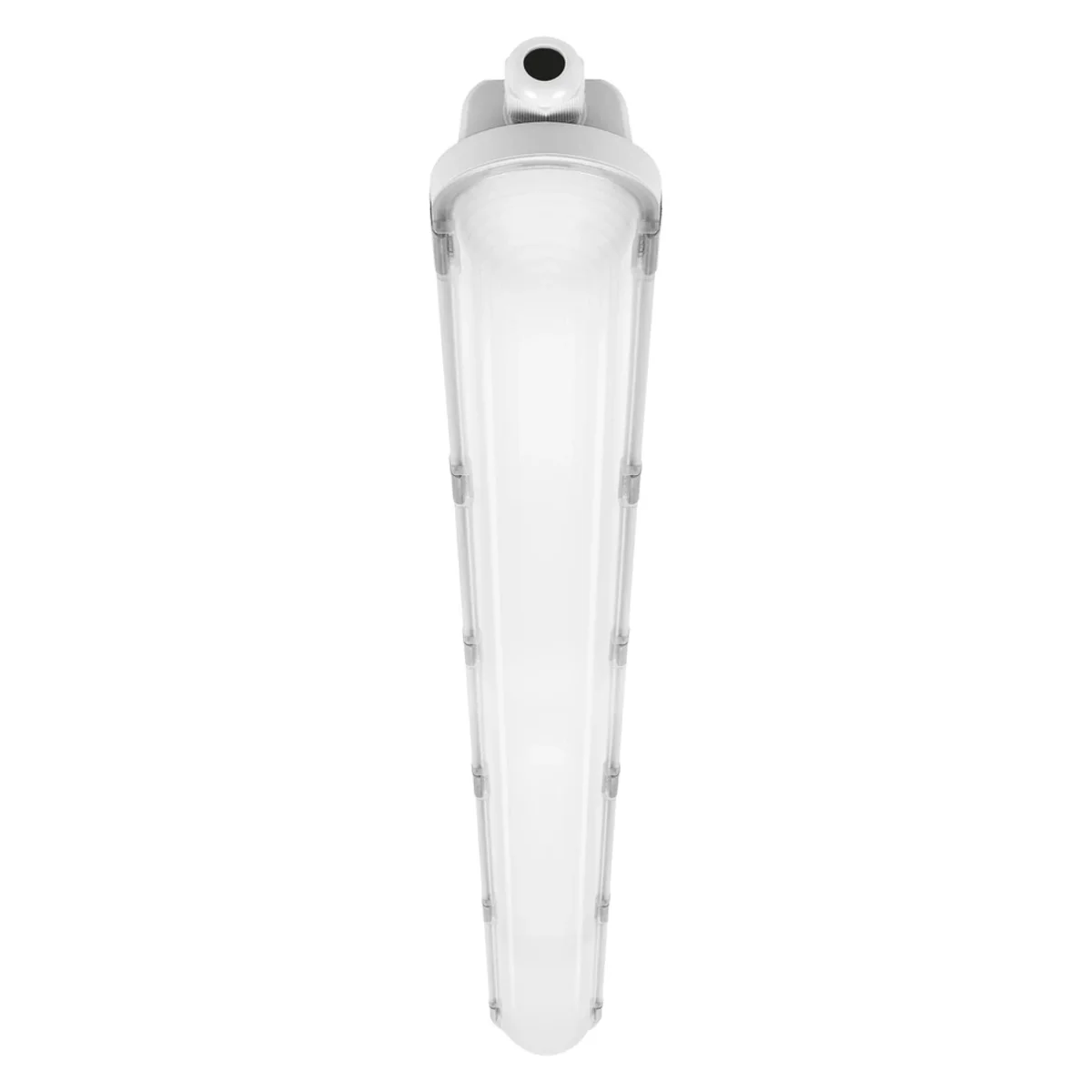

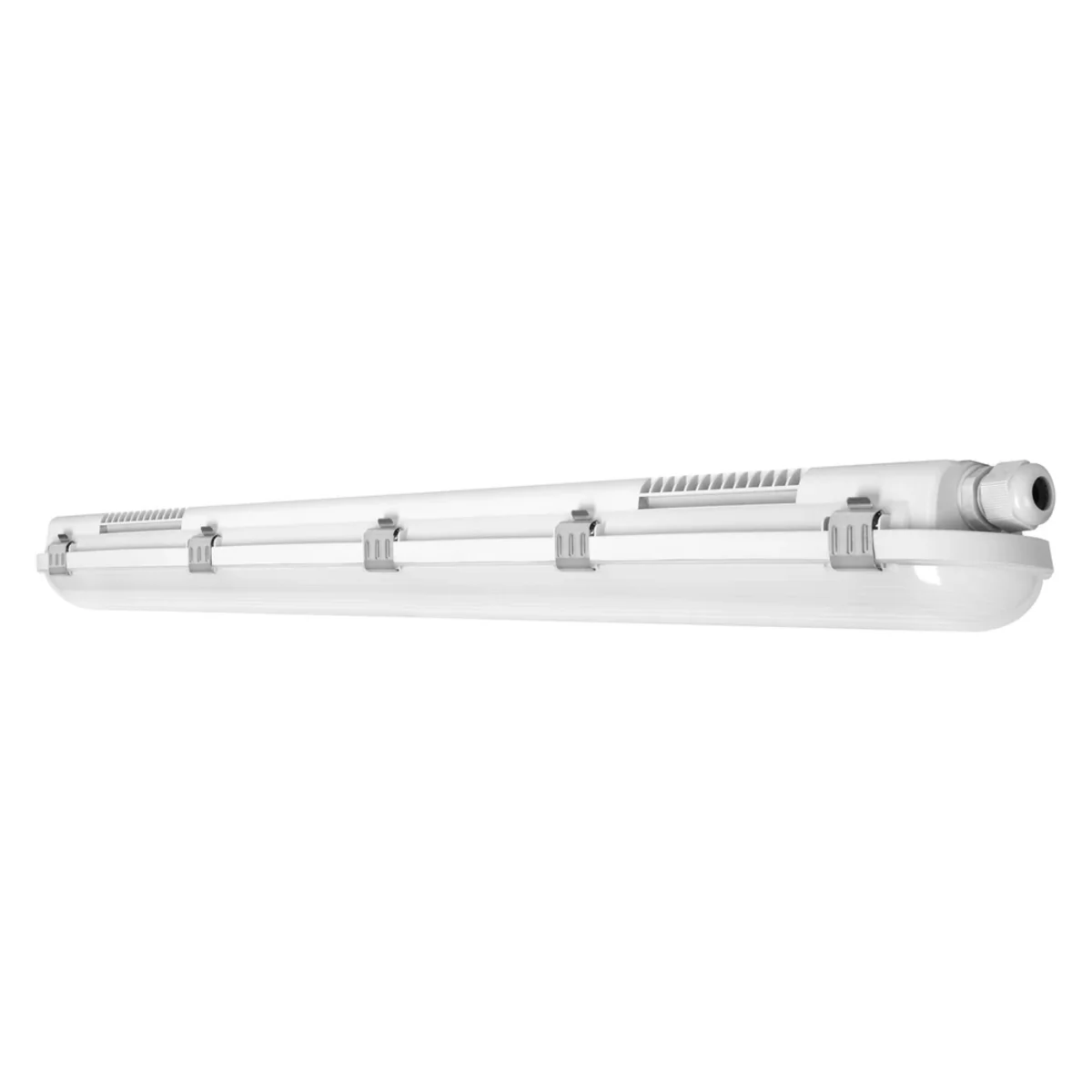

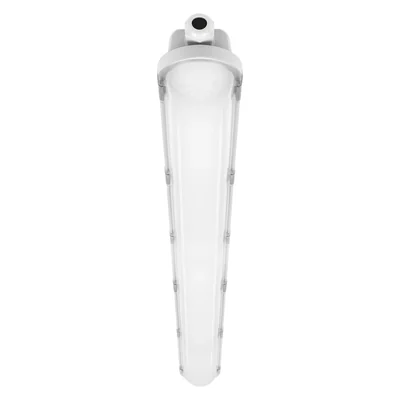

DAMP PROOF VALUE Hermetic LED luminaire 20W 2400lm IP65 4000K NW 1200mm gray 4058075300781

local index:
OWF074LEDV
Catalog No:
4058075300781
EAN code:
4058075300781
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Length [mm]: 1200
beam angle [°]: 115
Large-size product
Price:
49,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Moisture-proof luminairewith a classic shape, from the DAMP PROOF VALUE series.

Product benefits

  • Róuniform light diffusion
  • Up to 50% energy savings (compared to fluorescent luminaires)
  • Easy installation, connection no tools required

Areas of application

  • Ideal for industrial and storage rooms
  • Car parks and passageways underground
  • Garages
  • Workshops, assembly lines

Equipment / Accessories

  • Stainless steel clamps with security screws included
  • Mounting accessories included (suspension kit, anti-theft kit)

Technical data

  • Light color [K]
    3500-4800 (natural)
  • beam angle [°]
    115
  • Color
    Gray
  • Power [W]
    20
  • Rated voltage [V]
    230
  • Output current [mA]
    180
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    2400
  • Durability [h]
    50000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80
  • PKWIU
    27.40.25

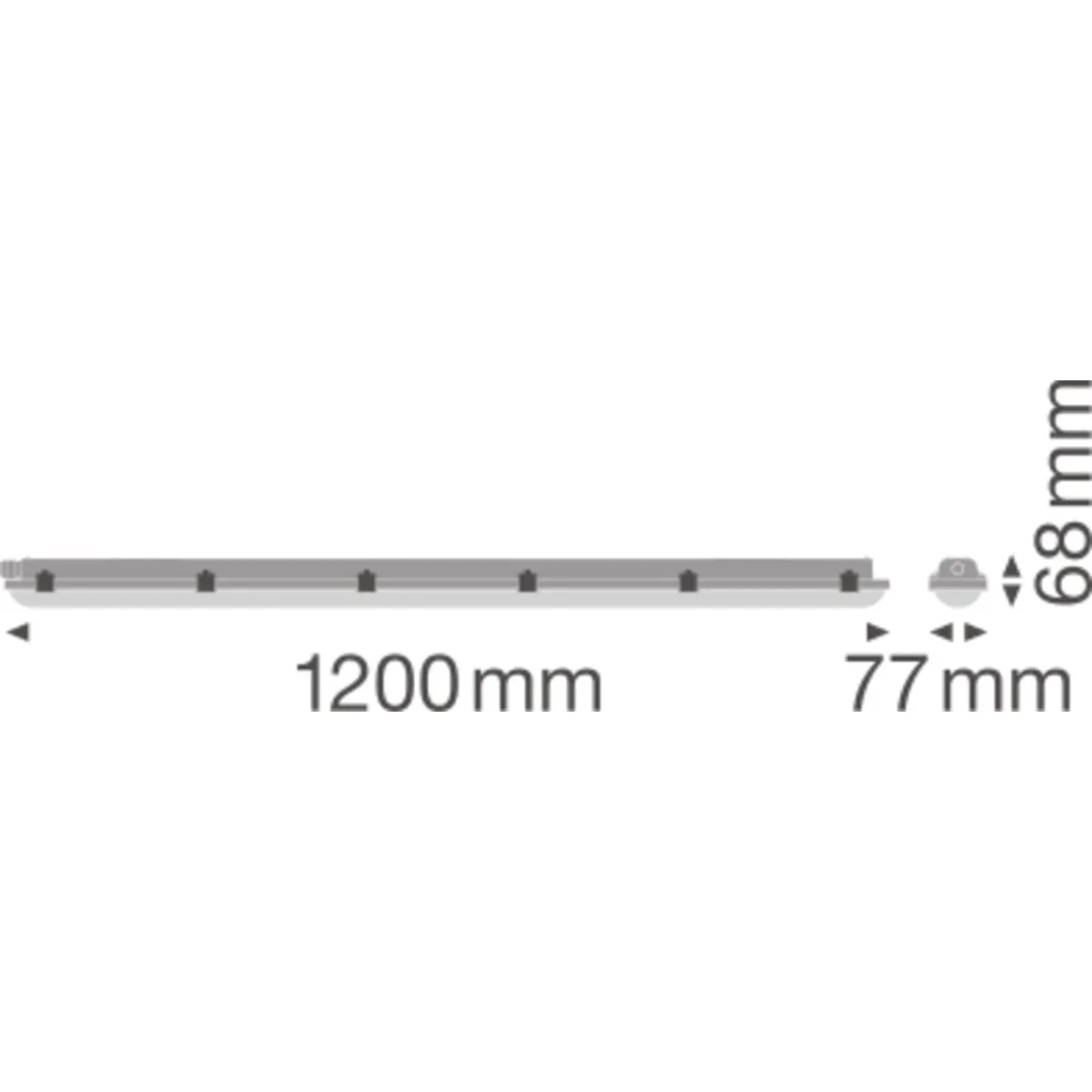

  • Length [mm]
    1200
  • Protection class
    II
  • Housing material
    Polycarbonate
  • Installation
    Surface-mounted
  • Initial starting current [A]
    12
  • Family
    DAMP PROOF VALUE
  • Level of security
    IP65
  • Width [mm]
    77
  • Height [mm]
    66
  • Degree of mechanical protection
    IK08
  • Color Temperature [K]
    4000
  • Light-emitting surface material
    Polycarbonate

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing colour
    Grey
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Impact strength
    IK08
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    20.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Width
    77.0 mm
  • Length
    1200 mm
  • Number of poles
    3
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    110 ... 110 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    I
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    850 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    2400 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    120 lm/W
  • Height/depth
    66.0 mm
  • Type of wiring
    Suitable for through wiring
  • Connection type
    Other

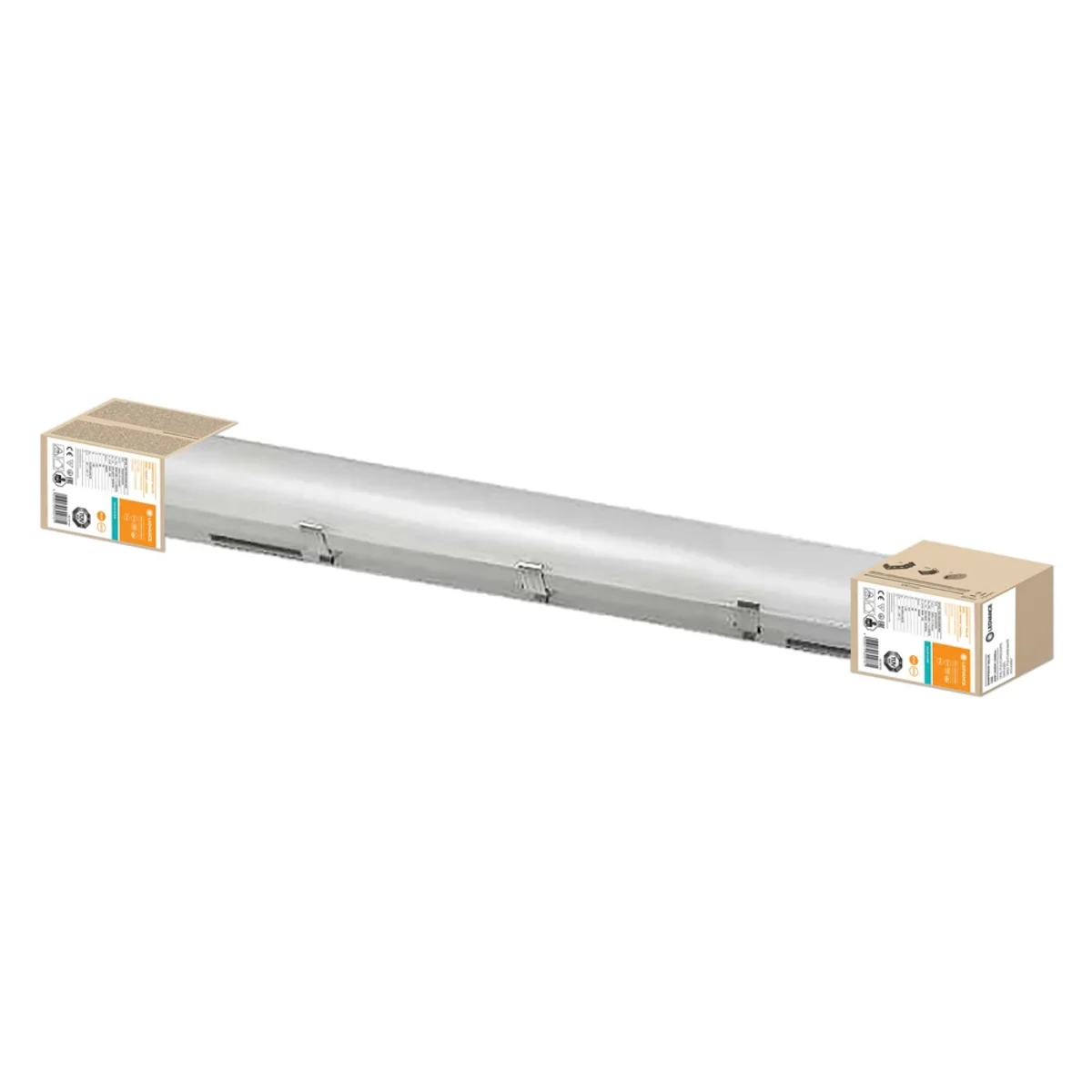

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 1,485 1,561 10,353
Volume (m3) - 0,007 0,051
Width (m) - 1,210 0,180
Length (m) - 0,070 1,230
Depth (m) - 0,080 0,230
