el12 Lighting Light fixtures Indoor luminaires Surface-mounted industrial and specialized

DAMP PROOF VALUE Hermetic LED luminaire 18W 2160lm IP65 4000K NW 600mm gray 4058075300743

local index:
OWF067LEDV
Catalog No:
4058075300743
EAN code:
4058075300743

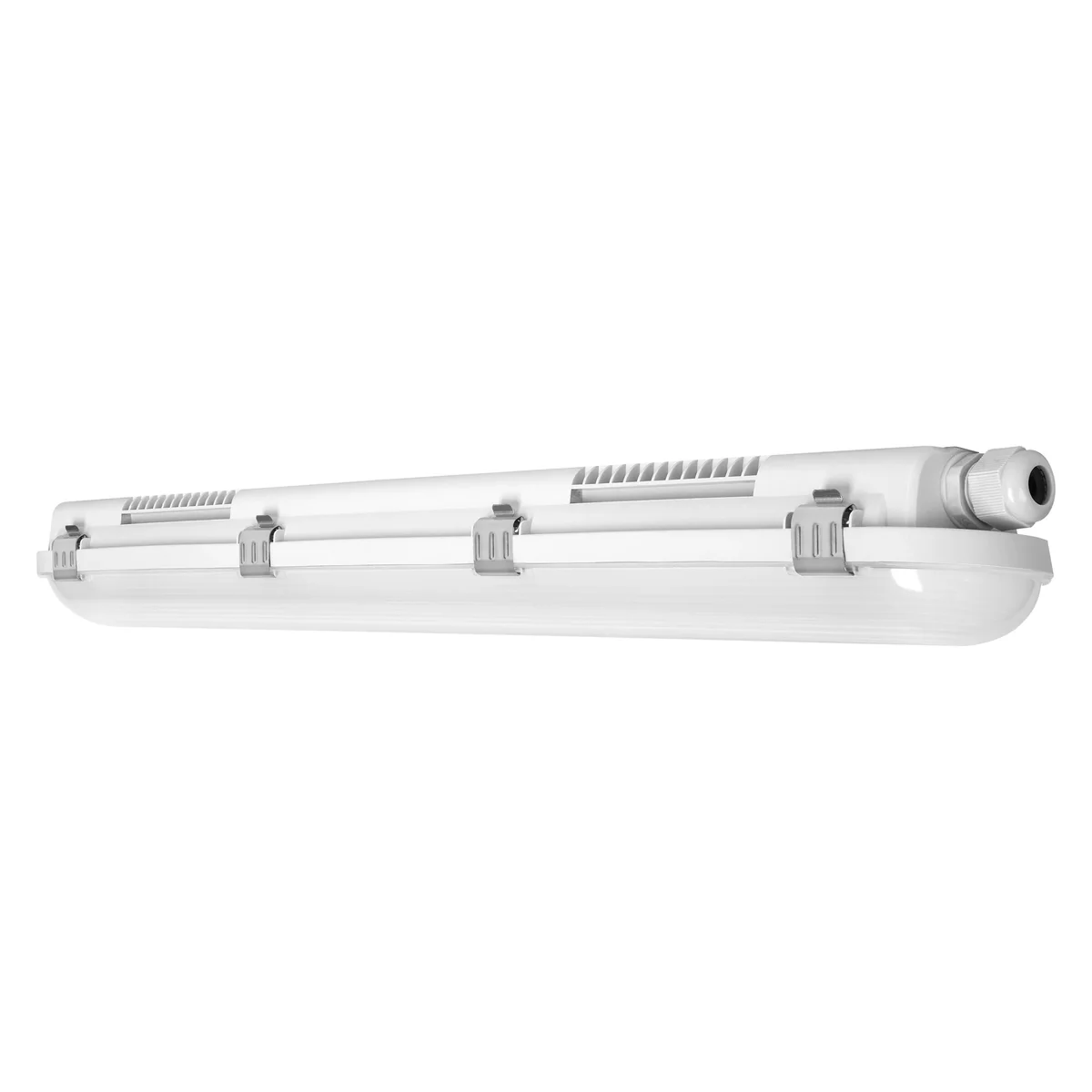

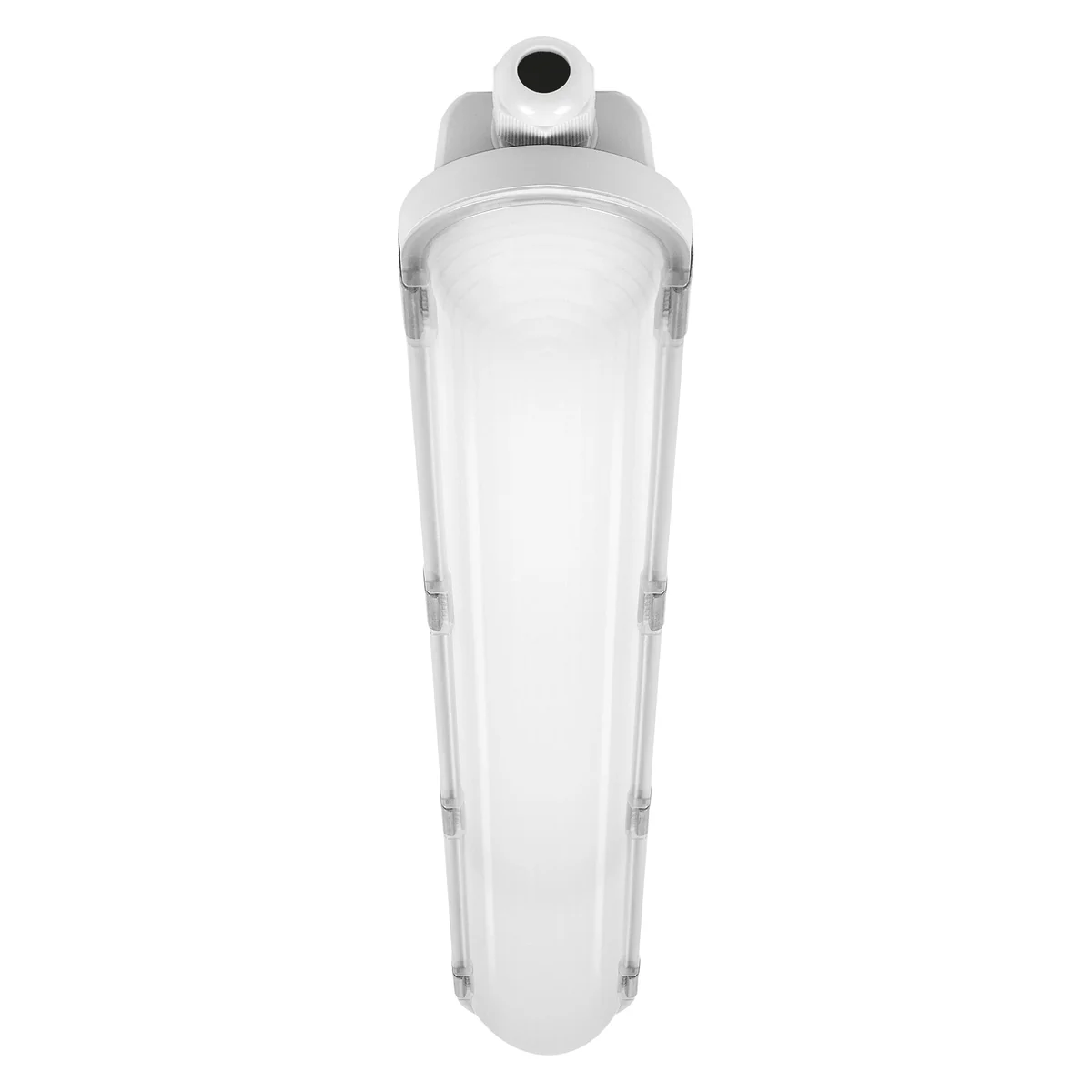

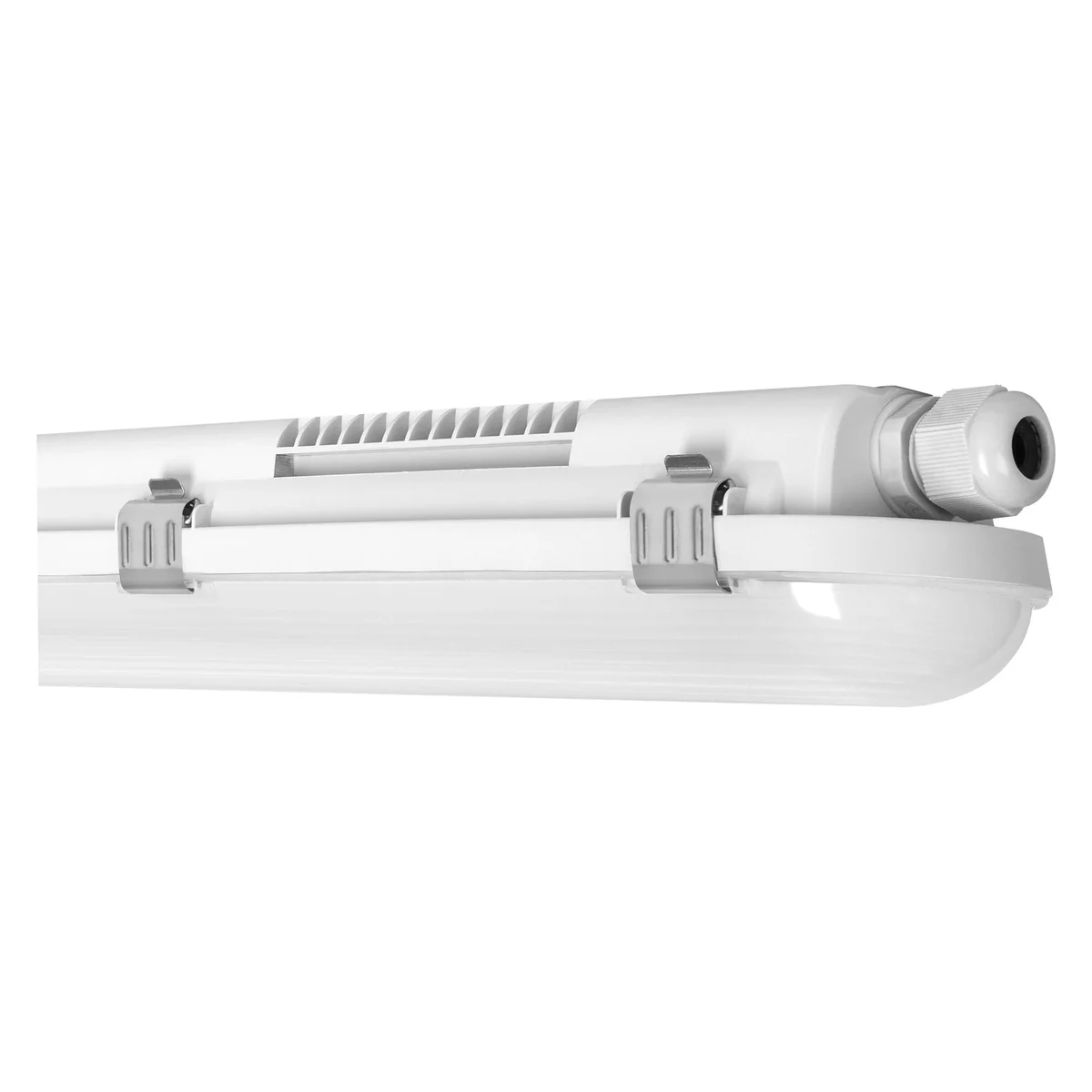

DAMP PROOF VALUE Hermetic LED luminaire 18W 2160lm IP65 4000K NW 600mm gray
DAMP PROOF VALUE Hermetic LED luminaire 18W 2160lm IP65 4000K NW 600mm gray

Click on the photo to enlarge

Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Length [mm]: 600
beam angle [°]: 115
See full description
Price:
39,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Moisture-proof luminairewith a classic shape, from the DAMP PROOF VALUE series.

Product benefits

  • Róuniform light diffusion
  • Up to 50% energy savings (compared to fluorescent luminaires)
  • Easy installation, connection no tools required

Areas of application

  • Ideal for industrial and storage rooms
  • Car parks and passageways underground
  • Garages
  • Workshops, assembly lines

Equipment / Accessories

  • Stainless steel clamps with security screws included
  • Mounting accessories included (suspension kit, anti-theft kit)

Technical data

  • Light color [K]
    3500-4800 (natural)
  • beam angle [°]
    115
  • Color
    Gray
  • Power [W]
    18
  • Rated voltage [V]
    230
  • Output current [mA]
    230
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    2160
  • Durability [h]
    50000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80
  • PKWIU
    27.40.25
  • Length [mm]
    600
  • Protection class
    II
  • Housing material
    Polycarbonate
  • Installation
    Surface-mounted
  • Initial starting current [A]
    14
  • Family
    DAMP PROOF VALUE
  • Level of security
    IP65
  • Width [mm]
    77
  • Height [mm]
    66
  • Degree of mechanical protection
    IK08
  • Color Temperature [K]
    4000
  • Light-emitting surface material
    Polycarbonate

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing colour
    Grey
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Impact strength
    IK08
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    18.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Width
    77.0 mm
  • Length
    600.0 mm
  • Number of poles
    3
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    100 ... 100 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    I
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    850 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    2160 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    120 lm/W
  • Height/depth
    66.0 mm
  • Type of wiring
    Suitable for through wiring
  • Connection type
    Other

Manufacturer details

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 0,655 0,819 5,568
Volume (m3) - 0,004 0,026
Width (m) - 0,610 0,180
Length (m) - 0,070 0,630
Depth (m) - 0,080 0,230

Files to download

asset-13077127.pdf
