el12 Lighting Light fixtures Indoor luminaires Surface-mounted industrial and specialized DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white

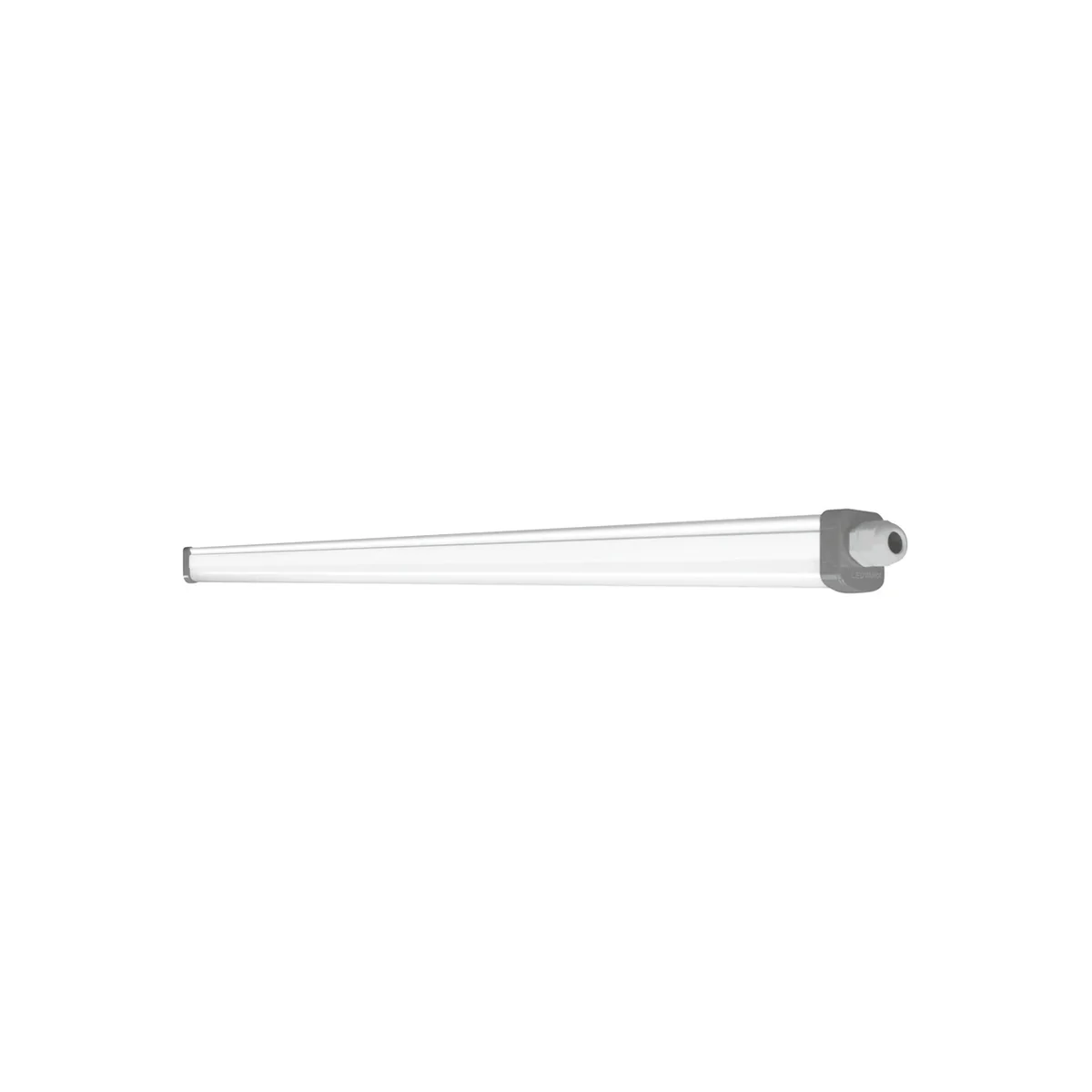

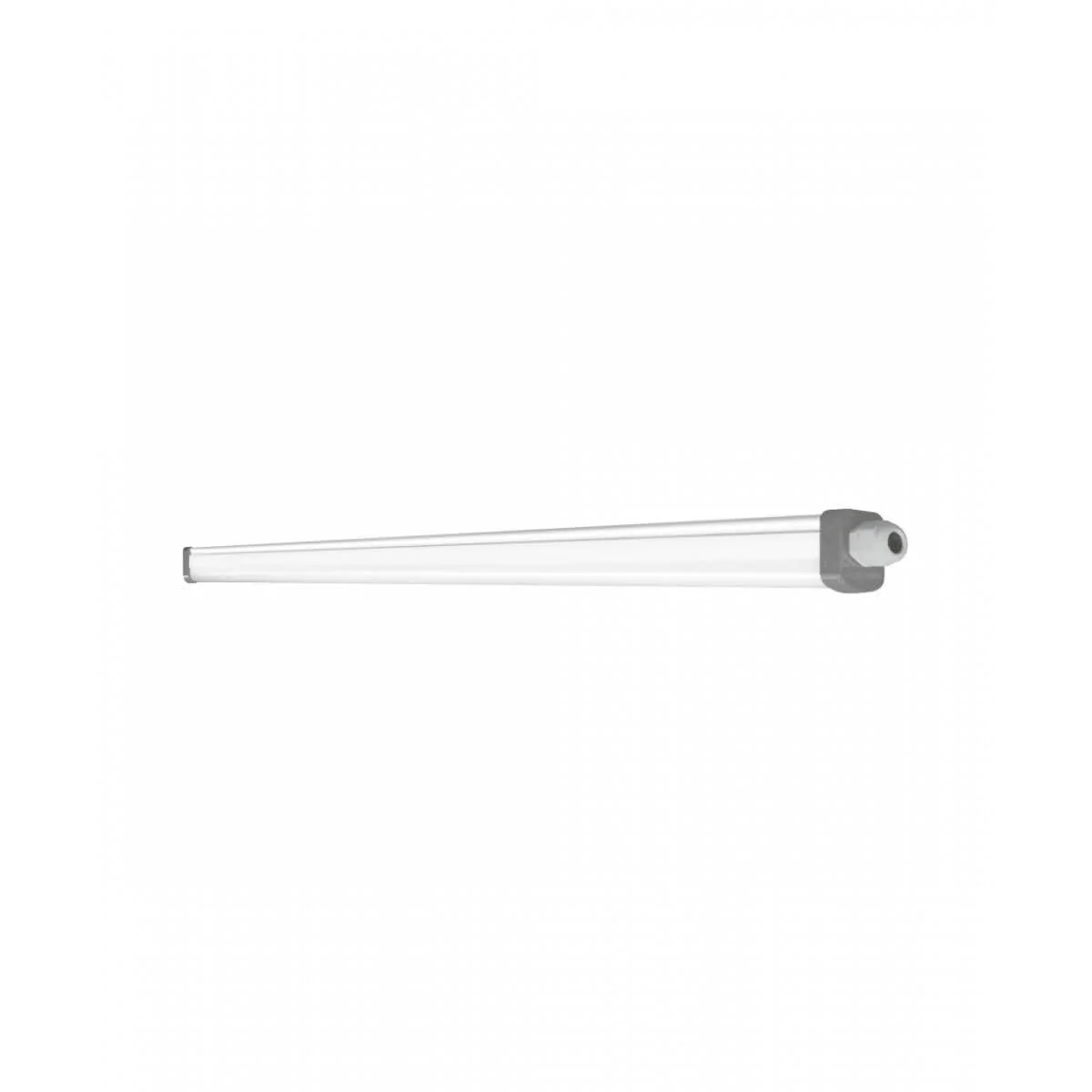

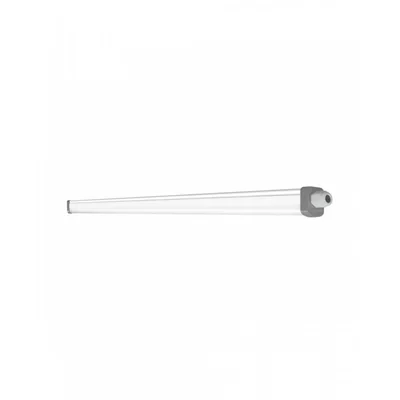

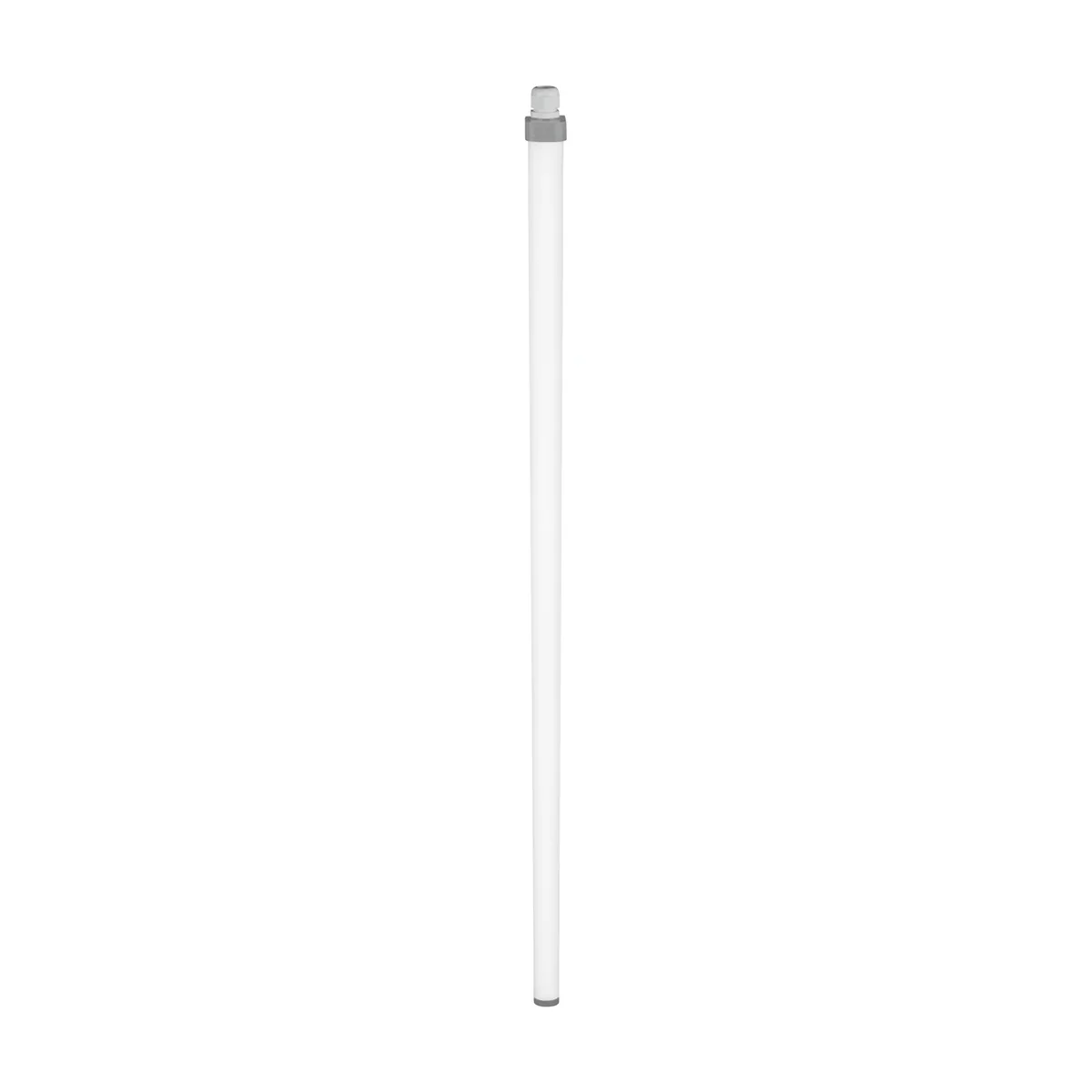

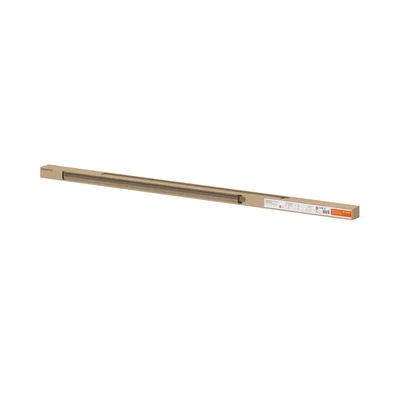

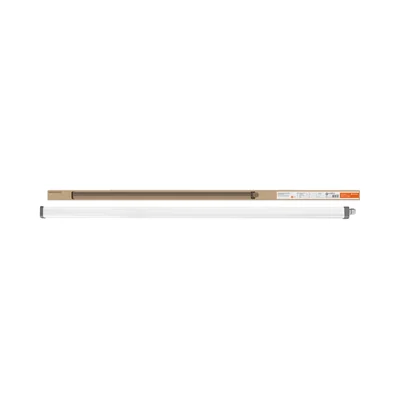

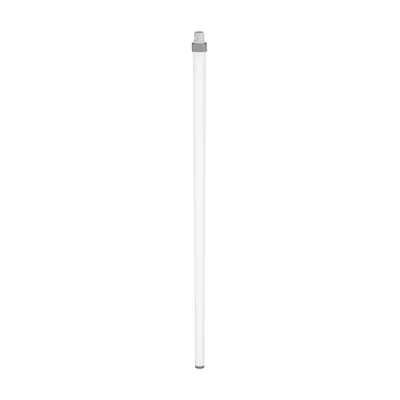

DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white
DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white
DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white

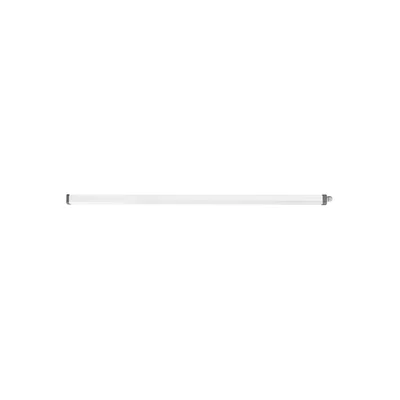

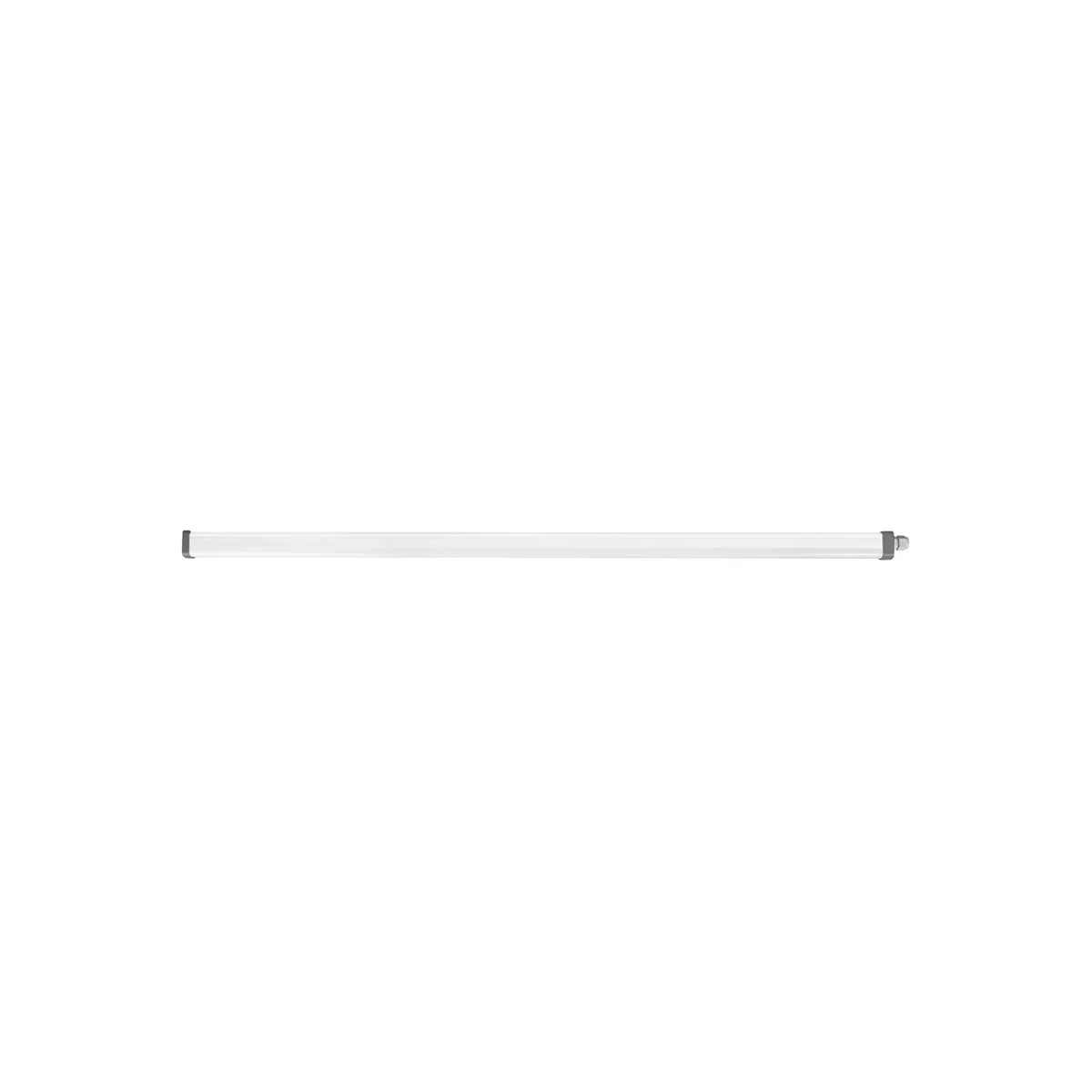

Click on the photo to enlarge

DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white
DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white
DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white
LEDVANCE

DAMP PROOF SLIM VALUE Hermetic LED luminaire 36W 4000lm IP65 4000K NW 1200mm white 4058075066458

local index:
OWF001LEDV
Catalog No:
4058075066458
EAN code:
4058075066458
Price:
47,81 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
Large-size product
From 68,97 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Moisture-proof luminairewith a narrow housing, from the DAMP PROOF SLIM VALUE series.

Product benefits

  • Róuniform light diffusion
  • Up to 50% energy savings (compared to fluorescent luminaires)
  • Very narrow housing
  • Easy to install: brackets can be positioned freely in the luminaire
  • Tool-free electrical installation with plugs
  • Easy access to the power socket thanks to the bases clamping mechanism

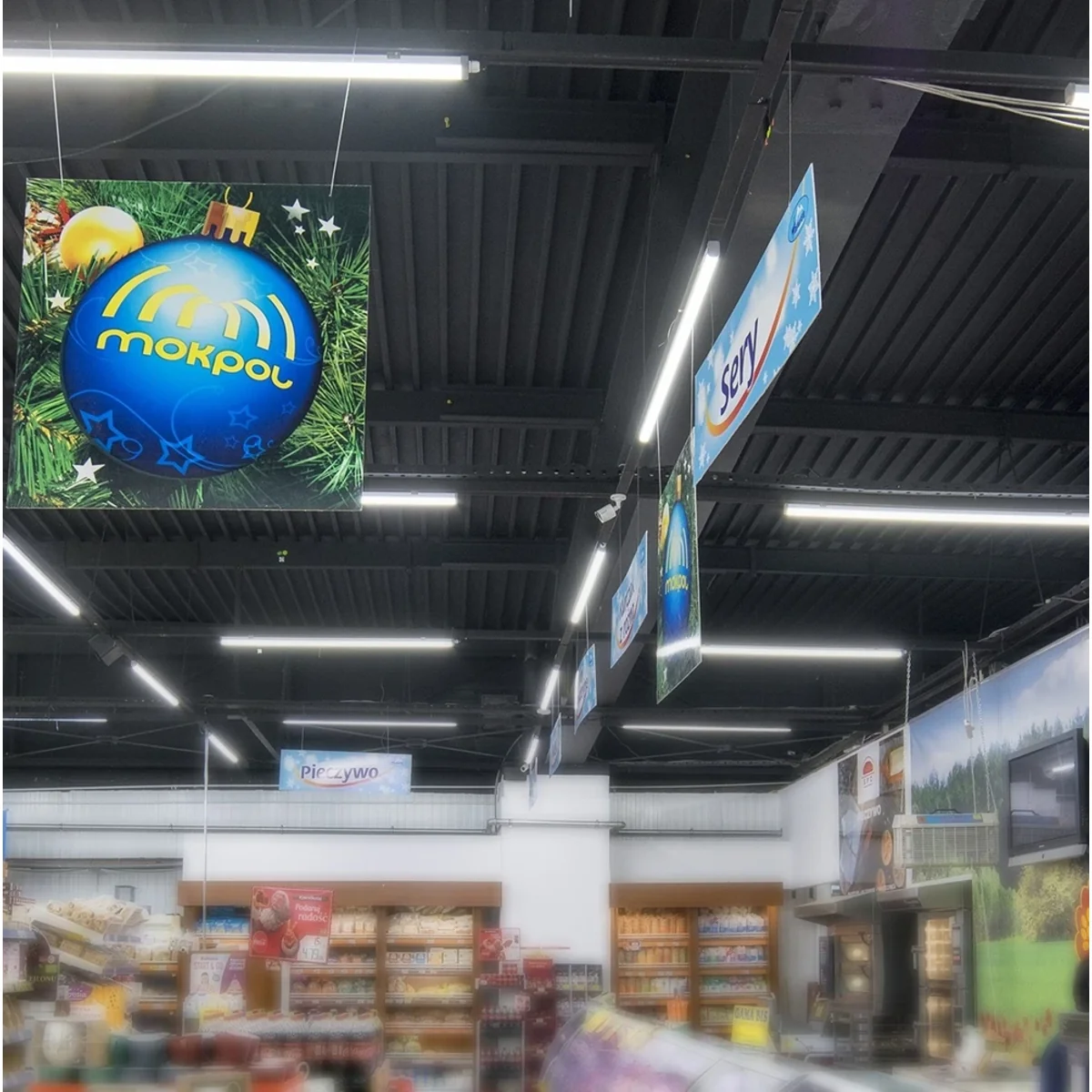

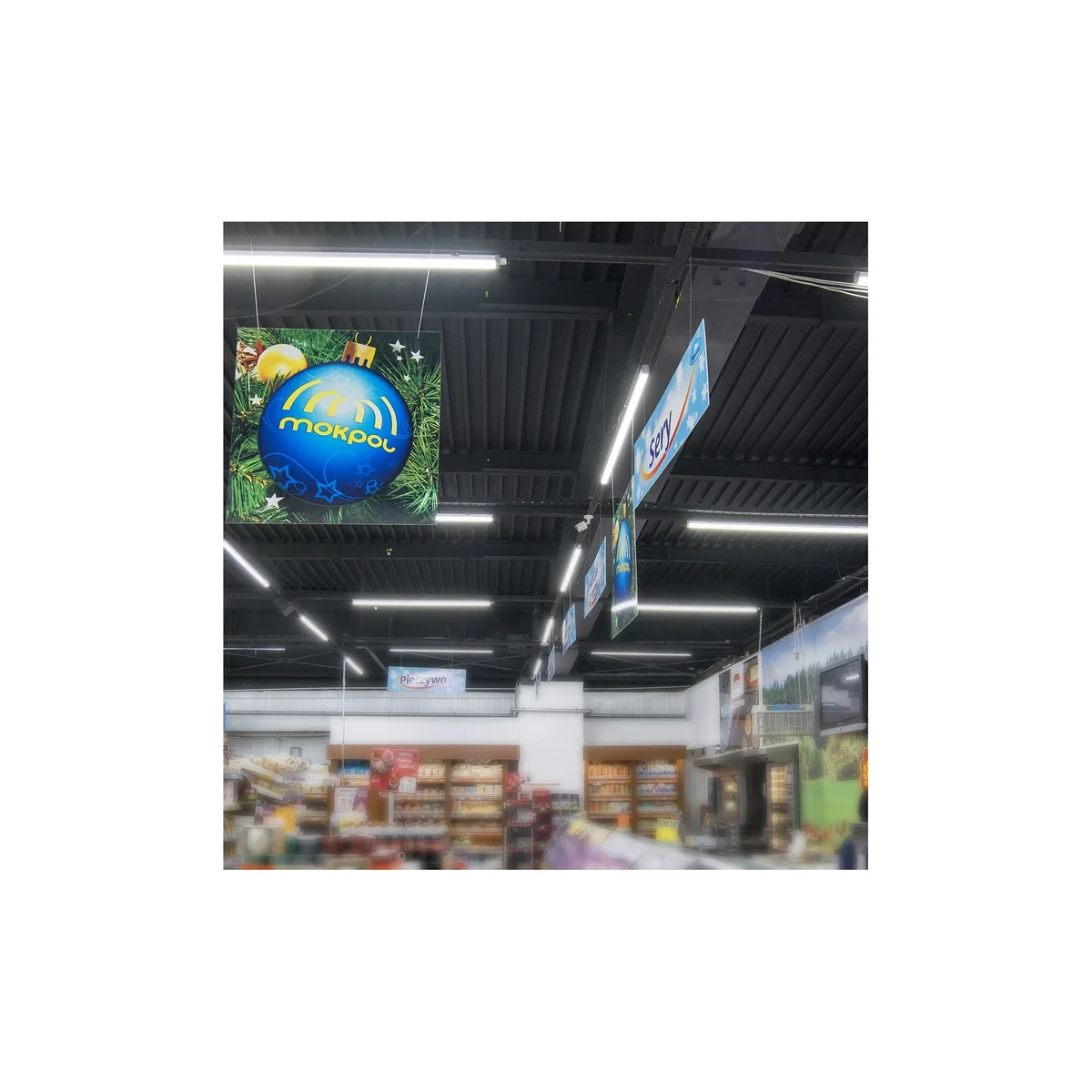

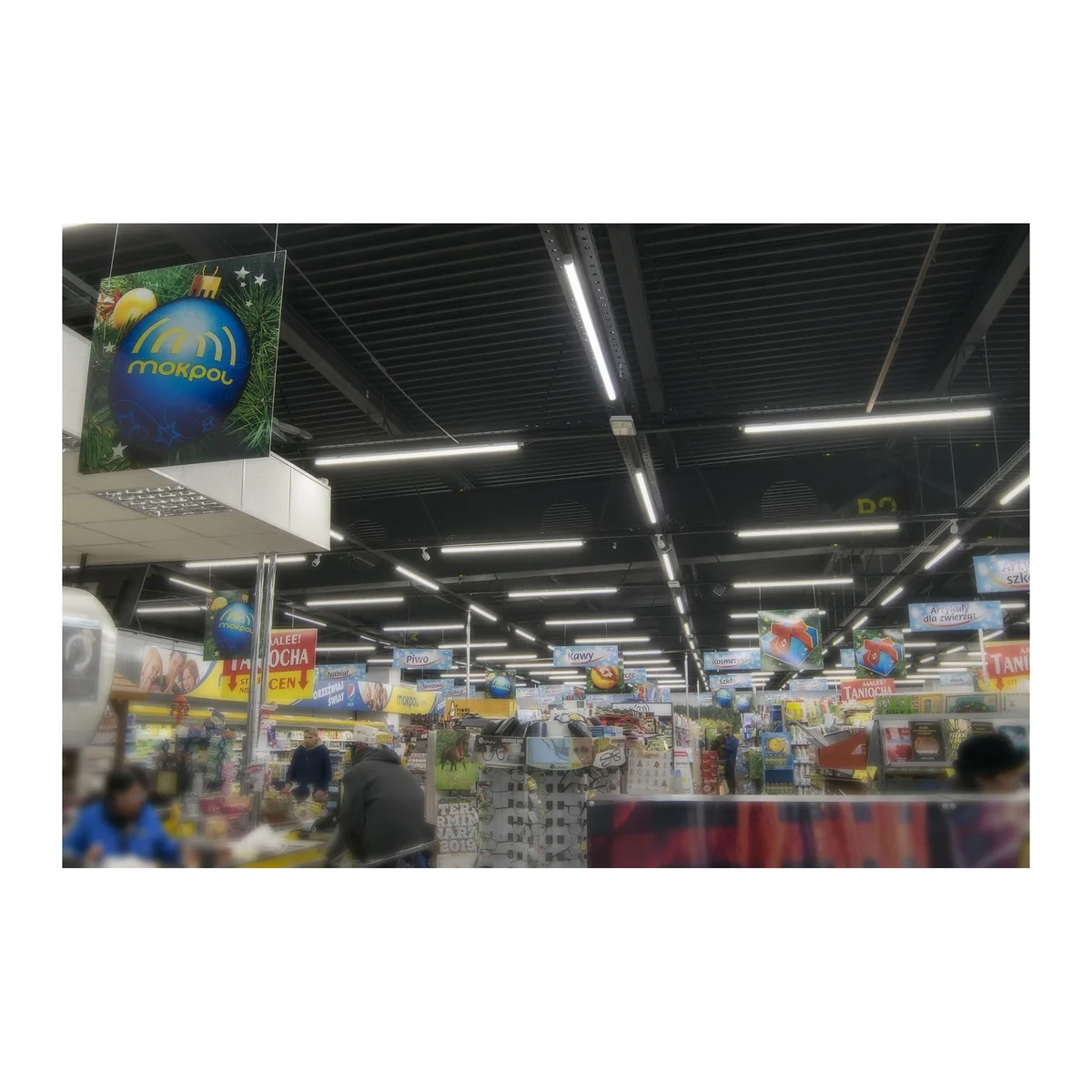

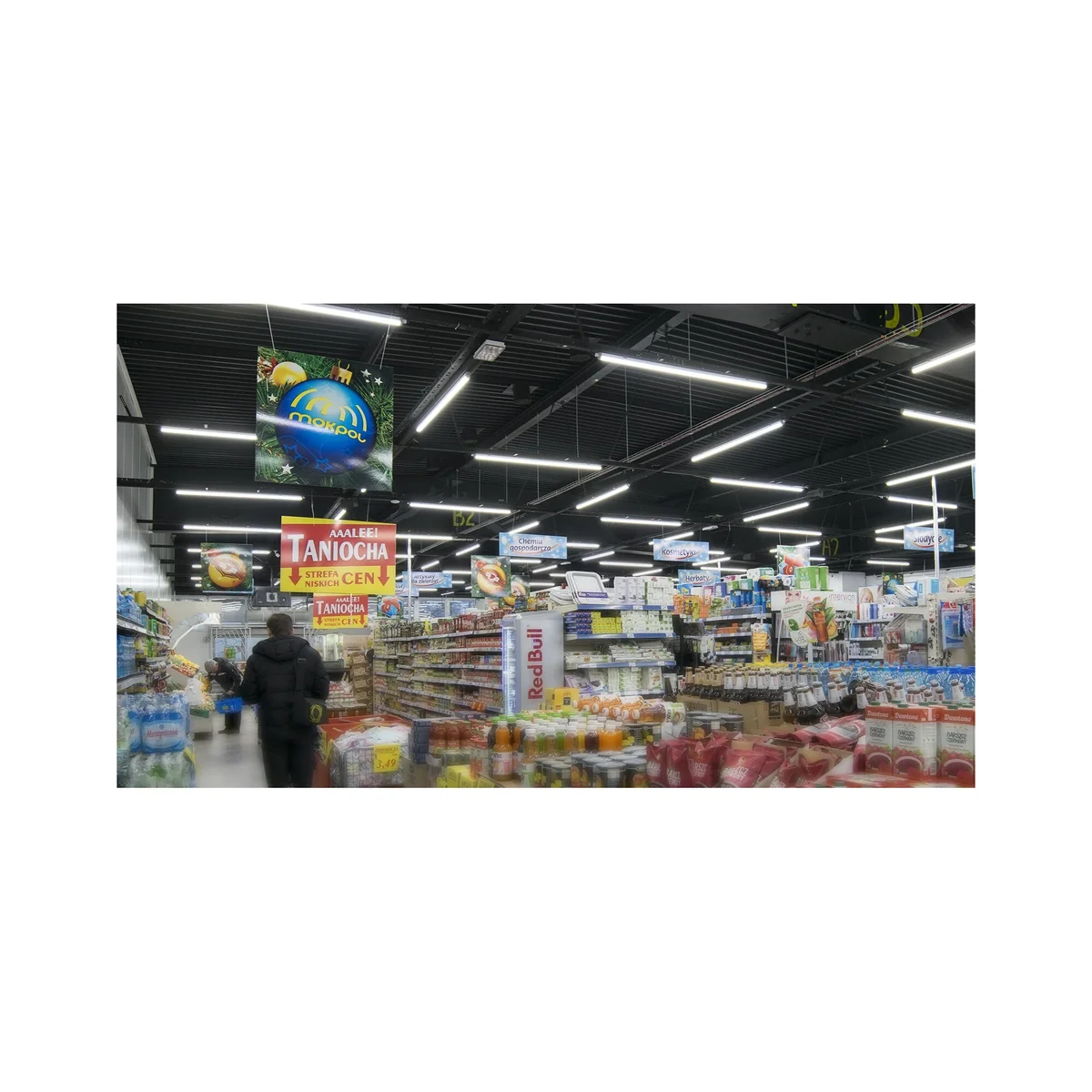

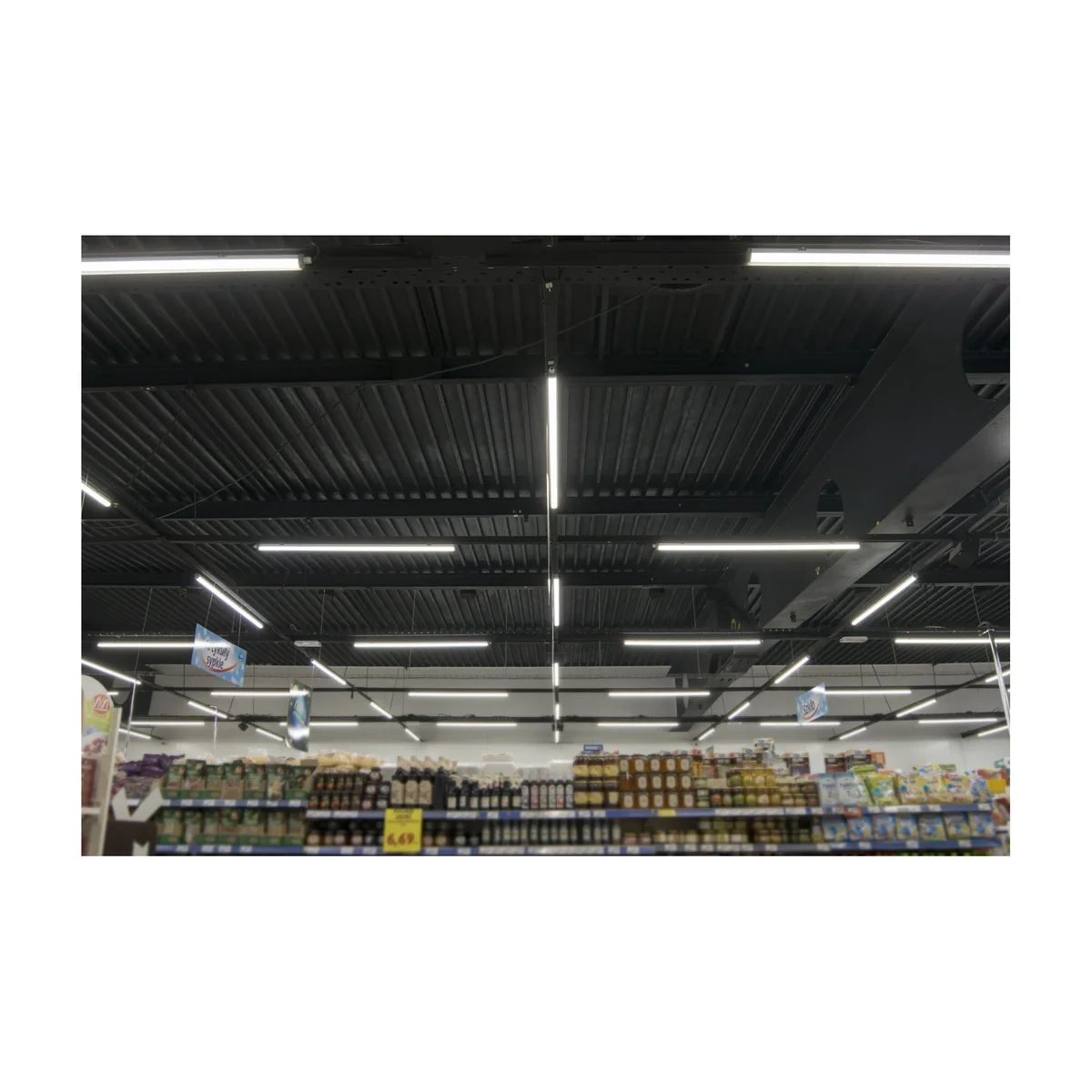

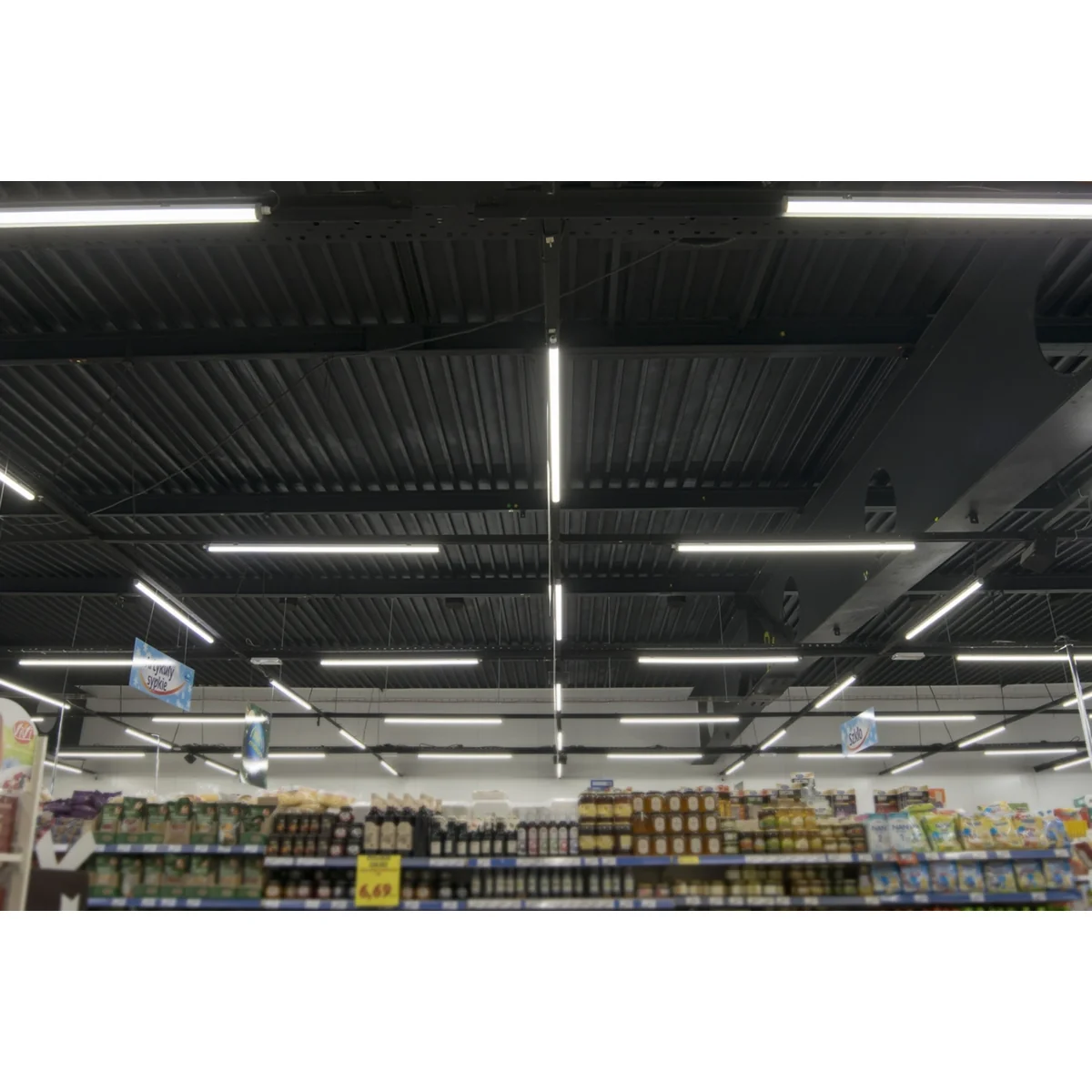

Areas of application

  • Ideal for industrial and storage rooms
  • Car parks and underground passages< /li>
  • Garages
  • Workshops, assembly lines

Equipment / Accessories

  • Clamps stainless steel with security screws included
  • Installation accessories included (suspension kit, anti-theft kit)
Print the product sheet Report an error

Technical data

  • Light color [K]
    3500-4800 (natural)

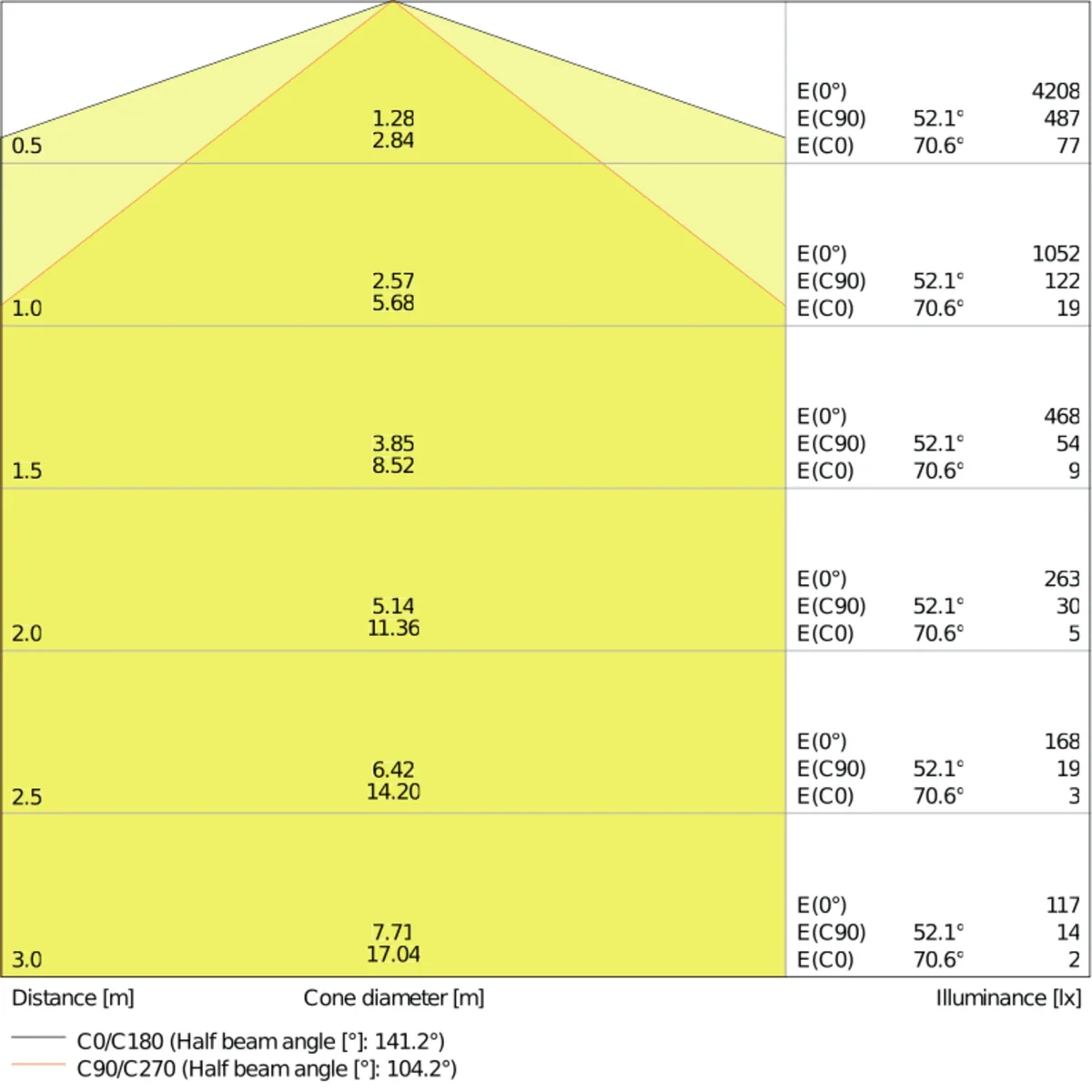

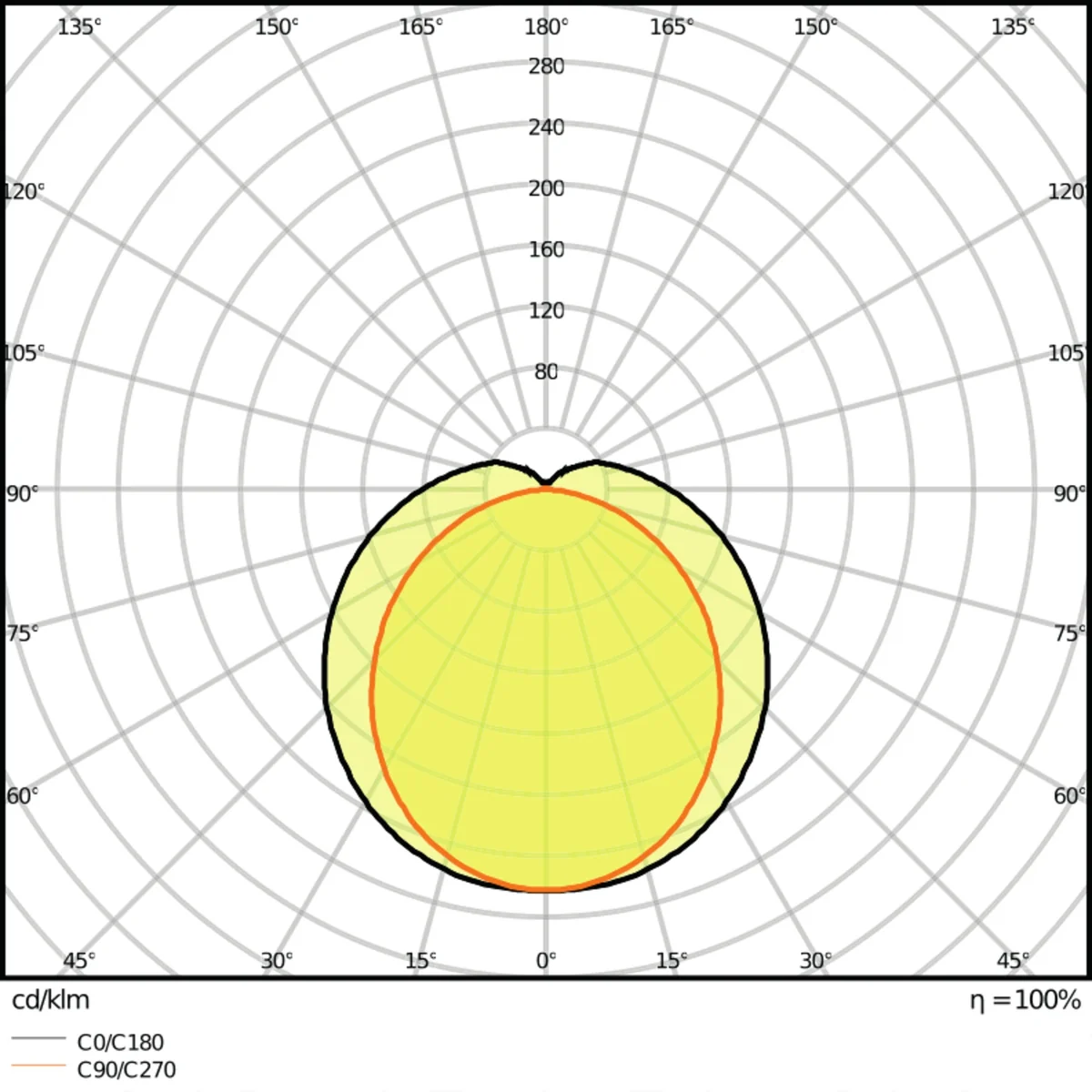

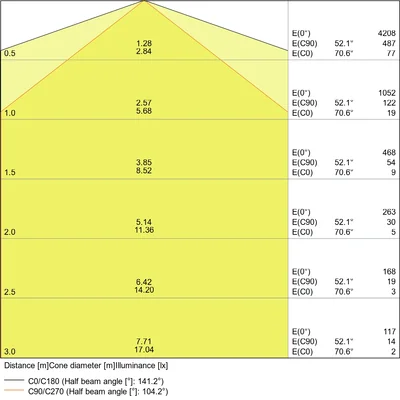

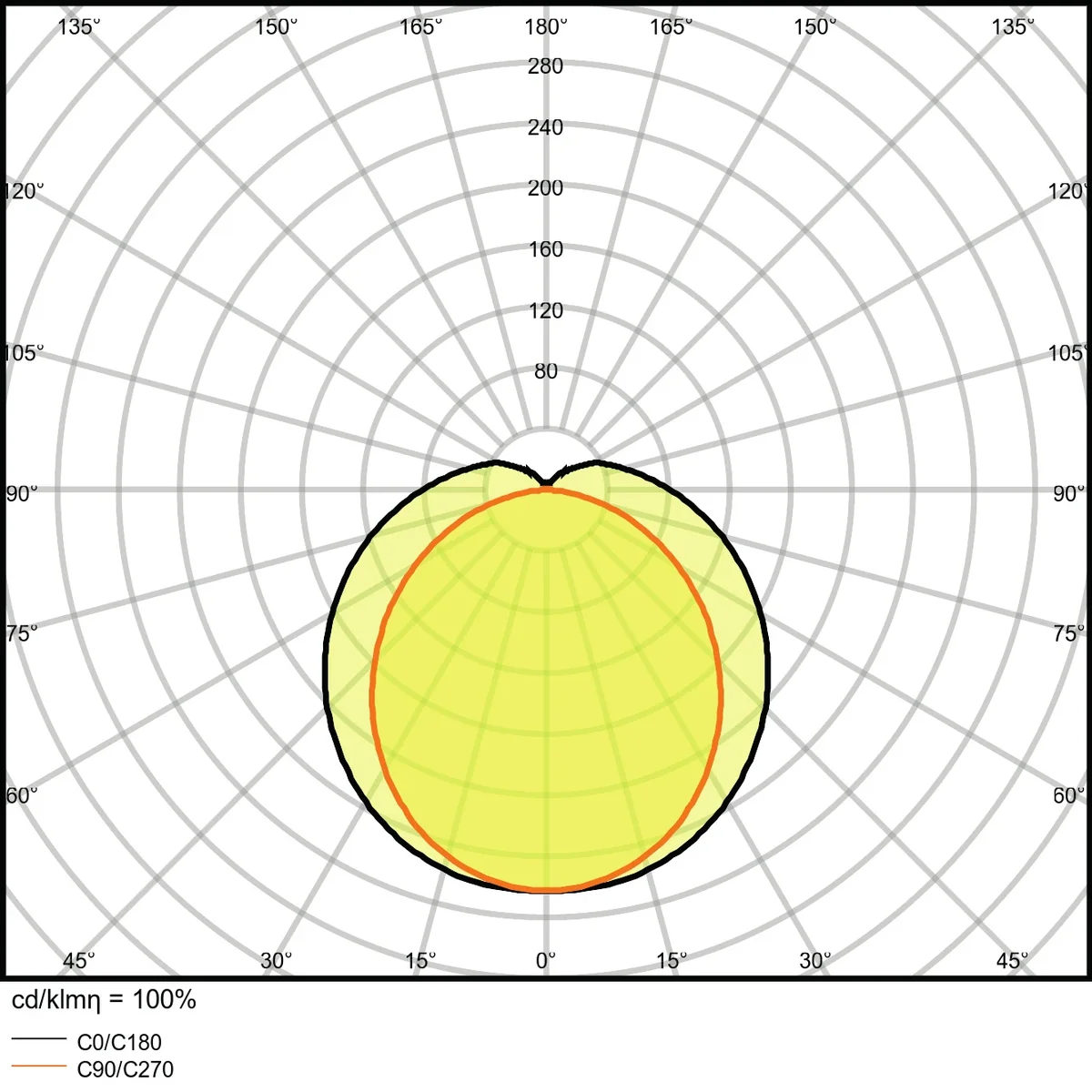

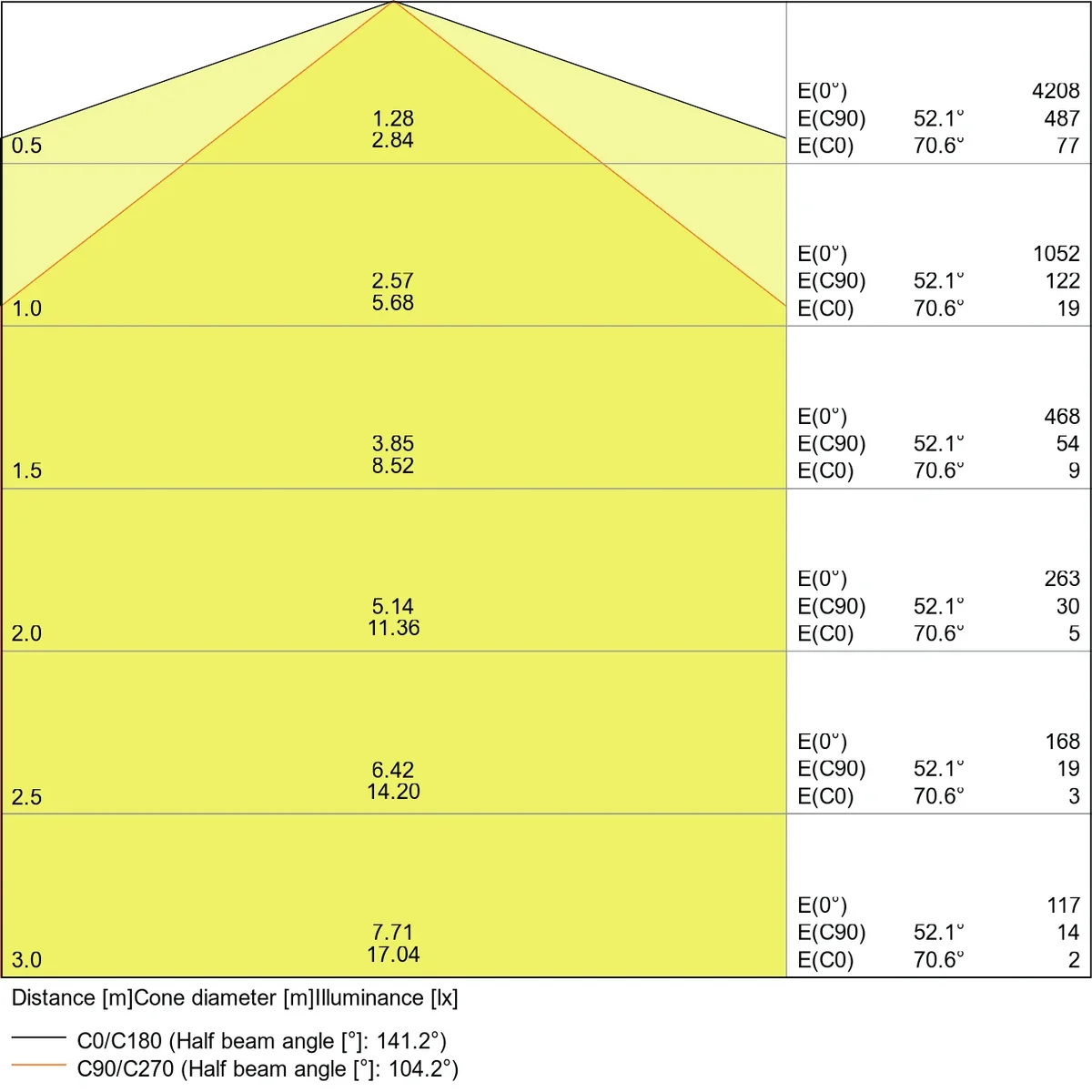

  • beam angle [°]
    120
  • Color
    White
  • Power [W]
    36
  • Rated voltage [V]
    230
  • Output current [mA]
    460
  • Luminous efficiency [lm/W]
    110
  • luminous flux [lm]
    4000
  • Durability [h]
    30000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80

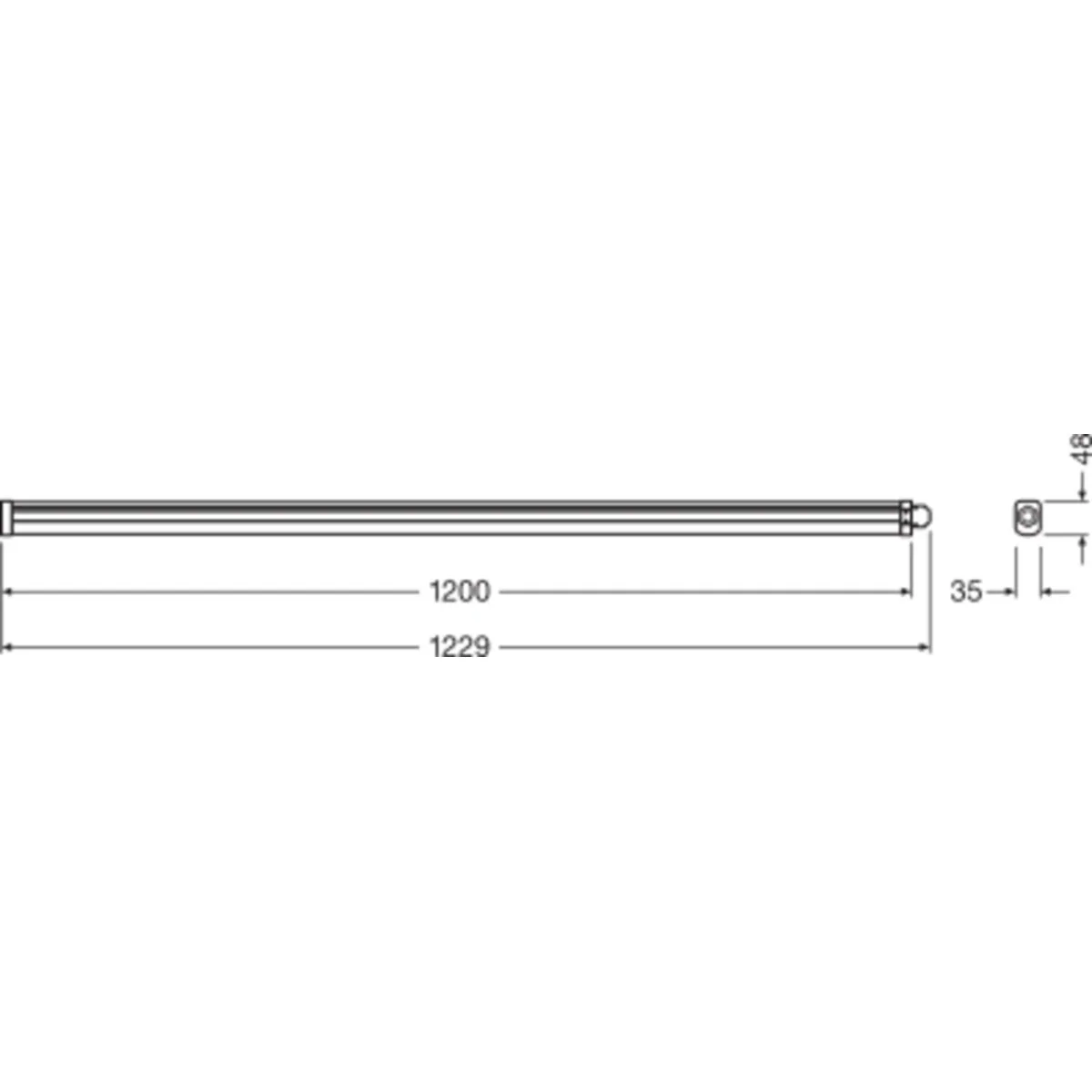

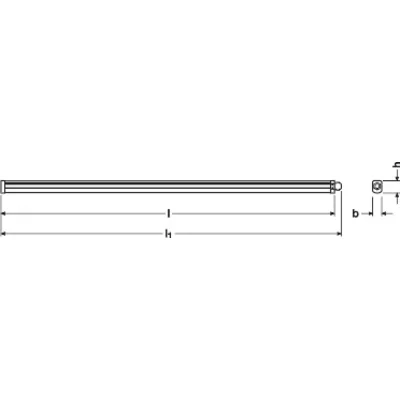

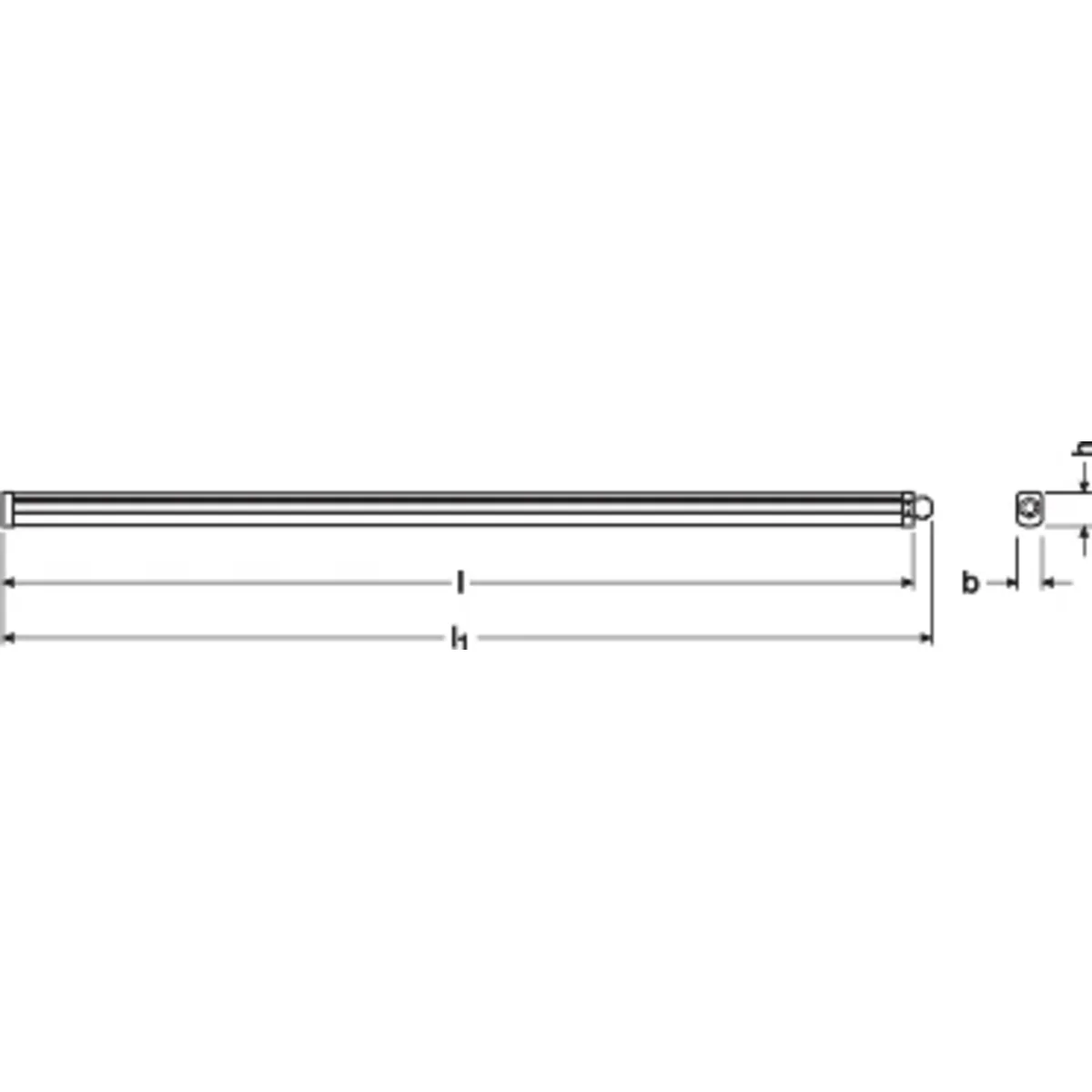

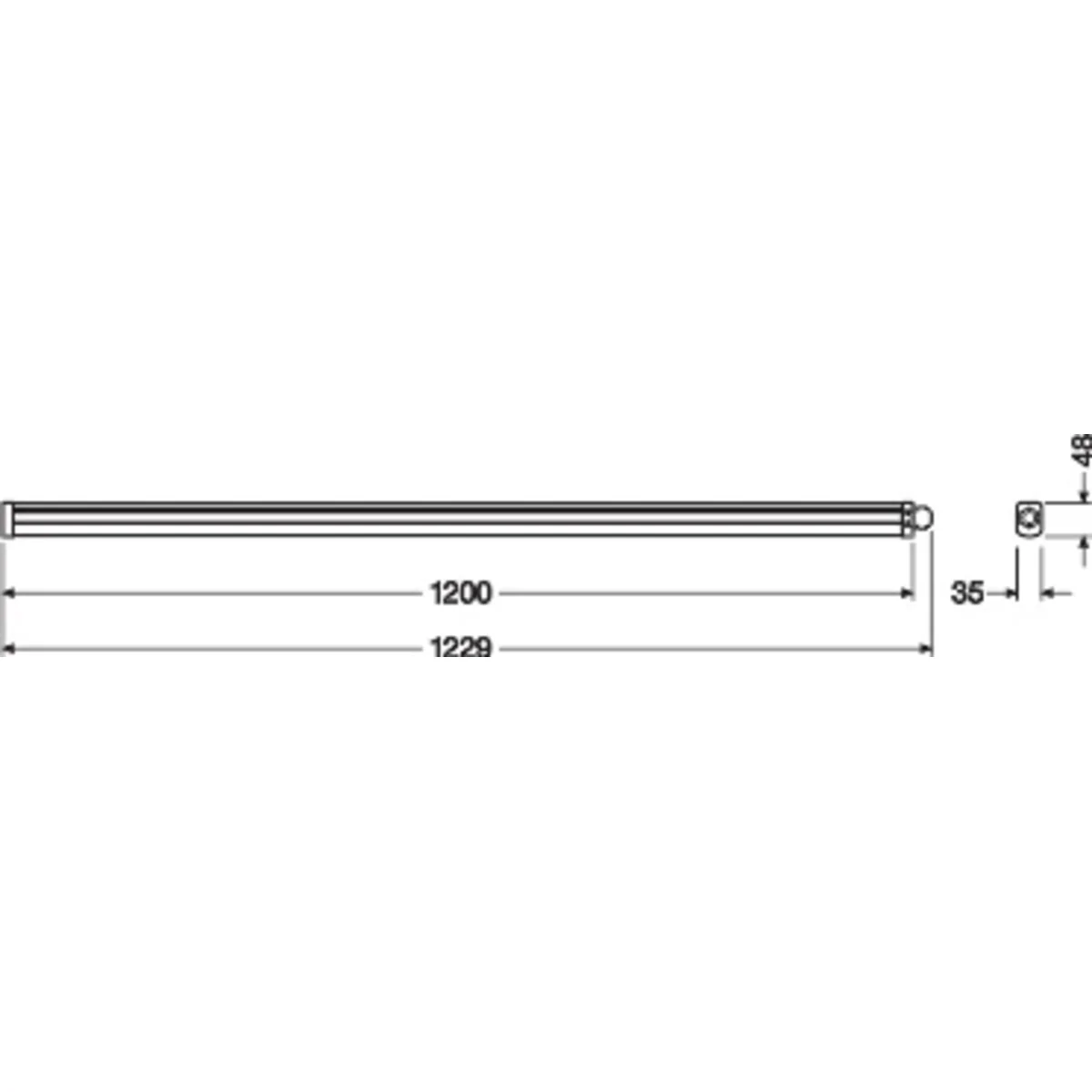

  • Length [mm]
    1200
  • Protection class
    II
  • Housing material
    Polycarbonate
  • Installation
    Surface-mounted
  • Initial starting current [A]
    7
  • Family
    DAMP PROOF SLIM VALUE
  • Level of security
    IP65
  • Width [mm]
    35
  • Height [mm]
    48
  • Degree of mechanical protection
    IK08
  • Color Temperature [K]
    4000
  • Light-emitting surface material
    Polycarbonate

Other technical data

  • Suitable for wall mounting
    no
  • Suitable for ceiling mounting
    yes
  • Suitable for surface mounting
    yes
  • Suitable for workplace according to EN 12464-1
    no
  • With light source
    yes
  • Housing colour
    White
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    no
  • Dimming DALI
    no
  • Dimming DSI
    no
  • Ściemniacz GPRS
    no
  • Dimming manufacturer's proprietary system
    no
  • Dimming phase cut-off
    no
  • Dimming programmable
    no
  • Dimming Sine Wave Reduction
    no
  • Dimming Zigbee
    no
  • Ściemniacz zależny od statecznika
    no
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    30000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    27000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    19000 h
  • Impact strength
    IK08
  • Suitable for emergency lighting
    no
  • With light sensor
    no
  • With air slots
    no
  • Max. system power
    36.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Width
    35.0 mm
  • Length
    1200 mm
  • Number of poles
    3
  • Suitable for suspended mounting
    no
  • Suitable for built-in mounting
    no
  • Suitable for light line configuration
    no
  • Lamp type
    LED not exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    200 ... 200 mA
  • With control gear
    yes
  • Dimming 1-10 V
    no
  • Dimming DMX
    no
  • Dimming potentiometer (integrated)
    no
  • Dimming LineSwitch
    no
  • Dimming mains voltage modulation
    no
  • Dimming phase cut-on
    no
  • Dimming RF
    no
  • Dimming Touch and Dim
    no
  • Dimming with push-button
    no
  • No dim function
    yes
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    30000 h
  • Rated life time L80/B10 at 25 °C
    27000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    19000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • With movement sensor
    no
  • Covering of the luminaire with thermally insulating material possible
    no
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    4000 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    110 lm/W
  • Height/depth
    48.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other
