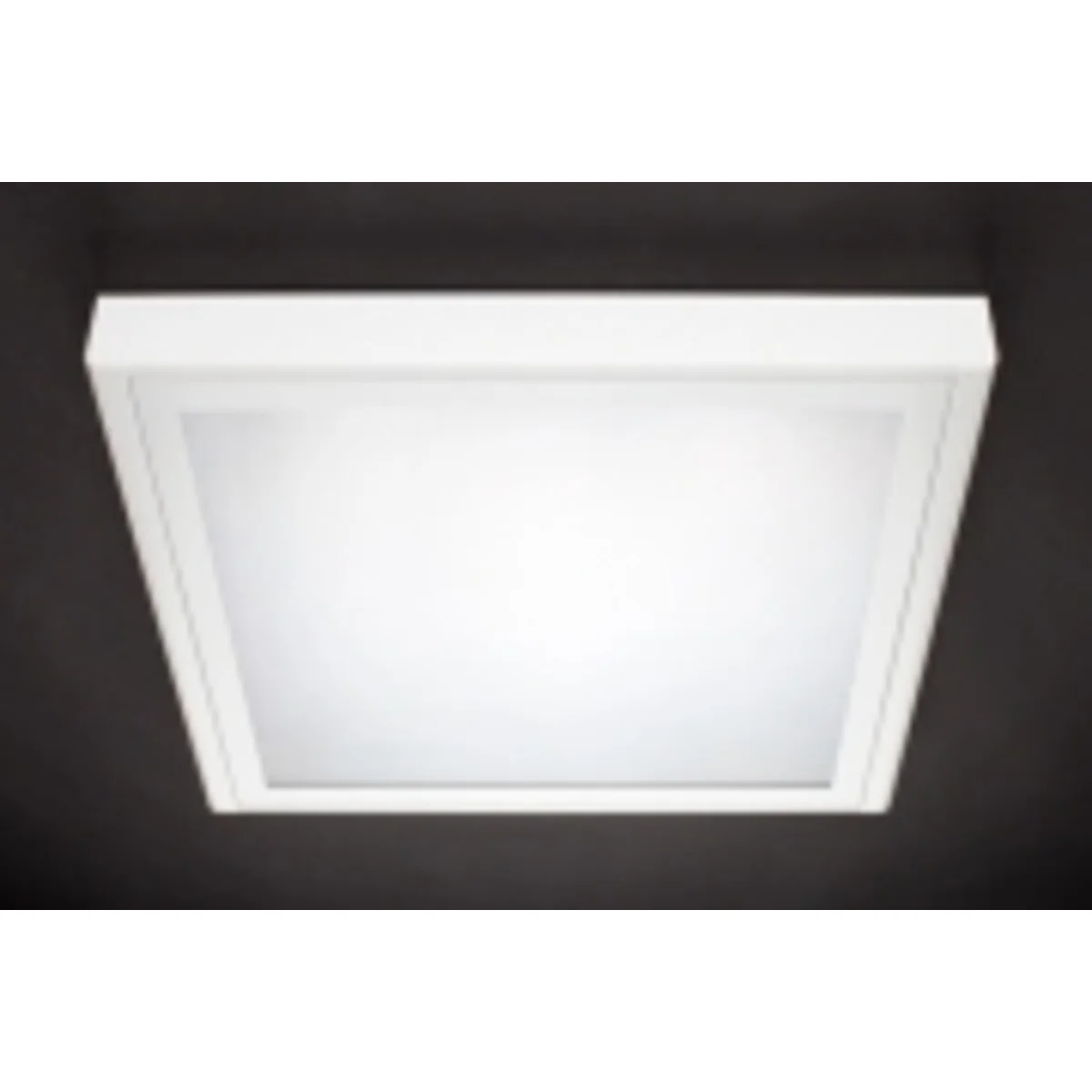

COMPACT LED EVO Z Luminaire 230V 52W 6550lm IP20 NW DALI I class 620x620 prismatic white 629792

Indeks lokalny:
OWC022LENA
Numer katalogowy:
629792
Kod EAN:
5905963629792
Producent: LENA LIGHTING
Light color [K]: 3500-4800 (natural)
Energy class: A+
Protection class: AND
Cena:
1 160,51 zł
gross / szt.
(w tym VAT 23%)
Brak w magazynach
Na zamówienie
Dodaj do zapytania ofertowego
Drukuj

Opis produktu

Characteristics:

A compact LED luminaire from the COMPACT LED EVO Z series designed for suspended mounting. It is equipped with energy-saving LED GO! and an evenly illuminated opal or prismatic diffuser, ensuring low glare. The frame is made of plastic. Its installation and electrical connection do not require disassembly of the diffuser.

Application:

The luminaire is designed for indoor use in offices or general utility rooms. It works well as the main source of light and is conducive to work that requires concentration. The luminaire is used both in new investments and in replacing traditional energy-intensive luminaires with energy-saving LED solutions.

Special features:

With DALI control system.< /p>

Dane techniczne

  • Light color [K]
    3500-4800 (natural)
  • Protection class
    AND
  • Color
    White
  • Material
    ABS
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    124
  • luminous flux [lm]
    6550
  • Lampshade type
    Prismatic
  • cri (ra)
    >80
  • Energy class
    A+
  • Shade
    PC
  • LED
    Yes
  • Power [W]
    52
  • Family
    COMPACT LED EVO Z
  • Level of security
    IP20
  • Dimensions [mm]
    620x620x69
  • Color Temperature [K]
    4000

Pozostałe dane techniczne

  • Suitable for light line configuration
    No
  • With light source
    No
  • Housing colour
    White
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Rated life time L70/B50 at 25 °C
    115000 h
  • Impact strength
    IK07
  • Max. system power
    52 W
  • Power factor
    0.95
  • Height/depth
    69 mm
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Material cover
    Plastic, opal
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    Yes
  • Dimming programmable
    No
  • Dimming RF
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Degree of protection (IP)
    IP20
  • Protection class
    I
  • Colour temperature
    4000 ... 4000 K
  • Width
    620 mm
  • Length
    620 mm

Dane producenta

  • Producent
    Lena Lighting S.A
  • Adres
    63-000 Środa Wielkopolska Kórnicka 52 Polska
