COMPACT LED EVO Z Luminaire 230V 42W 4800lm IP20 NW II class 620x620 opal white 628887

local index:
OWC009LENA
Catalog number:
628887
EAN code:
5905963628887
Manufacturer: LENA LIGHTING
Light color [K]: 3500-4800 (natural)
Energy class: A+
Protection class: II
Price:
1 023,98 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Characteristics

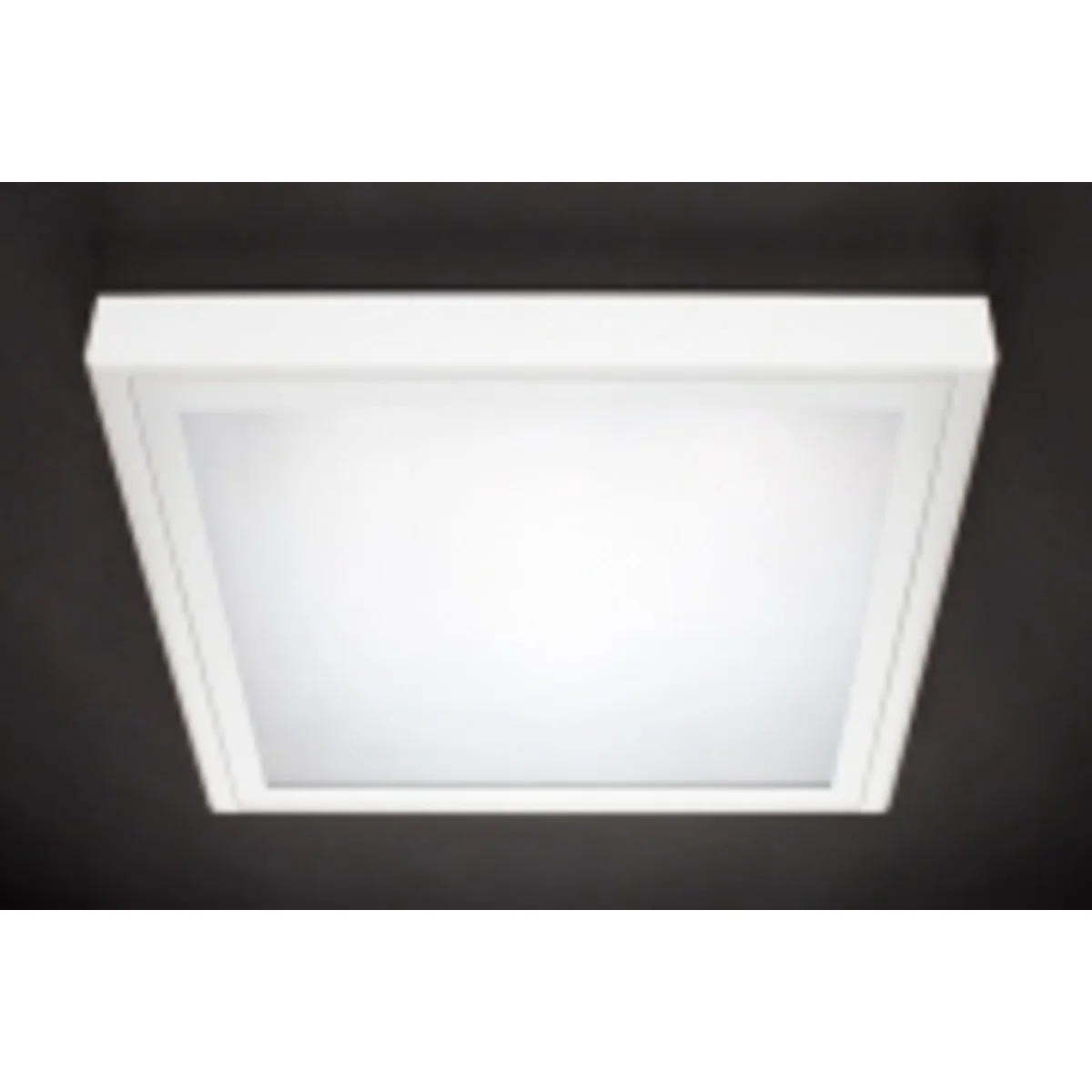

A compact LED luminaire from the COMPACT LED EVO Z series designed for suspended mounting. It is equipped with energy-saving LED GO! and an evenly illuminated opal or prismatic diffuser, ensuring low glare. The frame is made of plastic. Its assembly and electrical connection do not require disassembly of the diffuser.

Application

The luminaire is designed for indoor use in offices or general utility rooms. It works well as the main source of light and is conducive to work that requires concentration. The luminaire is used both in new investments and when replacing traditional energy-intensive luminaires with energy-saving LED solutions.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Protection class
    II
  • Color
    White
  • Material
    ABS
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    112
  • luminous flux [lm]
    4800
  • Lampshade type
    Opal
  • cri (ra)
    >80
  • Energy class
    A+
  • Shade
    PC
  • LED
    Yes
  • Power [W]
    42
  • Family
    COMPACT LED EVO Z
  • Level of security
    IP20
  • Dimensions [mm]
    620x620x69
  • Color Temperature [K]
    4000

Other technical data

  • Suitable for light line configuration
    No
  • With light source
    No
  • Housing colour
    White
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • Colour temperature
    4000 ... 4000 K
  • Width
    620 mm
  • Length
    620 mm
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Material cover
    Plastic, opal
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Rated life time L70/B50 at 25 °C
    125000 h
  • Impact strength
    IK07
  • Max. system power
    42 W
  • Power factor
    0.95
  • Height/depth
    69 mm

Manufacturer details

  • Manufacturer
    Lena Lighting S.A
  • Address
    63-000 Środa Wielkopolska Kórnicka 52 Polska
