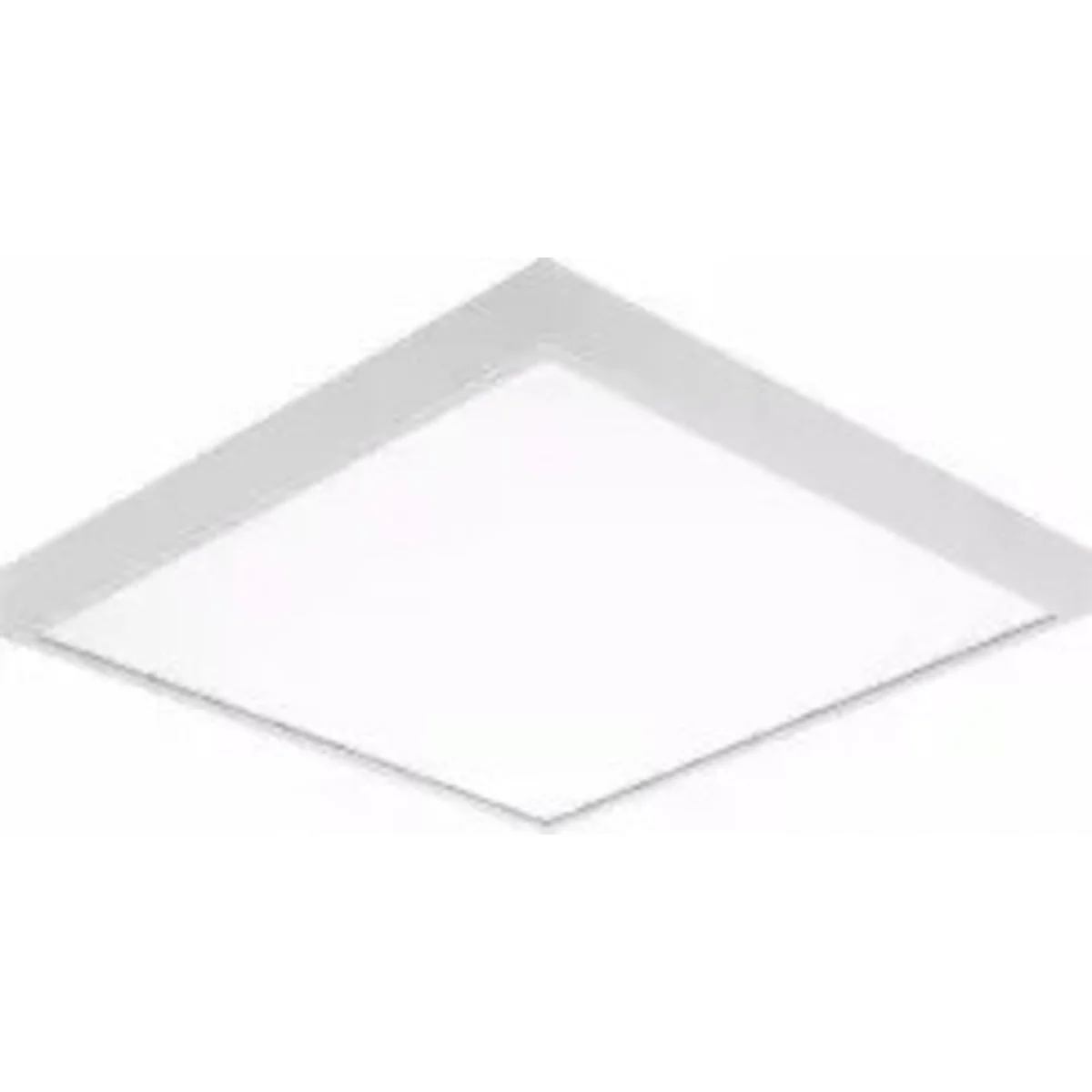

COMPACT LED EVO N Office luminaire 24W 2950lm 4000K IP20 white 628047

Lokaler Index:
OWE280LENA
Katalognummer:
628047
EAN-Code:
5905963628047
Hersteller: LENA LIGHTING
Light color [K]: 3500-4800 (natural)
Energy class: A++
Color: White
Preis:
179,37 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Characteristics:
New compact LED lamp designed for surface mounting. It is equipped with energy-saving LED modules and an evenly illuminated opal or prismatic diffuser, ensuring low glare (UGR<19)*. The lamp is made of plastic. Its assembly and electrical connection do not require the disassembly of the shutter. Special brackets for mounting the COMPACT lamp in the surface-mounted version for use with uneven ceilings. These handles ensure solid mounting while maintaining the distance between the ceiling and the lamp.

Application:
The lamp is intended for indoor use in offices or general utility rooms. It works well as the main source of light and is conducive to work that requires concentration. The lamp is used both in new investments and when replacing traditional energy-intensive lamps with energy-saving LED solutions.

Technische Daten

  • Light color [K]
    3500-4800 (natural)
  • Color
    White
  • Power [W]
    24
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Durability [h]
    50000
  • Degree of mechanical protection
    IK07
  • Color Temperature [K]
    4000
  • Lampshade material
    PC
  • Energy class
    A++
  • Material
    ABS
  • Installation
    Surface-mounted
  • Family
    COMPACT LED EVO N
  • luminous flux [lm]
    2950
  • Dimensions [mm]
    620x620x66
  • Lampshade type
    Opal
  • cri (ra)
    >80

Weitere technische Daten

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Material cover
    Plastic, opal
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L90/B10 przy 25°C
    42000 h
  • Impact strength
    IK07
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.95
  • Height/depth
    66 mm
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • With light source
    Yes
  • Housing colour
    White
  • Type of grid
    White
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Rated life time L70/B50 at 25 °C
    132000 h
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • With movement sensor
    No
  • Max. system power
    24 W
  • Luminaire efficacy
    118 lm/W
  • Width
    620 mm
  • Length
    620 mm

Hersteller-Details

  • Hersteller
    Lena Lighting S.A
  • Adresse
    63-000 Środa Wielkopolska Kórnicka 52 Polska
