el12 Lighting Light fixtures Indoor luminaires Surface-mounted office and decorative

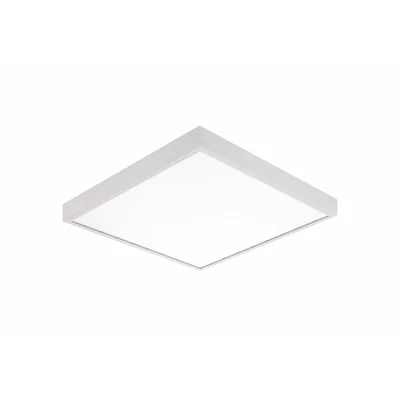

COMPACT LED EVO N Luminaire 230V 32W 4550lm IP20 n/t NW II class 620x620 prismatic white 628023

local index:
OWE014LENA
Catalog No:
628023
EAN code:
5905963628023
COMPACT LED EVO N Luminaire 230V 32W 4550lm IP20 n/t NW II class 620x620 prismatic white
COMPACT LED EVO N Luminaire 230V 32W 4550lm IP20 n/t NW II class 620x620 prismatic white

Click on the photo to enlarge

Manufacturer: LENA LIGHTING
Light color [K]: 3500-4800 (natural)
Energy class: A++
Protection class: II
See full description
Price:
120,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data

Product description

Characteristics

Compact LED luminaire designed for surface mounting. It is equipped with energy-saving LED GO! and an evenly illuminated opal or prismatic diffuser, ensuring low glare. The frame is made of plastic. Its assembly and electrical connection do not require disassembly of the diffuser.

Application

The luminaire is designed for indoor use in offices or general utility rooms. It works well as the main source of light and is conducive to work that requires concentration. The luminaire is used both in new investments and when replacing traditional energy-intensive luminaires with energy-saving LED solutions.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Protection class
    II
  • Color
    White
  • Material
    ABS
  • Installation
    Surface-mounted
  • Family
    COMPACT LED EVO N
  • Level of security
    IP20
  • Durability [h]
    50000
  • Lampshade type
    Prismatic
  • cri (ra)
    >80
  • Energy class
    A++
  • Shade
    PC
  • LED
    Yes
  • Power [W]
    32
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    136
  • luminous flux [lm]
    4550
  • Dimensions [mm]
    620x620x66
  • Color Temperature [K]
    4000

Other technical data

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Material cover
    Plastic, opal
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Rated life time L70/B50 at 25 °C
    132000 h
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • With movement sensor
    No
  • Max. system power
    32 W
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.95
  • Height/depth
    66 mm
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • With light source
    Yes
  • Housing colour
    White
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L90/B10 przy 25°C
    42000 h
  • Impact strength
    IK07
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • Rated luminous flux according to IEC 62722-2-1
    4550 lm
  • Luminaire efficacy
    136 lm/W
  • Width
    620 mm
  • Length
    620 mm
See more >>
