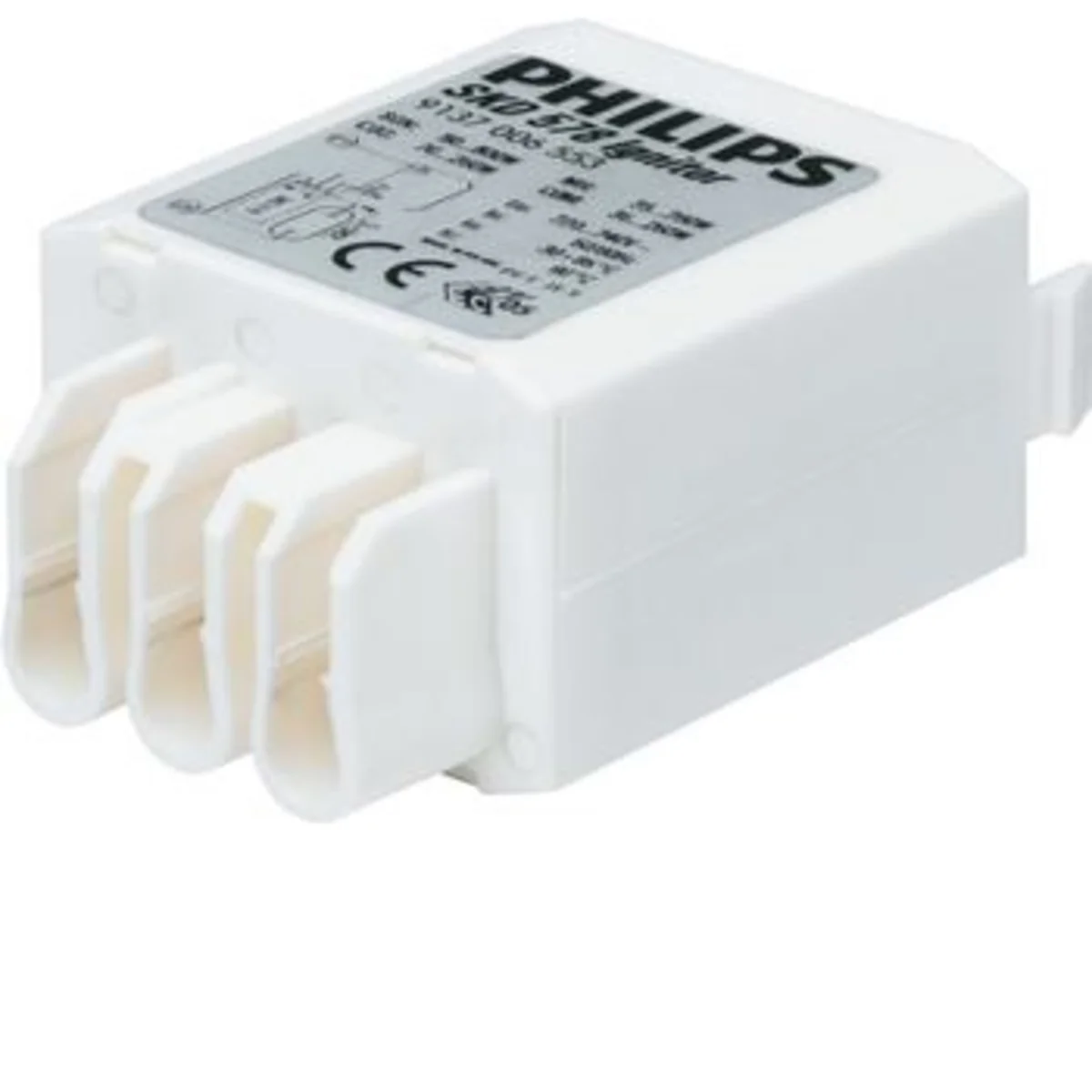

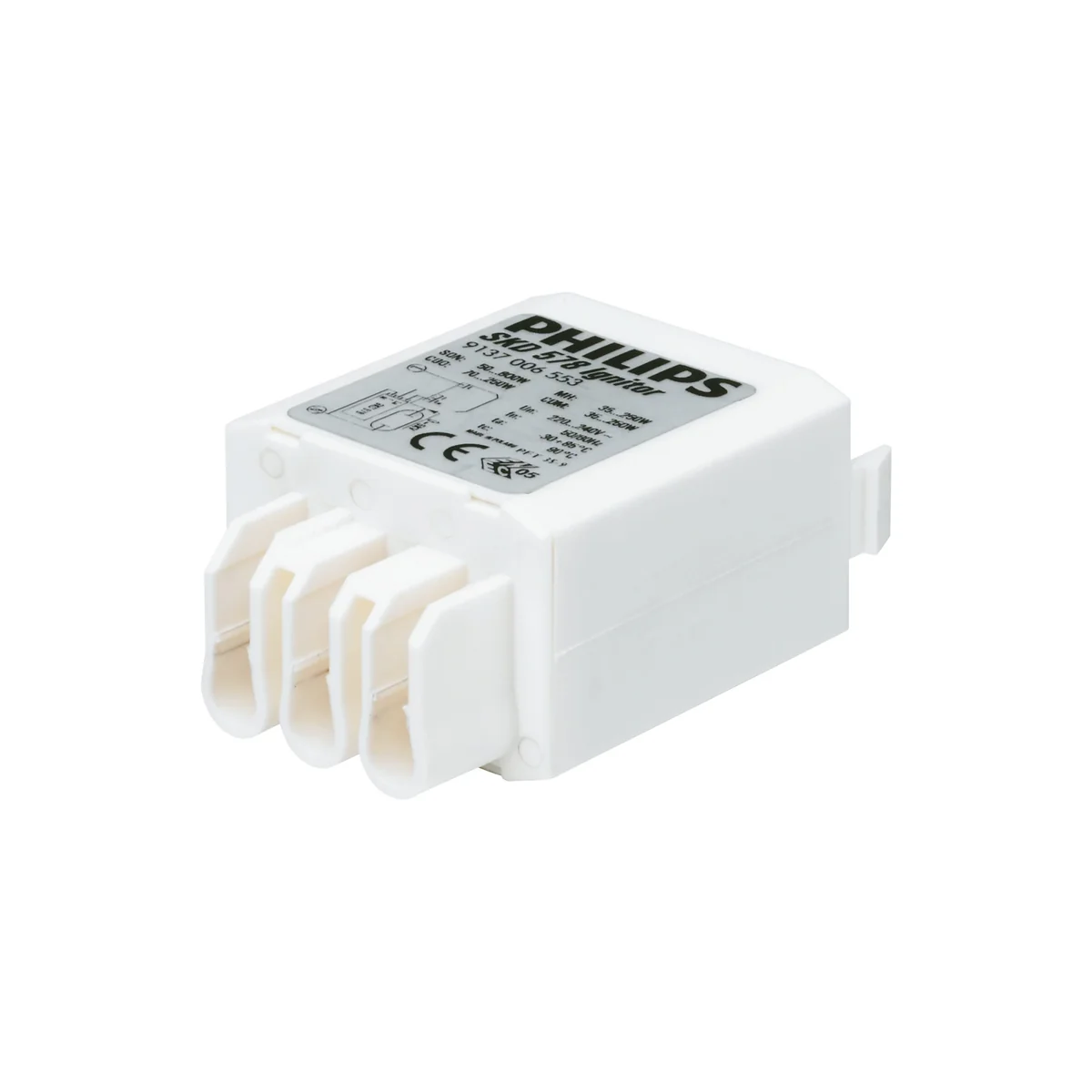

Compact electronic ballast SKD 578 230V 913700655366
local index:
OCS008PHIL
Catalog No:
913700655366
EAN code:
8727900771312
Price:
24,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Igniter for MK4 discharge lamps.
- Rated lamp: SON/CDM/MH/HPI/HPA/CDO
- Rated number of lamps: 1 < li>system power (ballast + lamp): 35-600
- mains voltage: 220-240 V
- mains frequency: 50/60 Hz

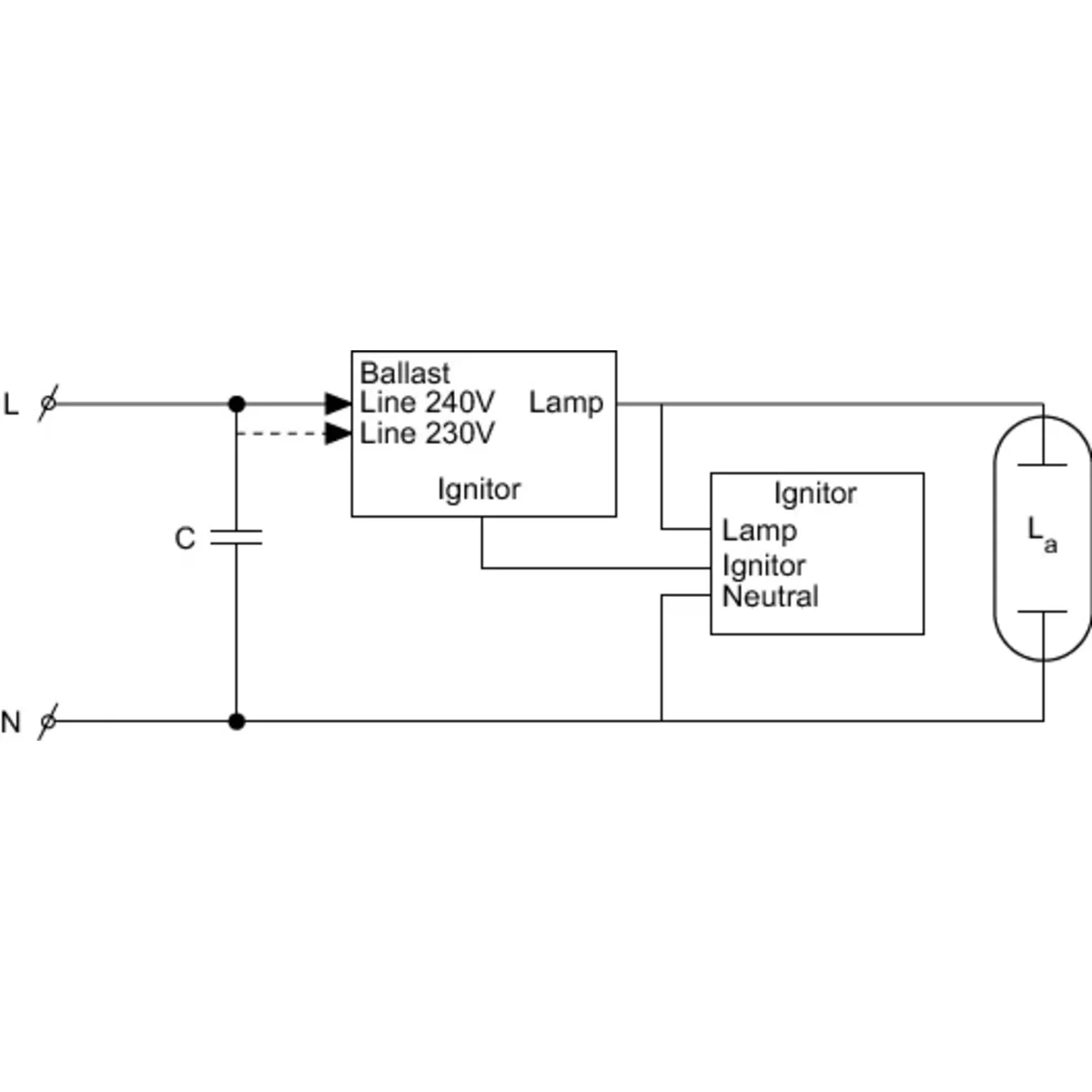

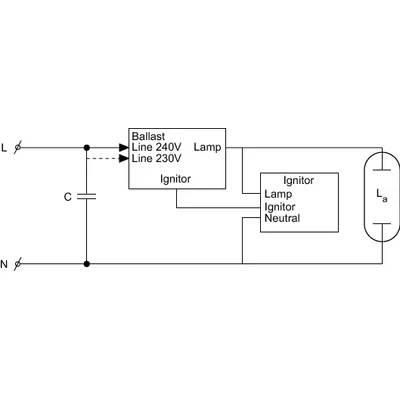

- ignition type : series-parallel
- number of ignition attempts: 3 -
- number of ignition pulses: 1 x
- maximum ignition time: 1185 s
- ignition voltage: 1.8-5 kV
- ignition excitation voltage: 190 V
- power supply loss: 0.5 W

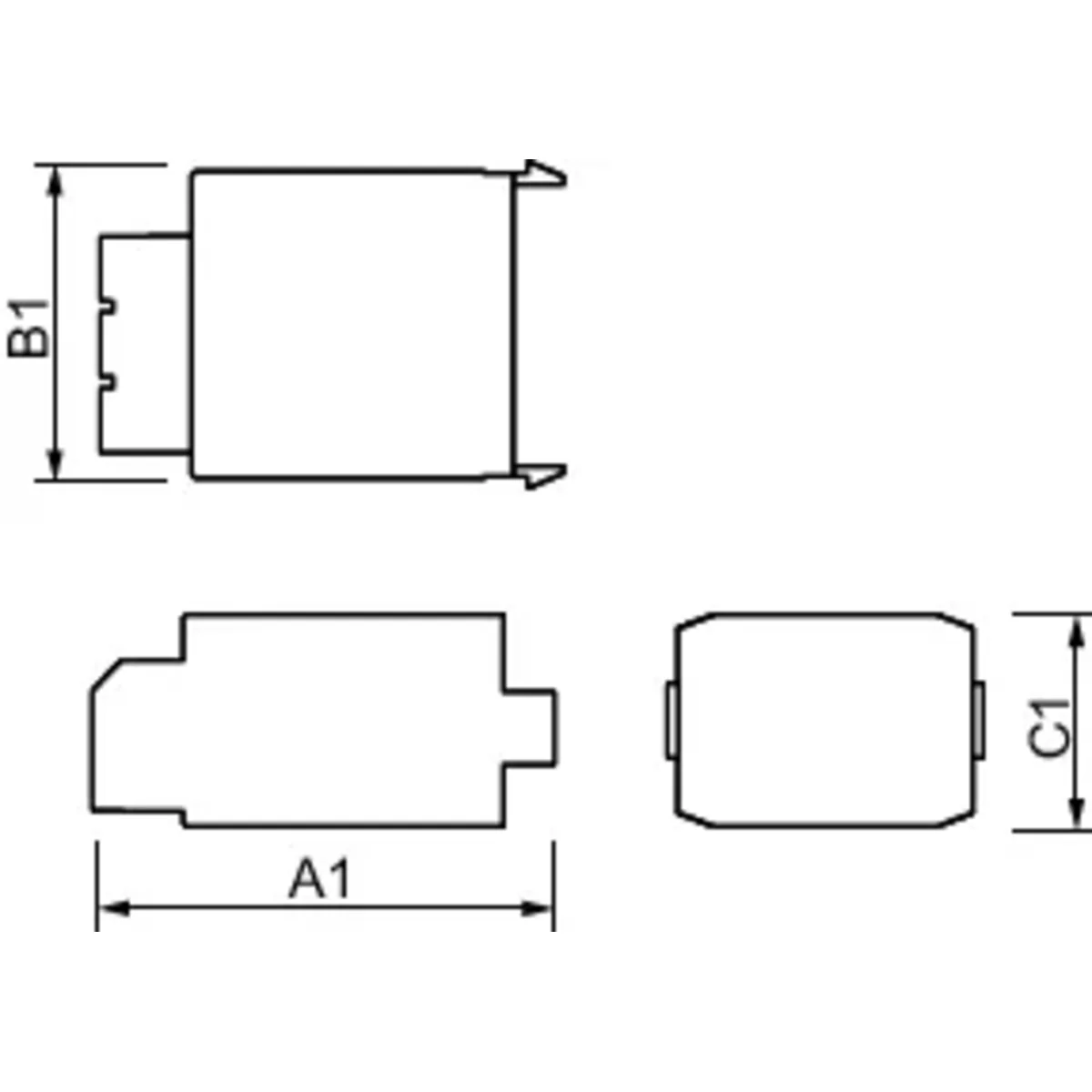

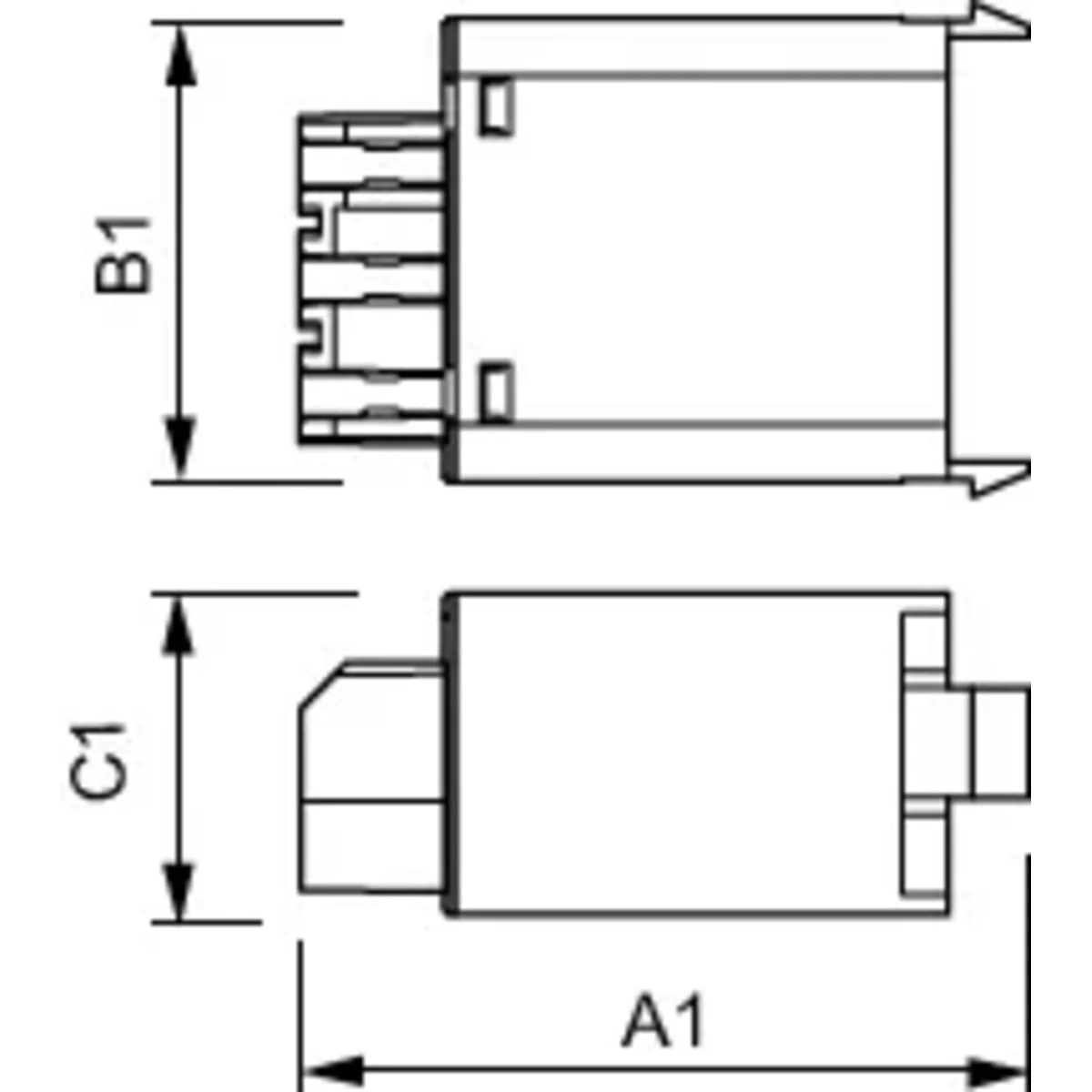

- A1 length: 63.5 mm < li>width B1: 40.5 mm
- height C1: 28 mm
- CE marked: yes
- ENEC certified: yes
Technical data
-
Length [mm]63.5
-
Width [mm]40.5
-
Control voltage [V]190
-
Height [mm]28
Other technical data
-
ElectronicYes
-
Suitable for compact fluorescent lampNo
-
Suitable for low pressure sodium-vapour lampNo
-
Suitable for lamp power35 ... 600 W
-
Suitable for high pressure sodium-vapour lampYes
-
Suitable for halogen metal mercury vapour lampYes
-
Suitable for fluorescent lampNo
-
CircuitOther
Manufacturer details
-
ManufacturerSignify I.B.R.S. / C.C.R.I.
-
Address5600 VB Eindhoven Noméro 10461 Holandia
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 48 pcs. | 5760 pcs. |
| Weight (kg) | 0,037 | 1,488 | - |
| Width (m) | - | 0,182 | - |
| Length (m) | - | 0,189 | - |
| Depth (m) | - | 0,129 | - |
