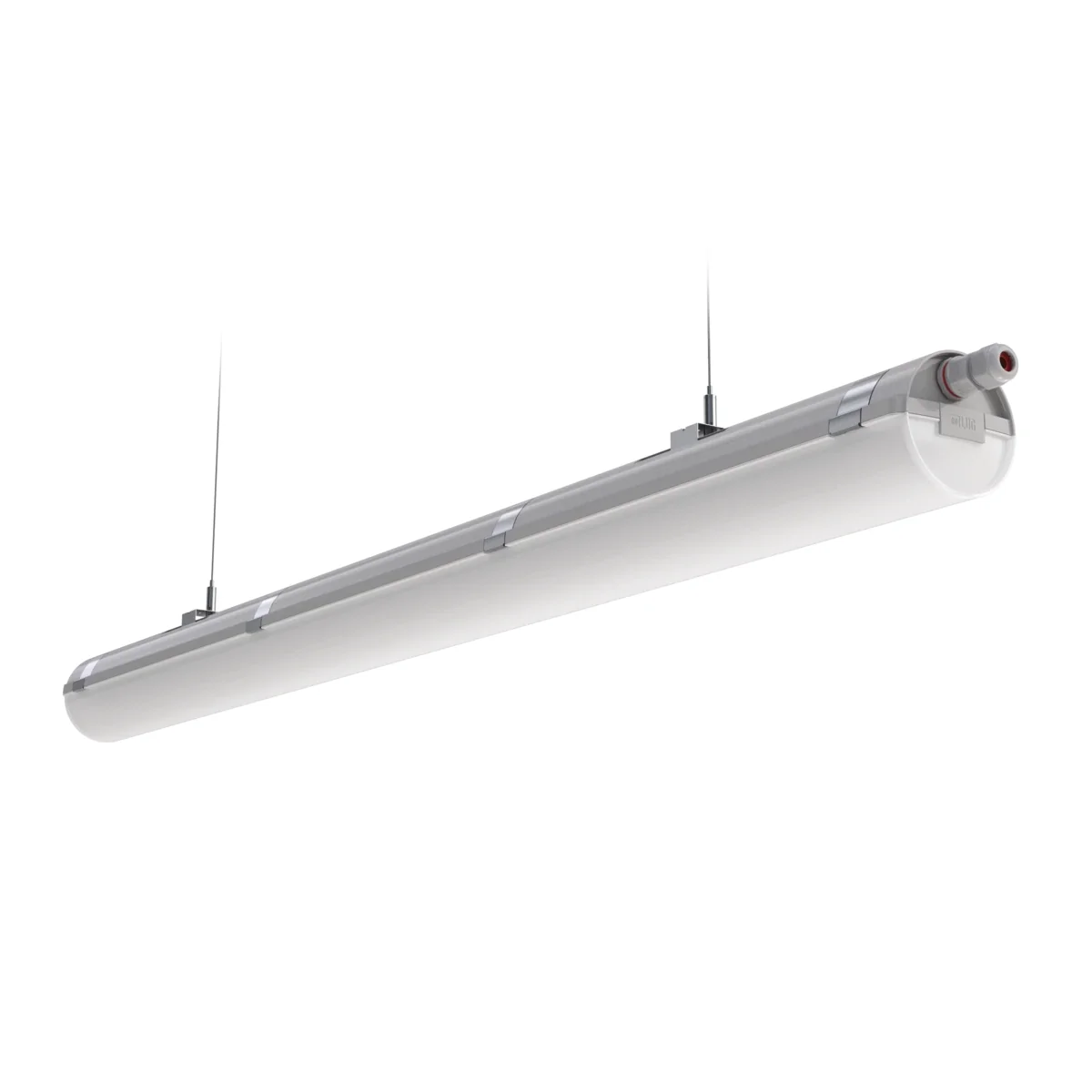

Name: ATLANTYK 2.0 LED 1245 ED EASY CONNECT luminaire 4700lm/840 PC IP65 31 W
Brand: LUG LIGHT
SKU: OWF038LUGQ
Price: 412.25 PLN
Availability: BackOrder

Інші технічні дані

Suitable for wall mounting

No
Suitable for ceiling mounting

Yes
Suitable for surface mounting

Yes
Lamp type

LED not exchangeable
Housing material

Plastic
Material cover

Plastic matt/satinized
Voltage type

AC
Prąd znamionowy LED przy zasilaniu prądem stałym

350 ... 350 mA
With control gear

Yes
Dimming 1-10 V

No
Dimming DMX

No
Ściemniacz GPRS

No
Dimming programmable

No
Light distributor

Diffuser lens/optic/panel
Beam angle

Open beam/diffuse
Klasa efektywności energetycznej zamontowanego źródła światła

A++, A+, A (LED)
Degree of protection (IP)

IP65
Protection class

I
Rated ambient temperature according to IEC 62722-2-1

-25 ... 35 °C
Filament test according to IEC 60695-2-11

850 °C - 30 s
Rated luminous flux according to IEC 62722-2-1

4450 lm
Colour temperature

4000 ... 4000 K
Luminaire efficacy

144 lm/W
Height/depth

90 mm
Type of wiring

Suitable for through wiring

Suitable for suspended mounting

Yes
Suitable for built-in mounting

No
Suitable for light line configuration

No
With light source

Yes
Housing colour

Grey
Type of grid

None
Nominal voltage

220 ... 240 V
Type of control gear

LED operating device current-controlled
Dimming 0-10 V

No
Dimming DALI

No
Dimming DSI

No
Dimming LineSwitch

No
No dim function

Yes
Light sharing

Symmetric
Light outlet

Direct
Rated life time L80/B10 at 25 °C

100000 h
Impact strength

IK08
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

Yes
Suitable for emergency lighting

No
Max. system power

31 W
Colour of light

White
Colour rendering index CRI

80-89
Width

100 mm
Length

1245 mm
Conductor cross section

2.5 mm²

ATLANTYK 2.0 LED 1245 ED EASY CONNECT luminaire 4700lm/840 PC IP65 31 W 090380.5L02.011
