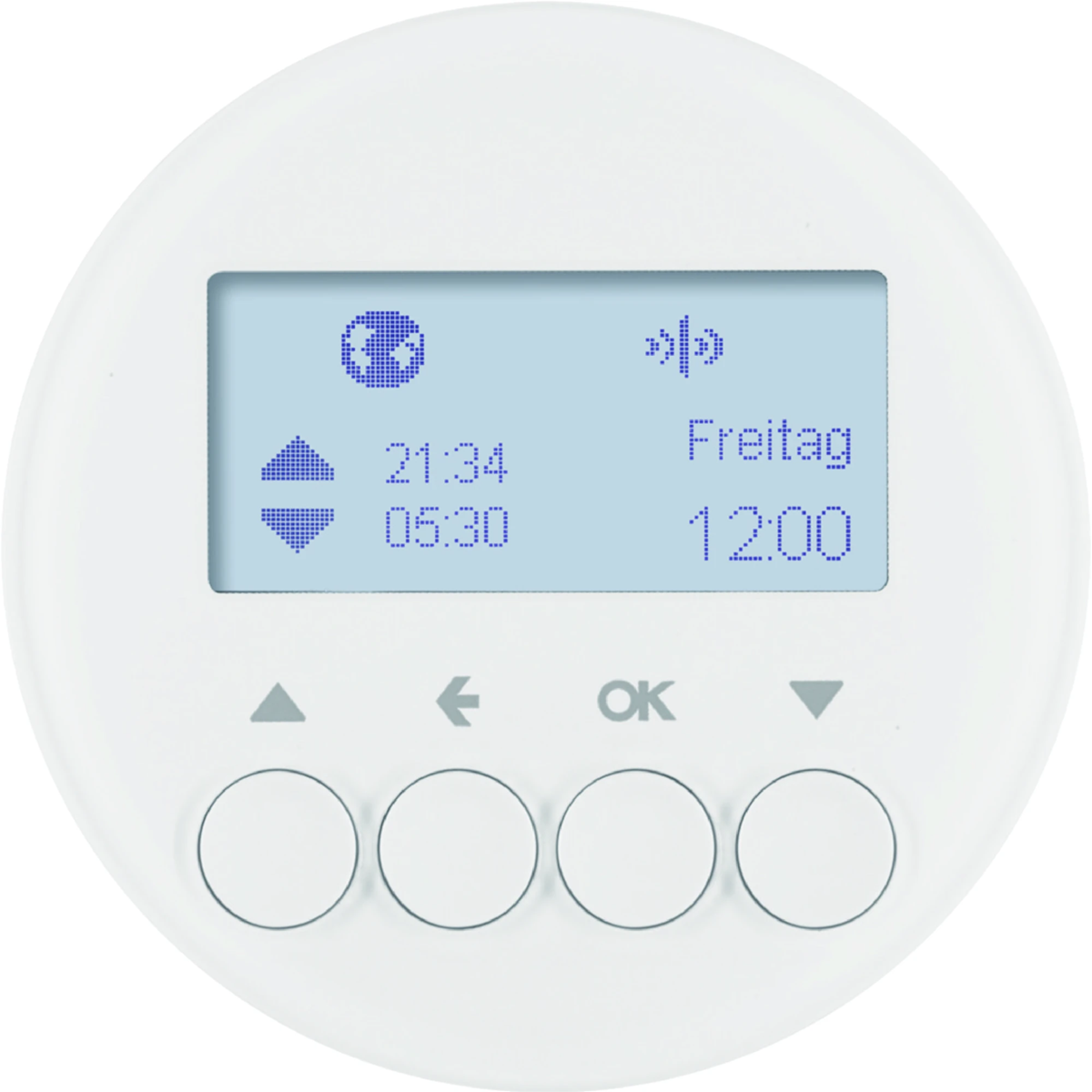

KNX RF QUICKLINK R.1/R.3 Blind time switch glossy white 85745139

Louver time switch from the KNX RF quicklink series. Main design line: Berker R.1/R.3/Serie 1930/R.classic.

Features:

• Additional ETS features: +6 scenes, operation mode, status indicator, 2 x alarm
• reset function (factory settings)
• with button lock
• party function, commands automatic, radio and expansion commands are not executed (blocking)
• option to configure the transmitter and/or receiver functions;
• option to save the position of the slats for a given scene
• calling scenes using KNX radio devices
• quicklink functions enabling the inclusion of single, group and central control of blinds/roller shutters into the system
• quicklink functions: blinds, 2 scenes, forced control, up/down button switch down
• toggle manual/automatic mode

Controls and indicators:

• indicate attachment compatibility/ mechanism on the display
• adjustable LCD contrast
• LCD backlit during operation

Detection:

• sun protection and twilight function in combination with a radio illuminance sensor

Connection:

• integration with the KNX-TP system via the KNX radio network/surface-mounted TP gateway

Settings:

• with automatic winter/time changeover summer (can be detached)
• astronomical program for sunrise/sunset switching with city/country input and customizable
• standalone program commands via radio and extensions are not executed< /li>
• holiday program causing random selection of travel times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
