WNC-3 three-phase voltage indicator WNC-3

local index:
AKS003FIFQ
Catalog No:
WNC-3
EAN code:
5902431674261
Manufacturer: F&F
Tightening torque [Nm]: 0.4
Power consumption [VA]: 5
Power consumption [W]: 1
Price:
25,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 27 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

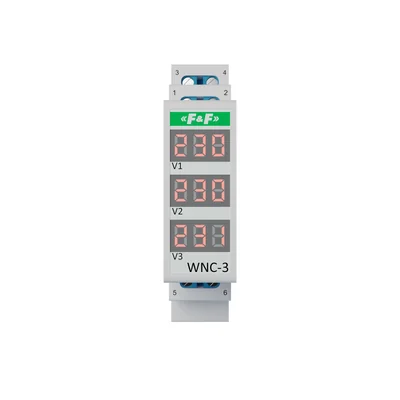

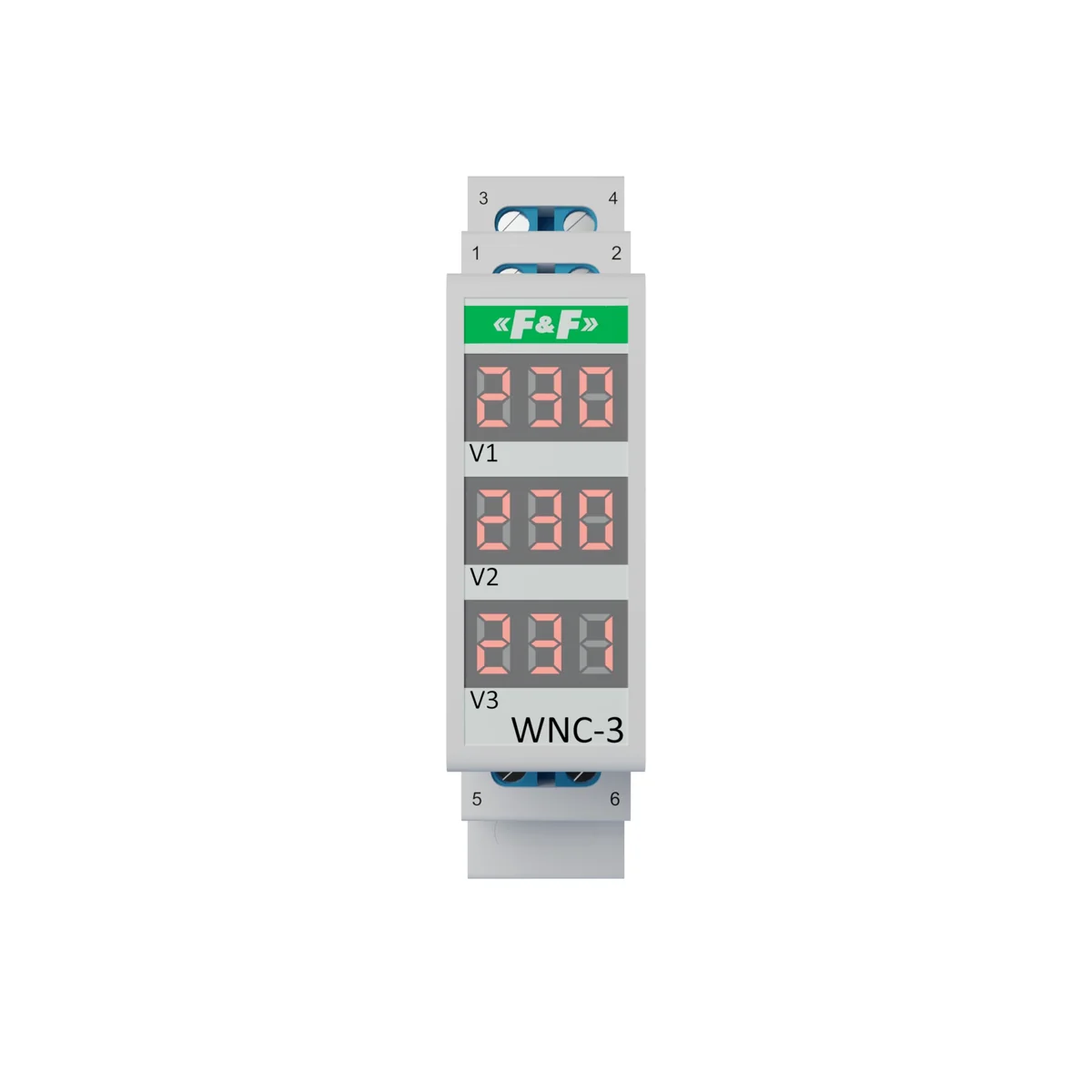

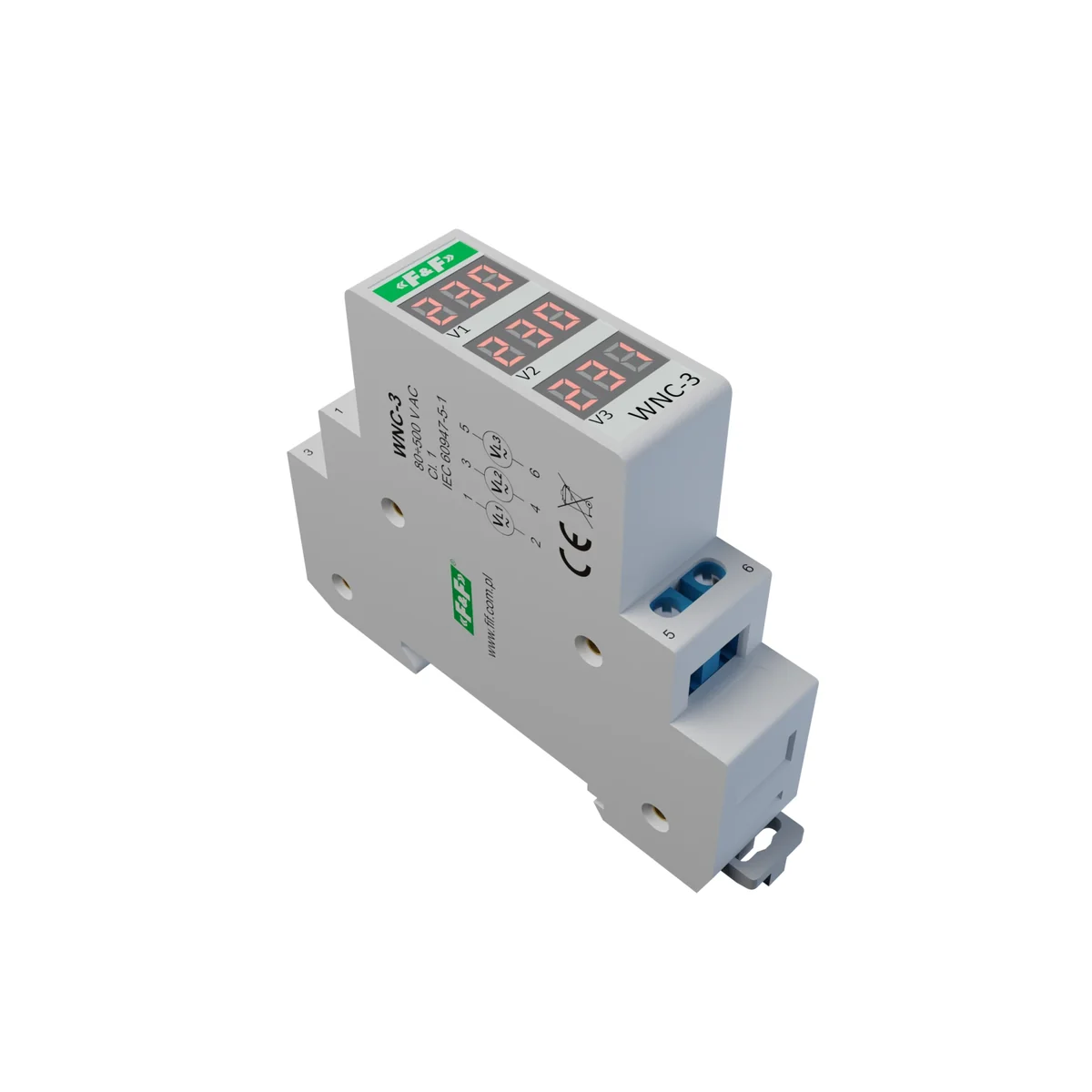

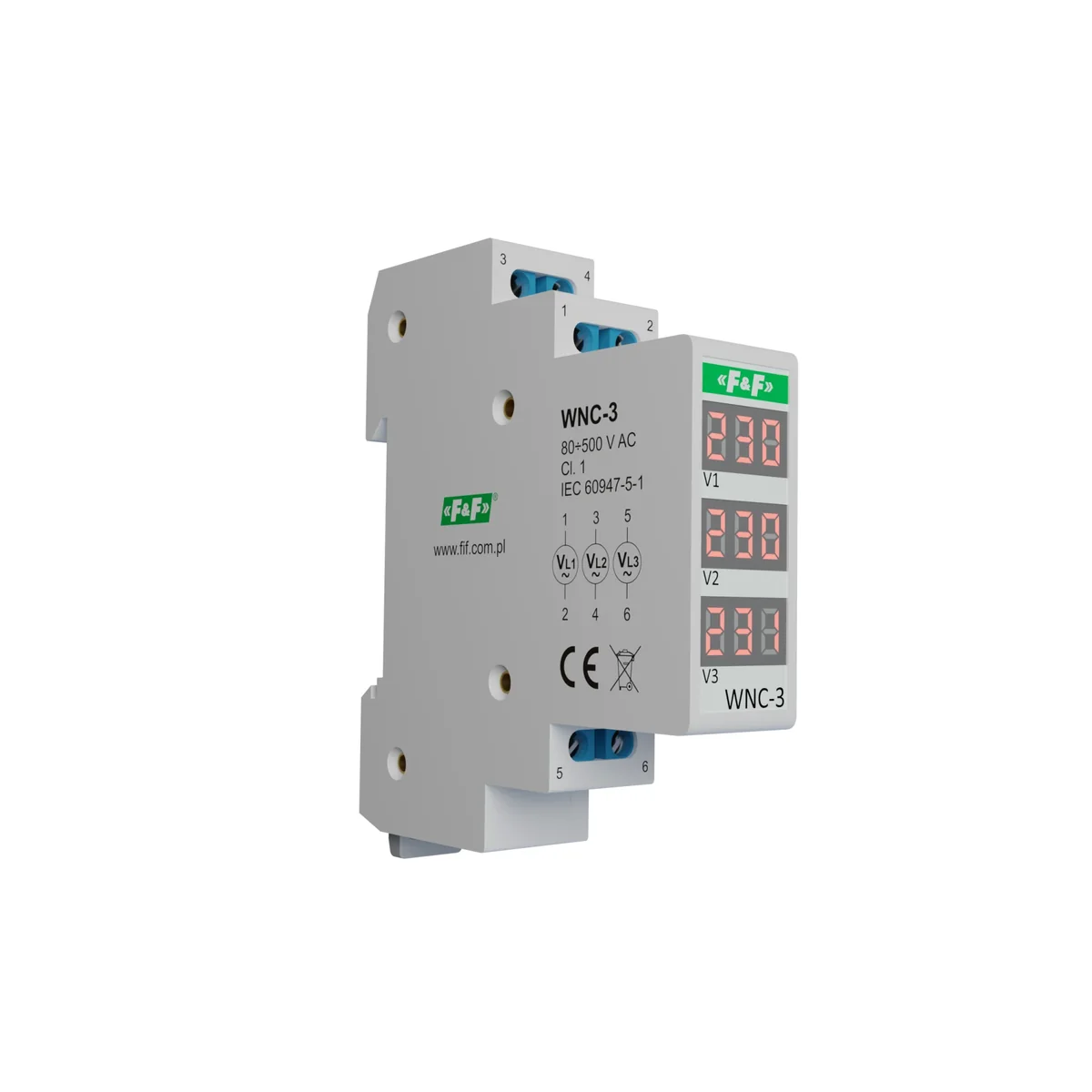

WNC-3 three-phase voltage indicator from the manufacturer F&F. The product catalog number is WNC-3. It is used to measure and indicate the value of 3-phase alternating voltage in the range of 80÷500 V AC. The WNC-3 indicator consists of three independent measurement paths. The measured voltage values are indicated directly in numerical form on a 3-row, 3-digit LED display. Voltages are displayed with a resolution of 1 V, the measurement is updated five times per second. The measured voltage is also used to power the indicator. If the voltage drops below 80V, the indicator display may turn off.

Parameters

  • Display: 3× 3-digit, 7-segment LED.
  • Power frequency: 50÷60 Hz.
  • Indication accuracy: 1%±1 digit.
  • Operating temperature : -5÷40°C.
  • Dimensions: 1 module (18 mm).
  • Mounting: on 35 mm rail.

Technical data

  • Tightening torque [Nm]
    0.4
  • Power consumption [W]
    1
  • AC supply voltage [V]
    80÷500
  • PKWIU
    26.51.43.0
  • Power consumption [VA]
    5
  • Level of security
    IP20
  • Terminal type
    Threaded

Other technical data

  • Measuring range
    80 ... 500 V
  • Accuracy class
    1
  • Model
    DIN rail
  • Width
    18 mm
  • Measurement system
    Digital
  • Transformer connection
    No
  • Voltage type
    AC
  • Modular version
    Yes
  • Width in number of modular spacings
    1
  • Scales lighting
    Yes
