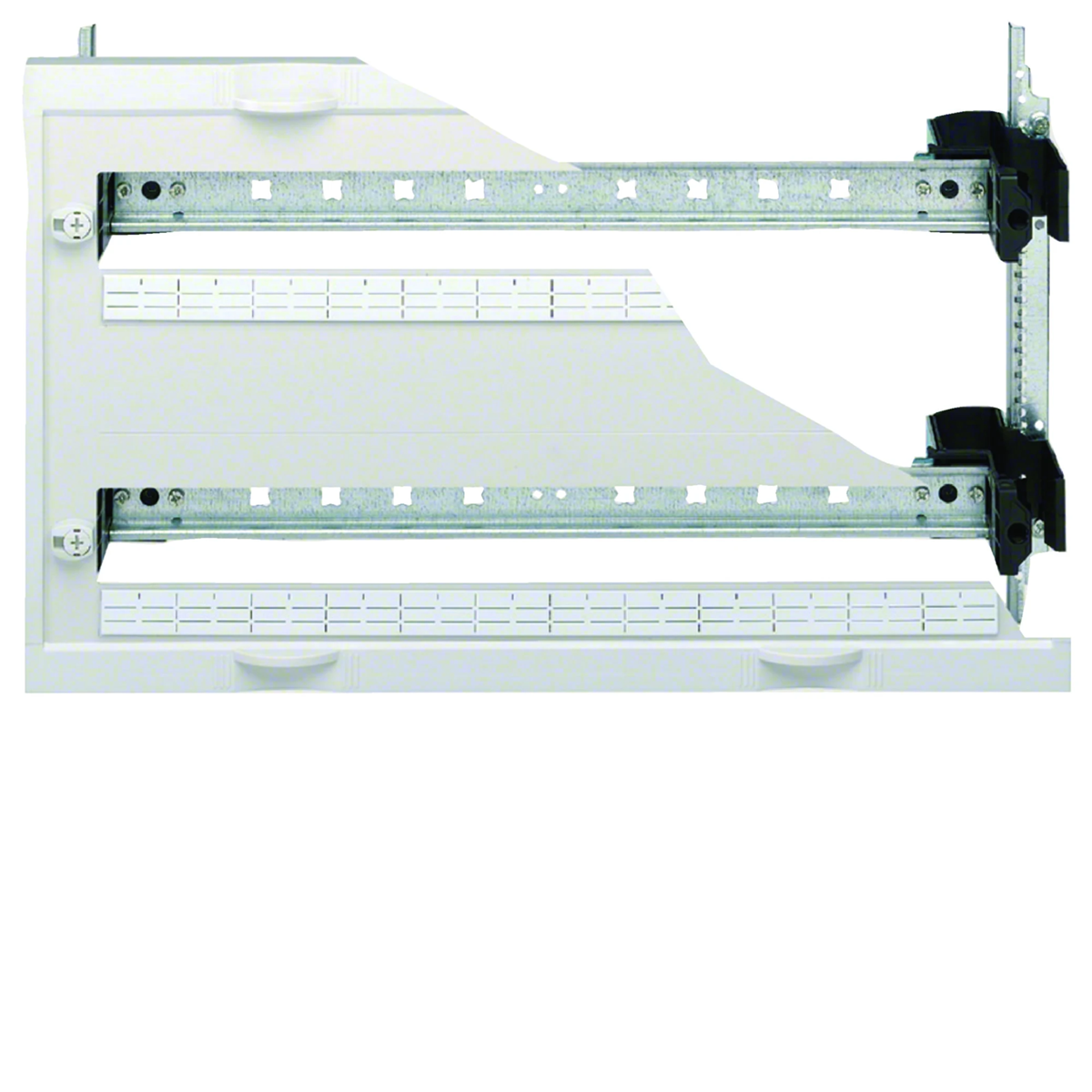

UNIVERS N block for horizontally mounted modular devices 2x24PLE 300x500mm UD22B3

local index:

ATA002HAGE

Catalog number:

UD22B3

EAN code:

3250616141223

UNIVERS N block for horizontally mounted modular devices 2x24PLE 300x500mm

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 125

Number of modules: 48

Number of rows: 2

See full description

321,56 zł

gross / pcs. (including VAT 23%)

Dostępne 163 pcs.

Check

Odbierz w godzinę!

Choose your wholesaler

Choose

Quantity pcs. (multiplicity: 1 )

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

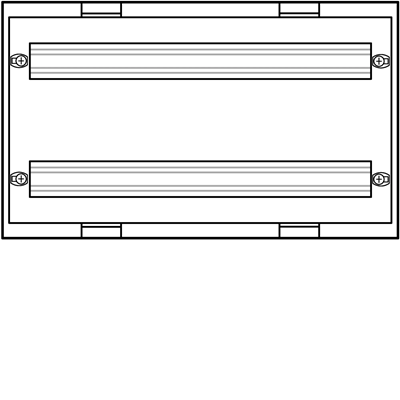

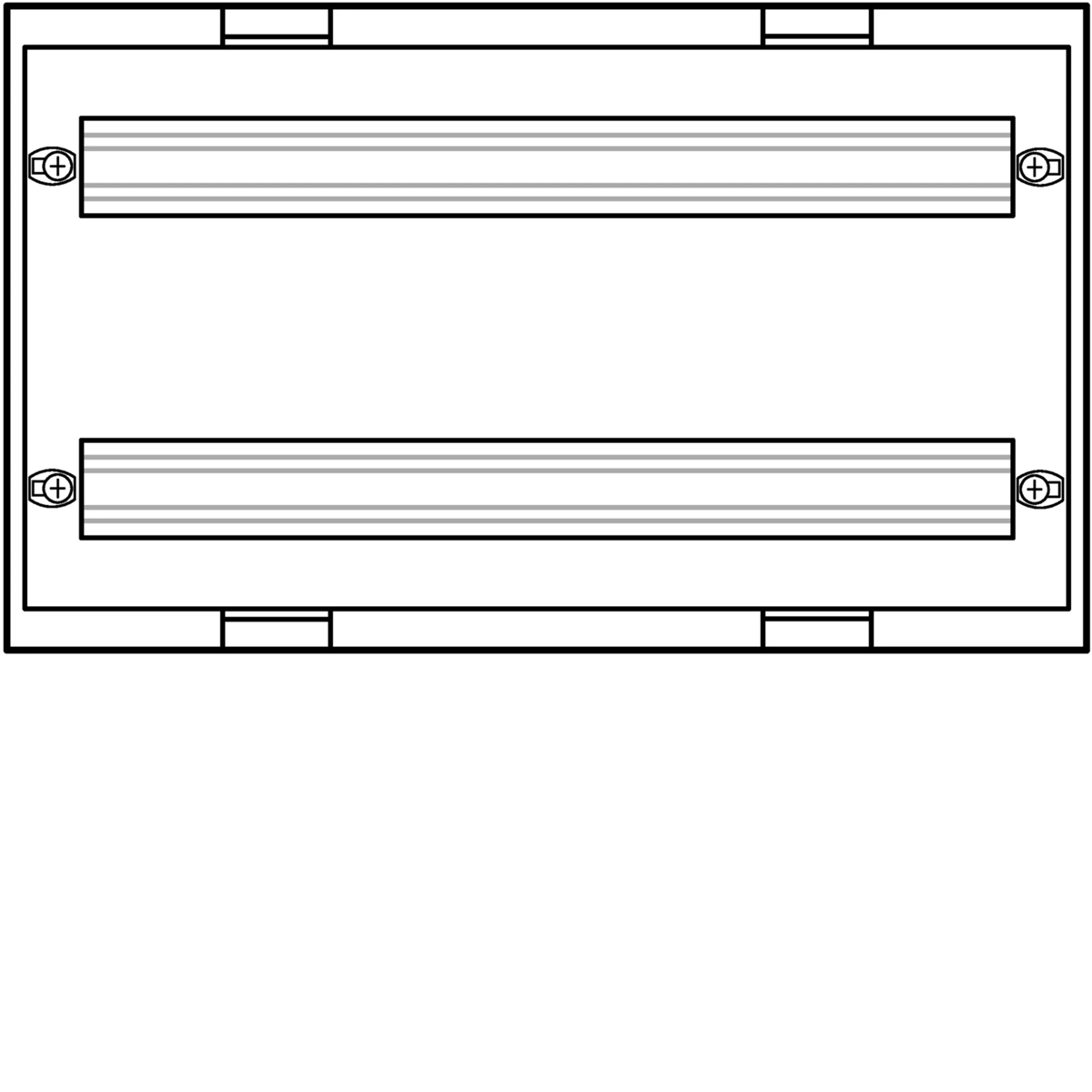

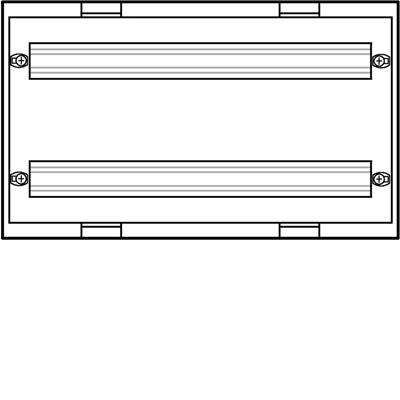

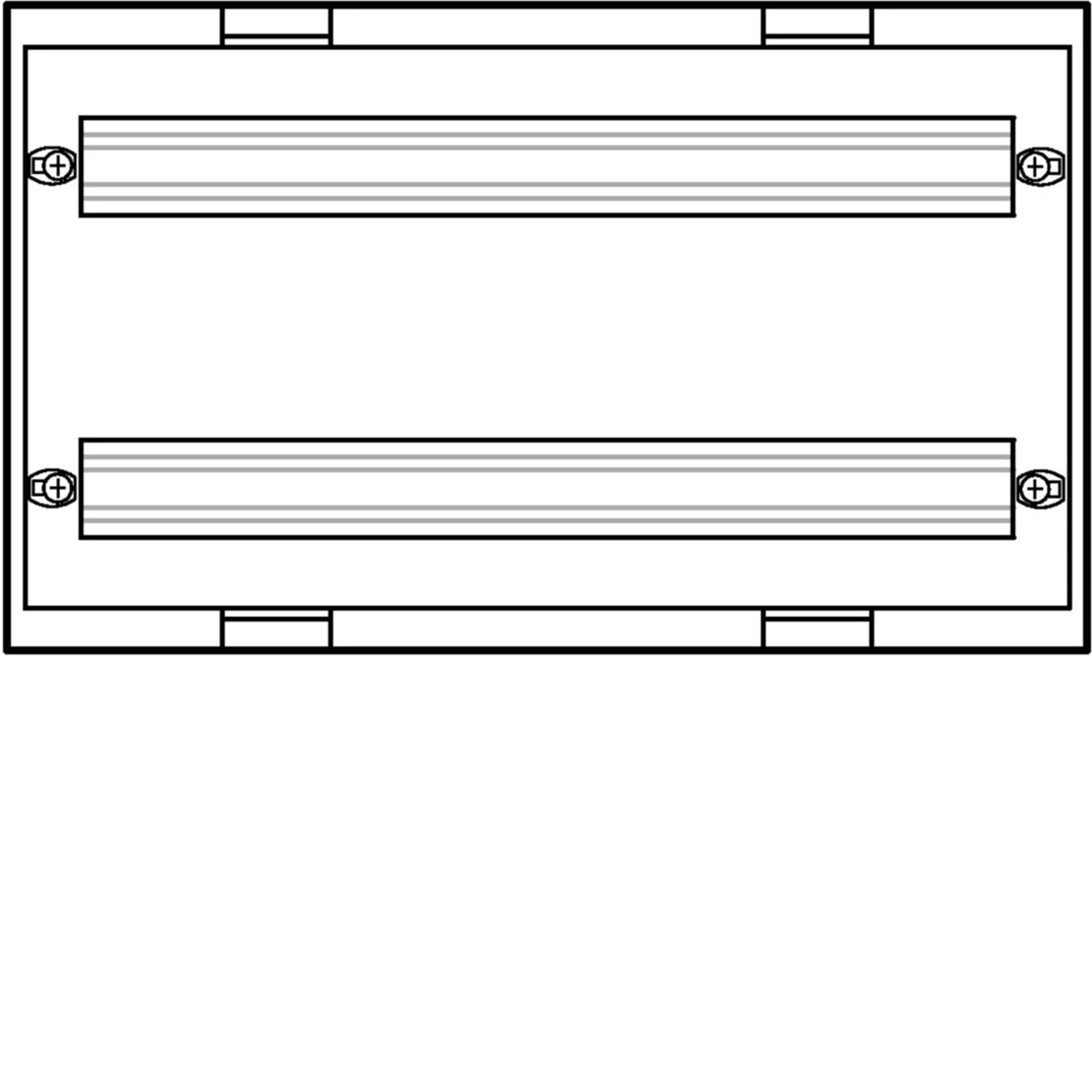

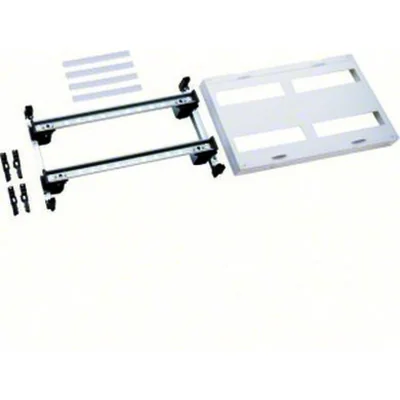

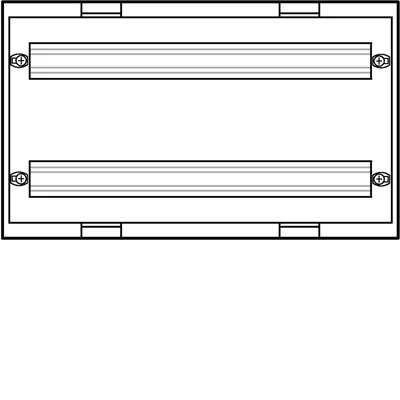

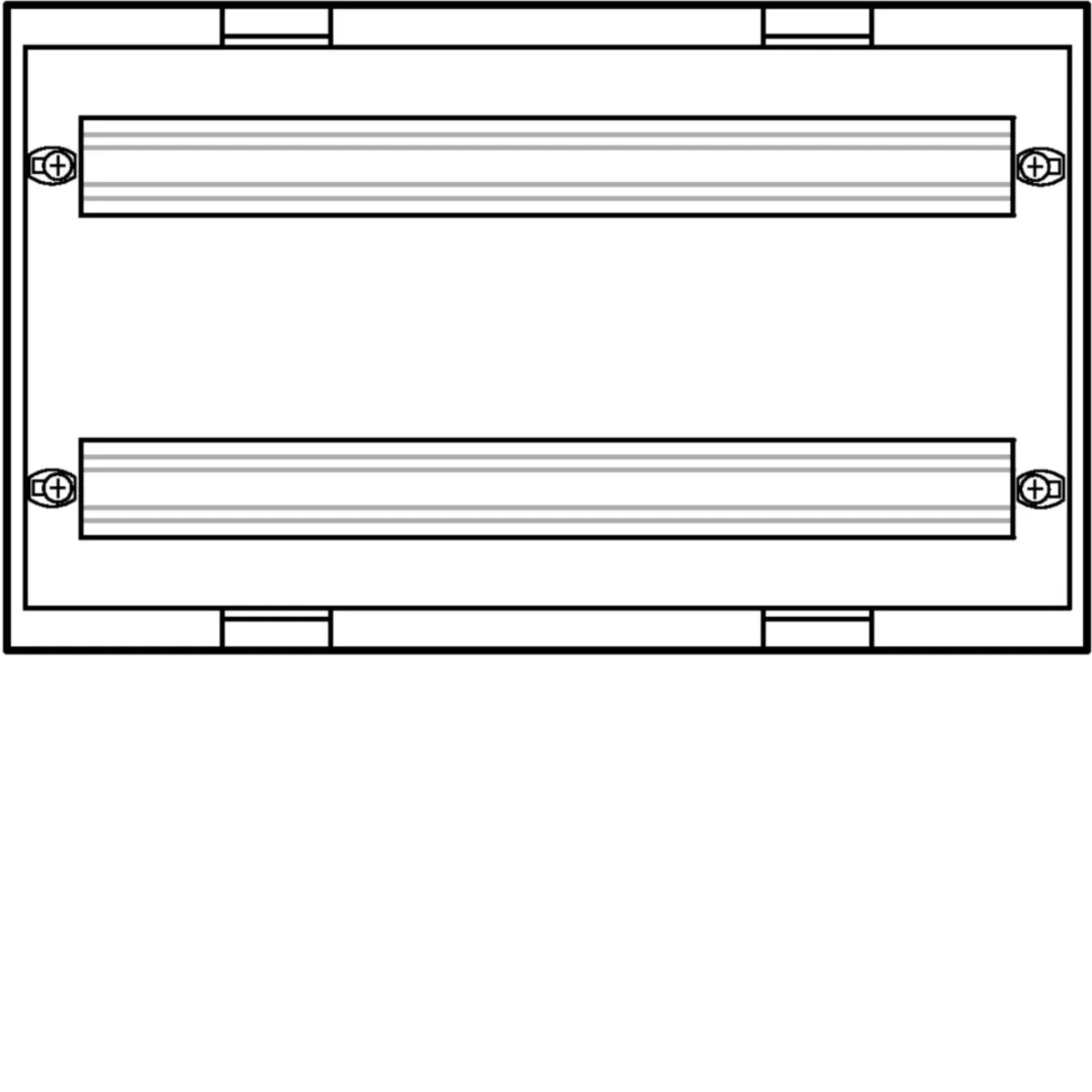

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular devices
Content:
- TS35 horizontal mounting rails, 150 mm spacing
- TS35 mounting rail level: high
- with vertical enlarged cable routing - height 300 mm

Technical data

Depth [mm]

125
Number of rows

2
Height [mm]

300
PKWIU

27.12.40.0

Number of modules

48
Width [mm]

500
Number of modules

48

Other technical data

Height

300 mm
Depth

125 mm
Number of modular spacings per DIN-rail

48
Extension possible

Yes

Width

500 mm
Number of DIN-rails

2
Row distance

150 mm
With busbar

No

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta
Quantity	1 pcs.	38 pcs.
Weight (kg)	2,160	107,080
Width (m)	0,310	0,800
Length (m)	0,130	1,200
Depth (m)	0,510	1,200
