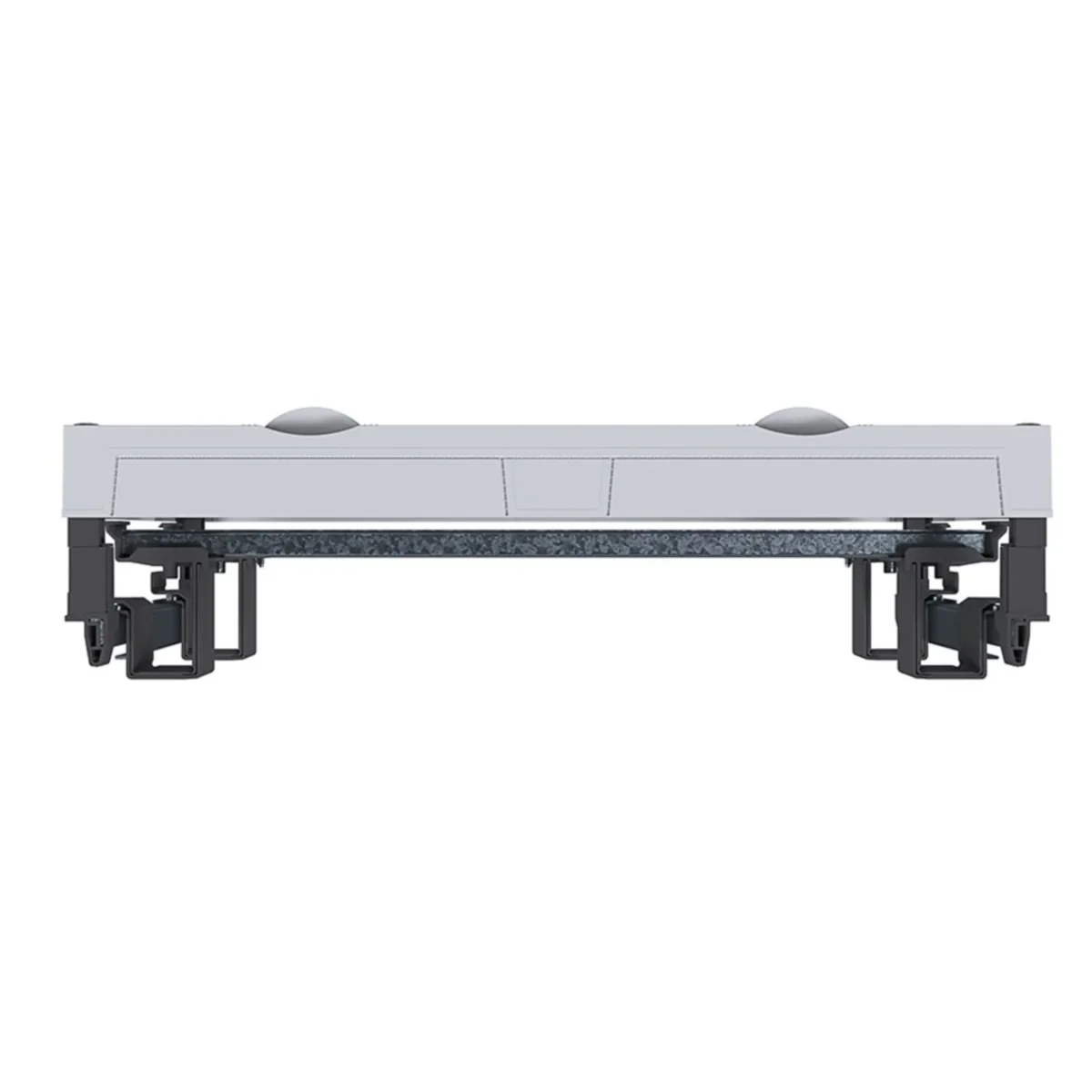

UNIVERS N block for 4x12PLE horizontally mounted modular cameras UD22B1

local index:
ATA004HAGE
Catalog No:
UD22B1
EAN code:
3250616141216
Manufacturer: HAGER
Depth [mm]: 125
Number of modules: 48
Number of rows: 2
Price:
85,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

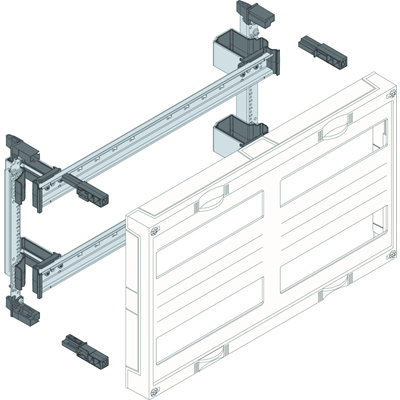

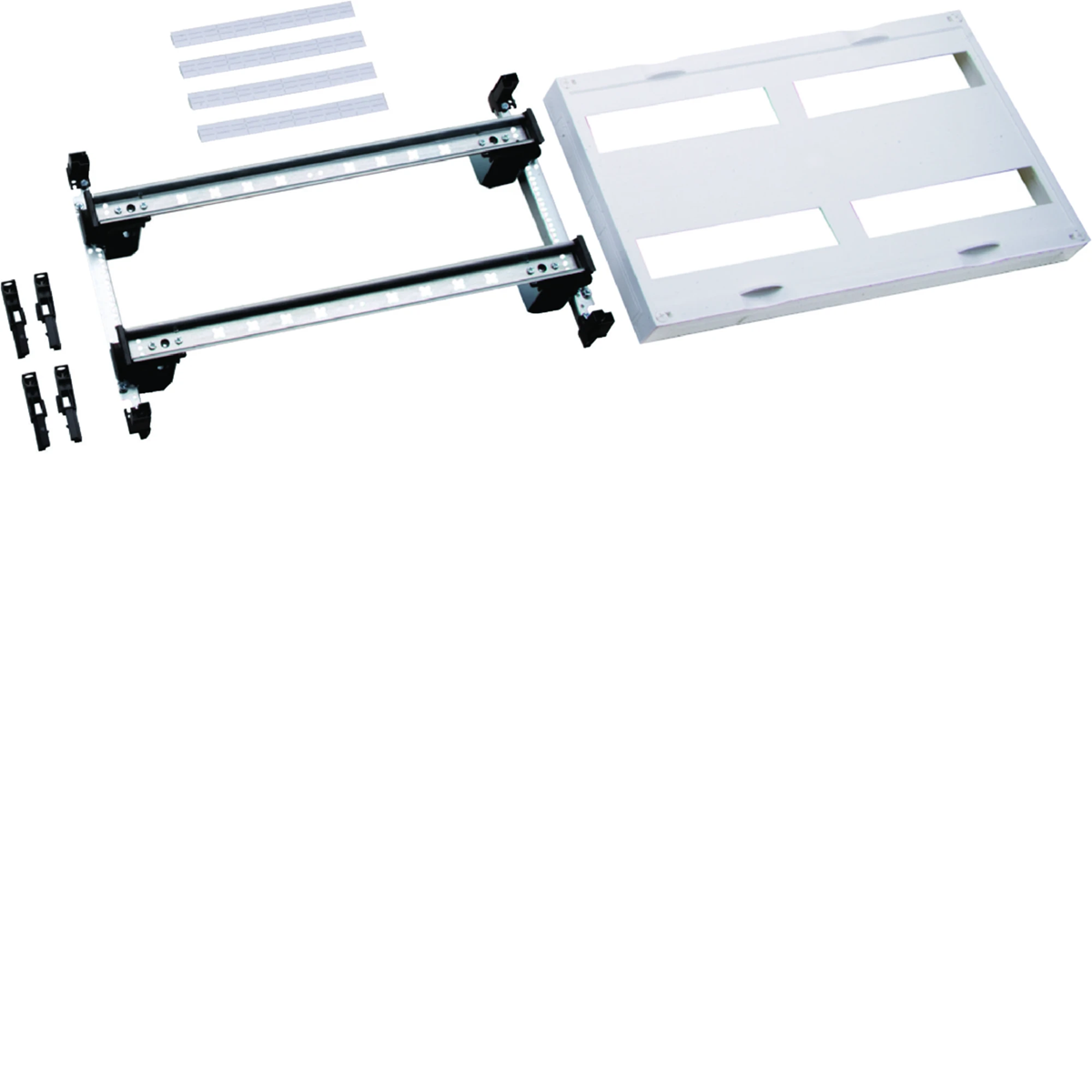

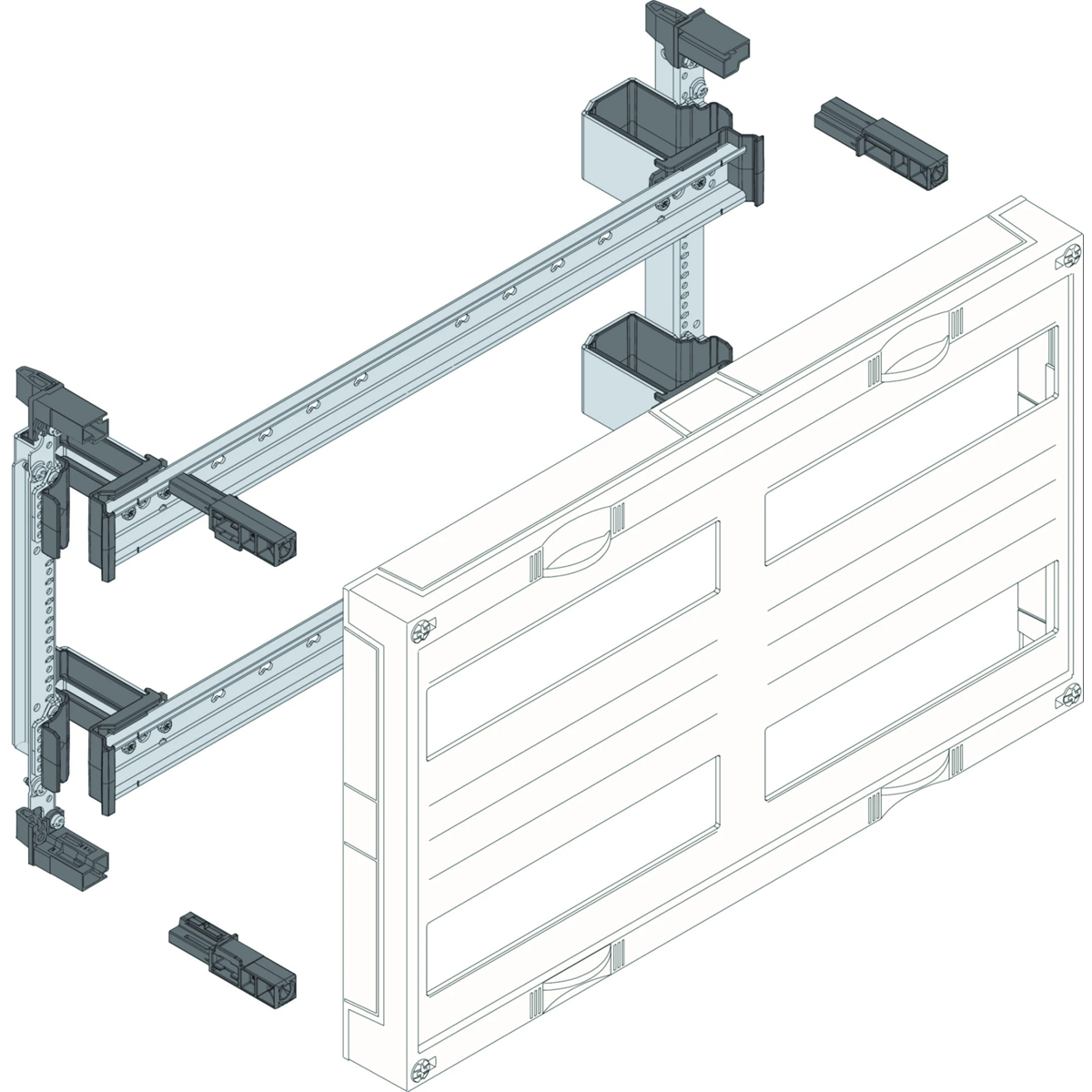

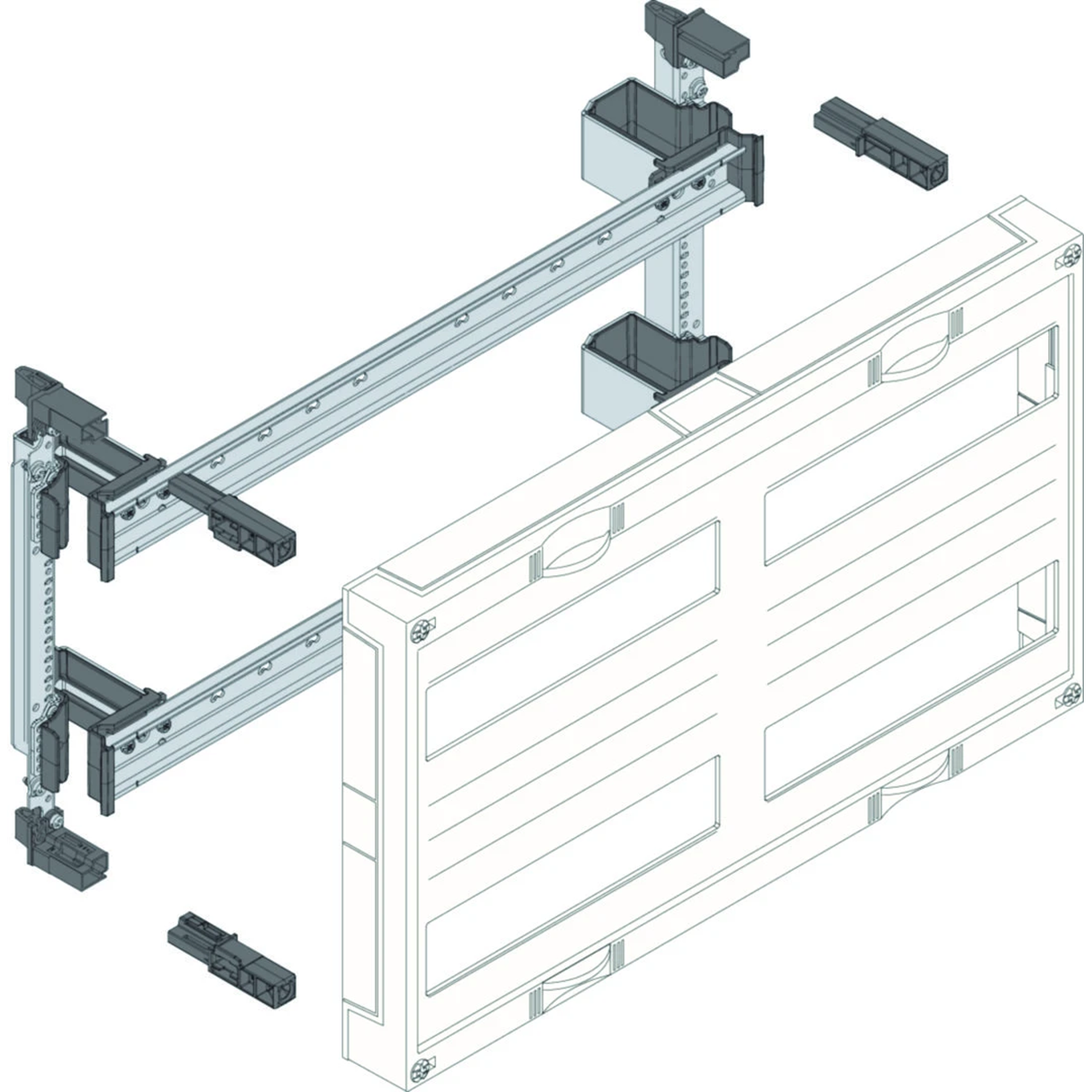

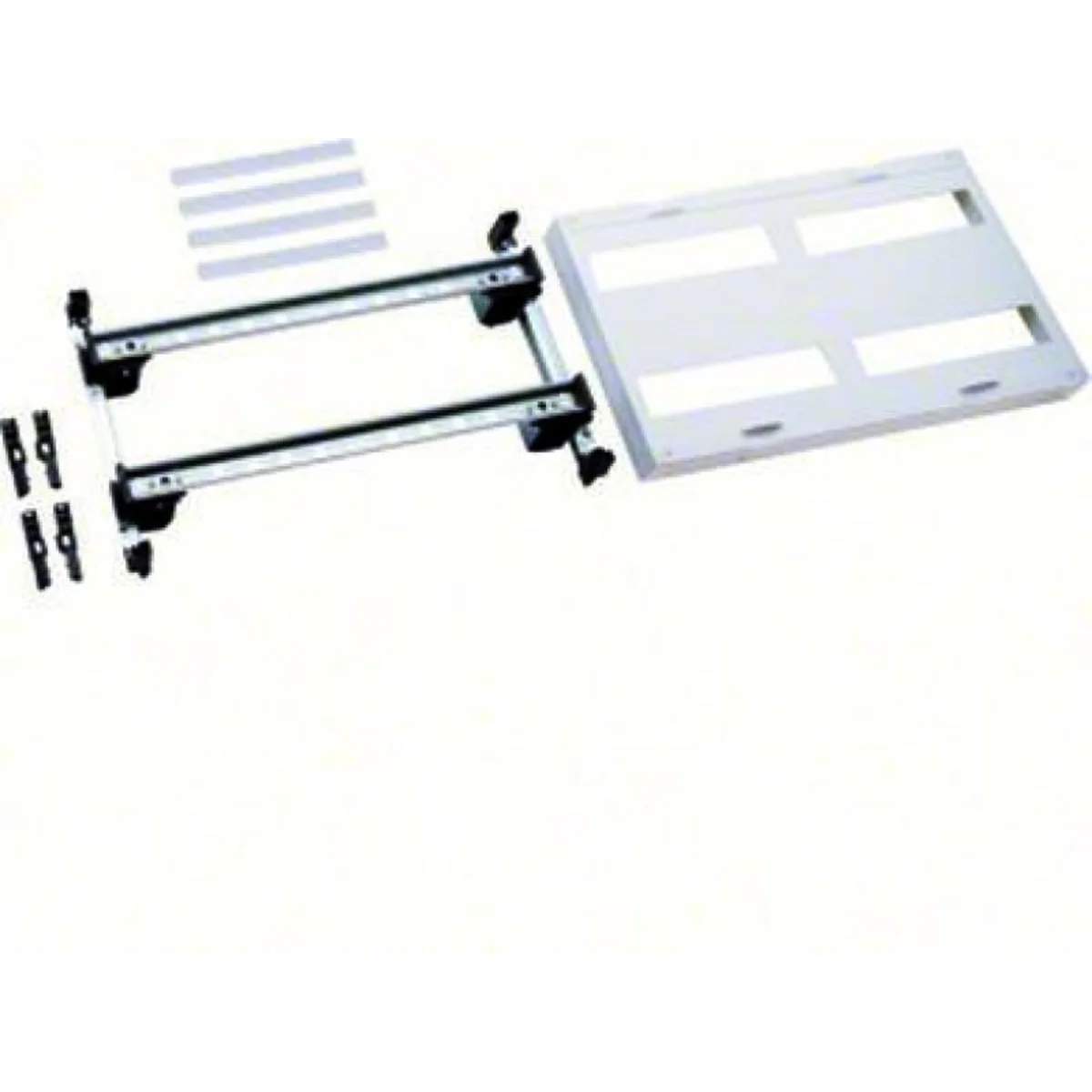

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular apparatus
Content:
- TS35 horizontal mounting rails
- TS35 mounting rail level: high
- with vertical guidance wires
- height 300 mm

Technical data

  • Depth [mm]
    125
  • Number of rows
    2
  • Width [mm]
    500
  • Number of modules
    48
  • PKWIU
    27.12.40.0
  • Number of modules
    48
  • Color
    White
  • Height [mm]
    300
  • Accurate color
    White

Other technical data

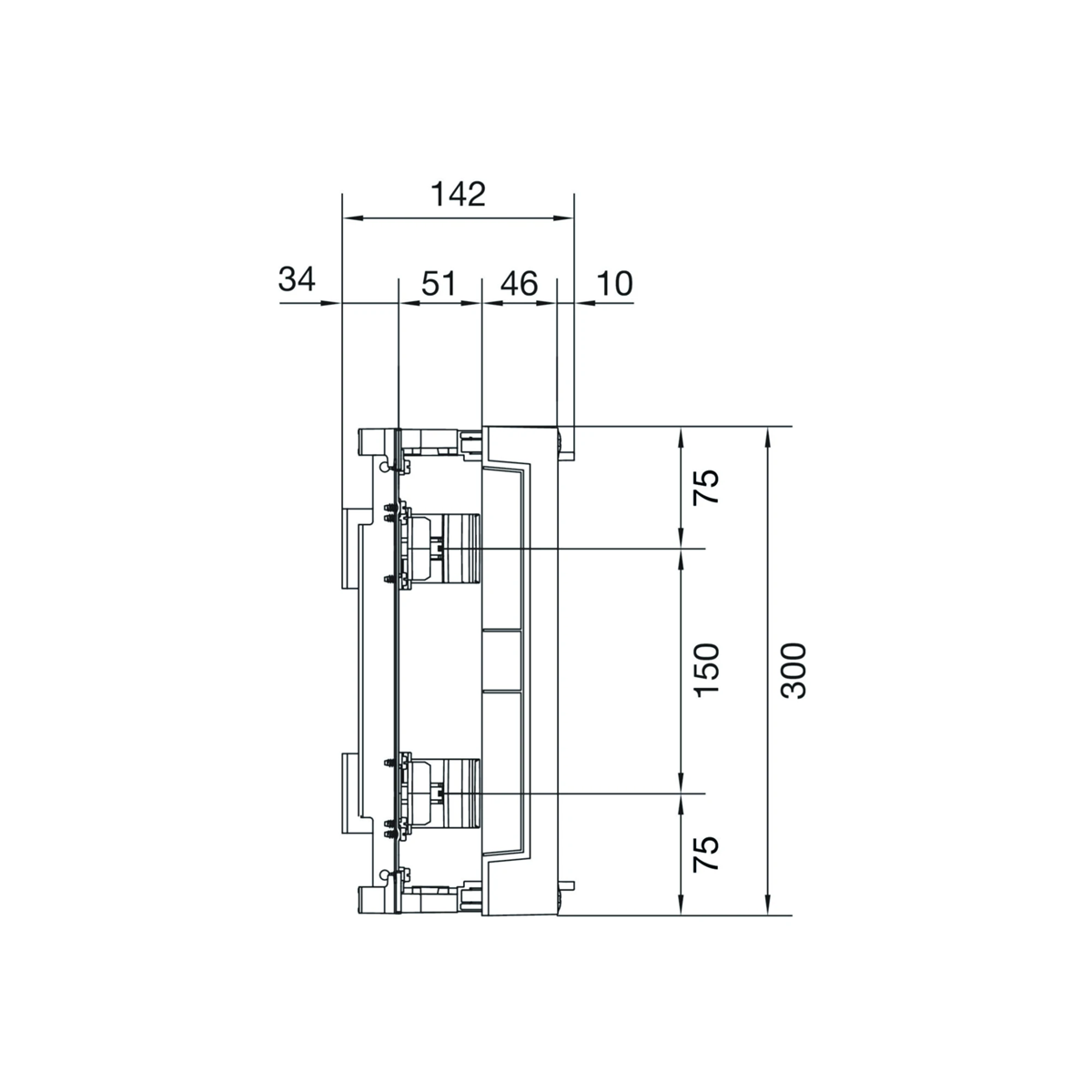

  • Height
    300 mm

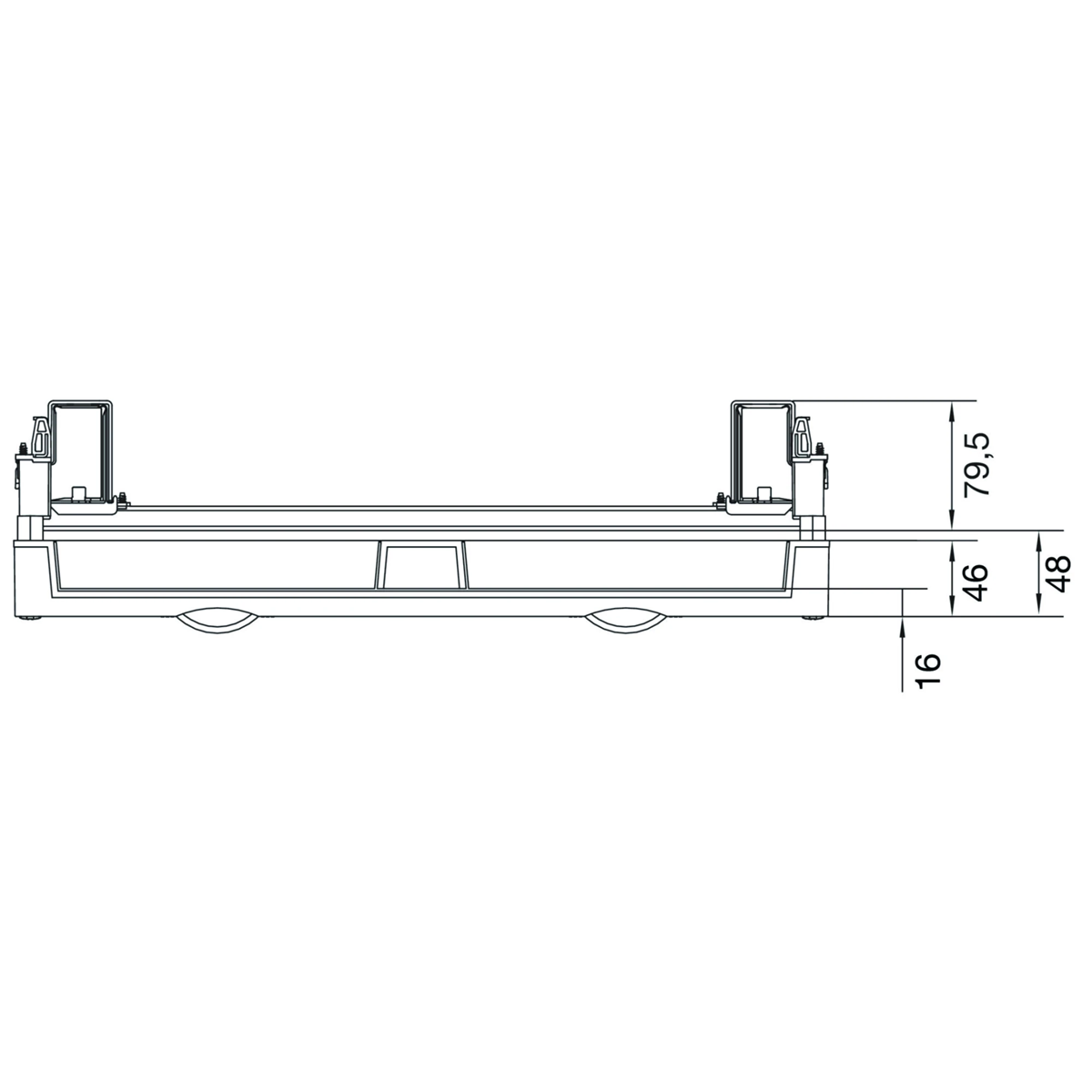

  • Depth
    125 mm
  • Number of modular spacings per DIN-rail
    48
  • Extension possible
    Yes

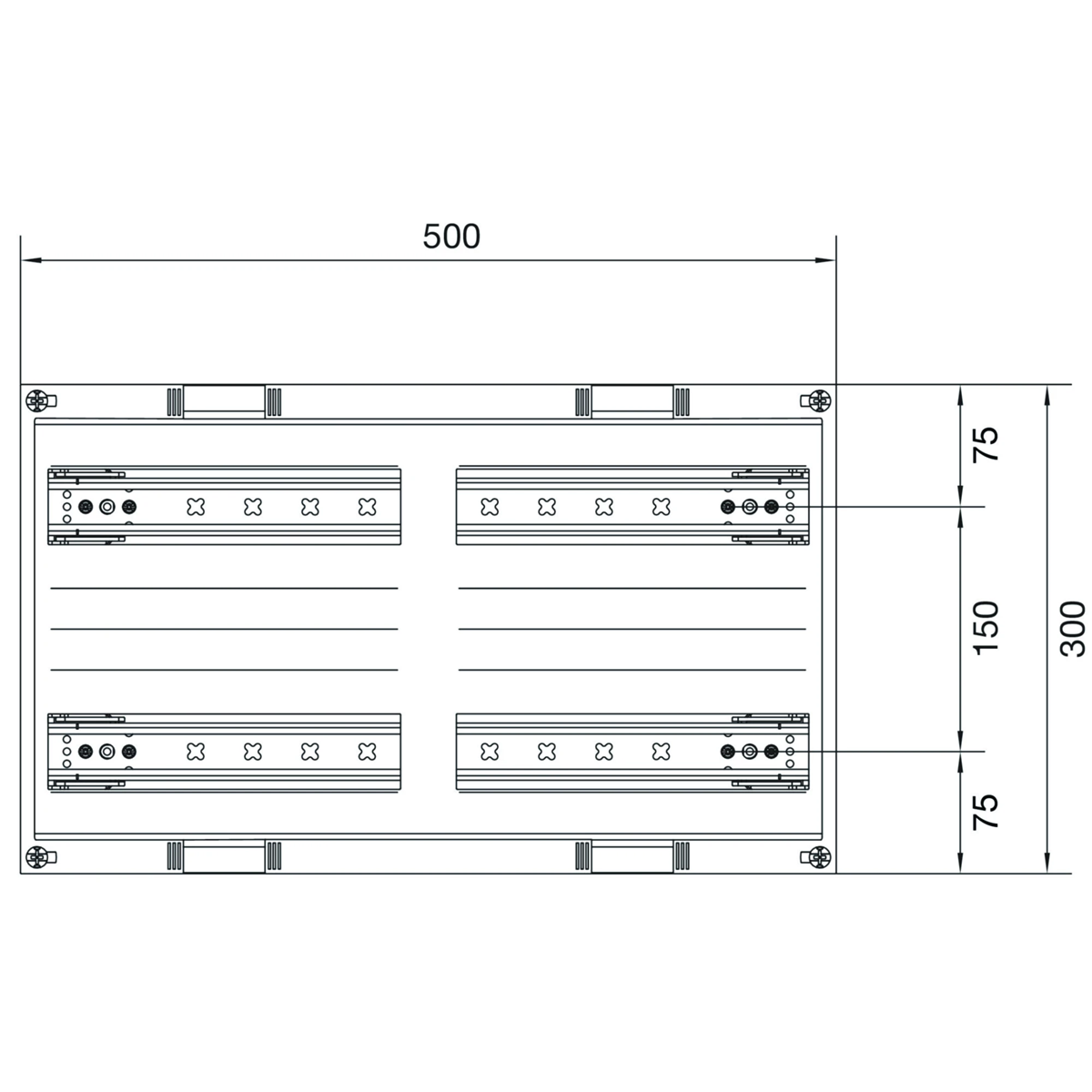

  • Width
    500 mm
  • Number of DIN-rails
    4
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 48 pcs.
Weight (kg) 2,855 2,300 133,400
Width (m) 0,310 0,315 0,820
Length (m) 0,125 0,150 1,120
Depth (m) 0,510 0,510 1,228
