Ultrafast fuse link CH-S14UQ/20A/690V 002635111

Name: Ultrafast fuse link CH-S14UQ/20A/690V
Brand: ETI POLAM
SKU: ABM081ETIP
Price: 12.34 PLN

local index:

ABM081ETIP

Catalog No:

002635111

EAN code:

3838895362616

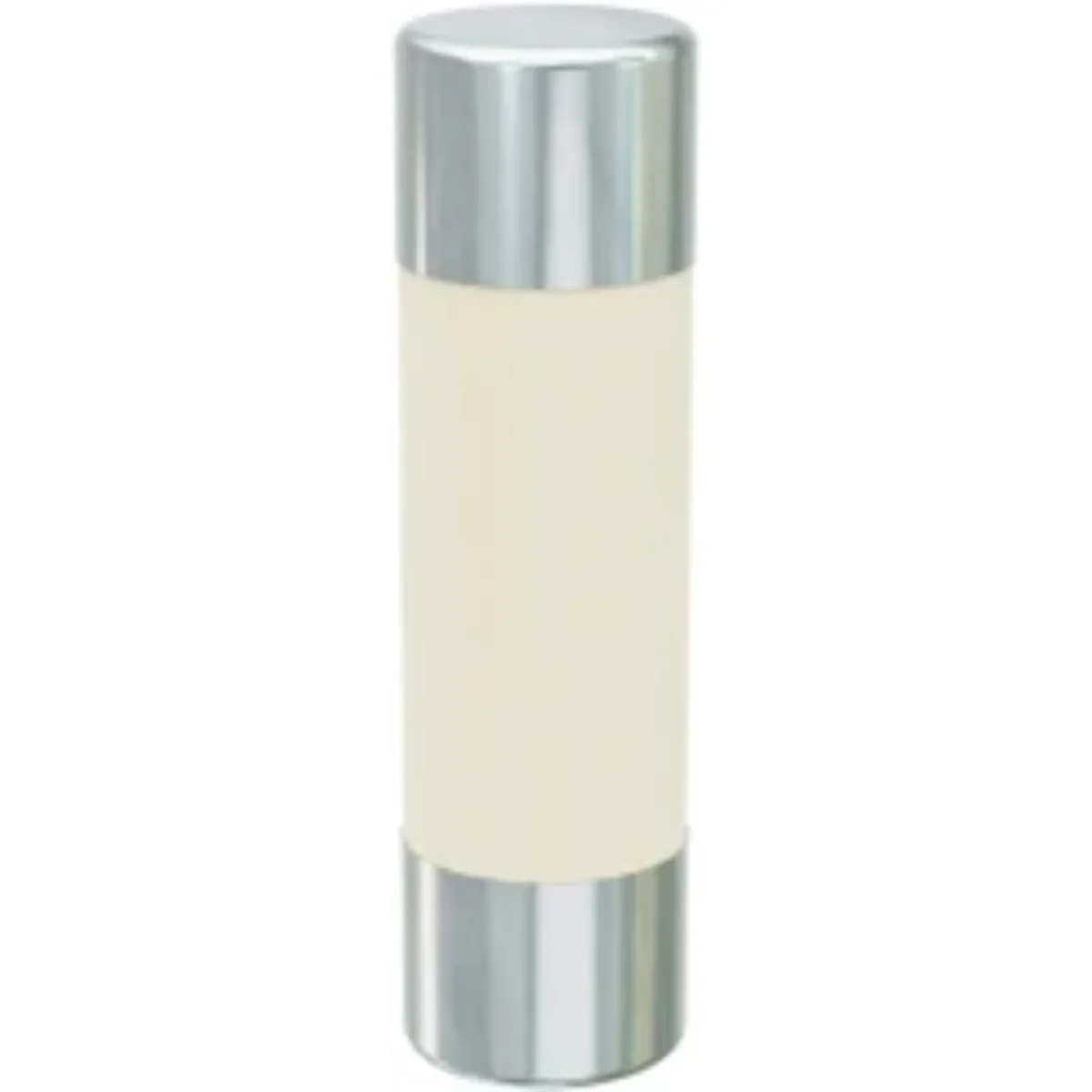

Click on the photo to enlarge

Manufacturer: ETI POLAM

Characteristic: aR

DC rated voltage [V]: 700

Rated current [A]: 20

See full description

Price:

12,34 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

System C fuse links are used in VLC, PCF or EFD fuse switch disconnectors and in EFH fuse bases. The rated power losses of the fuse links must not exceed the allowable power loss values for a given disconnector or base.

Technical data

Characteristic

aR
Rated current [A]

20
Size

CH14
Short-circuit breaking capacity [kA]

200(AC), 50(DC)
PKWIU

27.12.21.0

DC rated voltage [V]

700
Type

CH
Dimensions [mm]

14 x 51
AC rated voltage [V]

690

Other technical data

Size

14x51 mm

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,110	-
Volume (m3)	0,000	-
Width (m)	0,055	-
Length (m)	0,083	-
Depth (m)	0,016	-
