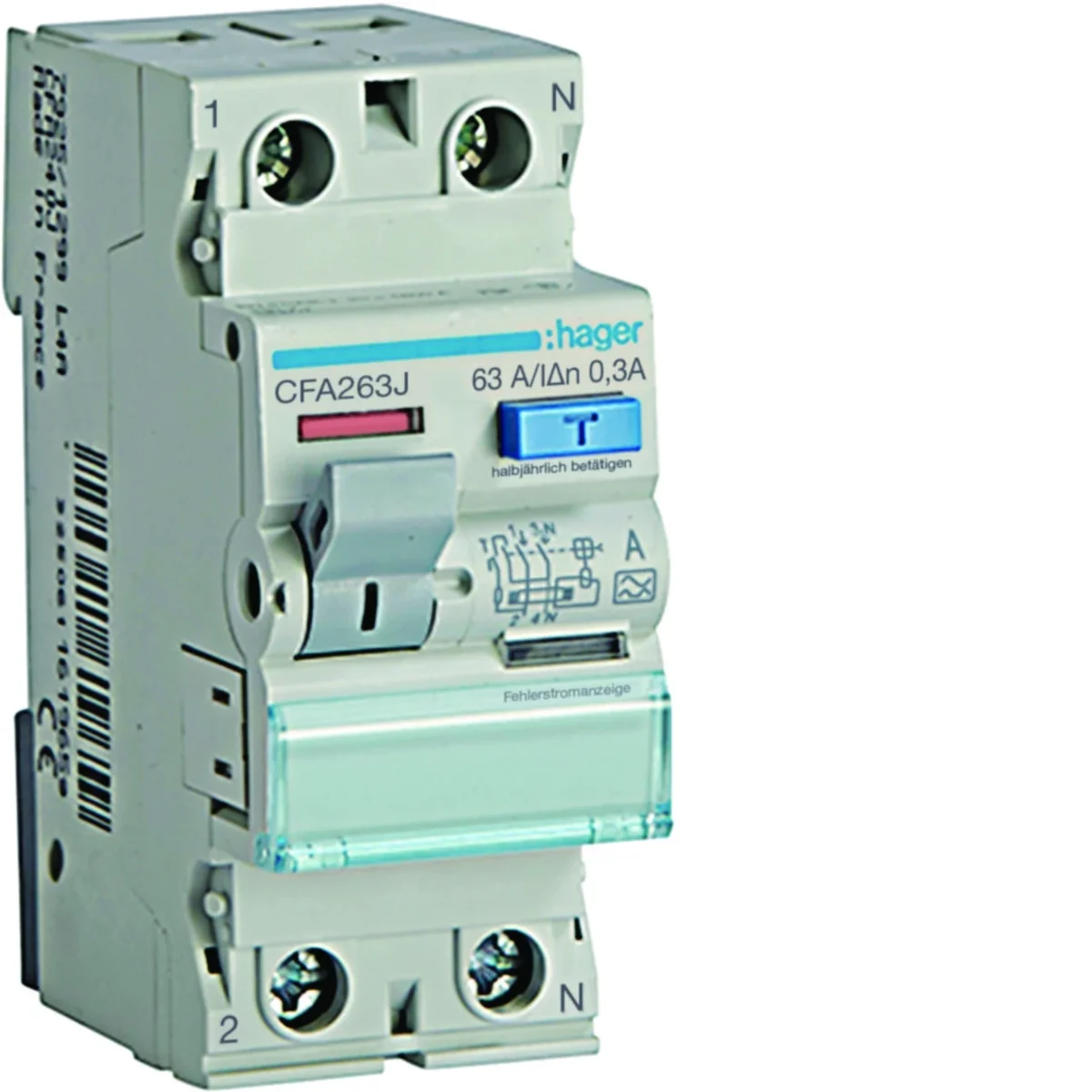

Type A residual current circuit breaker CFA263J

local index:
ARP066HAGE
Catalog No:
CFA263J
EAN code:
3250611619666
Manufacturer: HAGER
Depth [mm]: 70
Number of modules: 2
Number of poles: 2
Price:
121,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Type A residual current circuit breaker

Technical data

  • Depth [mm]
    70
  • Number of poles
    2
  • Differential current [mA]
    300
  • Power dissipation [W]
    6.4
  • Trigger type
    AND
  • Number of modules
    2
  • Number of modules
    2
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    63
  • Width [mm]
    35
  • Height [mm]
    83
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    2
  • Rated current
    63 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    No
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    230 V
  • Rated fault current
    300 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,174 0,195 12,135 314,240
Width (m) 0,035 0,080 0,315 0,800
Length (m) 0,085 0,040 0,210 1,050
Depth (m) 0,073 0,100 0,360 1,200
