TX3 Circuit breaker S 303 3P C 6A 6000A 403541
local index:
ABC247LEGR
Catalog No:
403541
EAN code:
3414970389459
Price:
28,97 €
gross / pcs.
(including VAT 23%)
70,83 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

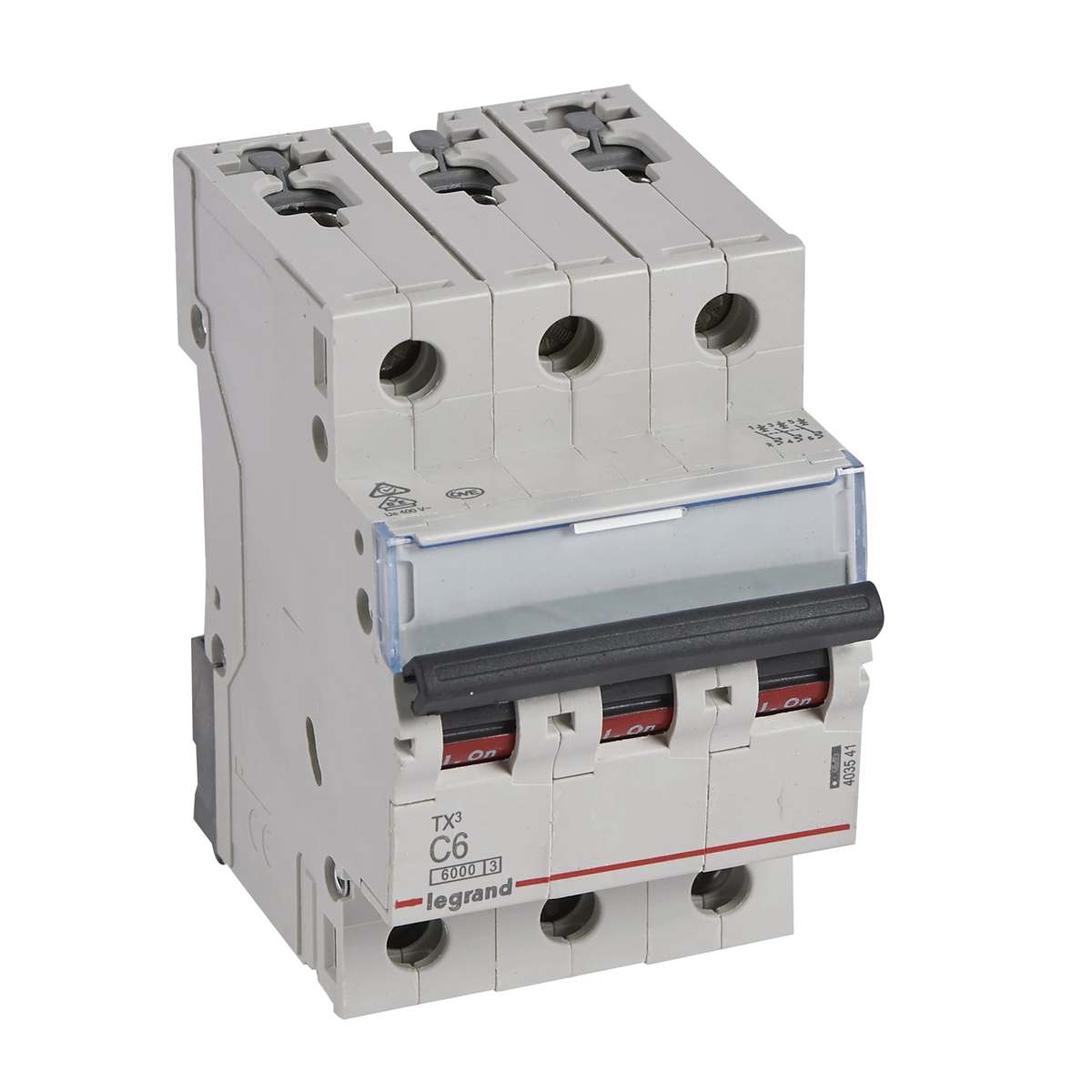

TX3 Circuit breaker S 303 3P C 6A 6000A
Technical data
-
Characteristicc
-
Width in modules3
-
PKWIU27.12.22.0
-
Rated current [A]6
-
Weight [g]409
Other technical data
-
Release characteristicC
-
Number of protected poles3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
-
Number of poles (total)3
-
Rated current6 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Voltage typeAC
-
Do instalacji podtynkowychYes
-
Additional equipment possibleYes
-
Built-in depth44 mm
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Pudełko | Karton | Paleta | Pudełko | Karton | Paleta |
| Quantity | 1 pcs. | 20 pcs. | 200 pcs. | 1 pcs. | 20 pcs. | 200 pcs. |
| Weight (kg) | 0,389 | 7,995 | 79,950 | 0,389 | 7,995 | 79,950 |
| Volume (m3) | 0,000 | 0,000 | 0,001 | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,058 | 0,298 | 1,200 | 0,058 | 0,298 | 1,200 |
| Length (m) | 0,088 | 0,114 | 0,430 | 0,088 | 0,114 | 0,430 |
| Depth (m) | 0,097 | 0,398 | 1,000 | 0,097 | 0,398 | 1,000 |
