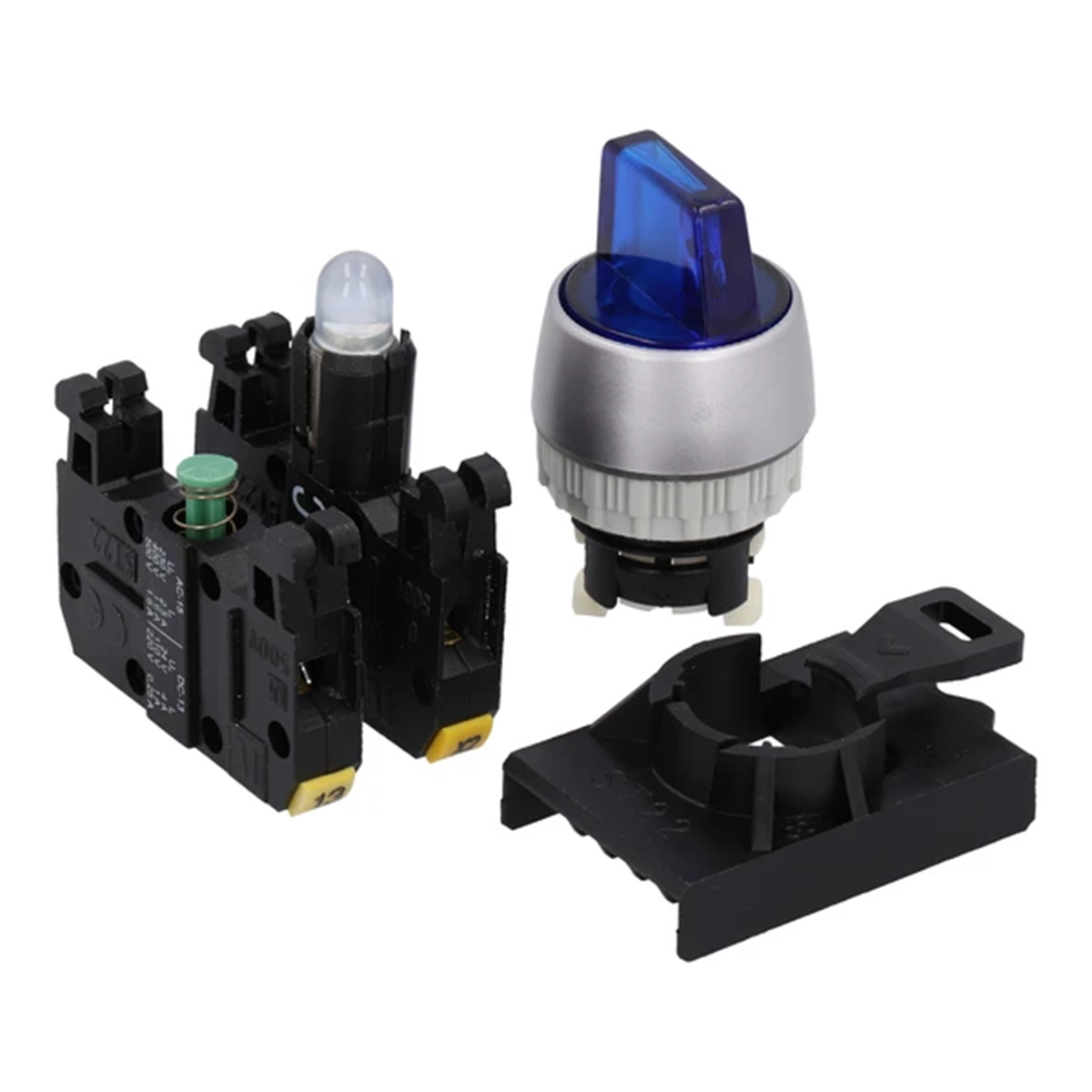

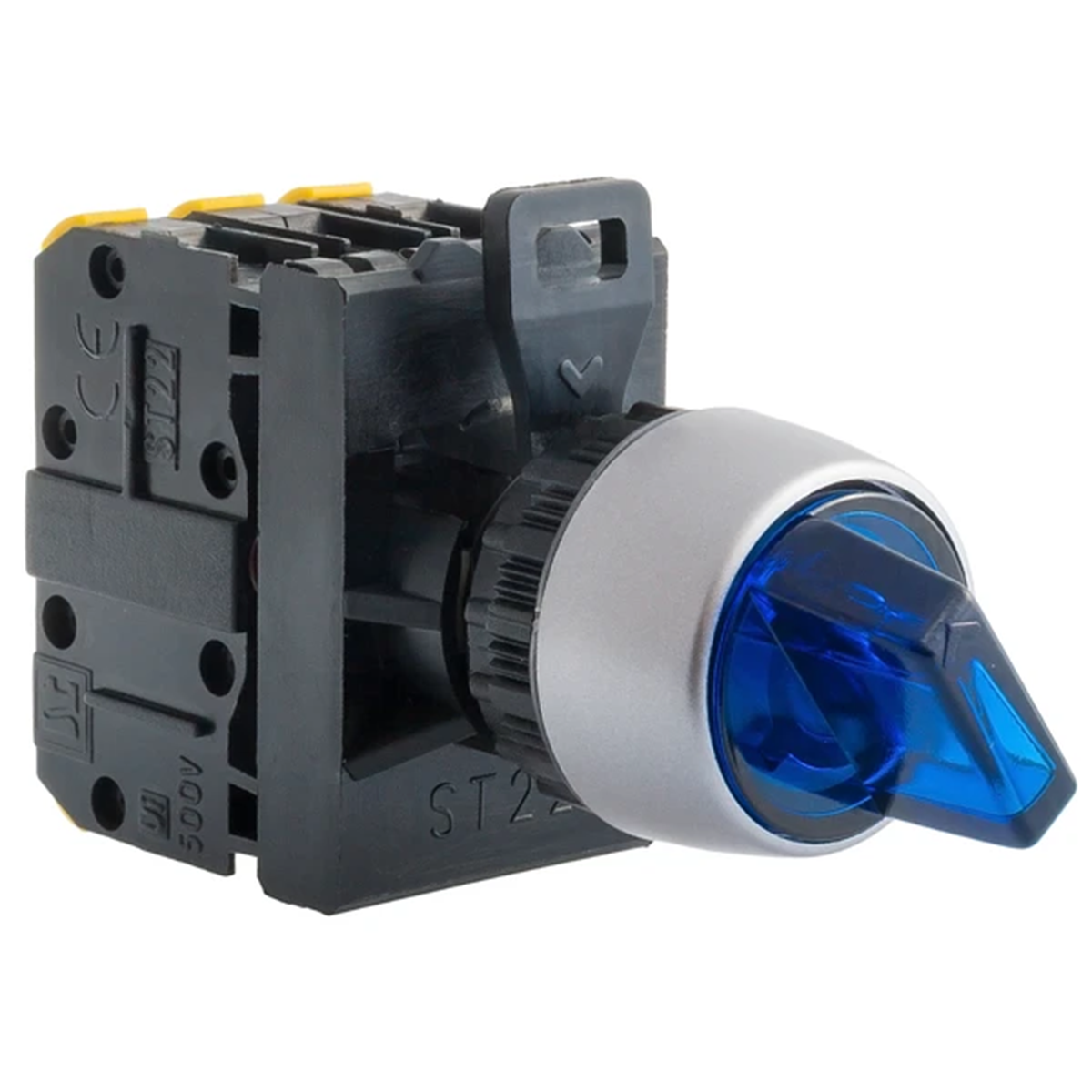

Two-position twist switch, white, 1 normally open contact, 1 normally closed contact, illuminated ST22-PL.B-20-230-LED\AC

local index:
AKS956SPAM
Catalog No:
ST22-PL.B-20-230-LED\AC
EAN code:
5907723085817
Manufacturer: SPAMEL
Color: White
Shape: Round
Housing material: Plastic
Price:
26,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Two-position twist switch, white, 1 normally open contact, 1 normally closed contact, illuminated

Technical data

  • Color
    White
  • Housing material
    Plastic
  • Diameter [mm]
    22
  • Shape
    Round
  • Level of security
    IP65
  • Accurate color
    White

Other technical data

  • Number of switch positions
    2
  • Suitable for illumination
    Yes
  • Colour button
    White
  • Width opening
    22 mm
  • Spring-return
    No
  • Supply voltage
    24 ... 230 V
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Type of control element
    Toggle
  • With light source
    Yes
  • Hole diameter
    22 mm
  • Switching function latching
    Yes
  • Degree of protection (IP)
    IP65
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
