Electrical apparatus
Buttons and cassettes
Buttons and signal lights

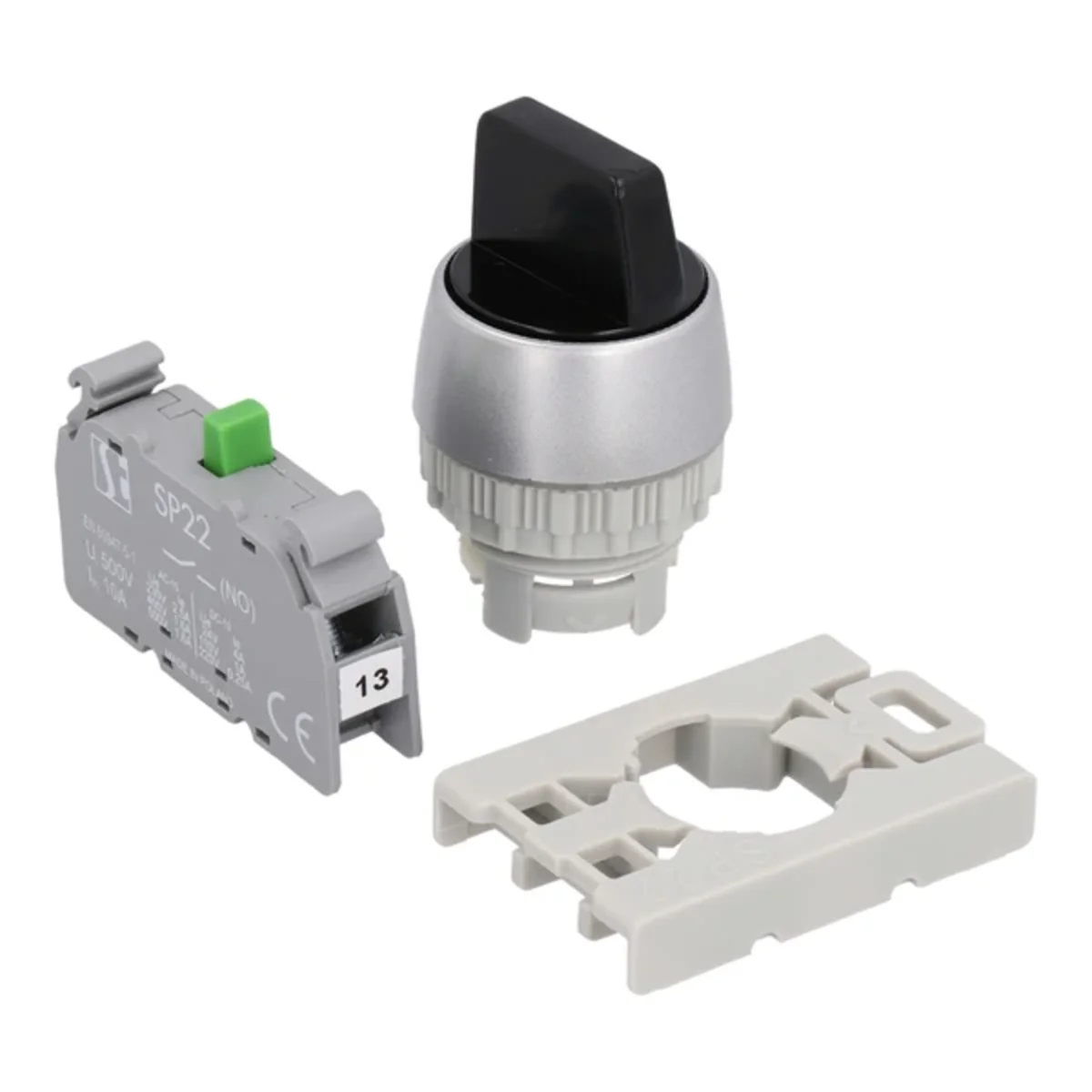

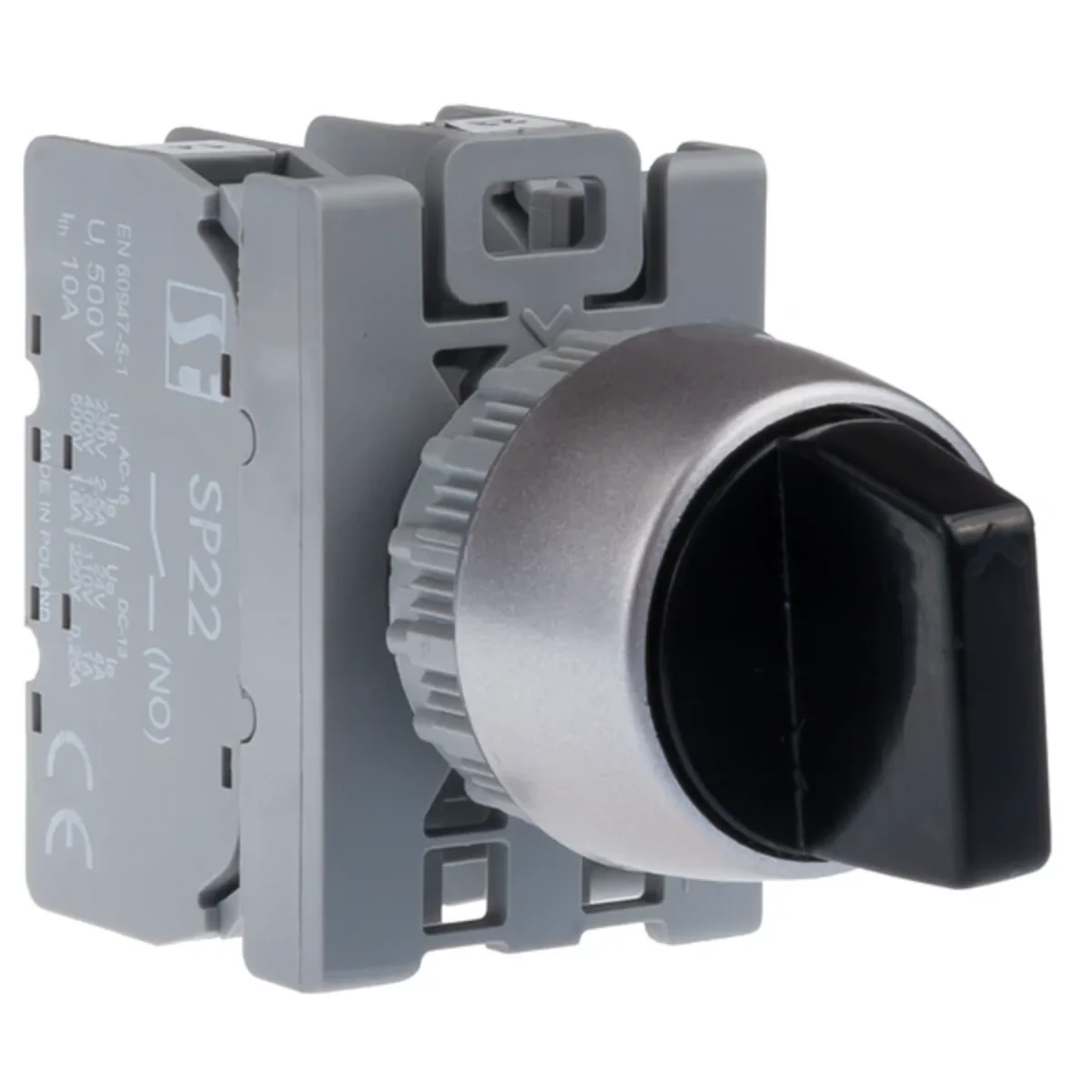

Two-position switch red normally open nickel-plated ring SP22-P.C-10\.
local index:
AKS203SPAM
Catalog No:
SP22-P.C-10\.
EAN code:
5907723078581
Click on the photo to enlarge
Manufacturer:
SPAMEL
Color:
Red
Shape:
Round
Housing material:
Plastic
See full description
Price:
9,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Two-position switch red normally open nickel-plated ring
Technical data
Color
Red
Housing material
Plastic
Diameter [mm]
22
Shape
Round
Level of security
IP65
Accurate color
Red
Other technical data
Number of switch positions
2
Suitable for illumination
No
Colour button
Red
Width opening
22 mm
Spring-return
No
Supply voltage
24 ... 230 V
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Material front ring
Plastic
Type of control element
Toggle
With light source
No
Hole diameter
22 mm
Switching function latching
Yes
Degree of protection (IP)
IP65
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
With front ring
Yes
Colour front ring
Grey
See more >>
