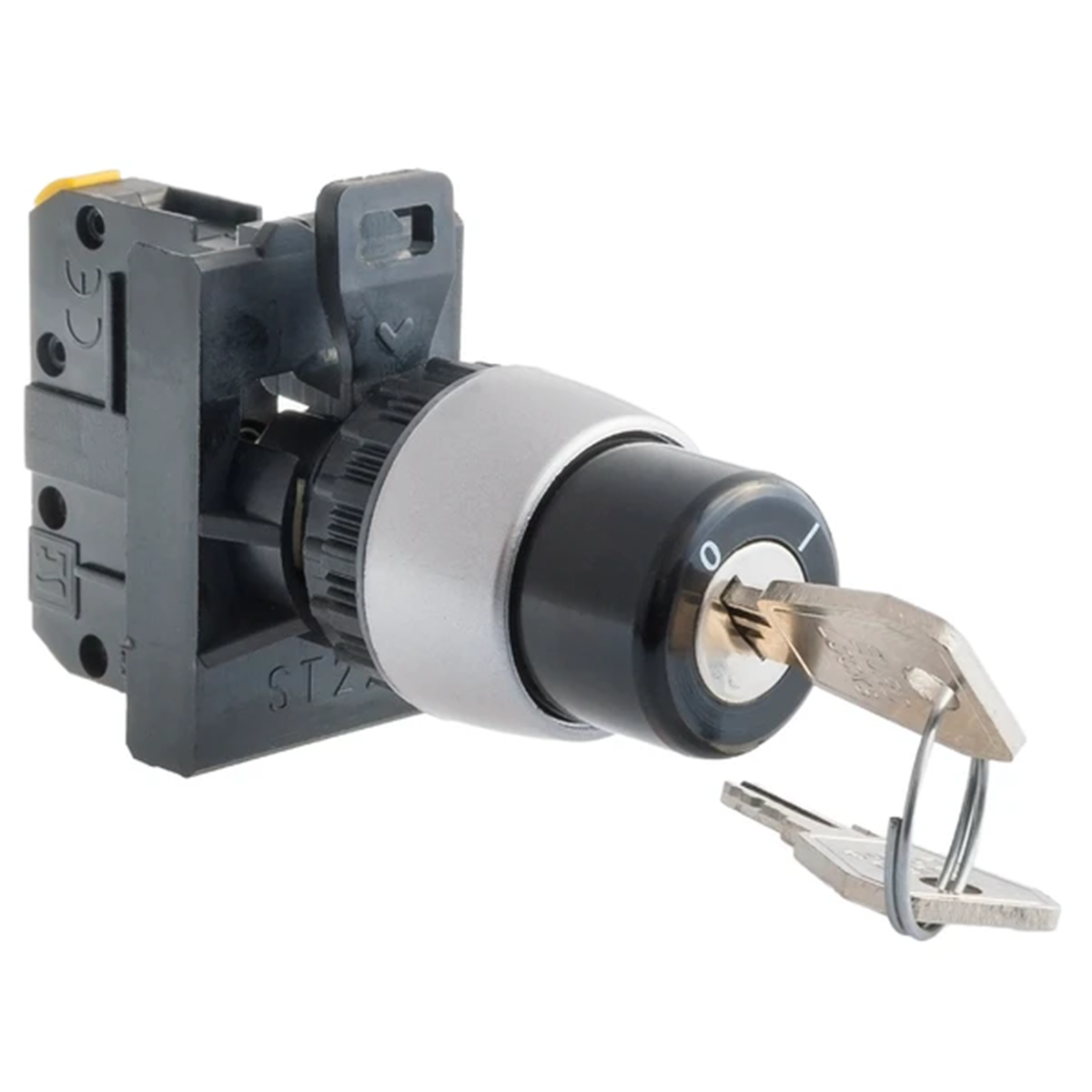

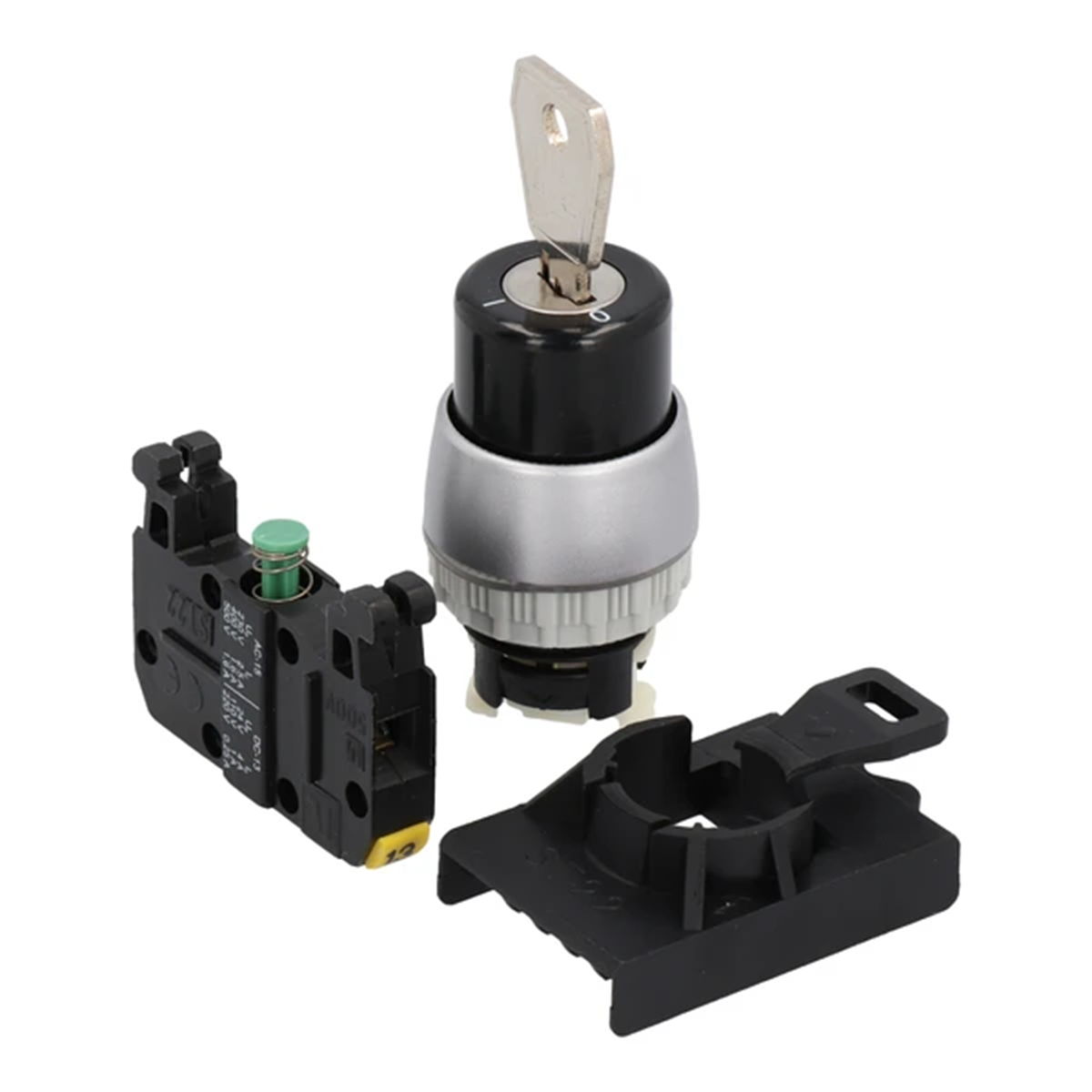

Two-position switch drive, rotary key with spring return, 1 NO contact ST22-SAC-10\.

local index:
AKS017SPAM
Catalog No:
ST22-SAC-10\.
EAN code:
5907723010000
Manufacturer: SPAMEL
Lens shape: Round
Housing material: Plastic
Level of security: IP65
Price:
18,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Two-position switch drive, rotary key with spring return, 1 NO contact

Technical data

  • Lens shape
    Round
  • Level of security
    IP65
  • Housing material
    Plastic
  • Hole diameter [mm]
    22

Other technical data

  • Number of switch positions
    2
  • Suitable for illumination
    No
  • Colour button
    Other
  • Width opening
    22 mm
  • Spring-return
    Yes
  • Supply voltage
    24 ... 230 V
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Type of control element
    Key
  • With light source
    No
  • Hole diameter
    22 mm
  • Switching function latching
    No
  • Degree of protection (IP)
    IP65
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
