Two-position blue twist switch, 1 normally open contact, illuminated, nickel-plated ring SP22-PL.B-10-24-LED\AC/DC

local index:
AKS068SPAM
Catalog No:
SP22-PL.B-10-24-LED\AC/DC
EAN code:
5907723087286
Manufacturer: SPAMEL
Color: Blue
Shape: Round
Housing material: Plastic
Price:
19,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

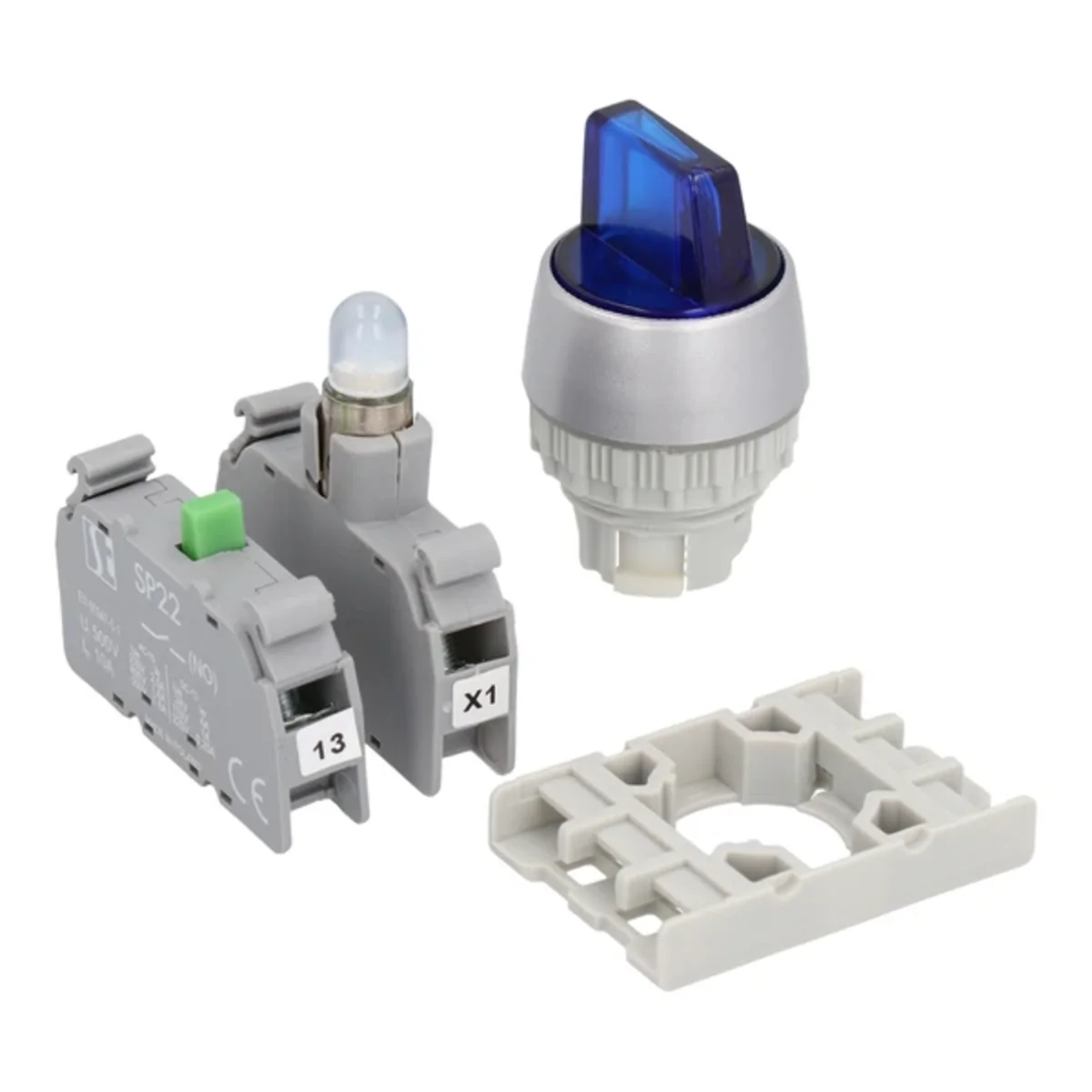

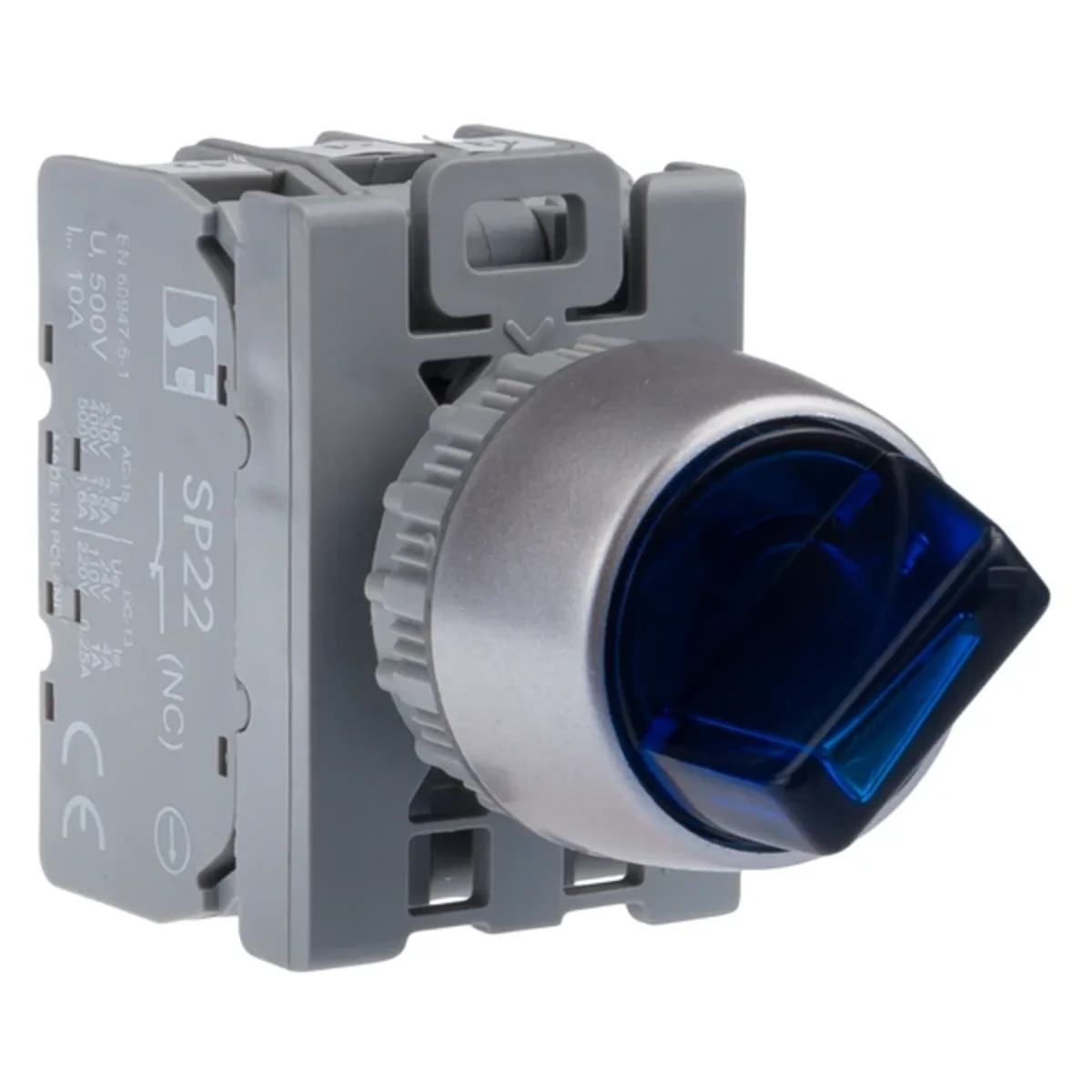

Two-position blue twist switch, 1 normally open contact, illuminated, nickel-plated ring

Technical data

  • Color
    Blue
  • Housing material
    Plastic
  • Diameter [mm]
    22
  • Shape
    Round
  • Level of security
    IP65
  • Accurate color
    Blue

Other technical data

  • Number of switch positions
    2
  • Suitable for illumination
    Yes
  • Colour button
    White
  • Width opening
    22 mm
  • Spring-return
    No
  • Supply voltage
    24 ... 230 V
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Type of control element
    Toggle
  • With light source
    Yes
  • Hole diameter
    22 mm
  • Switching function latching
    Yes
  • Degree of protection (IP)
    IP65
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
