TS Gold button 181112

local index:
AKO002BERK
Catalog No:
181112
EAN code:
4011334269922
Manufacturer: BERKER
Depth [mm]: 19.7
Color: Golden
Material: Brass
Price:
58,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

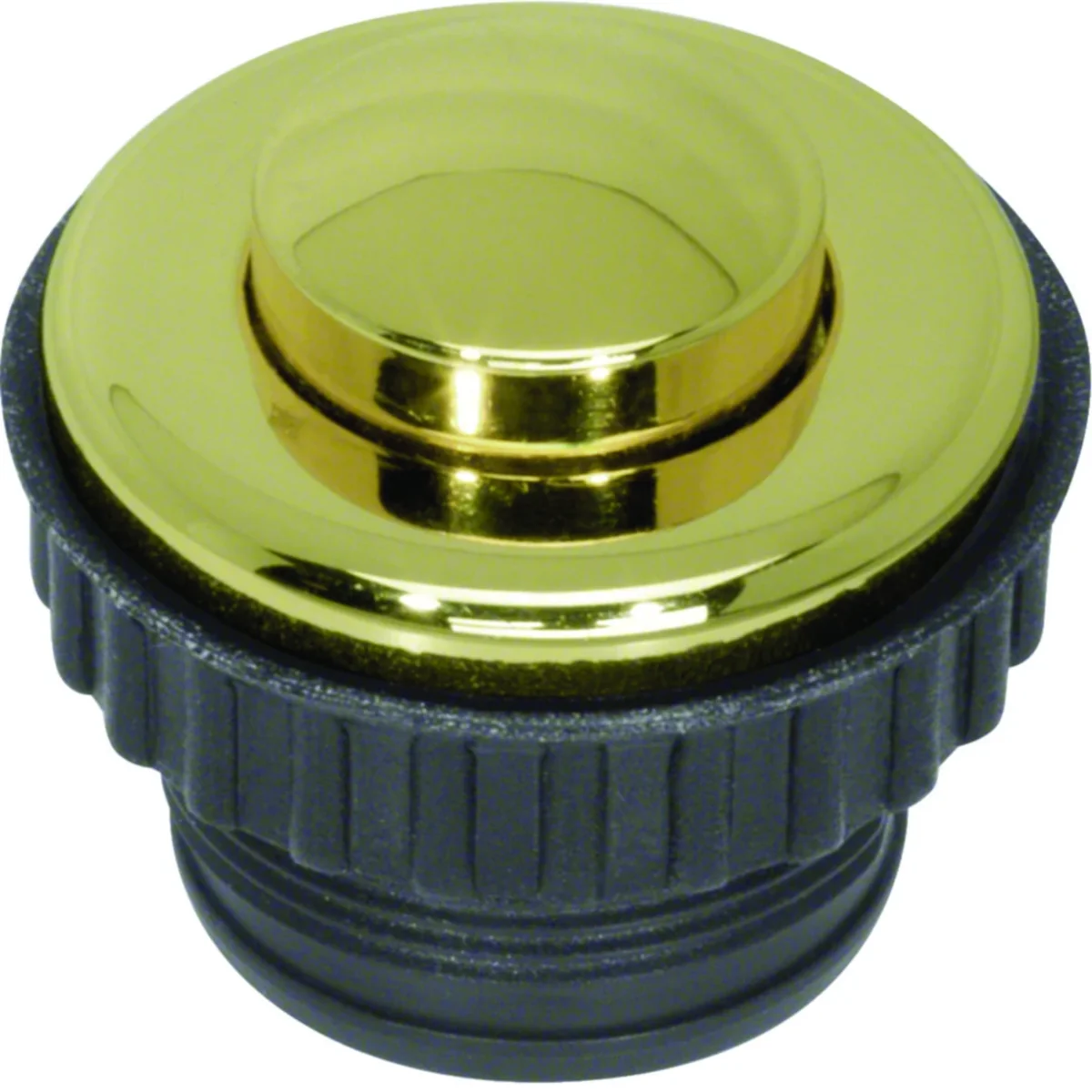

The button for mounting in decorative tiles, from the Berker TS series:

  • polished brass
  • with plug-in terminals

Series characteristics:

The Berker TS is not only unusual design. In this program you can also use intelligent control systems: KNX, Berker.Net and tebis TX. The choice of colors and materials gives you full freedom of creativity in arranging rooms.

Technical data

  • Depth [mm]
    19.7
  • Material
    Brass
  • Surface
    Gloss
  • Family
    TS
  • Width [mm]
    19.7
  • Operating temperature range [°C]
    from -20 to 60
  • Connection type
    With plug-in terminals
  • Color
    Golden
  • Rated voltage [V]
    24
  • Rated current [A]
    1.5
  • Level of security
    IP20
  • Fastener type
    Confident
  • Mounting depth [mm]
    13
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Method of operation
    Push button
  • Number of modules (module system)
    0
  • Nominal voltage
    12 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1004
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    22 mm
  • Min. depth of built-in installation box
    0 mm
  • Model
    Other
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    1.5 A
  • With signal lamp
    No
  • Mounting method
    Built-in installation
  • Material
    Metal
  • Halogen free
    Yes
  • Surface protection
    Other
  • Colour
    Gold
  • Transparent
    No
  • Imprint
    None
  • Device width
    22 mm
  • Device depth
    19.7 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,015 0,190 6,140 221,480
Width (m) 0,022 0,080 0,300 0,800
Length (m) 0,020 0,065 0,215 1,050
Depth (m) 0,022 0,125 0,400 1,200
