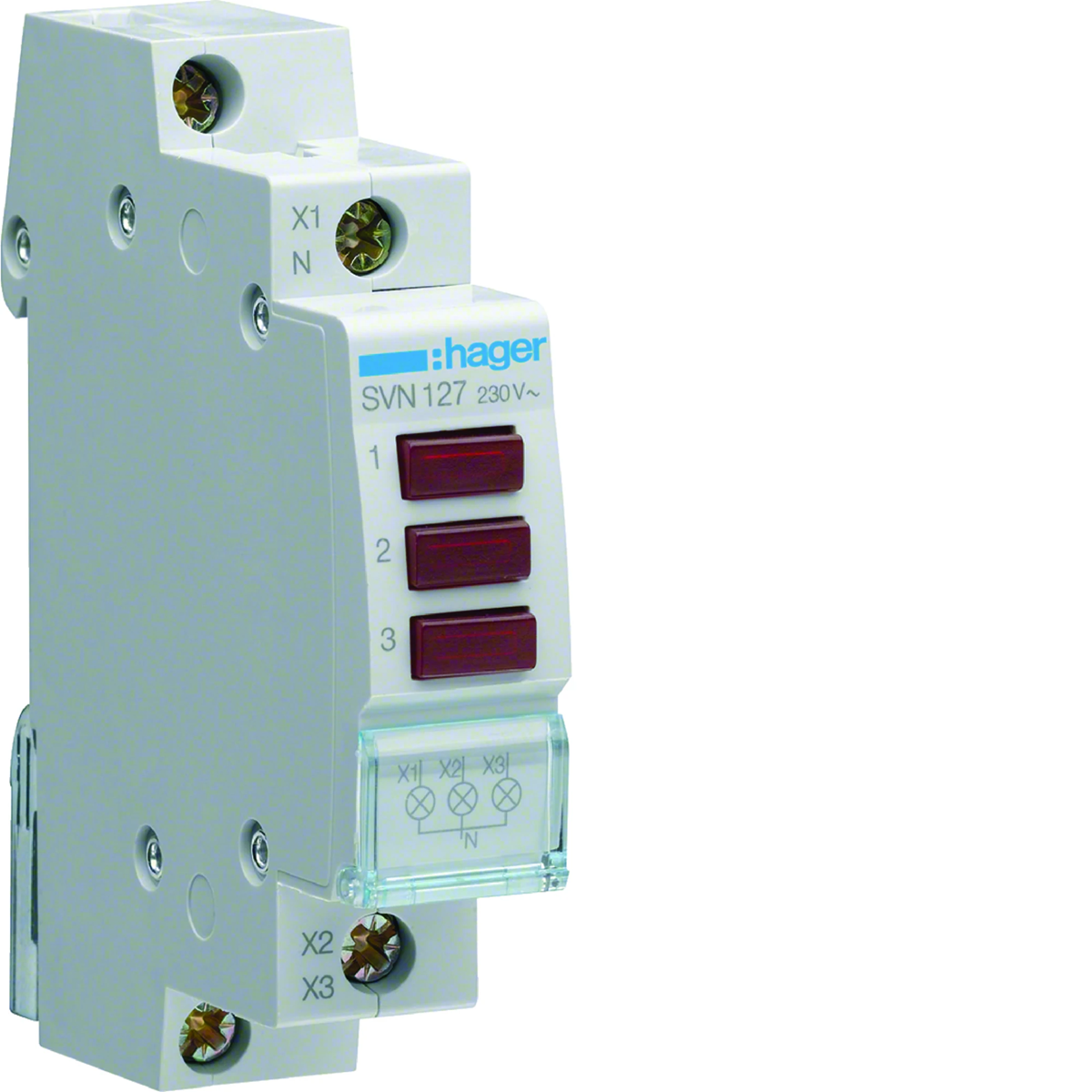

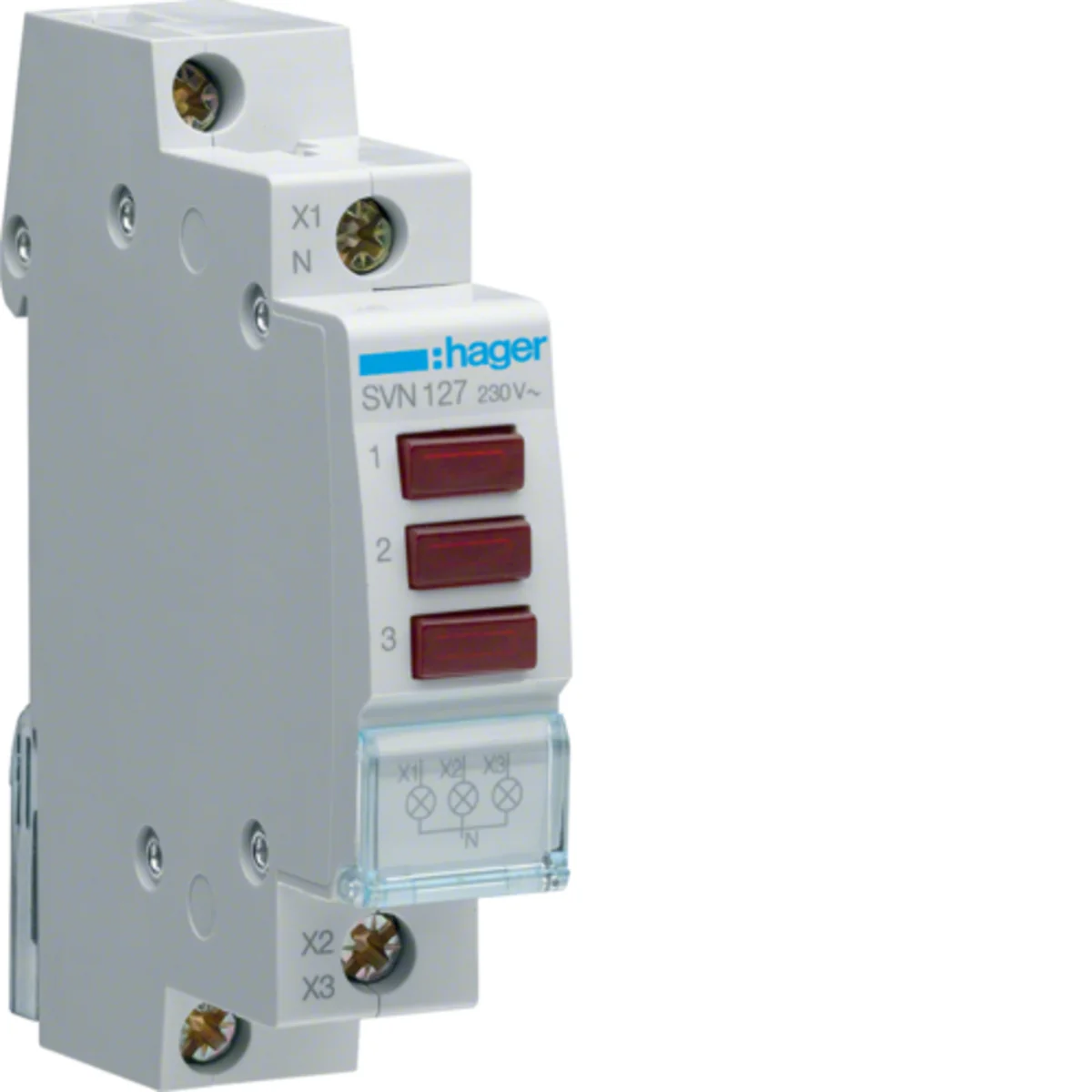

Triple signal lamp, red 230V AC SVN127

local index:
AKS036HAGE
Catalog No:
SVN127
EAN code:
3250615721716
Manufacturer: HAGER
Depth [mm]: 62
Number of modules: 1
Color: Red
Price:
17,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 36 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

< tr style="margin: 0px; padding: 0px;">
Specifications
Number of modules: 1
Type of light source: LED
Rated operational voltage Ue (AC): 230V
Rated insulation voltage Ui: 250V
Rated impulse withstand voltage Uimp: 4000V
Rated frequency: 50/60Hz
Type of connection: with screw
Total power loss for rated current: 0.8W
Number of wires - line: 0.75/6mm²
Number of wires - wire: 0.75/10mm²
Working temperature: -20 to 50 °C
Storage temperature: -40 to 80 °C
Height of installed product: 83mm
Width of installed product: 17.5mm
Depth of installed product: 62mm

Technical data

  • Depth [mm]
    62
  • Color
    Red
  • Width [mm]
    17.5
  • Source of light
    LED
  • PKWIU
    27.90.20.0
  • Number of modules
    1
  • Rated voltage [V]
    230
  • Height [mm]
    83
  • Number of modules
    1

Other technical data

  • Colour calotte
    Red
  • Lamp socket
    Other
  • Rated voltage
    230 V
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Lamp type
    LED
  • Max. lamp power
    0.8 W
  • Voltage type
    AC
  • Built-in depth
    62 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,060 0,755 9,590 253,160
Width (m) 0,019 0,095 0,315 0,800
Length (m) 0,084 0,080 0,235 1,078
Depth (m) 0,100 0,225 0,365 1,200
