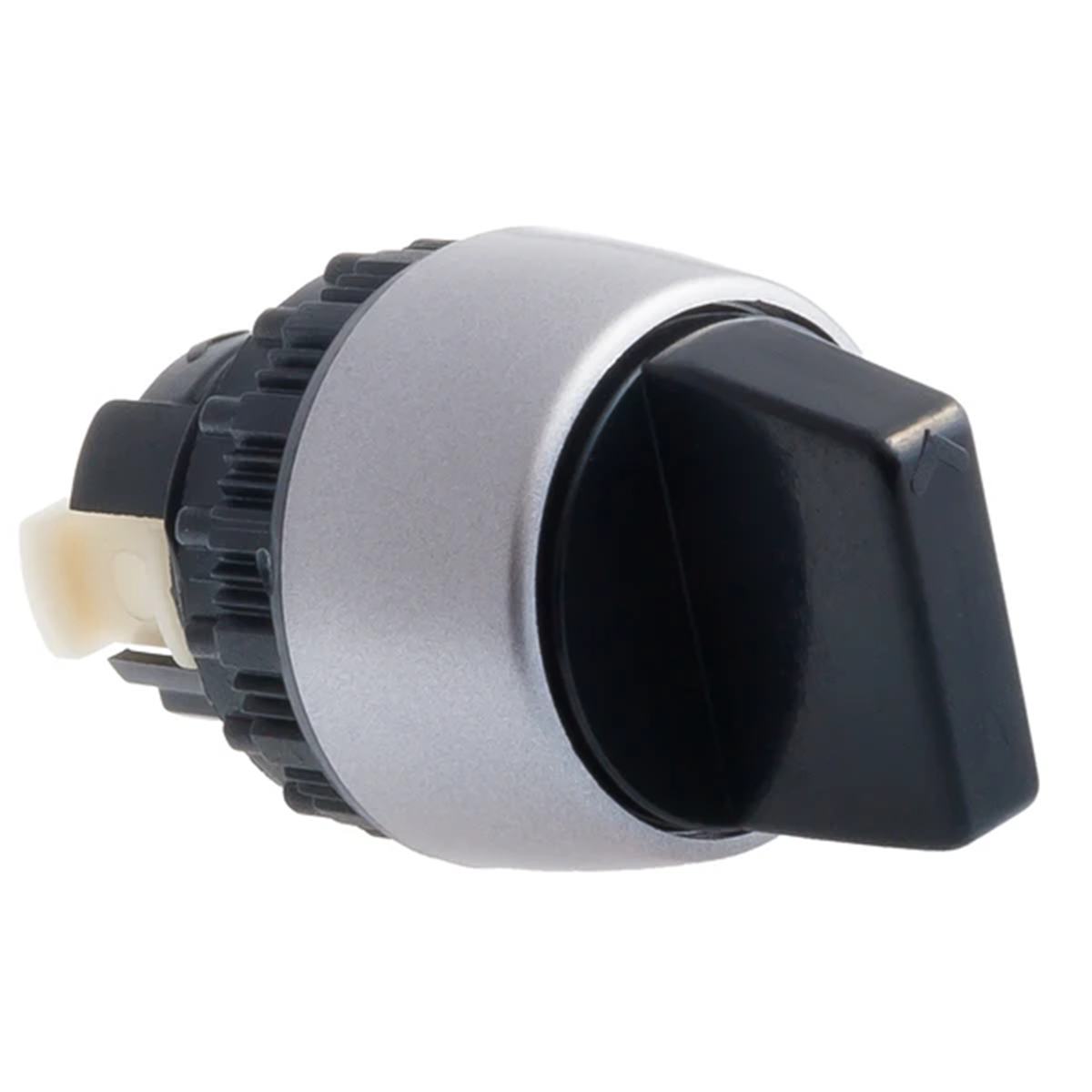

Three-position handwheel, yellow nickel-plated ring ST22-P3CC.G\.

local index:
AKS629SPAM
Catalog No:
ST22-P3CC.G\.
EAN code:
5907723068926
Manufacturer: SPAMEL
Color: Yellow
Shape: Round
Housing material: Plastic
Price:
7,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Three-position handwheel, yellow nickel-plated ring

Technical data

  • Color
    Yellow
  • Housing material
    Plastic
  • Hole diameter [mm]
    22
  • Shape
    Round
  • Level of security
    IP65
  • Accurate color
    Yellow

Other technical data

  • Number of switch positions
    3
  • Suitable for illumination
    No
  • Construction type lens
    Round
  • Width opening
    29 mm
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Type of control element
    Other
  • Colour control element
    Yellow
  • Hole diameter
    22 mm
  • Height opening
    29 mm
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP65
