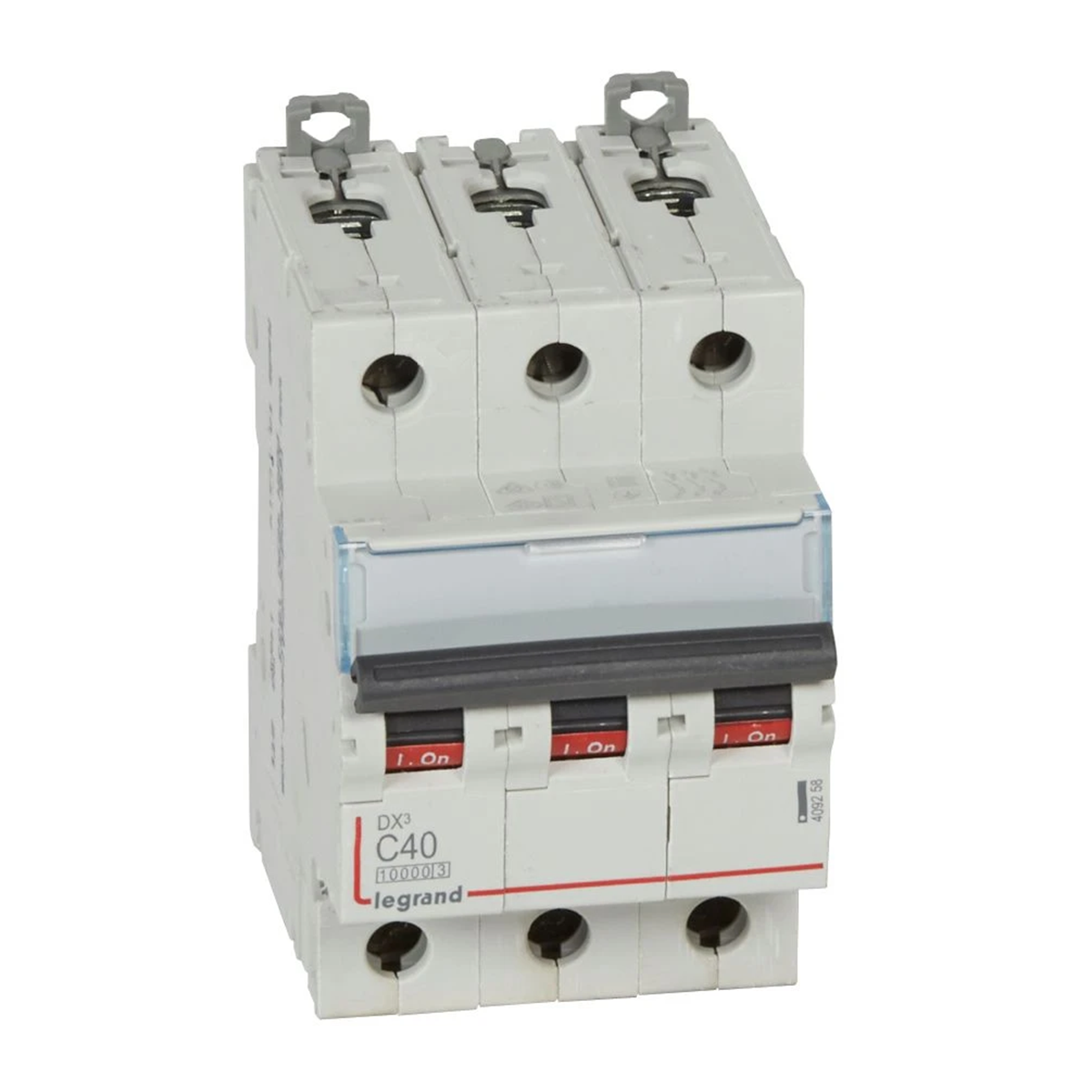

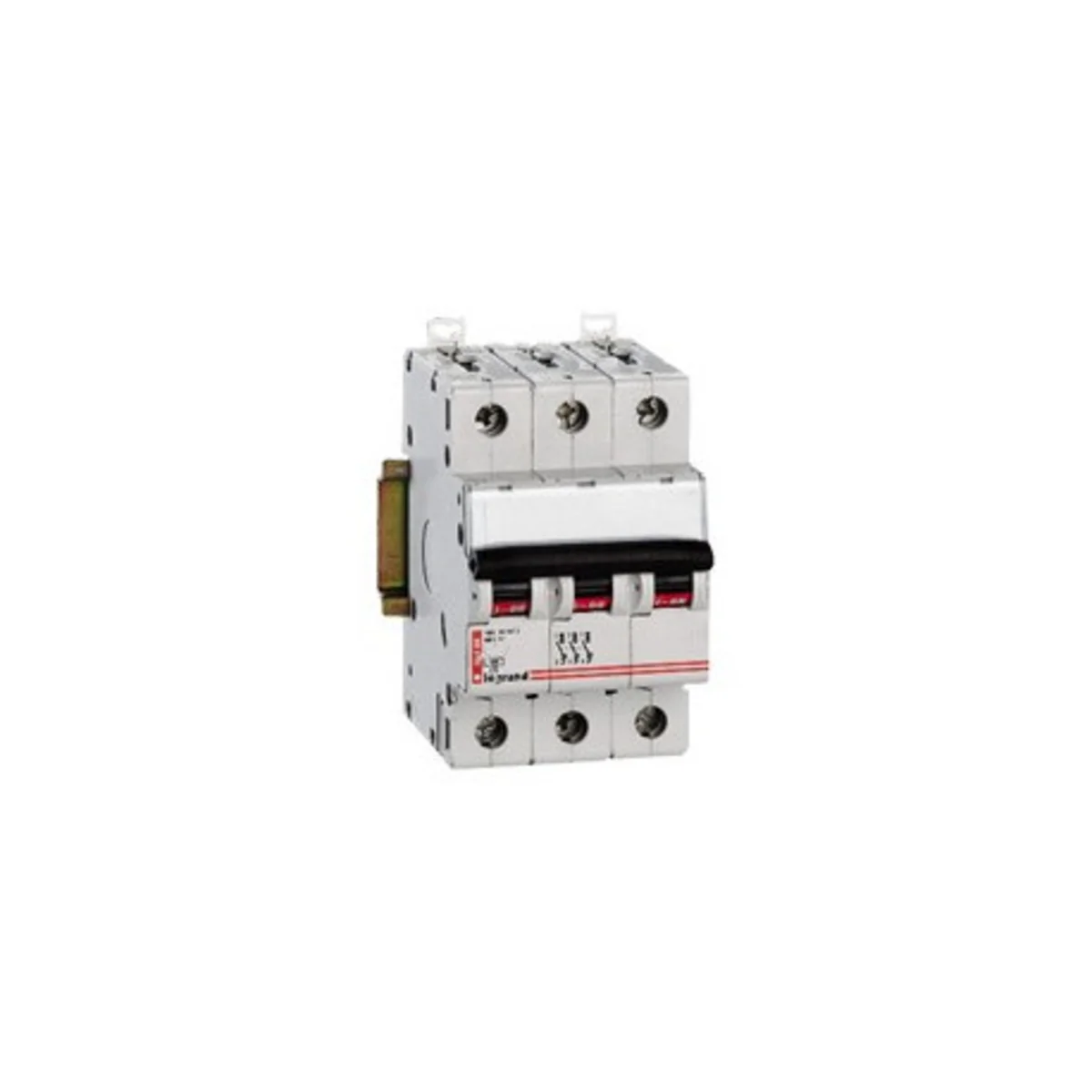

Three-pole circuit breaker S313 DX3 10000A C40 3P 409258
local index:
ABC010LEGR
Catalog No:
409258
EAN code:
3245064092586
Price:
43,96 €
gross / pcs.
(including VAT 23%)
Last lowest price:
137,64 € gross
Price history for this product
1. 43,96 € gross / pcs.
2. Last lowest price:
137,64 €
3. Base price:
132,63 €
-67%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
132,63 € gross
-67%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
Three-pole circuit breaker S313 DX3 10000A C40 3P
Technical data
-
Characteristicc
-
Rated voltage [V]400
-
PKWIU27.12.22.0
-
Number of poles3
-
Rated current [A]40
Other technical data
-
Release characteristicC
-
Number of protected poles3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1.5 ... 25 mm²
-
Number of poles (total)3
-
Rated current40 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32 kA
-
Voltage typeAC
-
Do instalacji podtynkowychYes
-
Additional equipment possibleYes
-
Built-in depth44 mm
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1.5 ... 35 mm²
Bulk packaging
| A kind of package | Pudełko | Karton | Paleta |
| Quantity | 1 pcs. | 12 pcs. | 648 pcs. |
| Weight (kg) | 0,463 | 5,753 | 310,662 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,078 | 0,217 | 1,200 |
| Length (m) | 0,085 | 0,180 | 0,690 |
| Depth (m) | 0,104 | 0,278 | 1,000 |
