Electrical apparatus
contactors
Parts for contactors

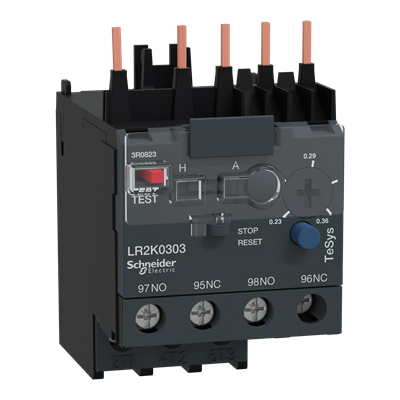

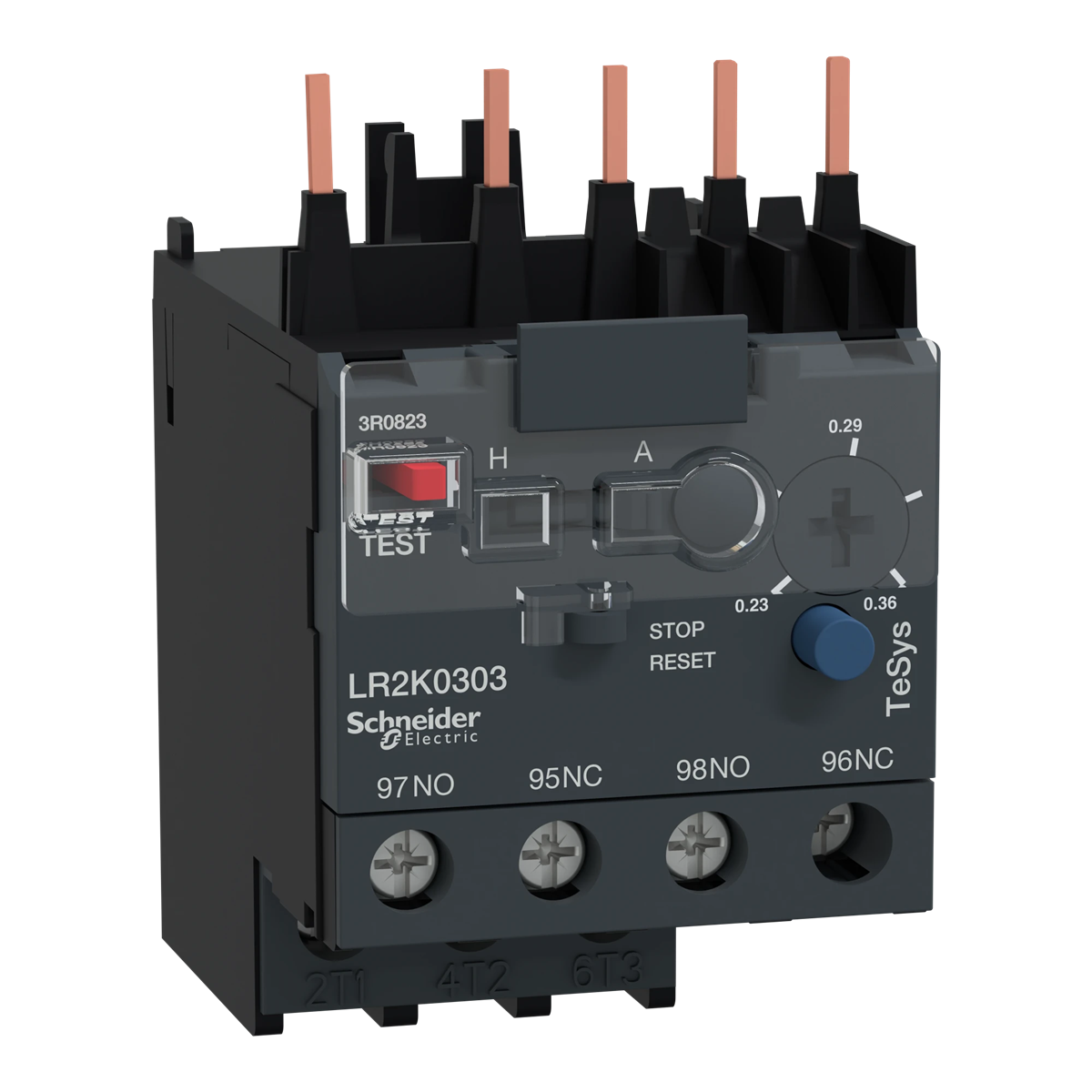

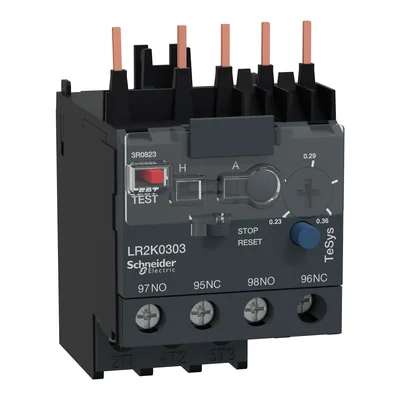

Thermal relay TeSys K 0.23-0.36A class 10 LR2K0303
local index:
ATC055SCHN
Catalog No:
LR2K0303
EAN code:
3389110230376
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]:
58
See full description
Price:
46,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Thermal relay TeSys K 0.23-0.36A class 10
Technical data
Height [mm]
58
PKWIU
27.12.22.0
Other technical data
Adjustable current range
0.23 ... 0.36 A
Mounting method
Direct attachment
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as change-over contact
0
Reset function input
No
Reset function push-button
Yes
Max. rated operation voltage Ue
690 V
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10 A
Reset function automatic
Yes
Files to download
Internal PEP ENVPEP2211018_V1.pdf
EoLI_ENVEOLI2211018_V1.pdf
1378171_01A55_10.pdf
