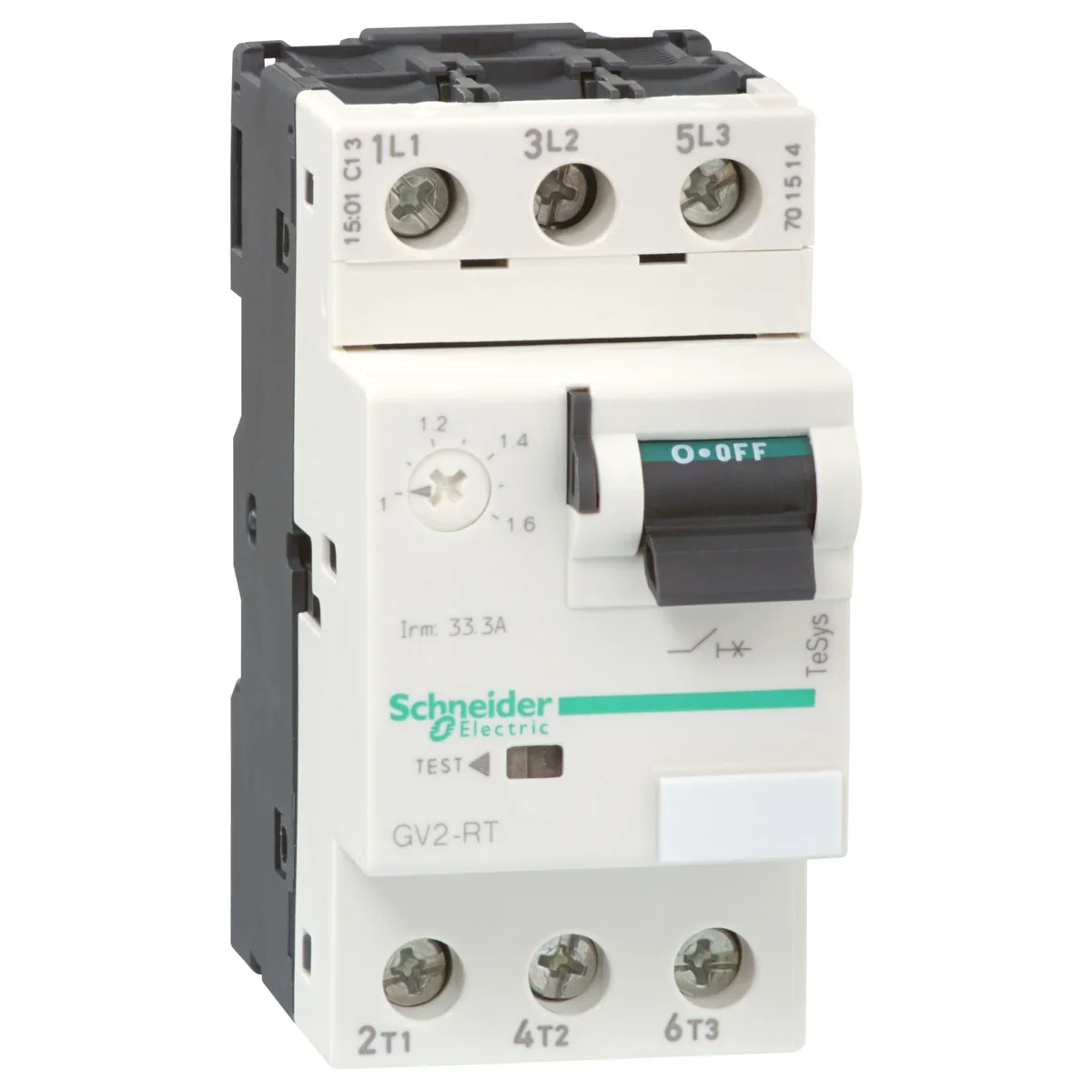

TeSysGV2RT motor circuit breaker lever drive 1-1.6A 0.55kW box terminals GV2RT06
local index:
ASN070SCHN
Catalog No:
GV2RT06
EAN code:
3389110520620
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 89
Price:
85,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
TeSysGV2RT motor circuit breaker lever drive 1-1.6A 0.55kW box terminals
Technical data
-
Height [mm]89
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting1 ... 1.6 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu1.6 A
-
Rated operation power at AC-3, 400 V0.55 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release33 ... 33 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.25 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Height89 mm
-
Depth78.5 mm
