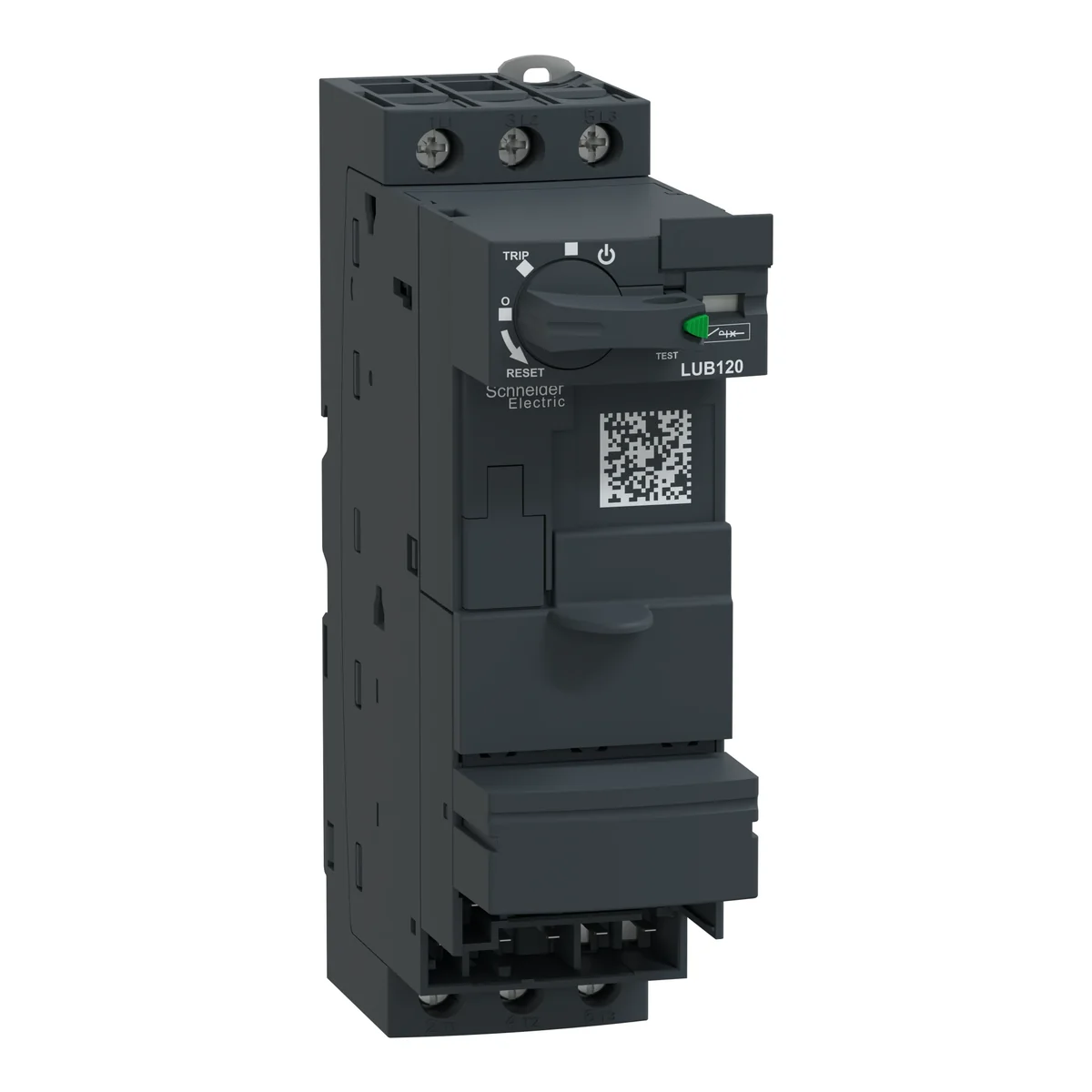

TeSys U 12A basic base no connection control LUB120
local index:
ASA029SCHN
Catalog No:
LUB120
EAN code:
3389110362794
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 145
Price:
274,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
TeSys U 12A basic base no connection control
Technical data
-
Height [mm]145
-
PKWIU27.12.23.0
Other technical data
-
Type of motor starterDirect online starter (DOL)
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 220 V
-
Rated operation power at AC-3, 230 V, 3-phase3 kW
-
Rated power, 460 V, 60 Hz, 3-phase5.5 kW
-
Rated operation current Ie12 A
-
Rated conditional short-circuit current, type 1, 480 Y/277 V10000 A
-
Rated conditional short-circuit current, type 2, 230 V50000 A
-
Number of auxiliary contacts as normally open contact1
-
Ambient temperature, upper operating limit70 °C
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
Suitable for emergency stopNo
-
Number of indicator lights0
-
With fuseNo
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Height154 mm
-
With short-circuit releaseYes
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated power, 575 V, 60 Hz, 3-phase5.5 kW
-
Rated operation current at AC-3, 400 V12 A
-
Rated conditional short-circuit current, type 1, 600 Y/347 V4000 A
-
Rated conditional short-circuit current, type 2, 400 V50000 A
-
Number of auxiliary contacts as normally closed contact1
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleYes
-
Number of command positions3
-
Coordination class according to IEC 60947-4-3Class 2
-
External reset possibleNo
-
Degree of protection (IP)IP20
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width45 mm
-
Depth126 mm
