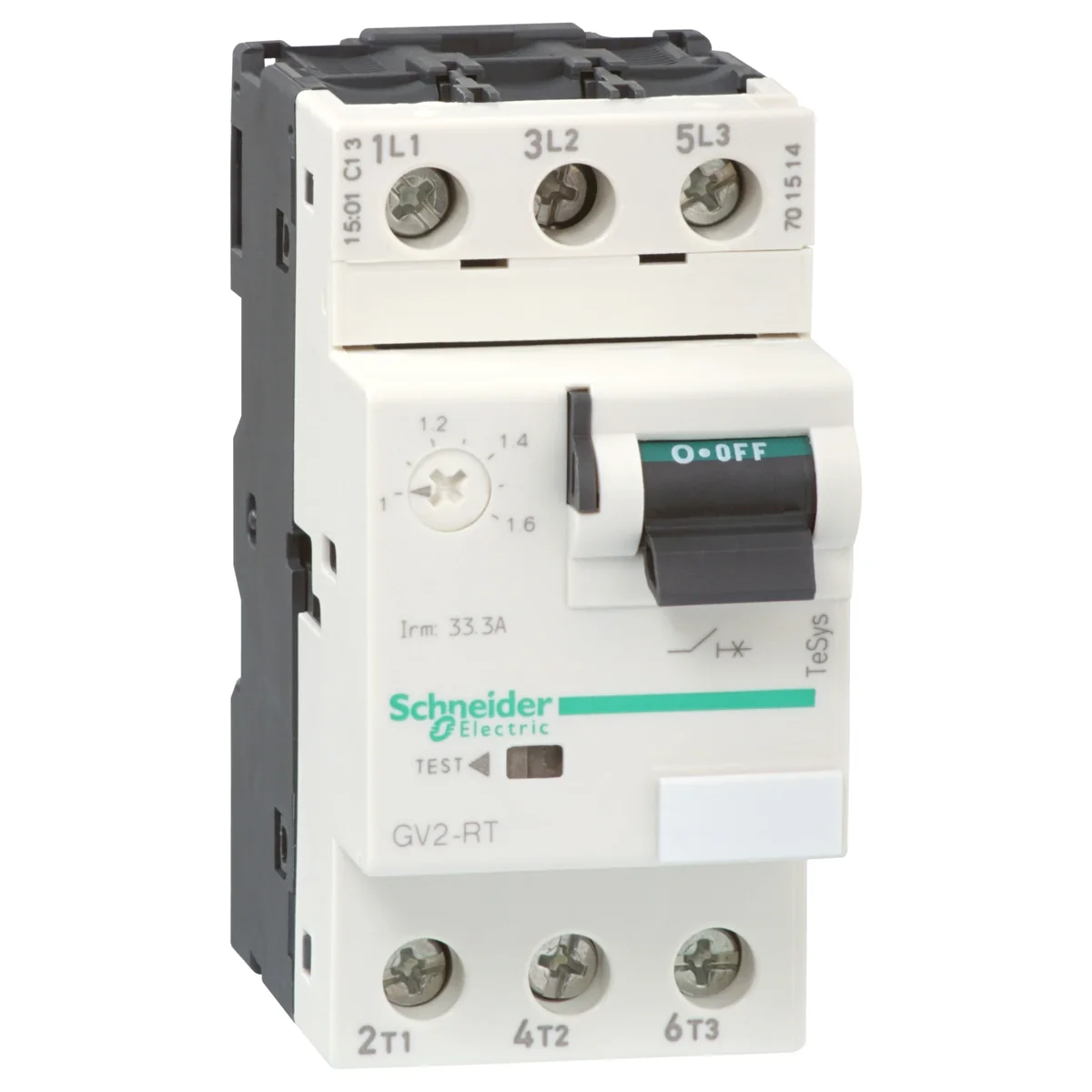

TeSys GV2RT motor circuit breaker lever drive 9-14A 5.5kW box terminals GV2RT16

local index:
ASN075SCHN
Catalog No:
GV2RT16
EAN code:
3389110520699
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 89
Price:
101,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TeSys GV2RT motor circuit breaker lever drive 9-14A 5.5kW box terminals

Technical data

  • Height [mm]
    89
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    9 ... 14 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    14 A
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    280 ... 280 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    3 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    15 kA
  • Height
    89 mm
  • Depth
    78.5 mm
