TeSys GV2RT motor circuit breaker lever drive 4-6.3A 2.2kW box terminals GV2RT10
local index:
ASN069SCHN
Catalog No:
GV2RT10
EAN code:
3389110520651
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 89
Price:
84,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

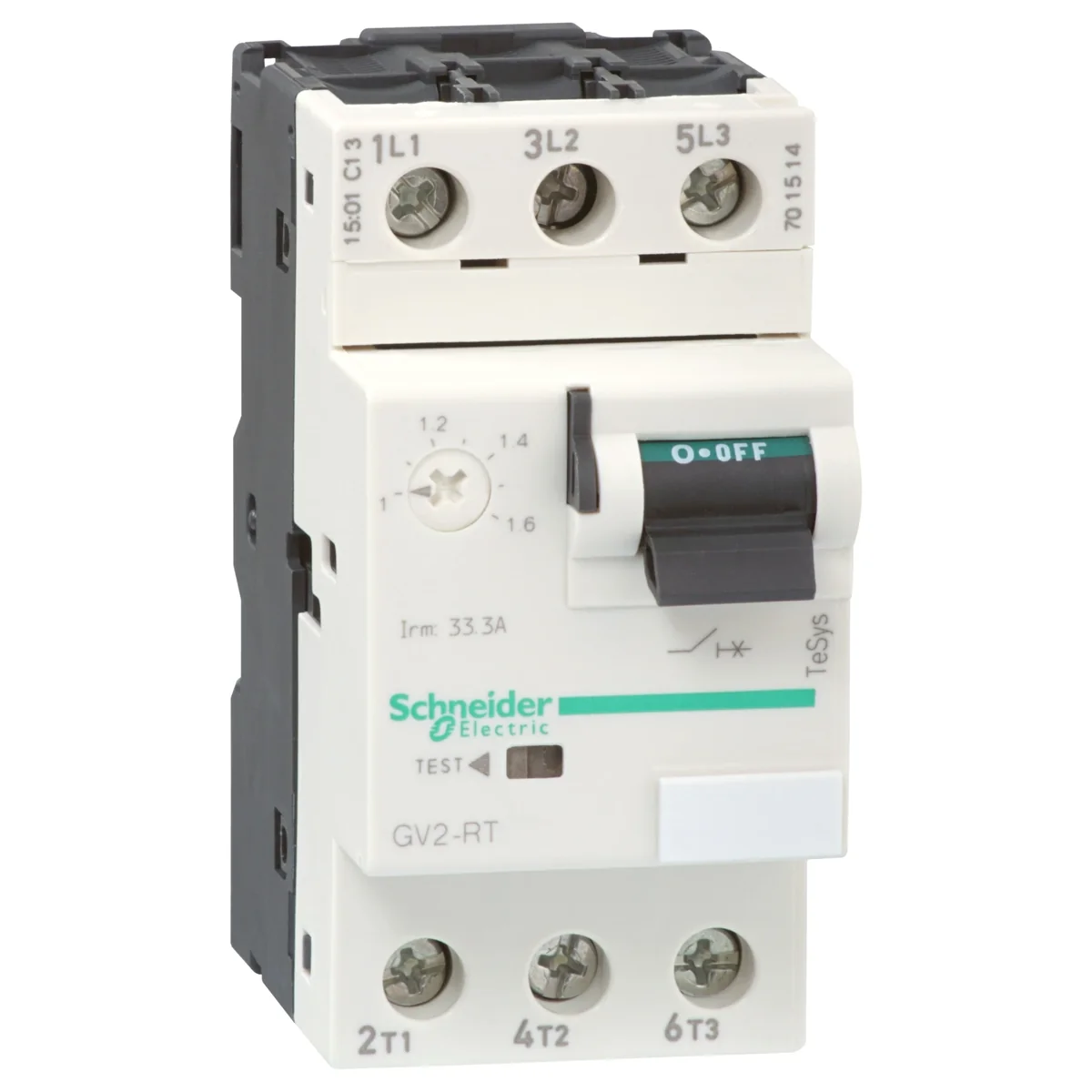

TeSys GV2RT motor circuit breaker lever drive 4-6.3A 2.2kW box terminals
Technical data
-
Height [mm]89
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting4 ... 6.3 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu6.3 A
-
Rated operation power at AC-3, 400 V2.2 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release138 ... 138 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V1.1 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Height89 mm
-
Depth78.5 mm
