TeSys GV2RT motor circuit breaker lever drive 13-14A 7.5kW box terminals GV2RT20

Name: TeSys GV2RT motor circuit breaker lever drive 13-14A 7.5kW box terminals
Brand: SCHNEIDER ELECTRIC
SKU: ASN067SCHN
Price: 102.34 PLN

local index:

ASN067SCHN

Catalog No:

GV2RT20

EAN code:

3389110520712

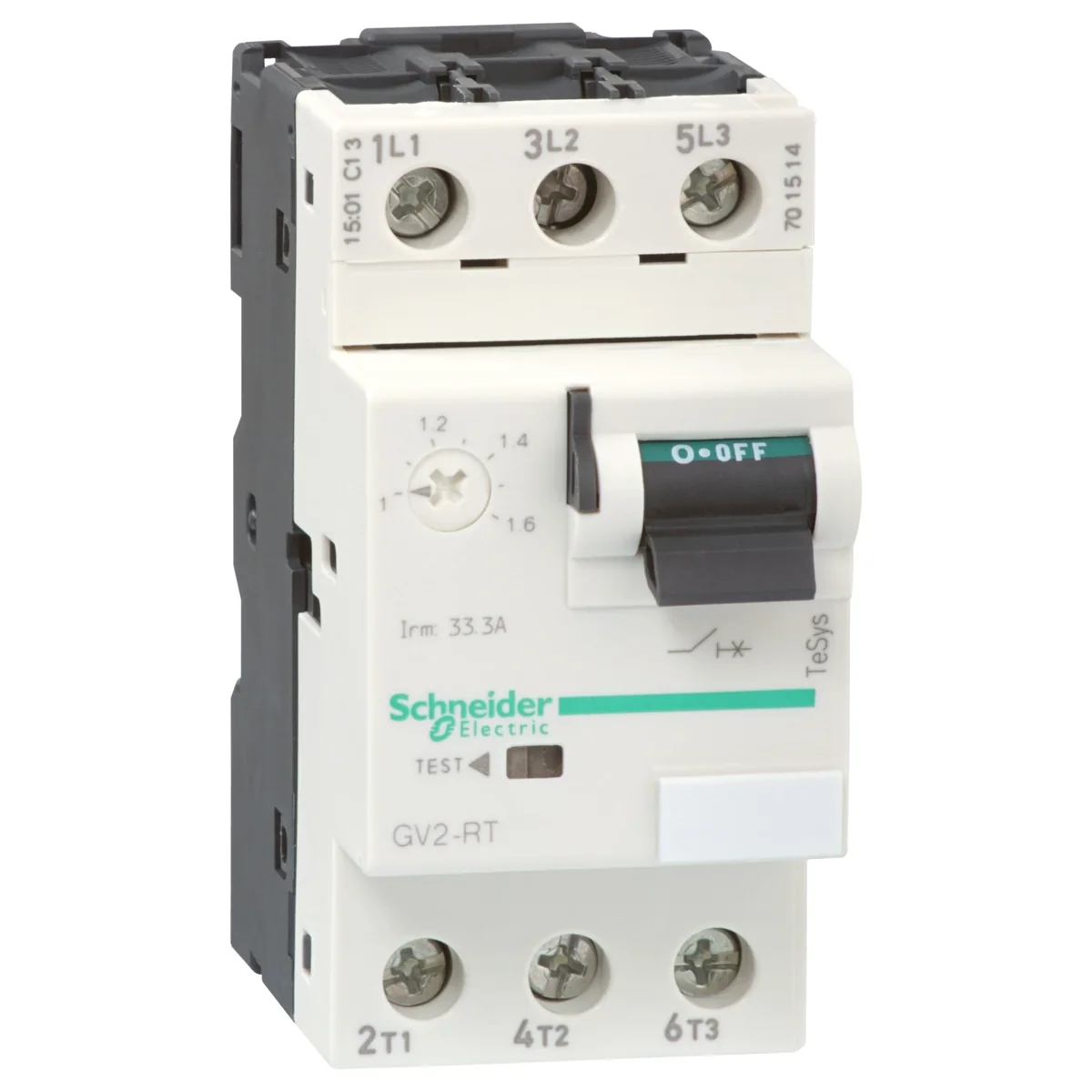

TeSys GV2RT motor circuit breaker lever drive 13-14A 7.5kW box terminals

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

Height [mm]: 89

See full description

Price:

102,34 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data

Product description

TeSys GV2RT motor circuit breaker lever drive 13-14A 7.5kW box terminals

Technical data

Height [mm]

89

PKWIU

27.12.22.0

Other technical data

Overload release current setting

13 ... 18 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

18 A
Rated operation power at AC-3, 400 V

7.5 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

400 ... 400 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

4 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Complete device in housing
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

15 kA
Height

89 mm
Depth

78.5 mm
