TeSys GV2P motor circuit breaker rotary drive 0.16-0.25A box terminals GV2P02
local index:
ASN043SCHN
Catalog No:
GV2P02
EAN code:
3389110213416
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 89
Price:
66,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

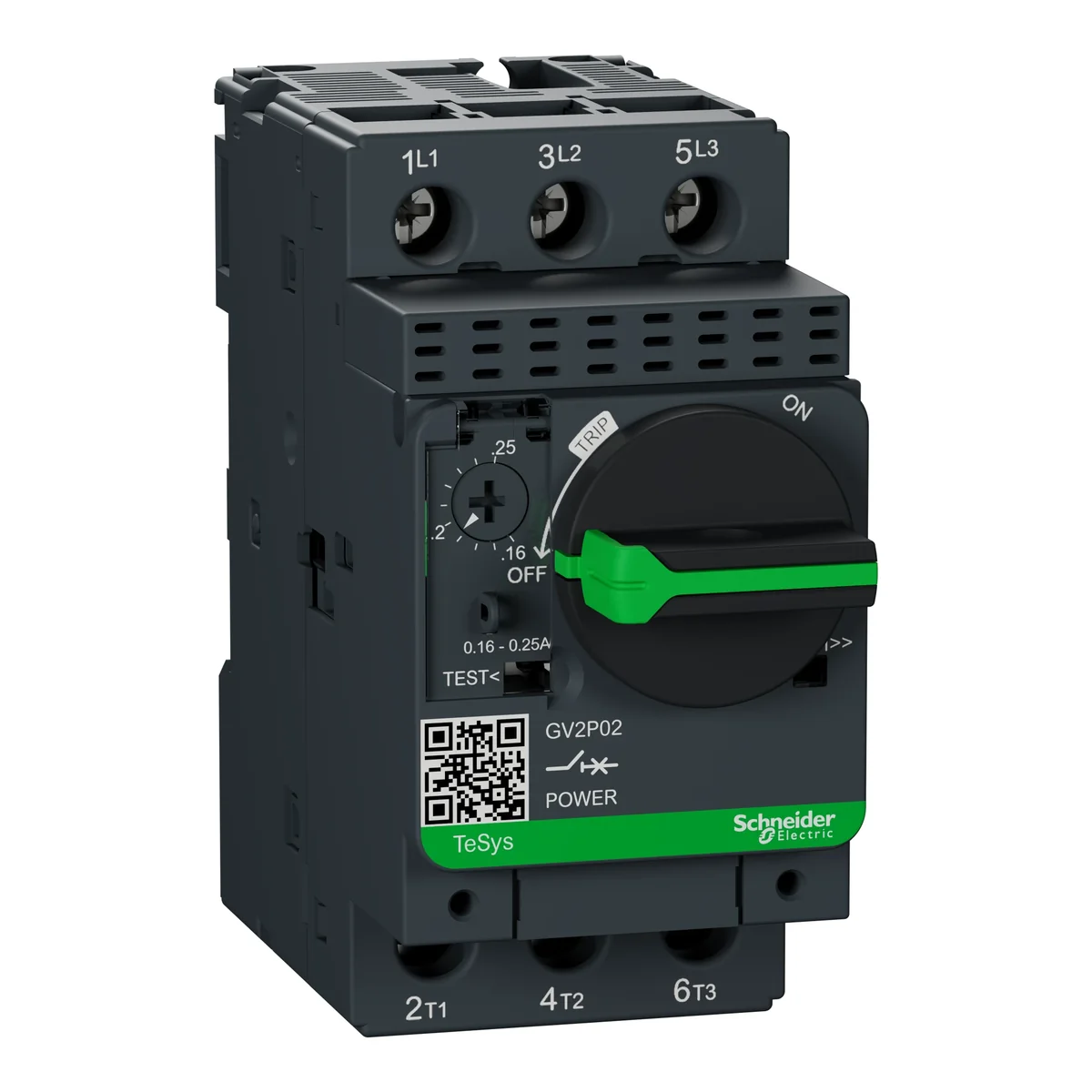

TeSys GV2P motor circuit breaker rotary drive 0.16-0.25A box terminals
Technical data
-
Height [mm]89
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting0.16 ... 0.25 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu0.25 A
-
Rated operation power at AC-3, 400 V0.06 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width44.5 mm
-
Adjustment range undelayed short-circuit release2.4 ... 2.4 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.037 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Height89 mm
-
Depth97 mm
