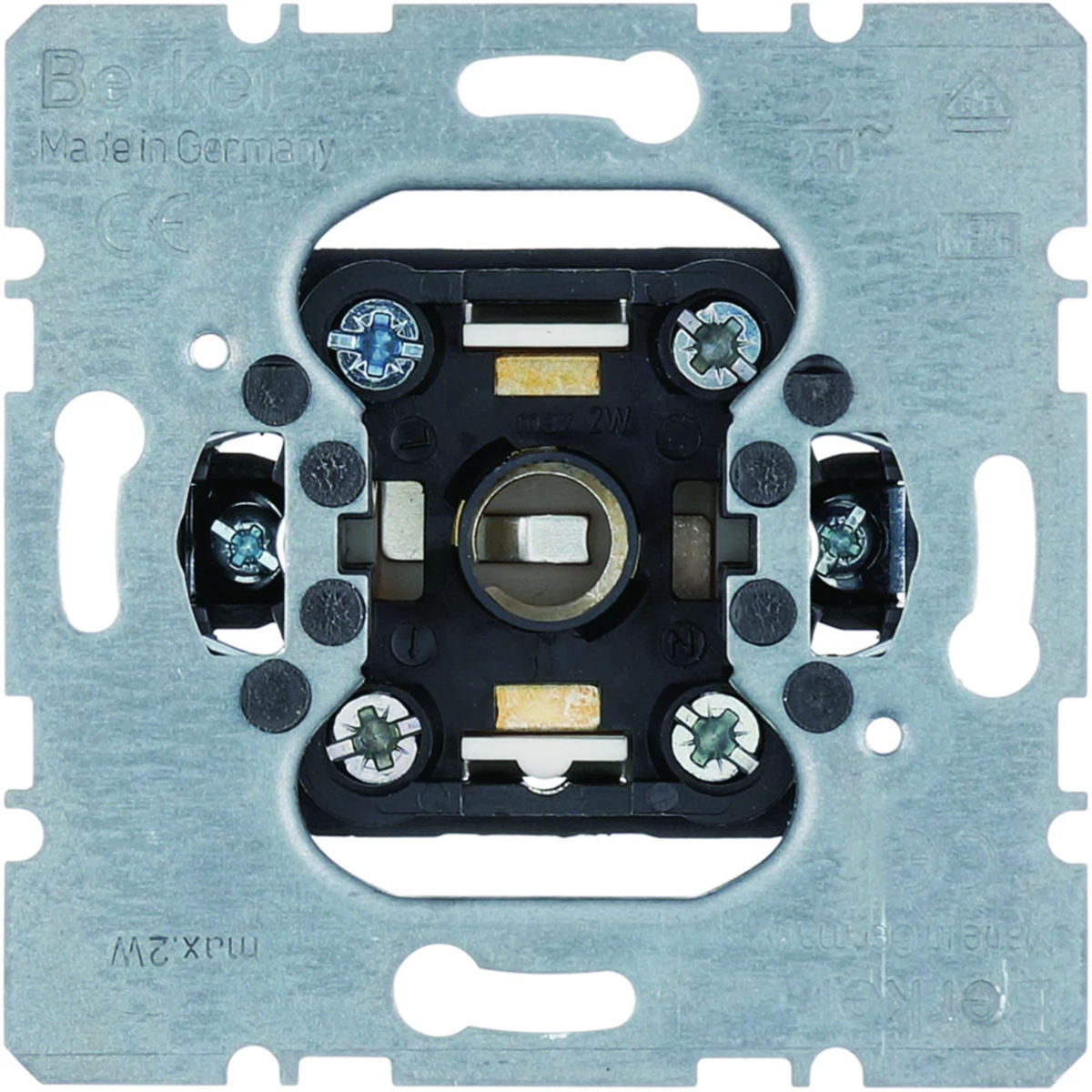

Switch and light indicator E10 NO contact with separate reporting contacts 510110

local index:
AKS002BERK
Catalog No:
510110
EAN code:
4011334155799
Manufacturer: BERKER
Rated voltage [V]: 230
Mounting method: Flush-mounted
Level of security: IP20
Price:
10,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

E10 NO contact switch and light indicator with separate reporting contacts. 250V~ With screw terminals, for backlight connection and backlight control connection, with possibility of backlighting with E10 fluorescent lamp. maximum contact current 2A, maximum power of incandescent lamps 2W.

Construction: Housing made of material with high resistance to chemical agents. Housing screws, blades and lid axles are made of stainless steel.

Attention! With transparent button and E10 fluorescent lamp

Technical data

  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Fastener type
    Single
  • Mounting method
    Flush-mounted
  • Handle
    E10
  • PKWIU
    26.30.60.0

Other technical data

  • Assembly arrangement
    Basic element
  • Lamp holder
    E10
  • With flashlight
    No
  • With exchangeable symbol
    No
  • Material
    Other
  • Halogen free
    Yes
  • Transparent
    No
  • Nominal voltage
    250 V
  • Number of modules (module system)
    0
  • With light source
    No
  • With fixed symbol/imprint
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Max. lamp power
    2 W

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,059 0,681 3,766 140,521
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,030 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
