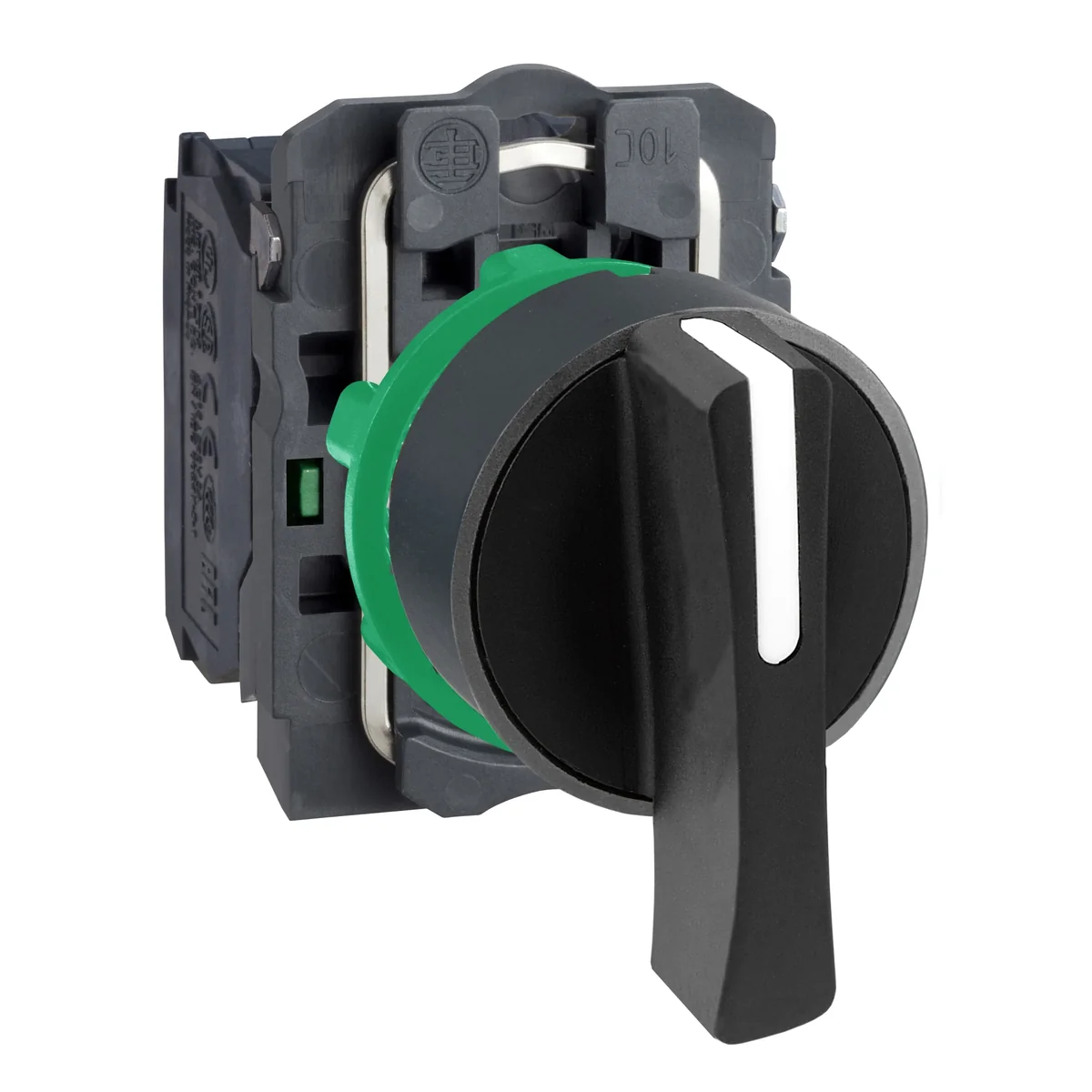

Switch 3 positions black blade short plastic return to the middle XB5AJ53

local index:
AKS168SCHN
Catalog No:
XB5AJ53
EAN code:
3389110903539
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 48
Price:
37,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch 3 positions black blade short plastic return to the center

Technical data

  • Height [mm]
    48
  • PKWIU
    27.11.61.0

Other technical data

  • Number of switch positions
    3
  • Suitable for illumination
    No
  • Colour button
    Black
  • Switching function latching
    No
  • Degree of protection (IP)
    IP67/IP69K
  • Supply voltage
    230 ... 230 V
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Type of control element
    Long turning handle
  • With light source
    No
  • Hole diameter
    22.5 mm
  • Spring-return
    Yes
  • Degree of protection (NEMA)
    13
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Black
