Surface-mounted fire button 1xNO 1xNC ring nickel-plated SP22-WC-11\.

local index:
AKS050SPAM
Catalog No:
SP22-WC-11\.
EAN code:
5907723056701
Manufacturer: SPAMEL
Color: Red
Width [mm]: 108
Height [mm]: 180
Price:
11,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 3 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

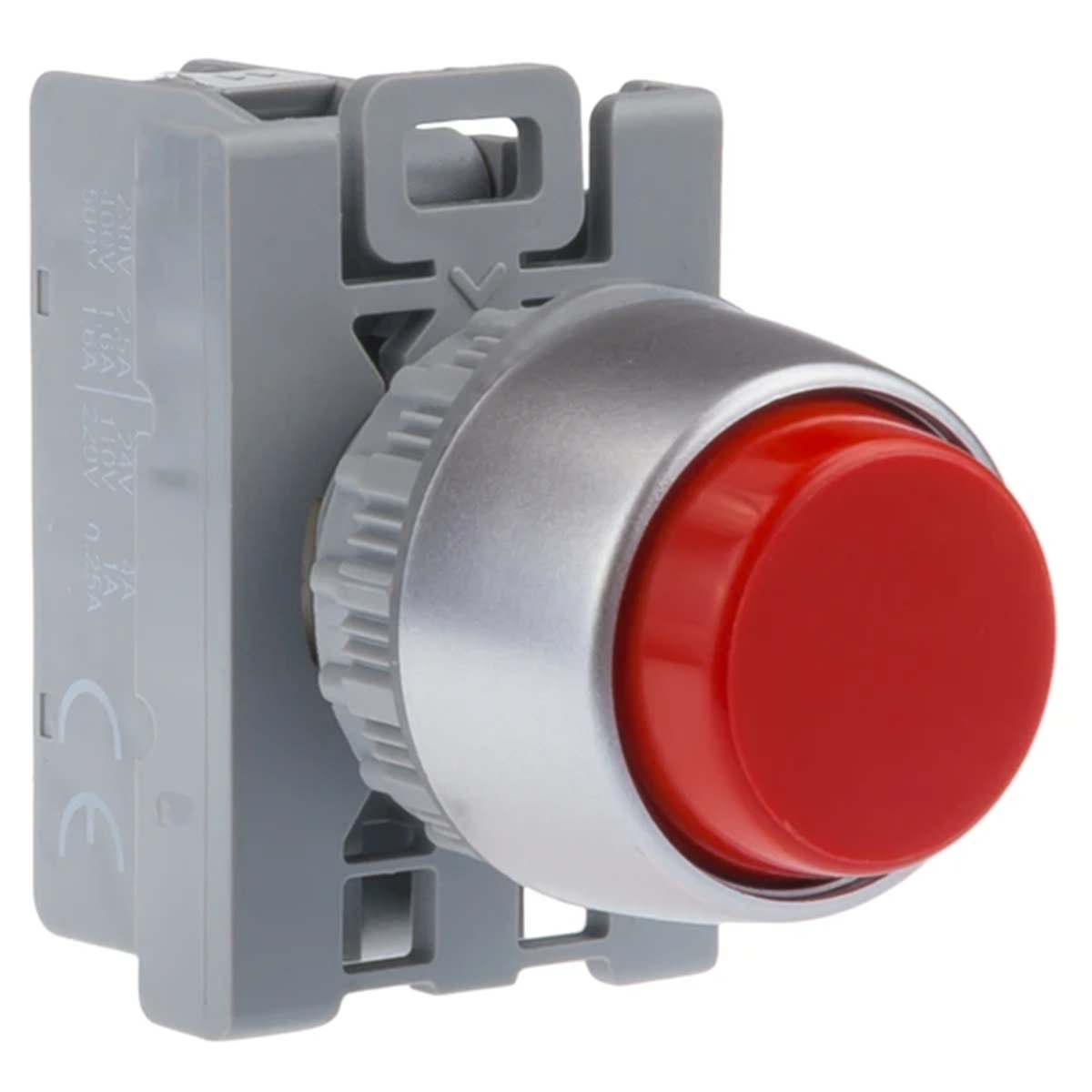

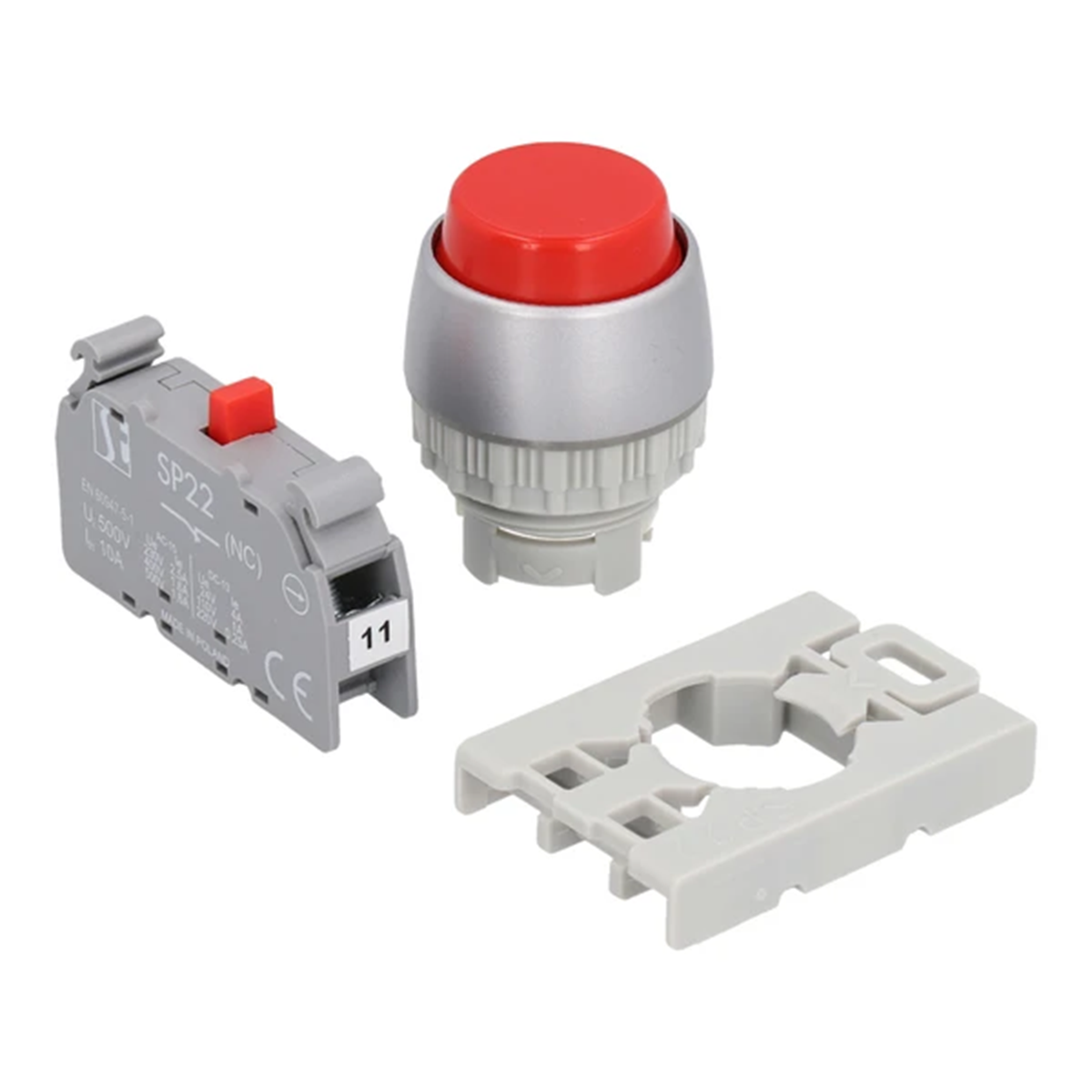

Surface-mounted fire button 1xNO 1xNC ring nickel-plated

Technical data

  • Color
    Red
  • Height [mm]
    180
  • Width [mm]
    108
  • Accurate color
    Red

Other technical data

  • Number of command positions
    1
  • Colour button
    Red
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    No
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Type of button
    High
  • Construction type lens
    Round
  • Width opening
    22 mm
  • Suitable for illumination
    No
  • Spring-return
    Yes
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
