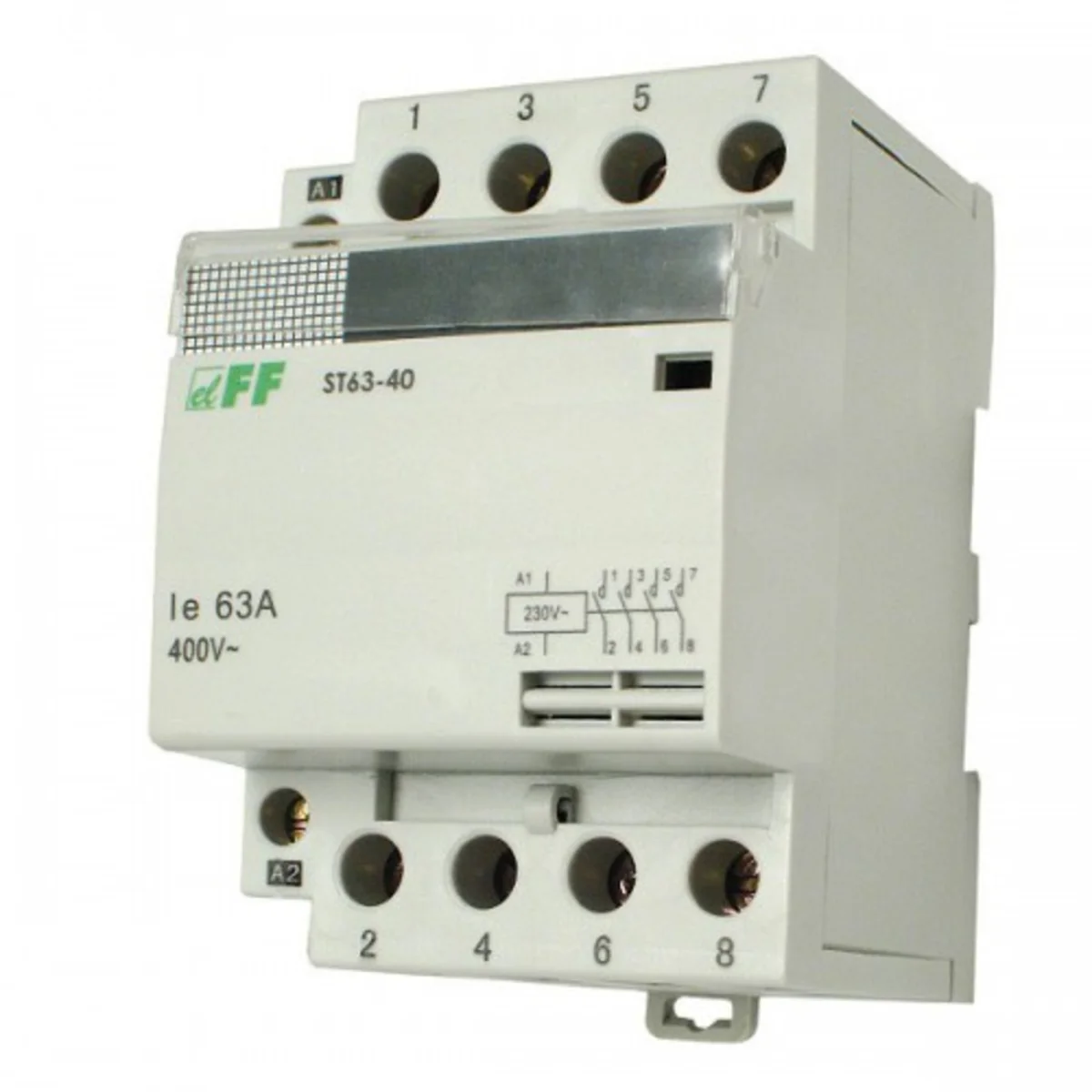

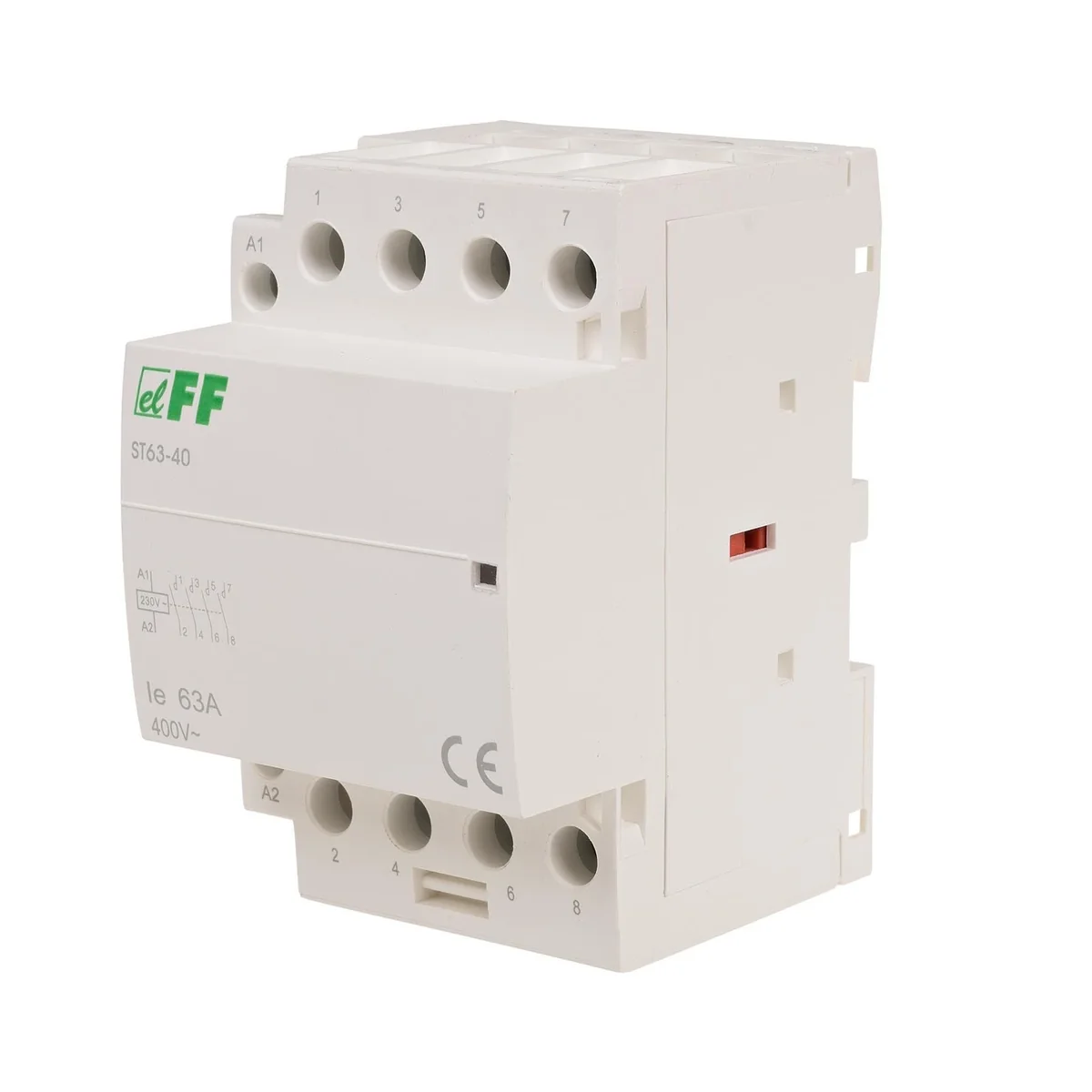

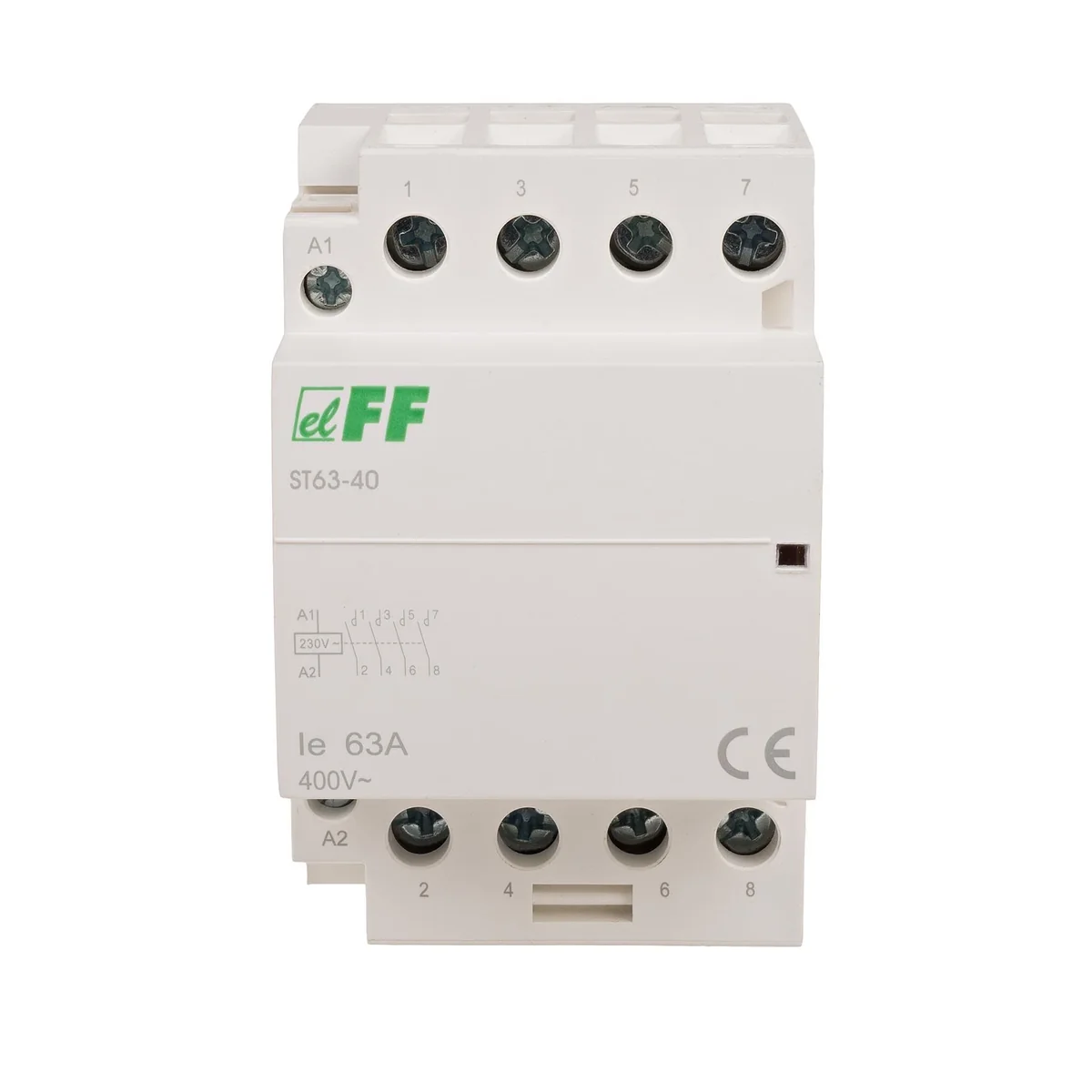

ST63-40 modular contactor ST63-40

local index:
ATM014FIFQ
Catalog No:
ST63-40
EAN code:
5908312594222
Manufacturer: F&F
Power [W]: 6.4
Rated voltage [V]: 230
Level of security: IP20
Price:
37,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic contactors in modular enclosures for direct mounting on a 35mm rail.

Technical data

  • Power [W]
    6.4
  • Level of security
    IP20
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • AC1 current [A]
    63
  • Rated voltage [V]
    230
  • Contact
    4NO
  • Package height [mm]
    150
  • Package weight [kg]
    0.3
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    230 ... 230 V
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Slider for hand switch
    No
  • Built-in depth
    65 mm
  • Degree of protection (IP)
    IP20
  • Rated operation current
    63 A
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    24000 W
  • Width in number of modular spacings
    52
  • Additional equipment possible
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,330
Width (m) 0,058
Length (m) 0,086
Depth (m) 0,072
