ST25-31 modular contactor ST25-31
Lokaler Index:
ATA001FIFQ
Katalognummer:
ST25-31
EAN-Code:
5908312594147
Preis:
117,05 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

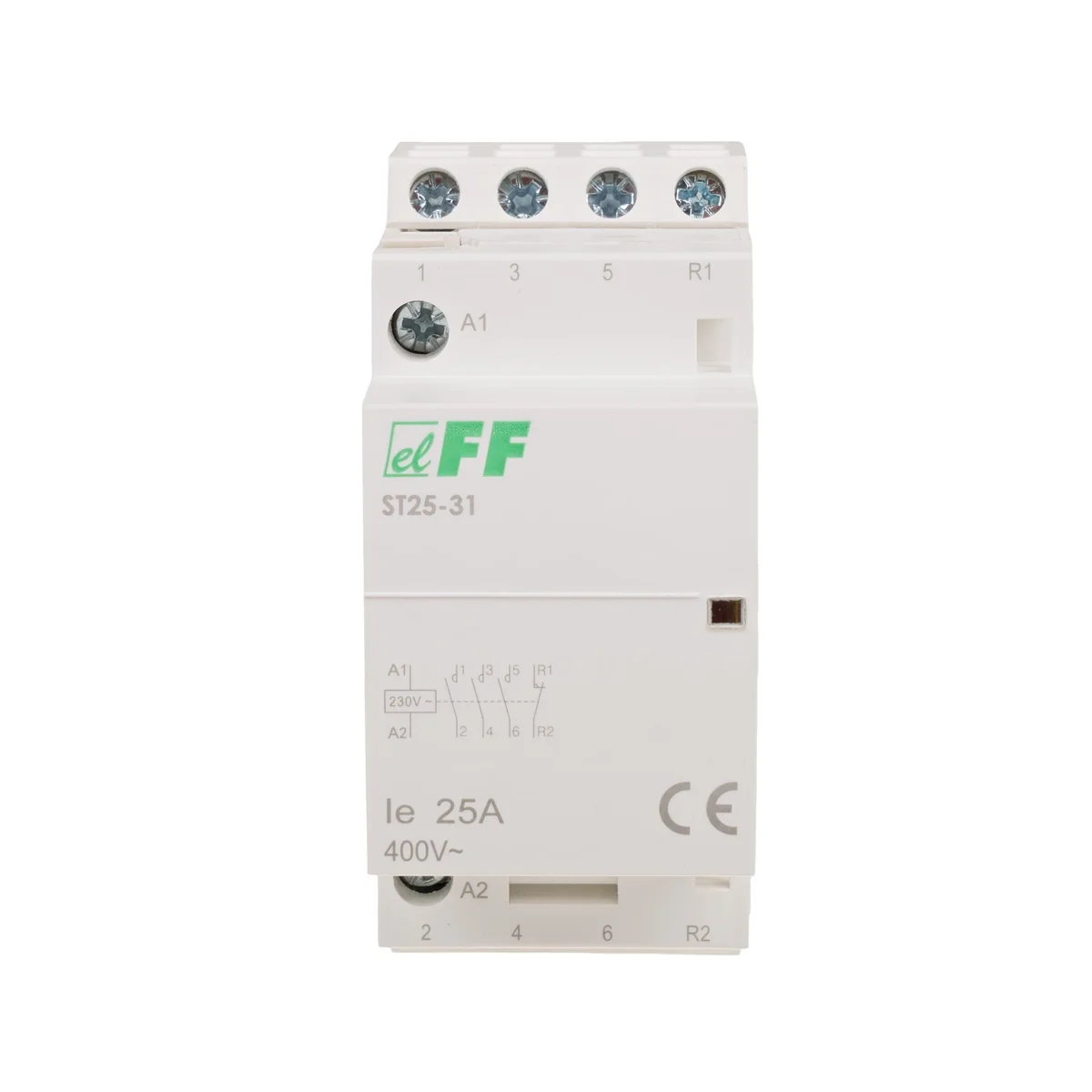

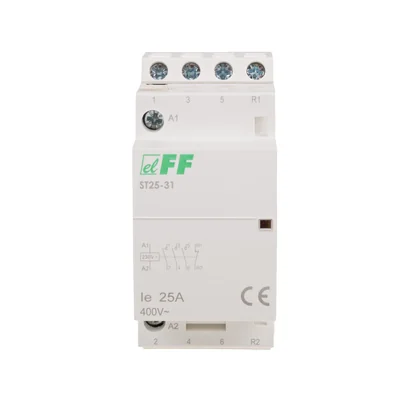

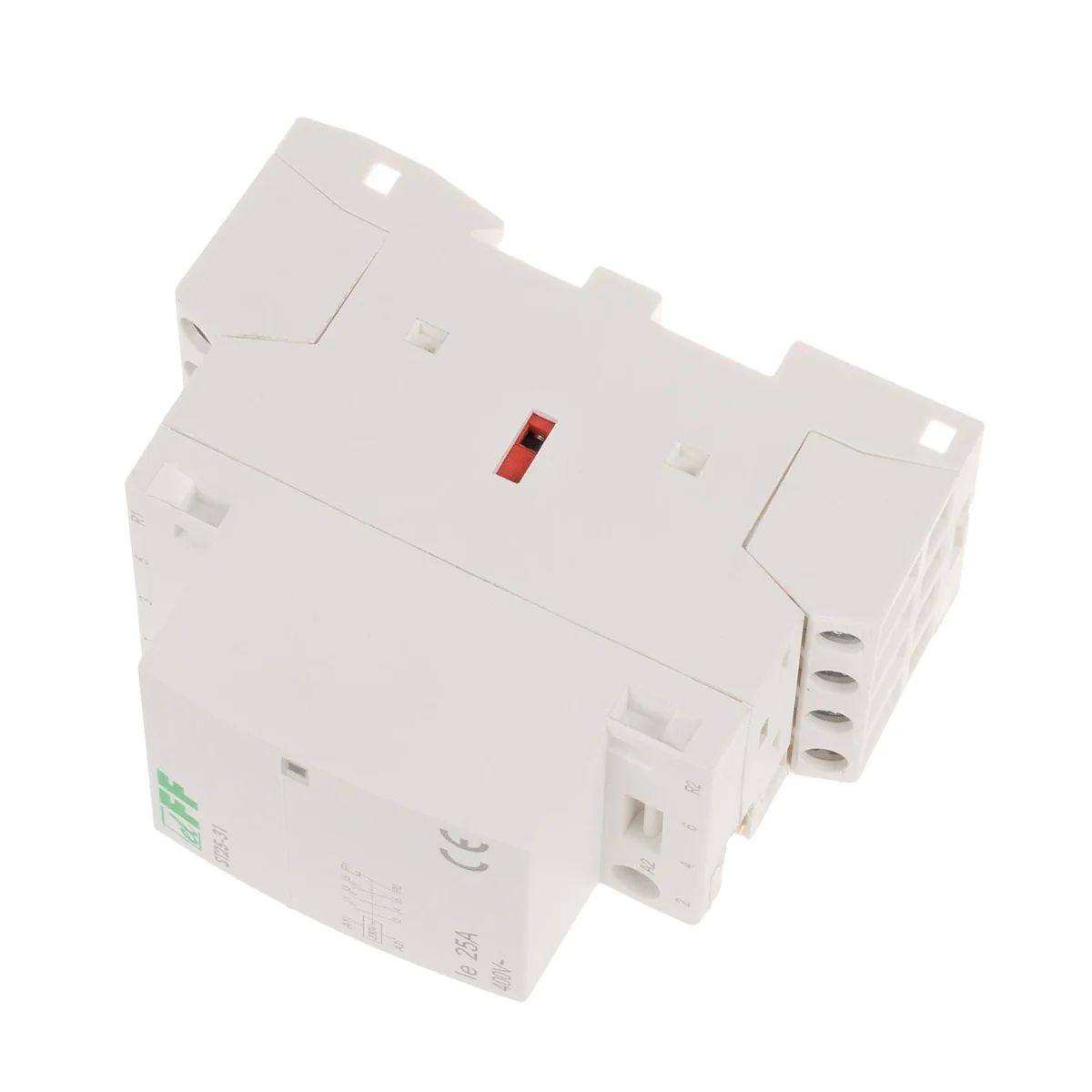

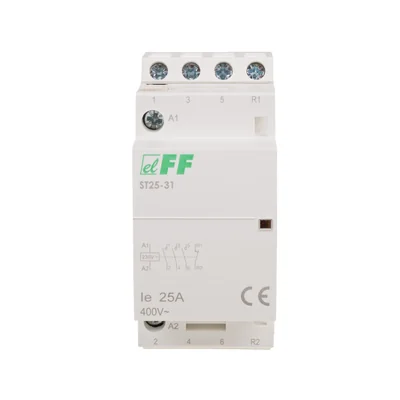

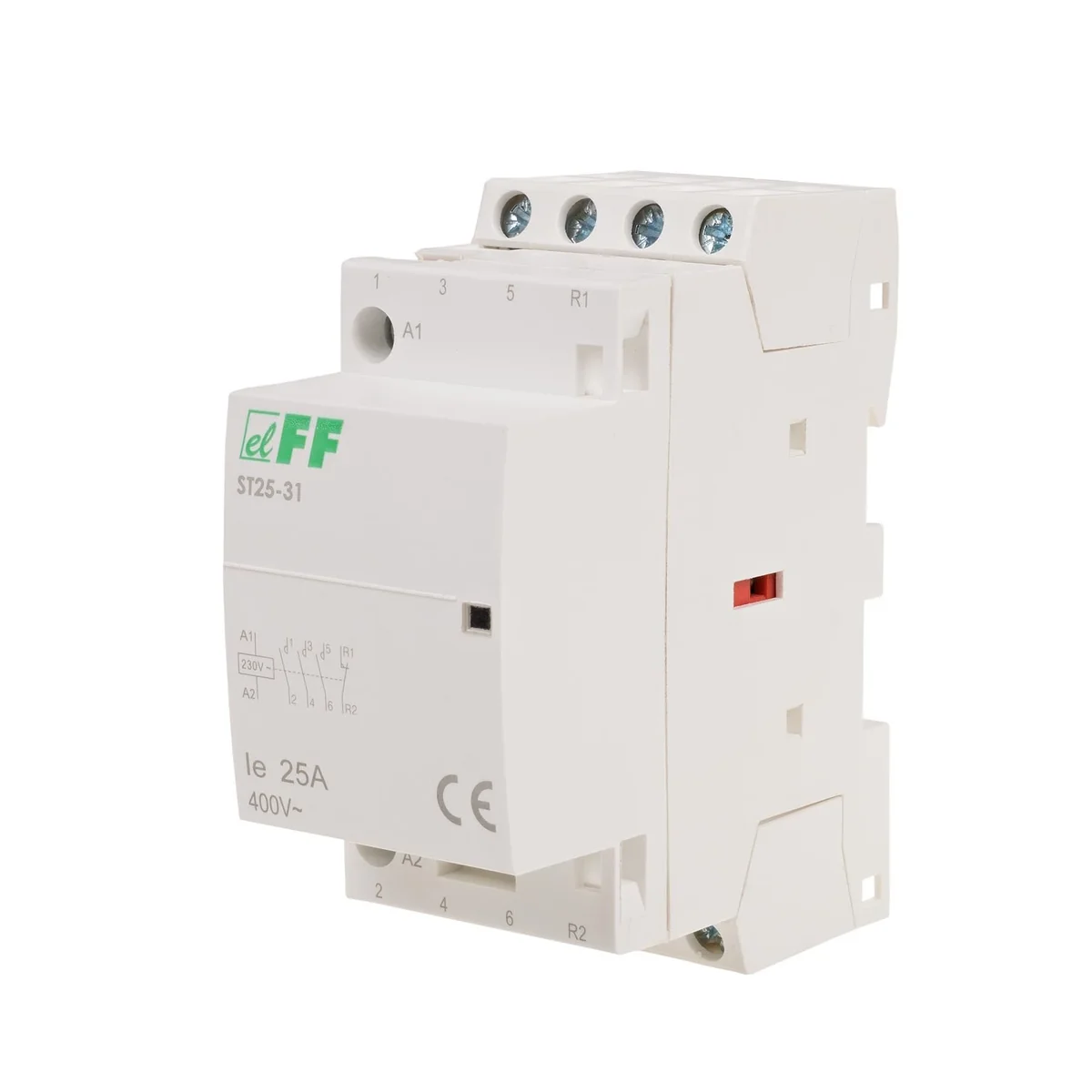

Electromagnetic contactors in modular housings for direct mounting on a 35mm rail. Applying the supply voltage to the contactor coil will cause the contact to switch. The contactor activation status is indicated by a red marker in the window. After a power failure, the contacts return to their original position.
Technische Daten
-
Power [W]4
-
Level of securityIP20
-
Dimensions2 modules (35mm)
-
Package width [mm]40
-
PKWIU27.12.24.0
-
InstallationOn the TH-35 rail
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.2
Weitere technische Daten
-
Rated operating voltage185 ... 265 V
-
Utilization category according to EN IEC 60947-4-1AC-7a/AC-7b
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact3
-
Slider for hand switchNo
-
Built-in depth65 mm
-
With day/night functionNo
-
Rated operation current25 A
-
Rated excitation voltage185 ... 265 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact1
-
Width in number of modular spacings2
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
Hersteller-Details
-
HerstellerF&F Filipowski S.K.
-
Adresse95-200 Pabianice Konstantynowska 79/81 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka |
| Menge | 1 stk. |
| Gewicht (kg) | 0,213 |
| Breite (m) | 0,040 |
| Länge (m) | 0,085 |
| Tiefe (m) | 0,070 |
