ST25-30 modular contactor ST25-30
Lokaler Index:
ATM005FIFQ
Katalognummer:
ST25-30
EAN-Code:
5908312594130
Preis:
89,22 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

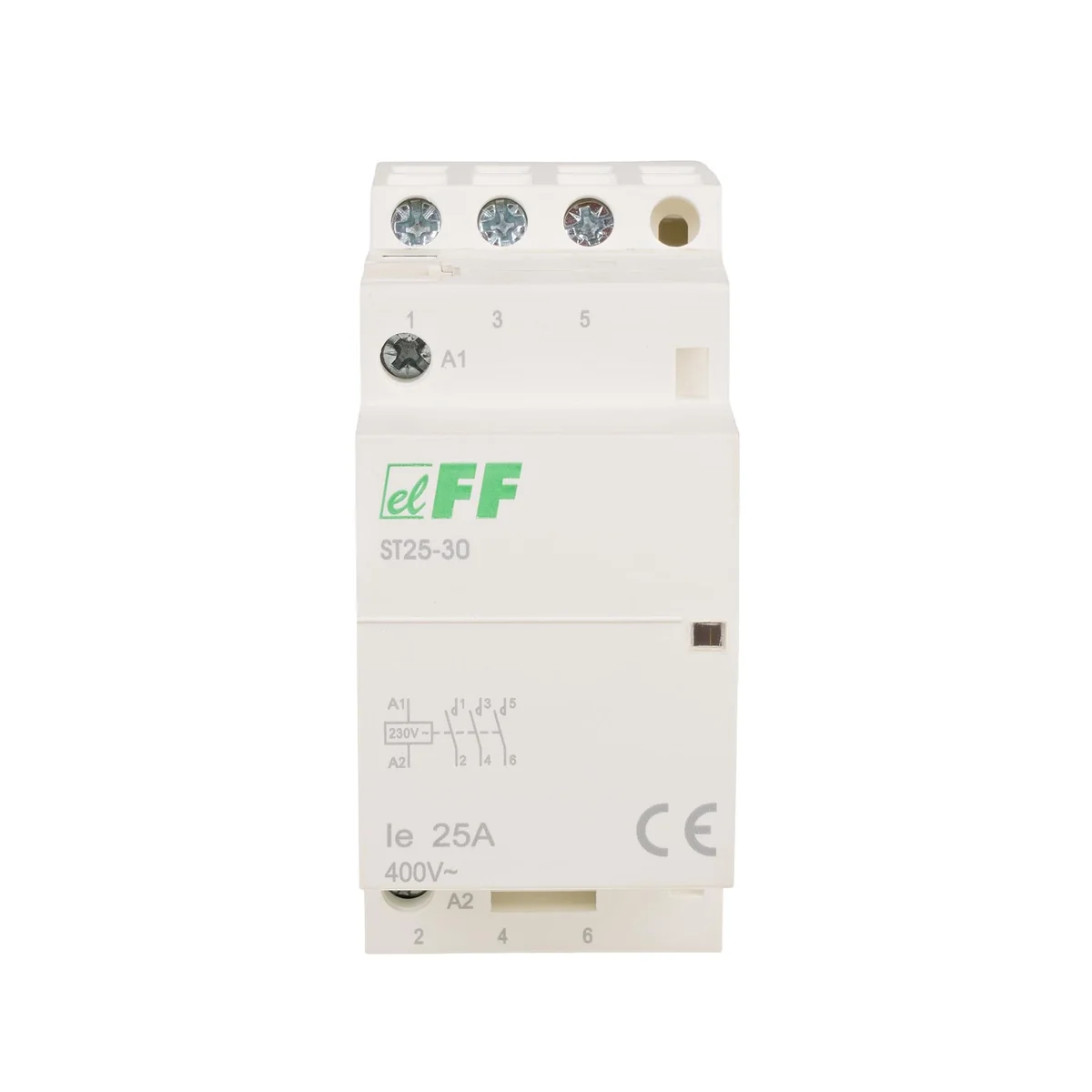

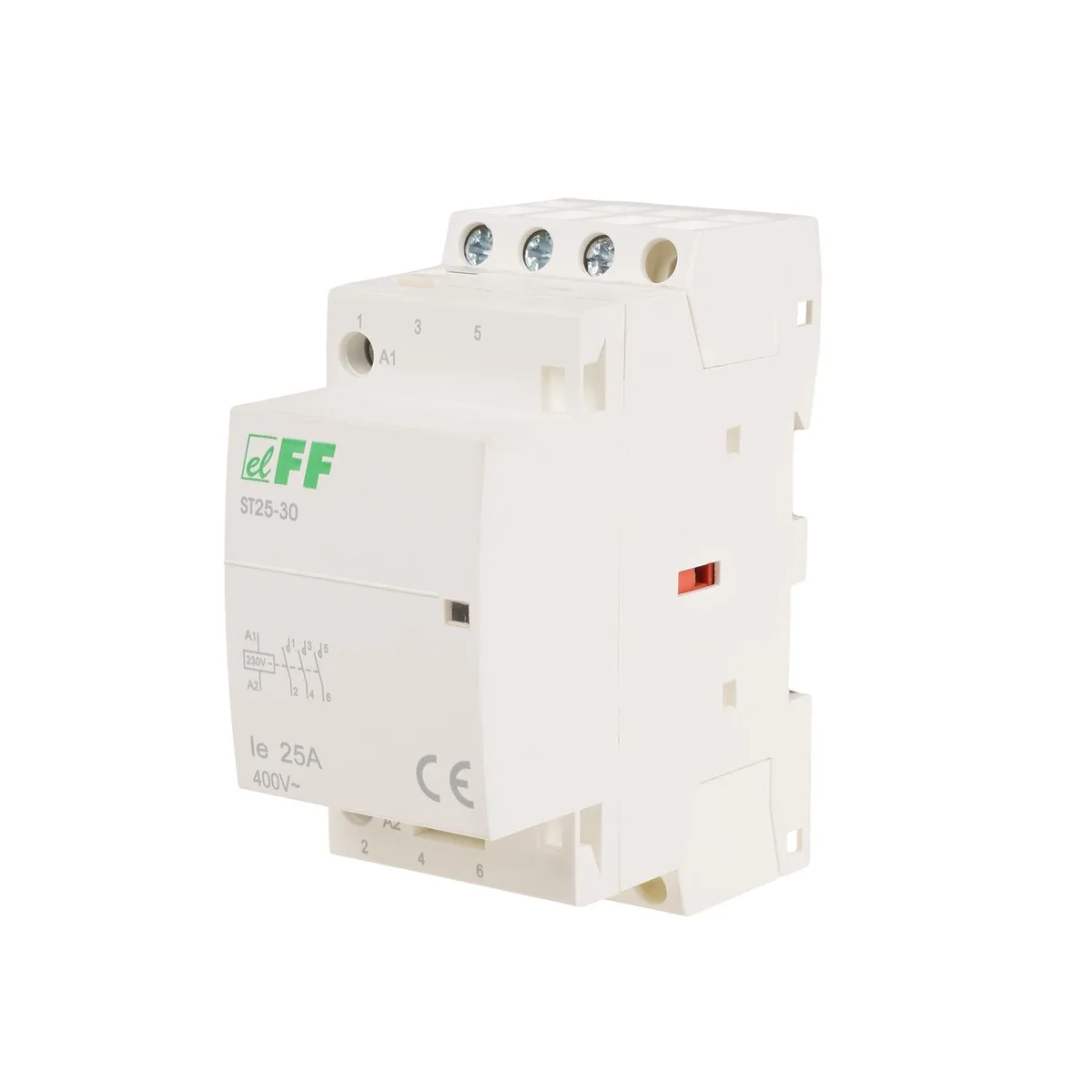

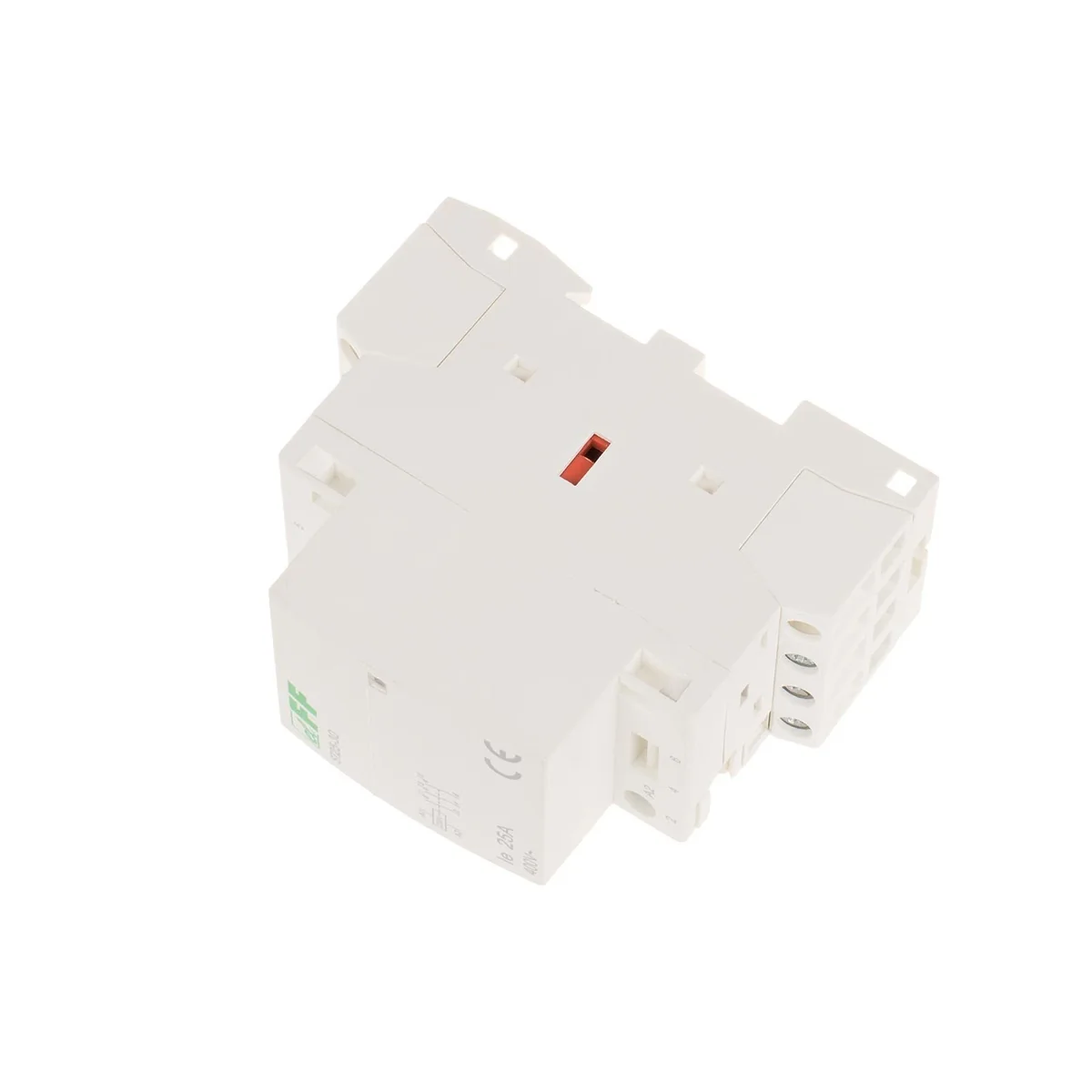

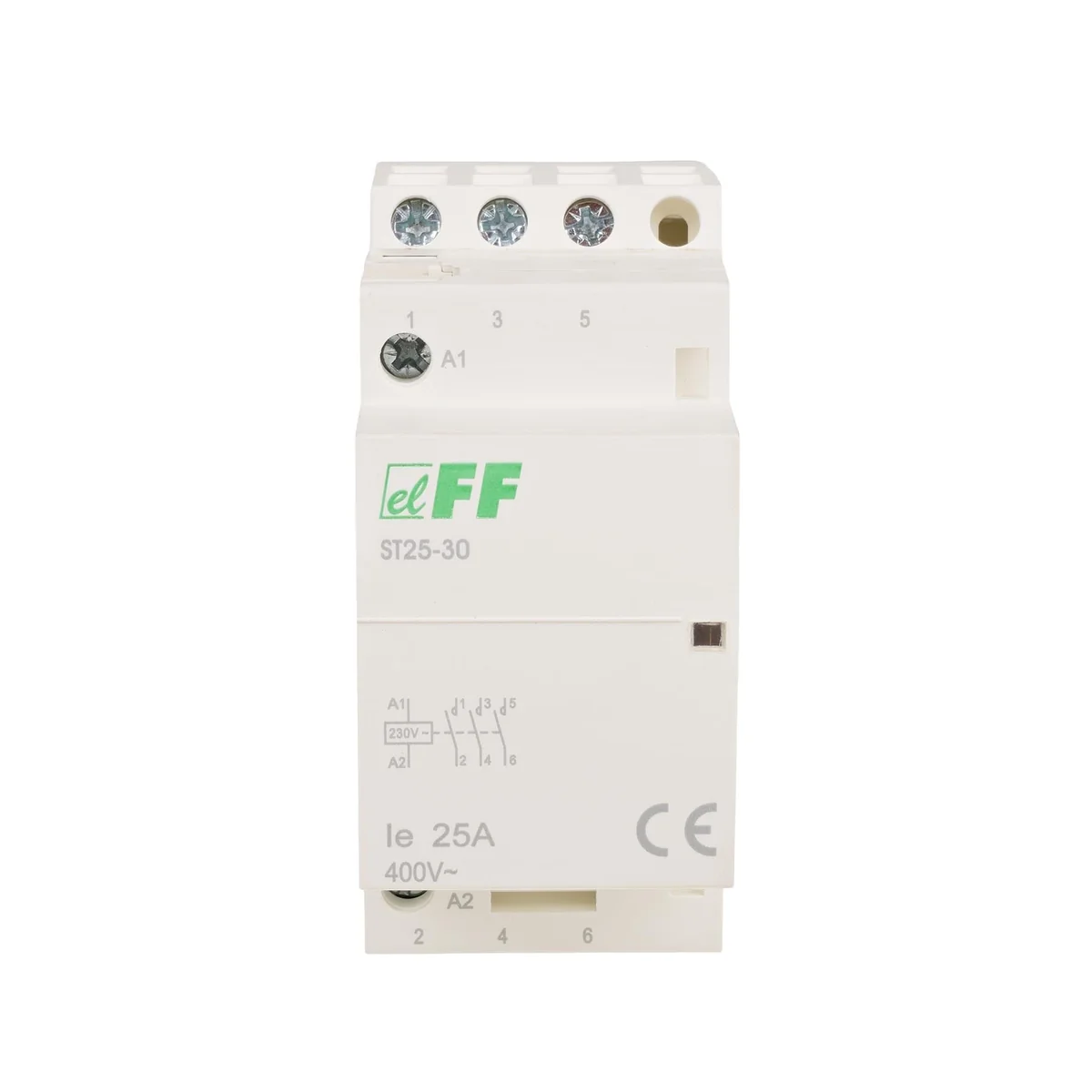

Electromagnetic contactors in modular housings for direct mounting on a 35mm rail. Applying the supply voltage to the contactor coil will cause the contact to switch. The contactor activation status is indicated by a red marker in the window. After a power failure, the contacts return to their original position.
Technische Daten
-
Power [W]4
-
load current [A]25
-
Package height [mm]150
-
Package weight [kg]0.2
-
Rated voltage [V]230
-
Dimensions2 modules (35mm)
-
Package width [mm]40
-
PKWIU27.12.24.0
Weitere technische Daten
-
Rated operating voltage185 ... 265 V
-
Utilization category according to EN IEC 60947-4-1AC-7a/AC-7b
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact3
-
Slider for hand switchNo
-
Built-in depth65 mm
-
With day/night functionNo
-
Rated operation current25 A
-
Rated excitation voltage185 ... 265 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Width in number of modular spacings2
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
Hersteller-Details
-
HerstellerF&F Filipowski S.K.
-
Adresse95-200 Pabianice Konstantynowska 79/81 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka |
| Menge | 1 stk. |
| Gewicht (kg) | 0,206 |
| Breite (m) | 0,040 |
| Länge (m) | 0,085 |
| Tiefe (m) | 0,070 |
