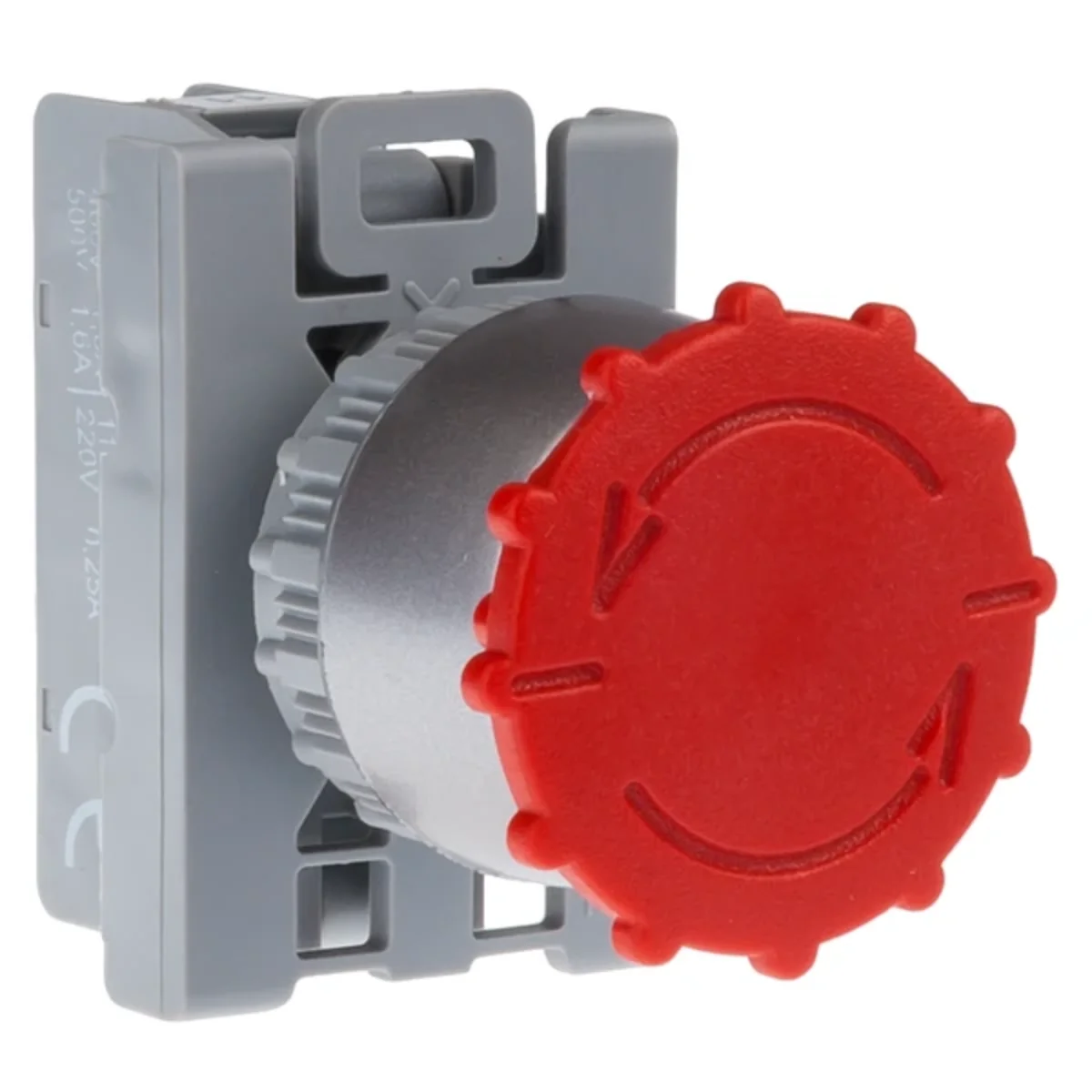

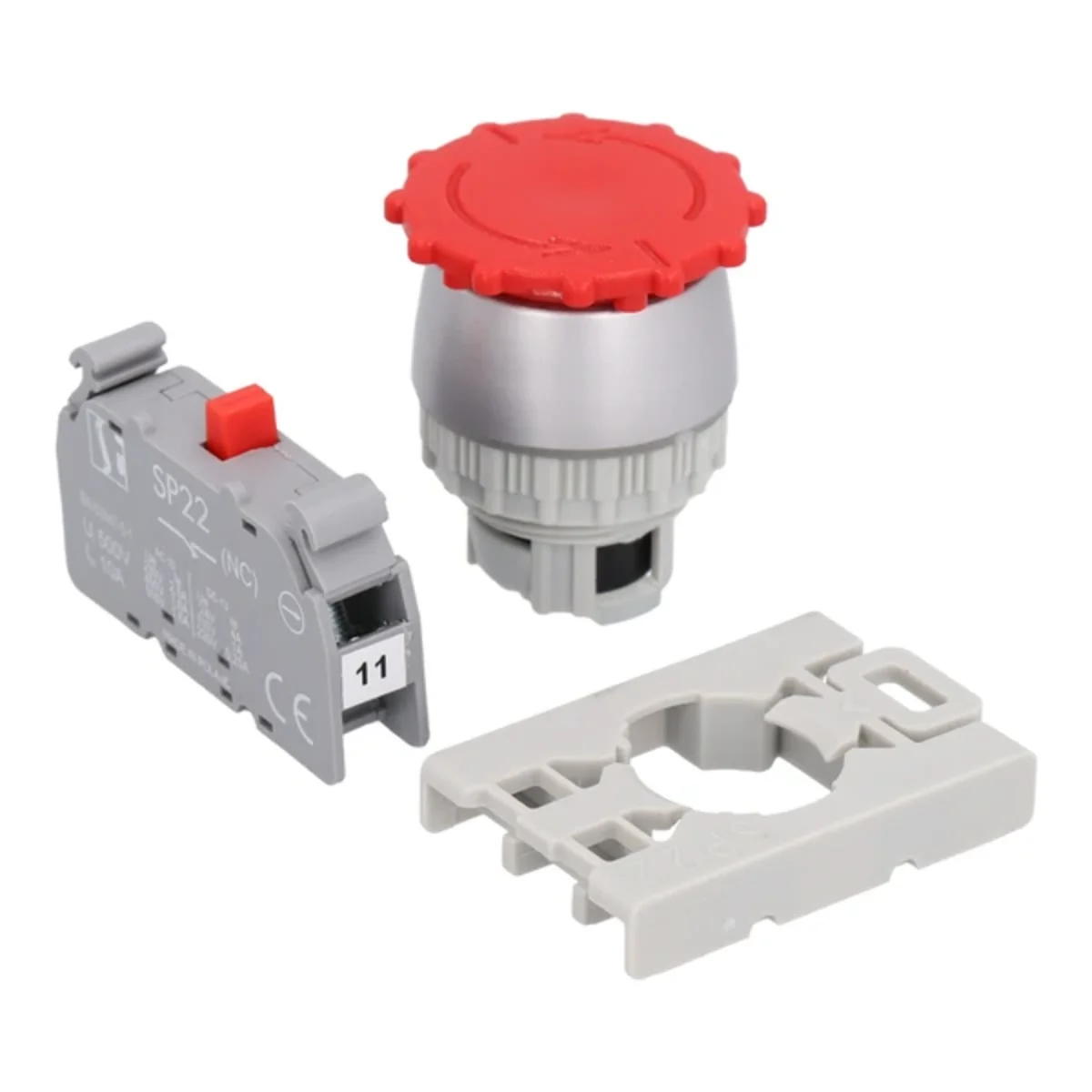

SP22 pushbutton in fire protection housing SP22-B-10\.
local index:
AKS005SPAM
Catalog No:
SP22-B-10\.
EAN code:
5907723056985
Manufacturer:
SPAMEL
Level of security: IP55
Price:
14,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SP22 button in a fire protection housing red lockable key with IP55 degree of protection complements the SP22 series control pushbuttons. The housing has a second class of protection. The button has two current paths: NO and NC with the possibility of backlighting. fire button complies with the provisions of the standard: PN-EN 60947-5-1
Technical data
-
Level of securityIP55
Other technical data
-
Number of command positions1
-
Colour buttonRed
-
Hole diameter22 mm
-
Height opening22 mm
-
Switching function latchingYes
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
With front ringYes
-
Colour front ringGrey
-
Type of buttonMushroom
-
Construction type lensRound
-
Width opening22 mm
-
Suitable for illuminationNo
-
Spring-returnNo
-
Number of contacts as normally closed contact0
-
Type of electric connectionScrew connection
-
Material front ringPlastic
-
Degree of protection (IP)IP65
Manufacturer details
-
ManufacturerSPAMEL Spółdzielnia Inwalidów
-
Address56-416 Twardogóra Wojska Polskiego 3
-
Phone number
-
E-mail
-
Tax identification number9110007746
-
GLN5909000065000
