SLS Selective circuit breaker 63A 3P E rails 12x5/10mm 40mm HTS363E

Name: SLS Selective circuit breaker 63A 3P E rails 12x5/10mm 40mm
Brand: HAGER
SKU: ABS085HAGE
Price: 370.83 PLN

Indeks lokalny:

ABS085HAGE

Nr katalogowy:

HTS363E

Kod EAN:

3250613303167

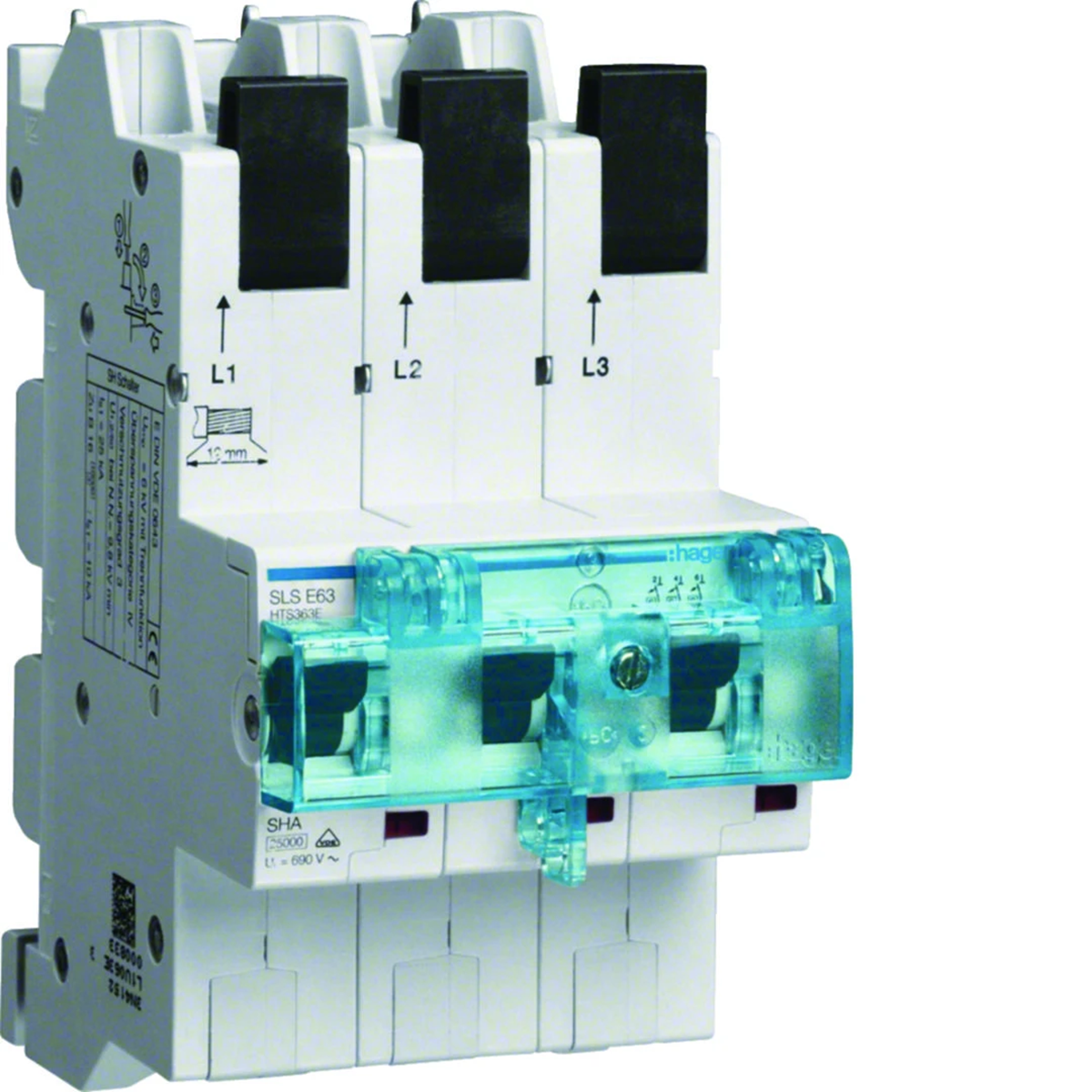

SLS Selective circuit breaker 63A 3P E rails 12x5/10mm 40mm

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Rated frequency [Hz]: 60

Length [mm]: 114.2

Number of poles: 3

Zobacz cały opis

Cena:

370,83 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Selective overcurrent circuit breaker SLS series.

63A,
for mounting on busbars,< /li>
for 40 mm busbar spacing Cu 12x5/10mm,
tripping characteristic E:
- thermal release 1.05 to 1.20 x IN
- electromagnetic release 5 x 6.25 IN
rated voltage: 230/400 V
contact position indicator

Specifications of the SLS series:

The selective circuit breaker ensures ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Dane techniczne

Rated frequency [Hz]

60
Number of poles

3
Rated insulation voltage [V]

690
Family

SLS
Power dissipation [W]

10
Power loss per pole [W]

10
Height [mm]

158
Mechanical durability (number of cycles)

10000
Rated switching voltage [V]

230/400
Max/min value of the AC current of the protection activation

5/6.25 in
storage temperature [°C]

from -25 to 80
Wire cross-section (cord) [mm²]

1 - 16
PKWIU

27.33.11.0

Length [mm]

114.2
Installation

On the TH-35 rail
Rated current [A]

63
Level of security

IP20
power loss [W]

thirty
Width [mm]

81
Electrical endurance (number of cycles)

1500
Operating temperature range [°C]

from -25 to 55
Number of modules

4.5
Operating short-circuit breaking current Ics [kA]

12.5
Rated surge voltage [V]

6000
Conductor cross-section (wire) [mm²]

1 - 25

Pozostałe dane techniczne

Release characteristic

E
Rated current

63 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

3
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

Busbar
