SLS Selective circuit breaker 63A 3P E rails 12x5/10mm 40mm HTS363E

Name: SLS Selective circuit breaker 63A 3P E rails 12x5/10mm 40mm
Brand: HAGER
SKU: ABS085HAGE
Price: 370.06 PLN

local index:

ABS085HAGE

Catalog No:

HTS363E

EAN code:

3250613303167

SLS Selective circuit breaker 63A 3P E rails 12x5/10mm 40mm

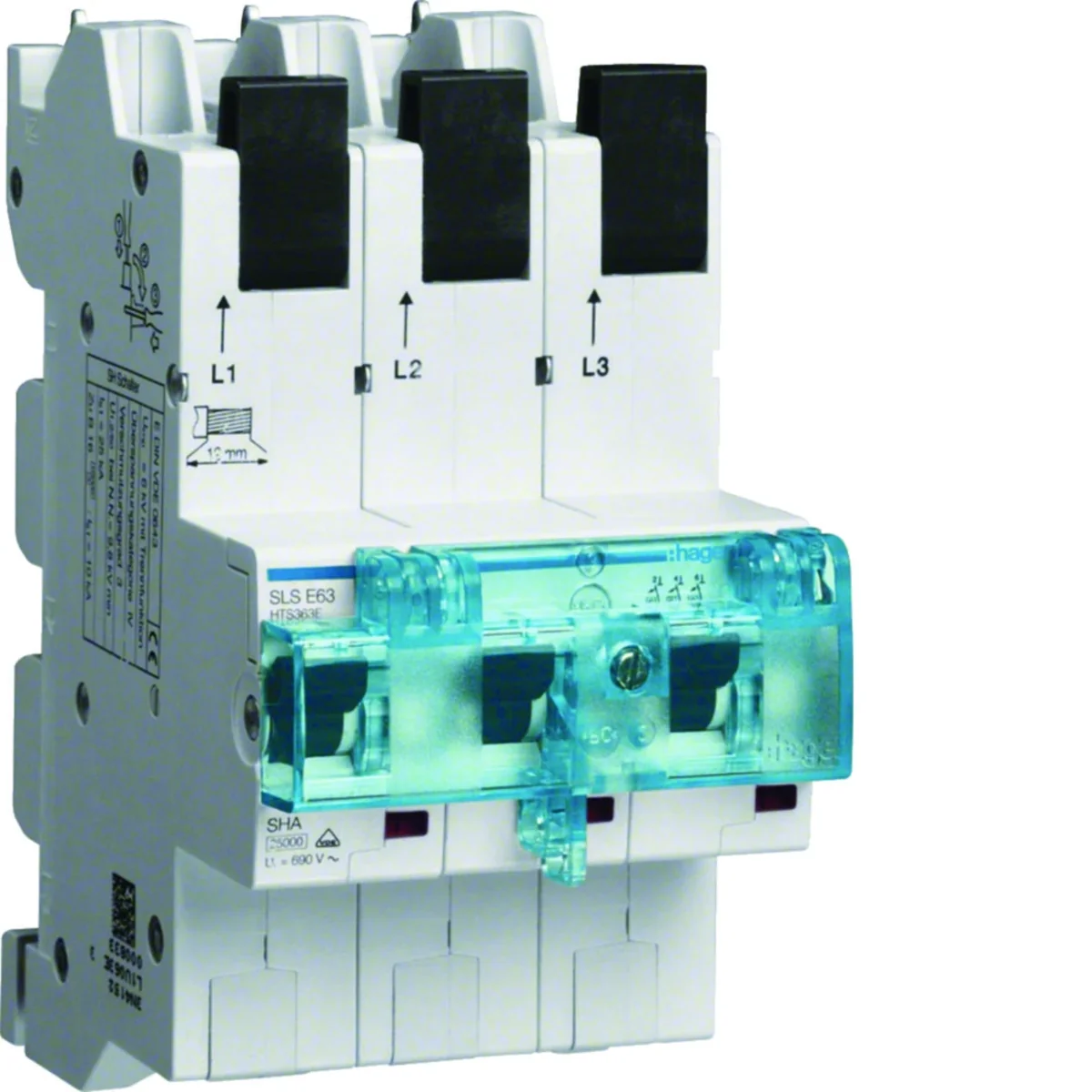

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Length [mm]: 114.2

Number of poles: 3

See full description

Price:

370,06 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Selective overcurrent circuit breaker SLS series.

63A,
for mounting on busbars,< /li>
for 40 mm busbar spacing Cu 12x5/10mm,
tripping characteristic E:
- thermal release 1.05 to 1.20 x IN
- electromagnetic release 5 x 6.25 IN
rated voltage: 230/400 V
contact position indicator

Specifications of the SLS series:

The selective circuit breaker ensures ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Technical data

Rated frequency [Hz]

60
Number of poles

3
Rated insulation voltage [V]

690
Family

SLS
Power dissipation [W]

10
Power loss per pole [W]

10
Height [mm]

158
Mechanical durability (number of cycles)

10000
Rated switching voltage [V]

230/400
Max/min value of the AC current of the protection activation

5/6.25 in
storage temperature [°C]

from -25 to 80
Wire cross-section (cord) [mm²]

1 - 16
PKWIU

27.33.11.0

Length [mm]

114.2
Installation

On the TH-35 rail
Rated current [A]

63
Level of security

IP20
power loss [W]

thirty
Width [mm]

81
Electrical endurance (number of cycles)

1500
Operating temperature range [°C]

from -25 to 55
Number of modules

4.5
Operating short-circuit breaking current Ics [kA]

12.5
Rated surge voltage [V]

6000
Conductor cross-section (wire) [mm²]

1 - 25

Other technical data

Release characteristic

E
Rated current

63 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

3
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

Busbar

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	8 pcs.	192 pcs.	1 pcs.	8 pcs.	192 pcs.
Weight (kg)	1,070	8,620	206,910	1,070	8,620	206,910
Width (m)	0,150	0,310	0,800	0,150	0,310	0,800
Length (m)	0,080	0,210	1,010	0,080	0,210	1,010
Depth (m)	0,180	0,360	1,200	0,180	0,360	1,200
