SLS Selective circuit breaker 25A 3P E rails 12x5/10mm 40mm HTS325E

Name: SLS Selective circuit breaker 25A 3P E rails 12x5/10mm 40mm
Brand: HAGER
SKU: ABS075HAGE
Price: 1401.68 PLN
Availability: BackOrder

Index local:

ABS075HAGE

Numéro de catalogue:

HTS325E

Code EAN:

3250613303112

SLS Selective circuit breaker 25A 3P E rails 12x5/10mm 40mm

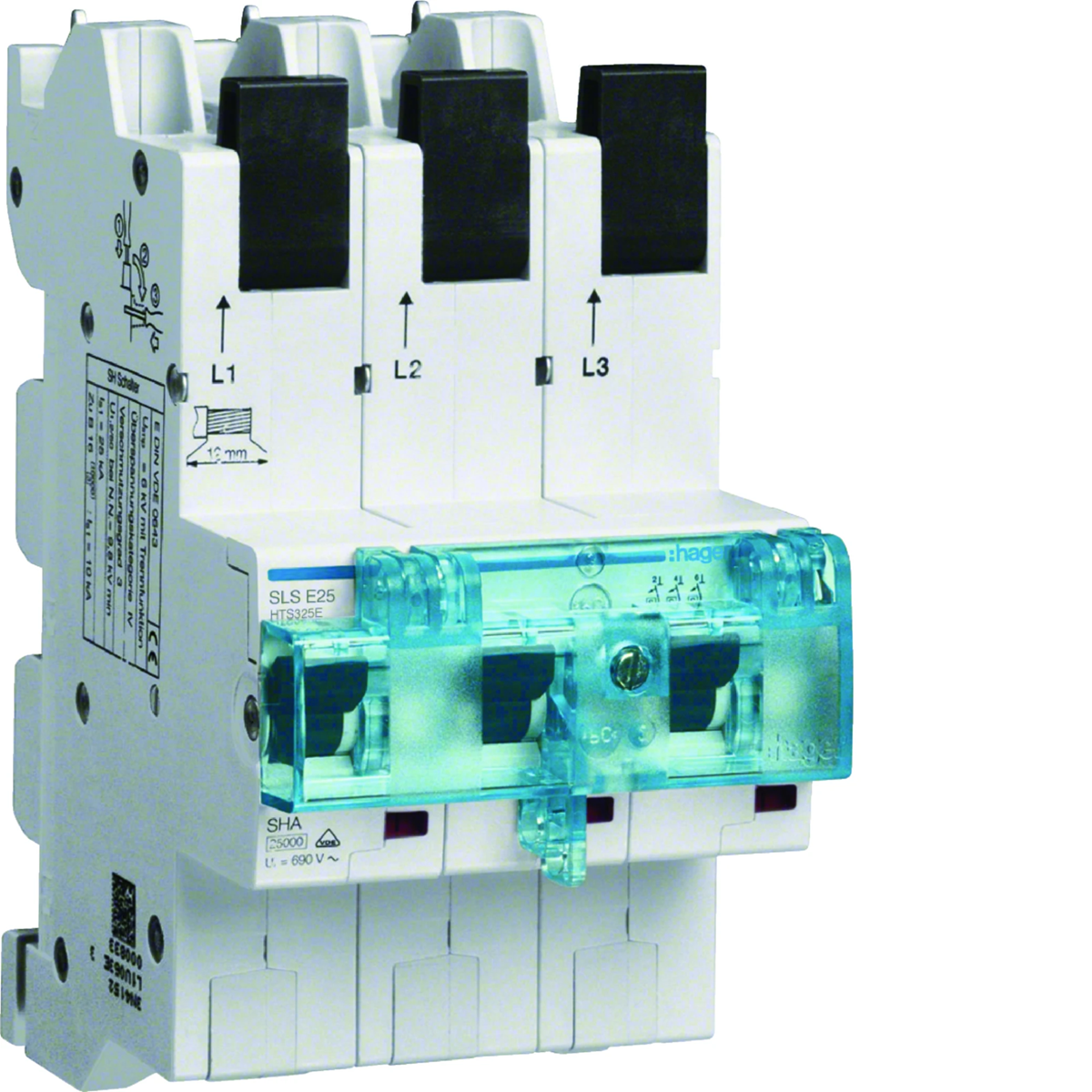

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Rated frequency [Hz]: 60

Length [mm]: 114.2

Number of poles: 3

Voir la description complète

Prix:

1 401,68 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Selective overcurrent circuit breaker SLS series.

25A,
for mounting on busbars,< /li>
for 40 mm busbar spacing Cu 12x5/10mm,
tripping characteristic E:
- thermal release 1.05 to 1.20 x IN
- electromagnetic release 5 x 6.25 IN
rated voltage: 230/400 V
contact position indicator

Specifications of the SLS series:

The selective circuit breaker ensures ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Données techniques

Rated frequency [Hz]

60
Number of poles

3
Rated insulation voltage [V]

690
Family

SLS
Power dissipation [W]

6.5
Power loss per pole [W]

4
Height [mm]

158
Mechanical durability (number of cycles)

10000
Rated switching voltage [V]

230/400
Max/min value of the AC current of the protection activation

5/6.25 in
storage temperature [°C]

from -25 to 80
Wire cross-section (cord) [mm²]

1 - 16
PKWIU

27.33.11.0

Length [mm]

114.2
Installation

On the TH-35 rail
Rated current [A]

25
Level of security

IP20
power loss [W]

12
Width [mm]

81
Electrical endurance (number of cycles)

1500
Operating temperature range [°C]

from -25 to 55
Number of modules

4.5
Operating short-circuit breaking current Ics [kA]

12.5
Rated surge voltage [V]

6000
Conductor cross-section (wire) [mm²]

1 - 25

Autres données techniques

Release characteristic

E
Rated current

25 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

3
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

Busbar

Détails du fabricant

Producteur

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	1 pcs.	8 pcs.	192 pcs.
poids (kg)	1,240	10,245	268,880
Largeur (m)	0,150	0,310	0,800
Longueur (m)	0,080	0,200	0,970
Profondeur (m)	0,180	0,360	1,200
