SLS Selective circuit breaker 1P Cs 50A busbar 12x5/10mm 40mm L3 HTS150C3

Name: SLS Selective circuit breaker 1P Cs 50A busbar 12x5/10mm 40mm L3
Brand: HAGER
SKU: ABS047HAGE
Price: 82.03 PLN

local index:

ABS047HAGE

Catalog No:

HTS150C3

EAN code:

3250613305758

SLS Selective circuit breaker 1P Cs 50A busbar 12x5/10mm 40mm L3

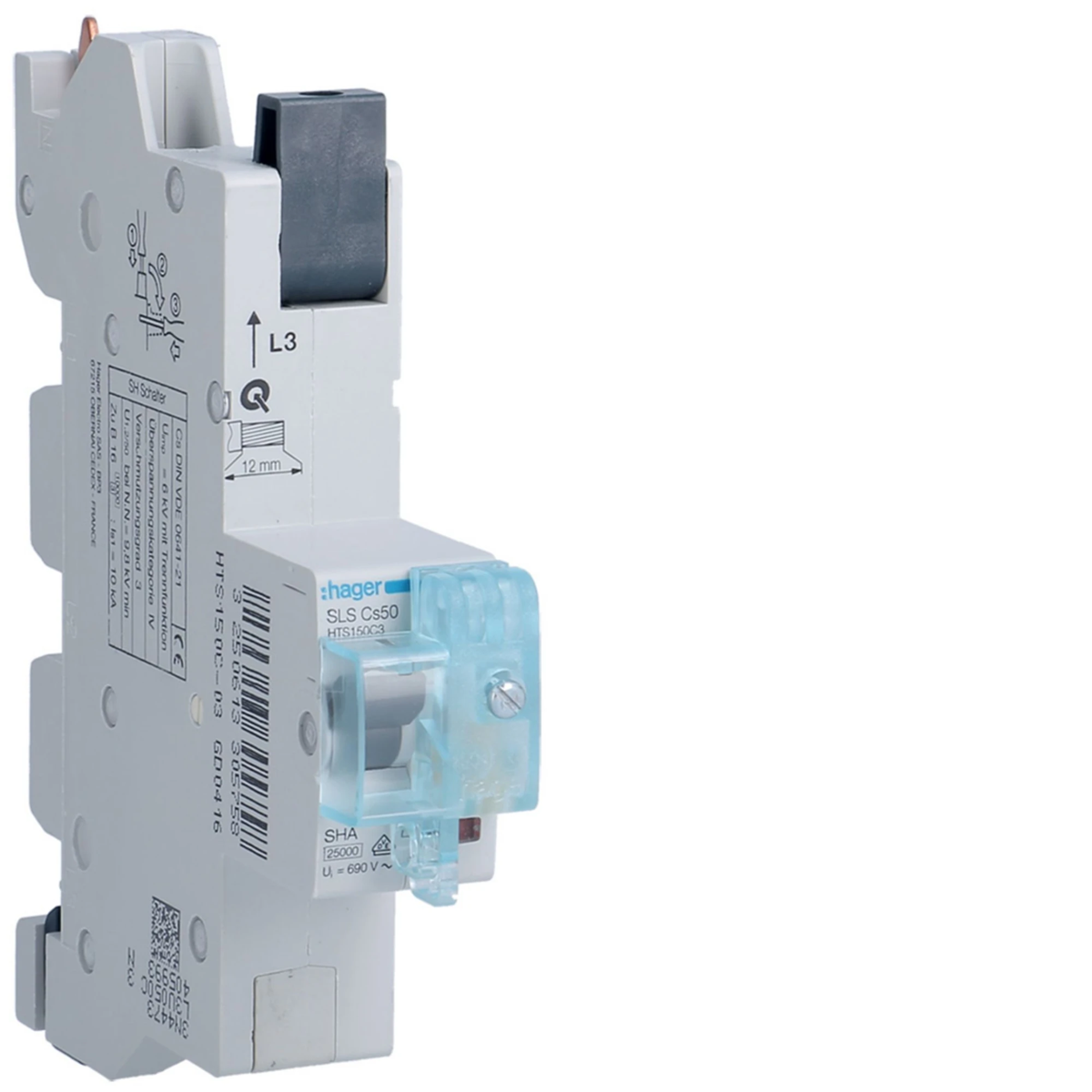

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Length [mm]: 114.2

Number of poles: 1

See full description

Price:

82,03 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Selective overcurrent circuit breaker SLS series.

50A,
L3,
for 40 mm busbar spacing Cu 12x5/10mm,
Tripping characteristic Cs:
- Thermal release 1.13 to 1.45 x IN
- electromagnetic release 6.5 x 10 IN
rated voltage: 230/400 V
indicator position of contacts

SLS series characteristics:

The selective circuit breaker ensures easy operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Technical data

Rated frequency [Hz]

60
Number of poles

1
Rated insulation voltage [V]

690
Family

SLS
Power dissipation [W]

10
Power loss per pole [W]

7.2
Height [mm]

158
Mechanical durability (number of cycles)

10000
Rated switching voltage [V]

230/400
Max/min value of the AC current of the protection activation

6.5/10 in
storage temperature [°C]

from -25 to 80
Wire cross-section (cord) [mm²]

1 - 16
PKWIU

27.12.22.0

Length [mm]

114.2
Installation

On the TH-35 rail
Rated current [A]

50
Level of security

IP20
power loss [W]

7.2
Width [mm]

27
Electrical endurance (number of cycles)

1500
Operating temperature range [°C]

from -25 to 55
Number of modules

1.5
Operating short-circuit breaking current Ics [kA]

12.5
Rated surge voltage [V]

6000
Conductor cross-section (wire) [mm²]

1 - 25

Other technical data

Release characteristic

Cs
Rated current

50 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

1
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

Busbar

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	3 pcs.	24 pcs.	576 pcs.
Weight (kg)	0,400	1,250	10,380	272,120
Width (m)	0,027	0,155	0,315	0,800
Length (m)	0,151	0,085	0,210	1,050
Depth (m)	0,118	0,180	0,360	1,200
