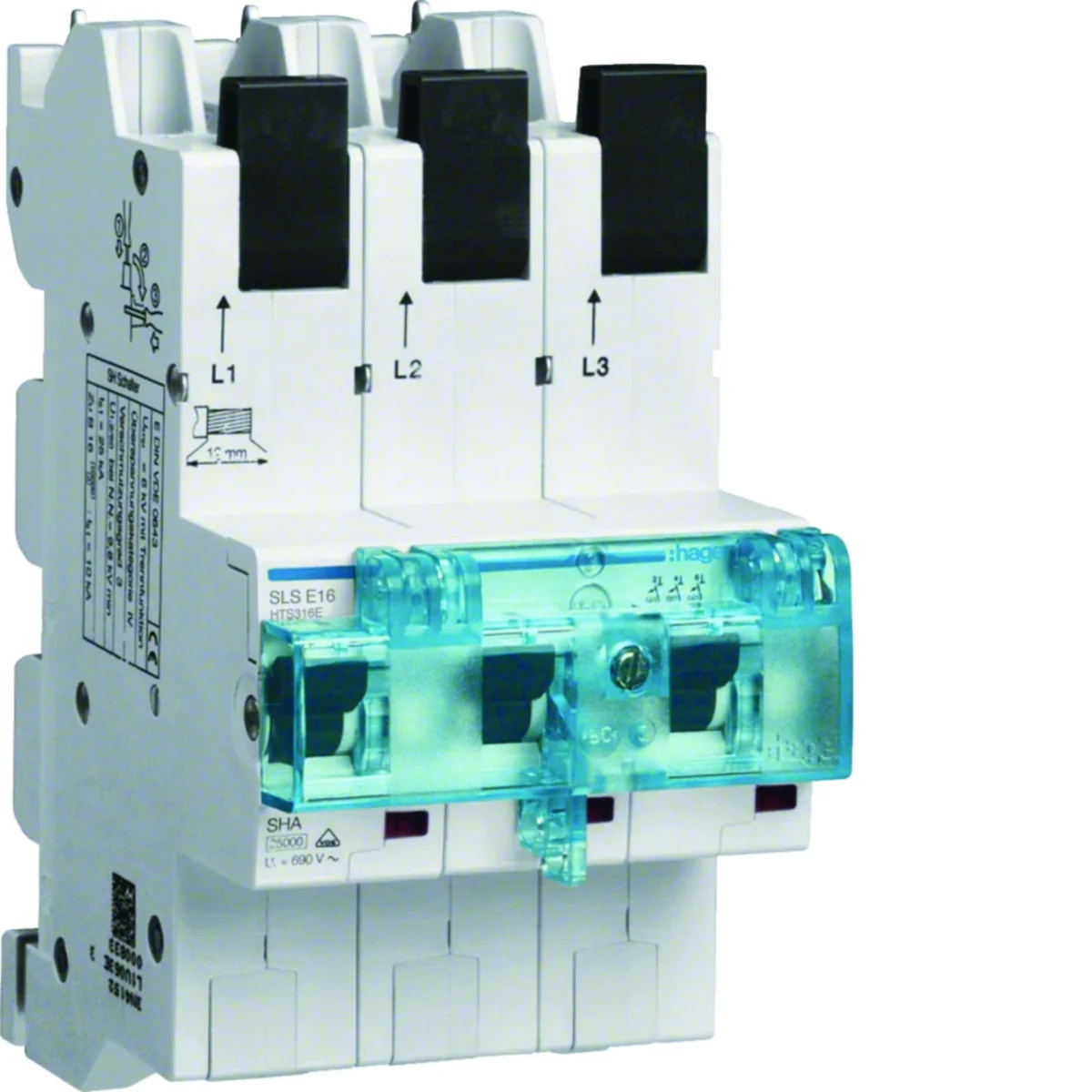

SLS Selective circuit breaker 16A 3P E rails 12x5/10mm 40mm HTS316E

local index:
ABS071HAGE
Catalog No:
HTS316E
EAN code:
3250613303099
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 114.2
Number of poles: 3
Price:
279,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Selective overcurrent circuit breaker SLS series.

  • 16A,
  • for mounting on busbars,< /li>
  • for 40 mm busbar spacing Cu 12x5/10mm,
  • tripping characteristic E:
    • thermal release 1.05 to 1.20 x IN
    • electromagnetic release 5 x 6.25 IN
  • rated voltage: 230/400 V
  • contact position indicator
  • Specifications of the SLS series:

    The selective circuit breaker ensures ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Technical data

  • Rated frequency [Hz]
    60
  • Number of poles
    3
  • Rated insulation voltage [V]
    690
  • Family
    SLS
  • Power dissipation [W]
    6.5
  • Power loss per pole [W]
    2.4
  • Height [mm]
    158
  • Mechanical durability (number of cycles)
    10000
  • Rated switching voltage [V]
    230/400
  • Max/min value of the AC current of the protection activation
    5/6.25 in
  • storage temperature [°C]
    from -25 to 80
  • Wire cross-section (cord) [mm²]
    1 - 16
  • PKWIU
    27.33.11.0
  • Length [mm]
    114.2
  • Installation
    On the TH-35 rail
  • Rated current [A]
    16
  • Level of security
    IP20
  • power loss [W]
    7.2
  • Width [mm]
    81
  • Electrical endurance (number of cycles)
    1500
  • Operating temperature range [°C]
    from -25 to 55
  • Number of modules
    4.5
  • Operating short-circuit breaking current Ics [kA]
    12.5
  • Rated surge voltage [V]
    6000
  • Conductor cross-section (wire) [mm²]
    1 - 25

Other technical data

  • Release characteristic
    E
  • Rated current
    16 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    3
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    Busbar

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 8 pcs. 192 pcs.
Weight (kg) 1,200 1,280 10,595 277,280
Width (m) 0,081 0,153 0,321 0,800
Length (m) 0,151 0,084 0,211 0,994
Depth (m) 0,118 0,181 0,367 1,200
