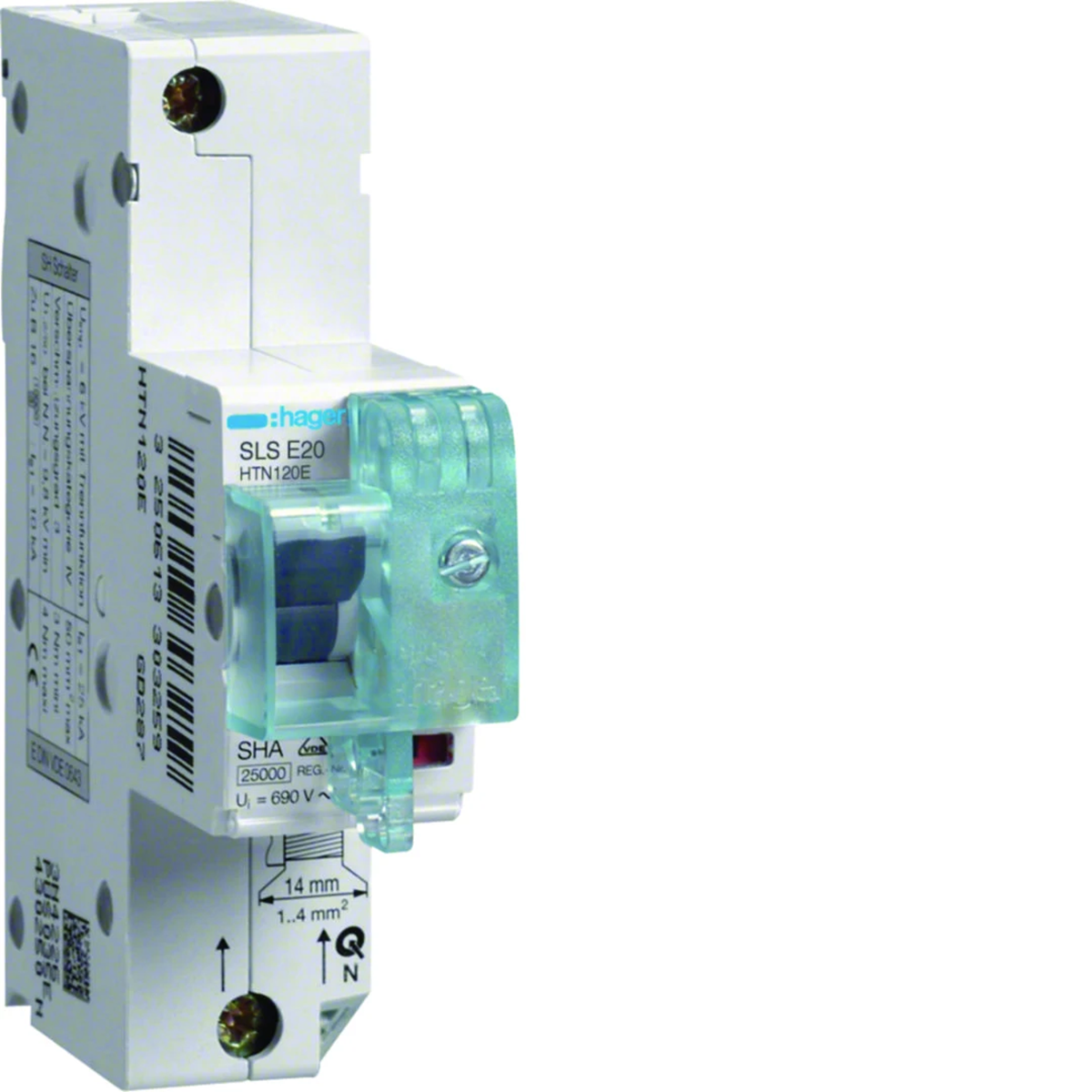

SLS 20A single-pole selector circuit breaker HTN120E

local index:
ABS052HAGE
Catalog No:
HTN120E
EAN code:
3250613303228
Manufacturer: HAGER
Characteristic: E
Depth [mm]: 85
Number of modules: 1.5
Price:
89,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

SLS 20A single-pole selector circuit breaker

Technical data

  • Characteristic
    E
  • Number of modules
    1.5
  • Rated voltage [V]
    230
  • Rated current [A]
    20
  • Width [mm]
    27
  • Rated short-circuit breaking capacity [kA]
    25
  • PKWIU
    27.12.22.0
  • Depth [mm]
    85
  • Number of poles
    1
  • Rated insulation voltage [V]
    690
  • Power dissipation [W]
    2.8
  • Height [mm]
    110
  • Number of modules
    1.5

Other technical data

  • Release characteristic
    E
  • Rated current
    20 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    1
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    DIN rail

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 3 pcs. 24 pcs. 576 pcs.
Weight (kg) 1,050 8,784 233,816
Width (m) 0,120 0,316 0,800
Length (m) 0,084 0,209 0,986
Depth (m) 0,151 0,366 1,200
