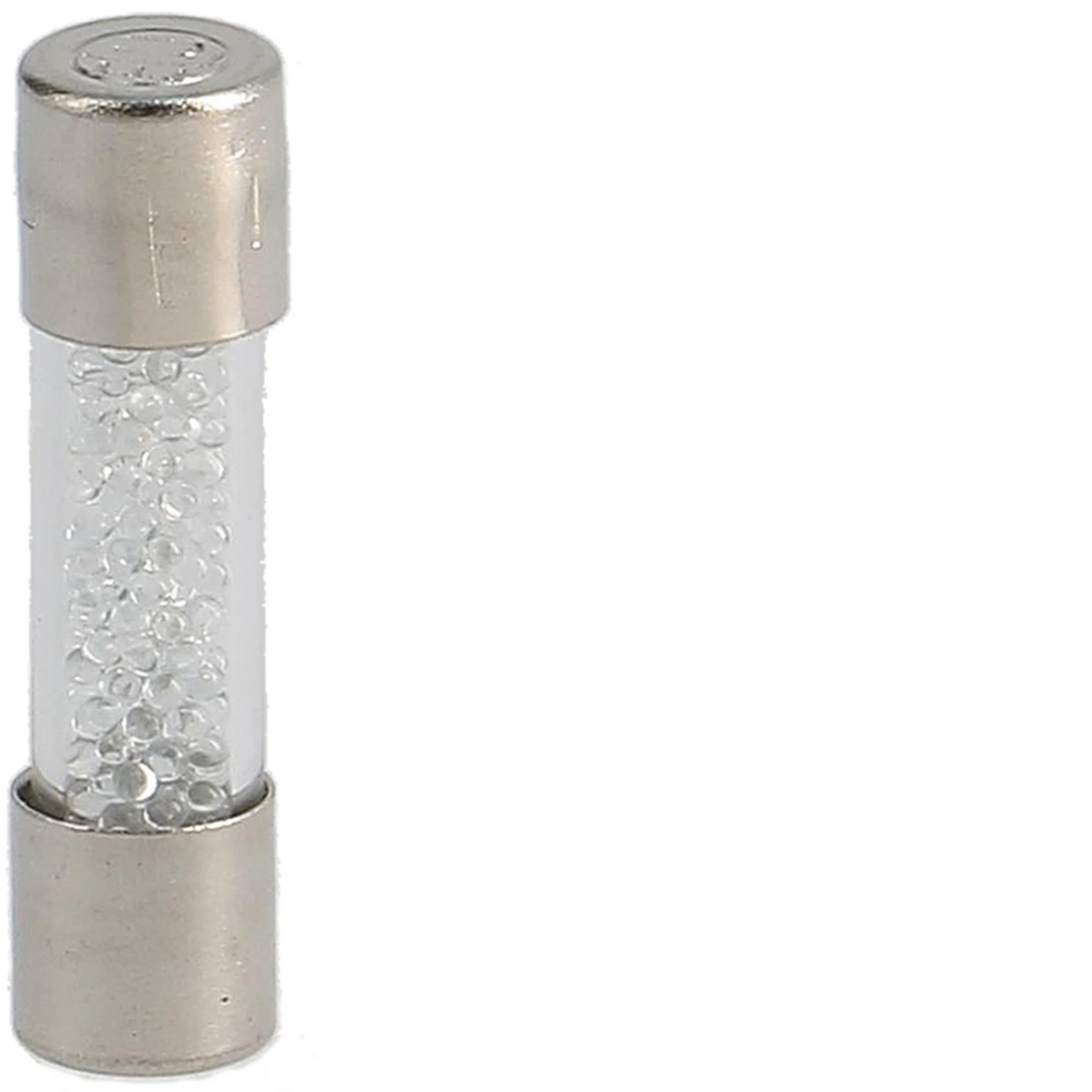

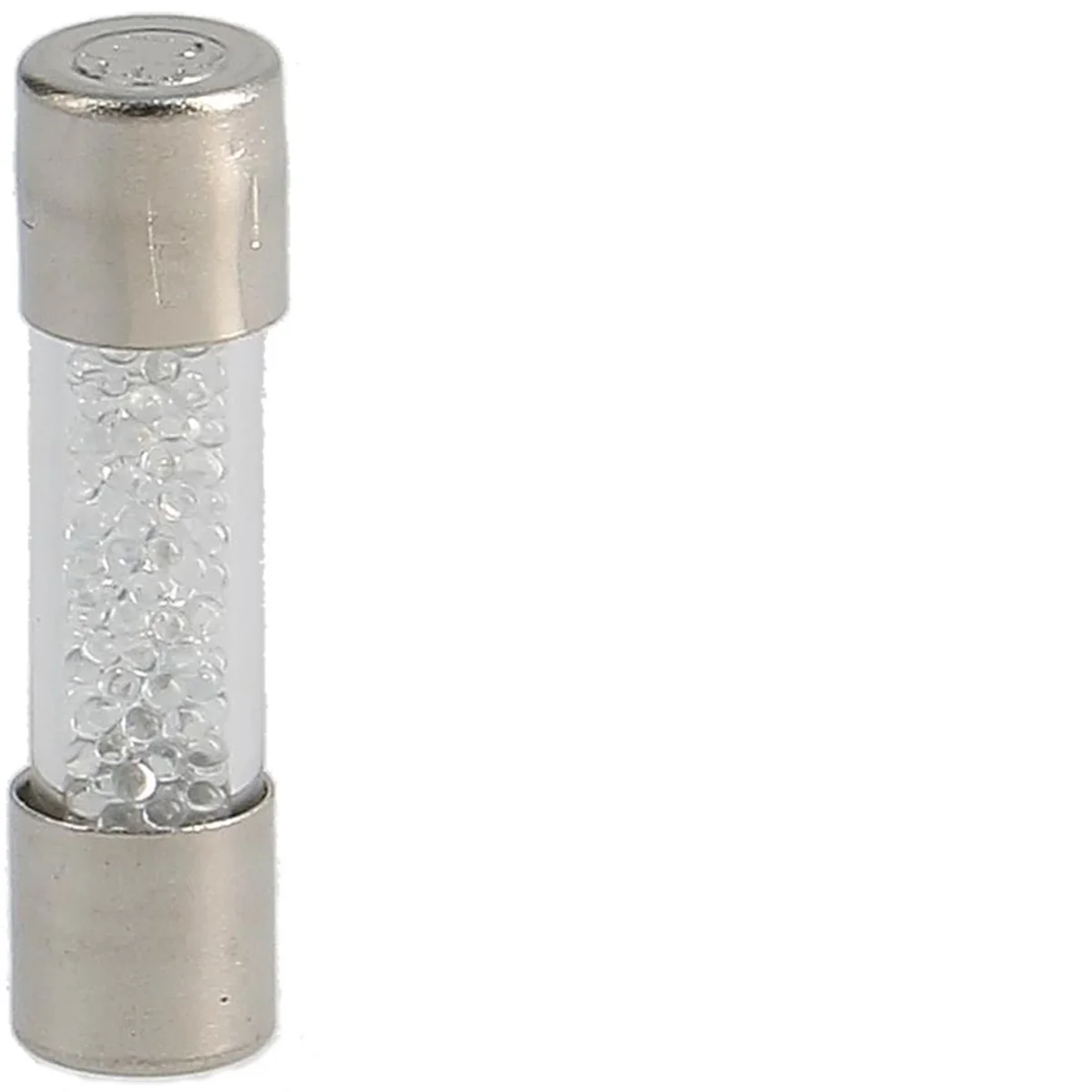

Slow-blow fuse T5020D 5x20mm 3.15A L520TG03-150

local index:
ABI104HAGE
Catalog No:
L520TG03-150
EAN code:
3250614127410
Manufacturer: HAGER
Rated current [A]: 3.15
Fuse link size: 5 x 20
Rated switching voltage [V]: 250
Price:
0,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass fuse link slow-action, arc extinguishing:

  • 3.15A,
  • tripping characteristics: träge (T),
  • fuse link size: 5 x 20.

Technical data

  • Rated current [A]
    3.15
  • Rated switching voltage [V]
    250
  • Fuse link size
    5 x 20
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    Other
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    0.3 kA
  • Voltage type
    AC
  • Release characteristic
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 40000 pcs.
Weight (kg) 0,001 0,012 0,120 40,000
Width (m) 0,005 0,021 0,045 0,800
Length (m) 0,005 0,006 0,065 0,450
Depth (m) 0,020 0,051 0,080 1,200
