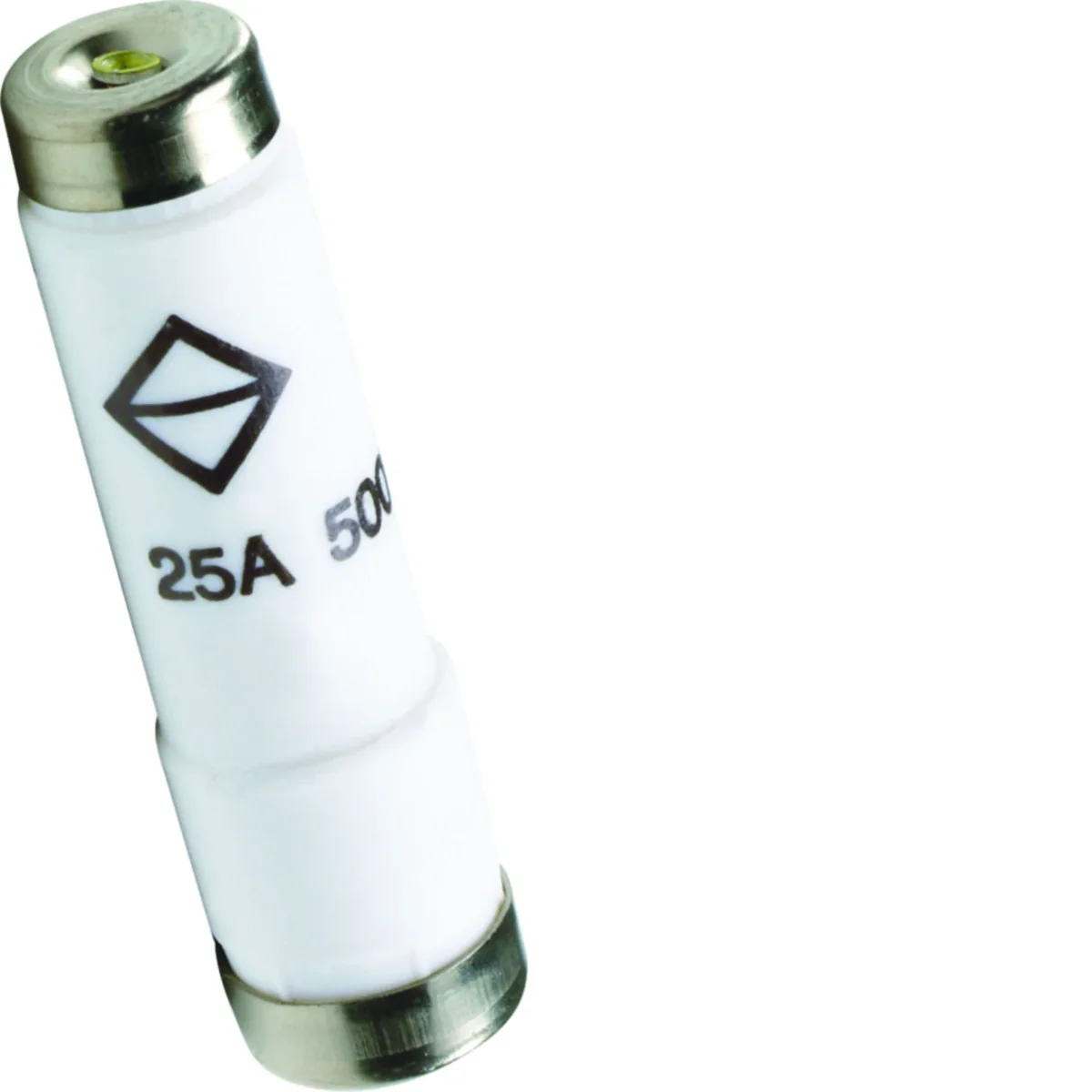

Slow-blow fuse link NTZ T-25A 500V DI/E16 LNDZ25
local index:
ABI452HAGE
Catalog No:
LNDZ25
EAN code:
3250614131646
Price:
2,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DI slow-blow fuse link (for E16 sockets):
- fuse characteristic: gG,
- tripping characteristic: träge (T).
Technical data
-
Length [mm]50
-
Rated current [A]25
-
Width [mm]13.2
-
Height [mm]13.2
-
Rated short-circuit breaking capacity Icn [kA]4
-
DC operating voltage [V]0/500/550
-
power loss [W]3.4
-
Fuse link sizeSUN
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
Other technical data
-
Construction sizeNDZ
-
Rated voltage500 V
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Rated current25 A
-
Colour codeYellow
-
Release characteristicTime-lag (T)
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 25 pcs. | 500 pcs. | 35000 pcs. |
| Weight (kg) | 0,014 | 0,410 | 8,310 | 604,700 |
| Width (m) | 0,013 | 0,075 | 0,160 | 0,800 |
| Length (m) | 0,013 | 0,055 | 0,125 | 0,750 |
| Depth (m) | 0,050 | 0,075 | 0,380 | 1,200 |
